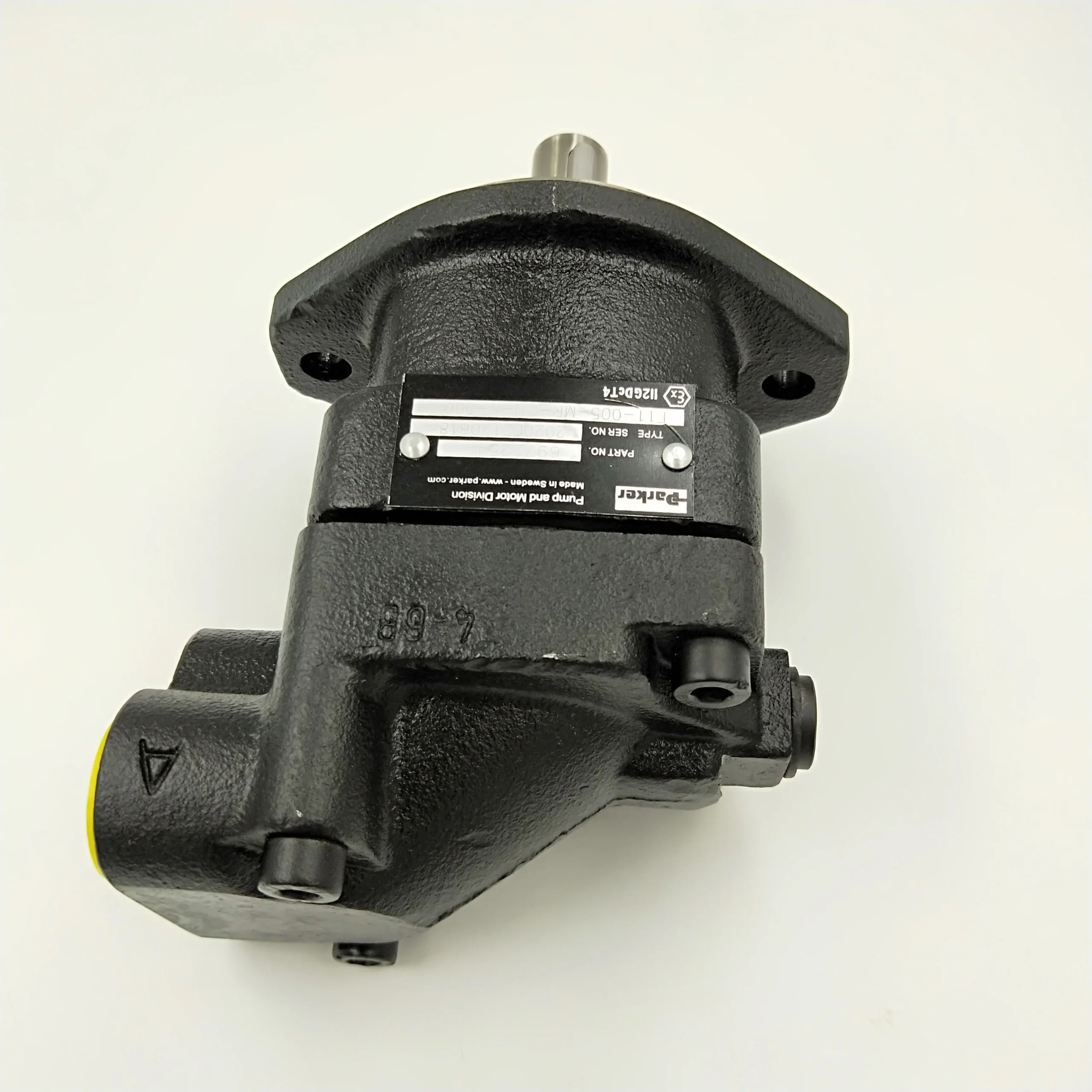

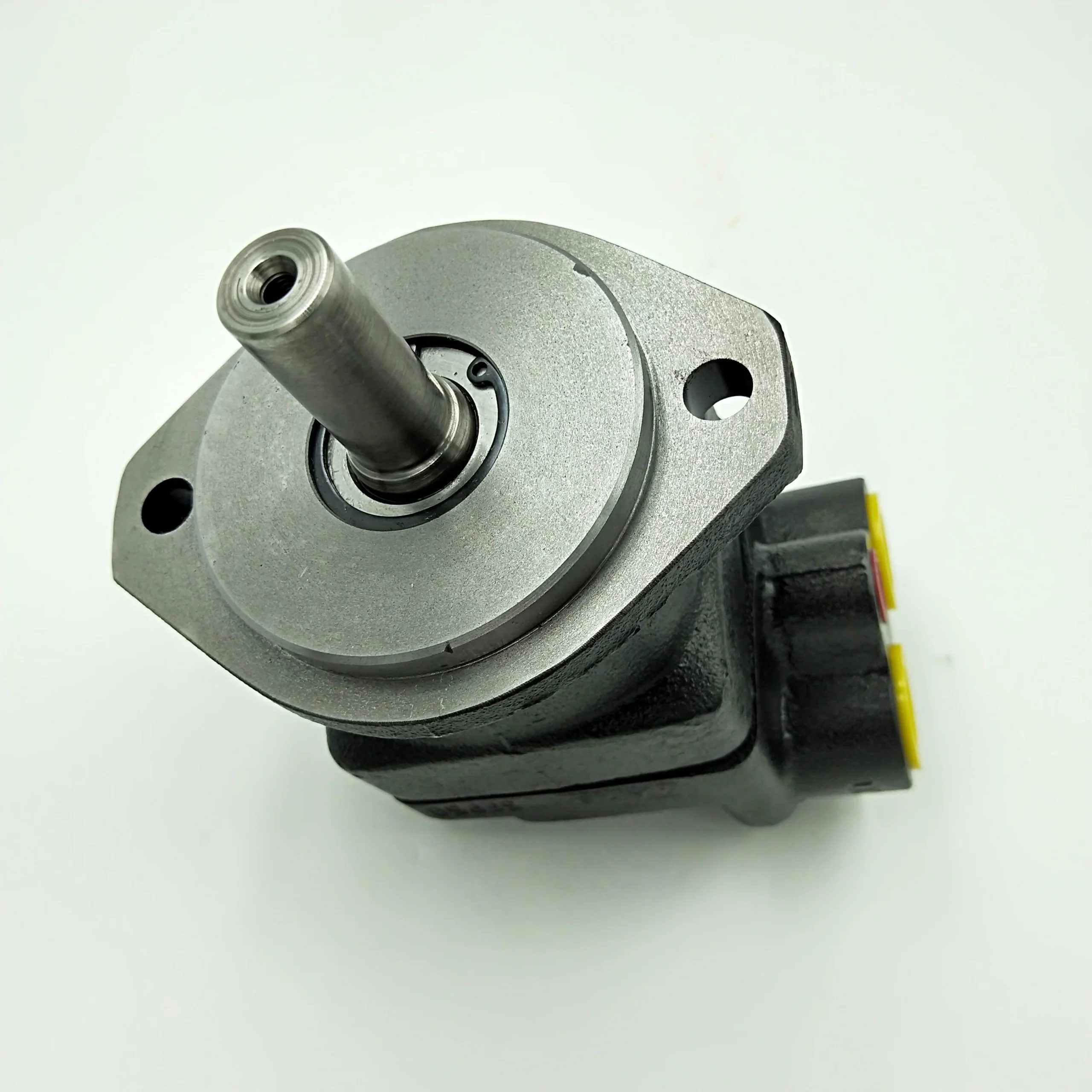

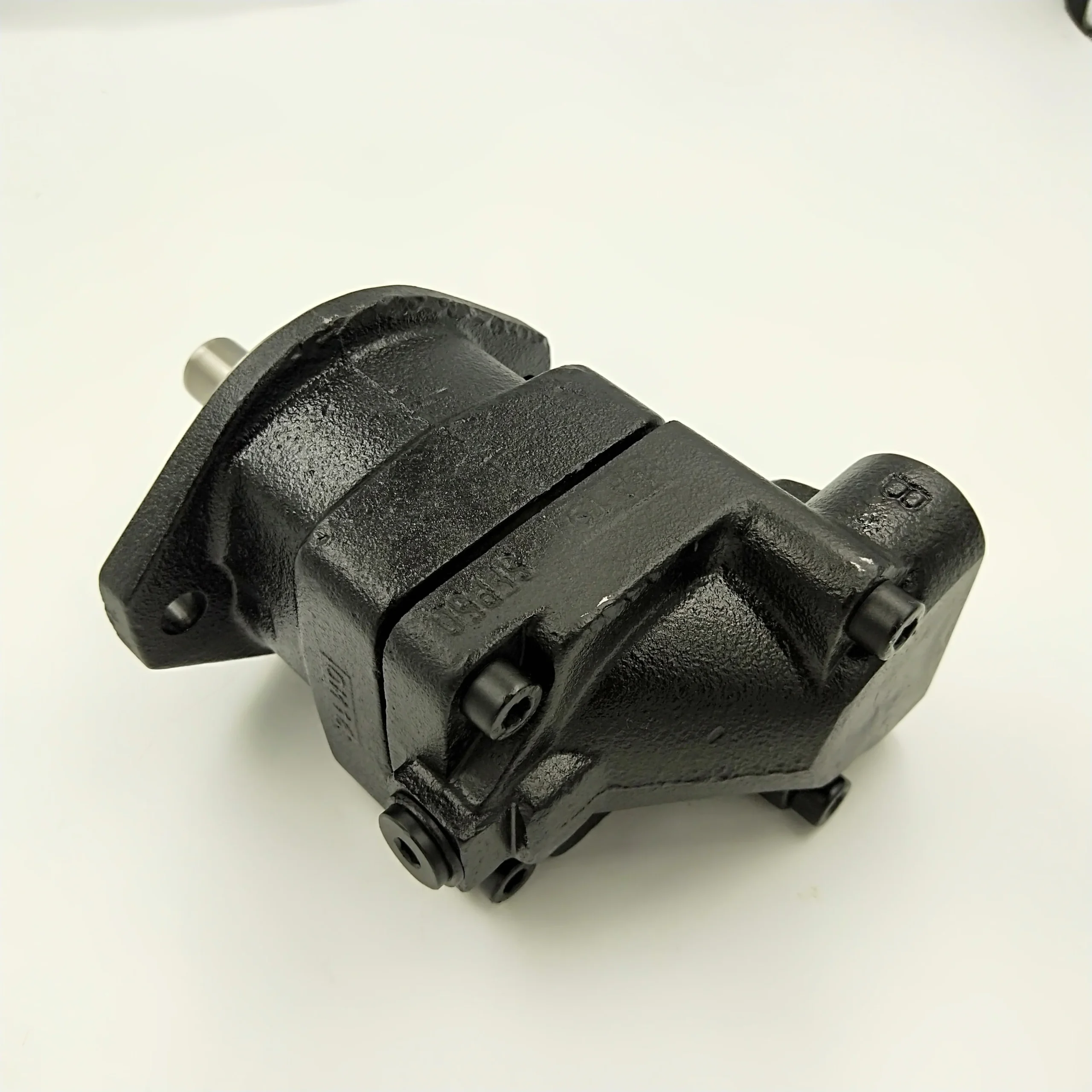

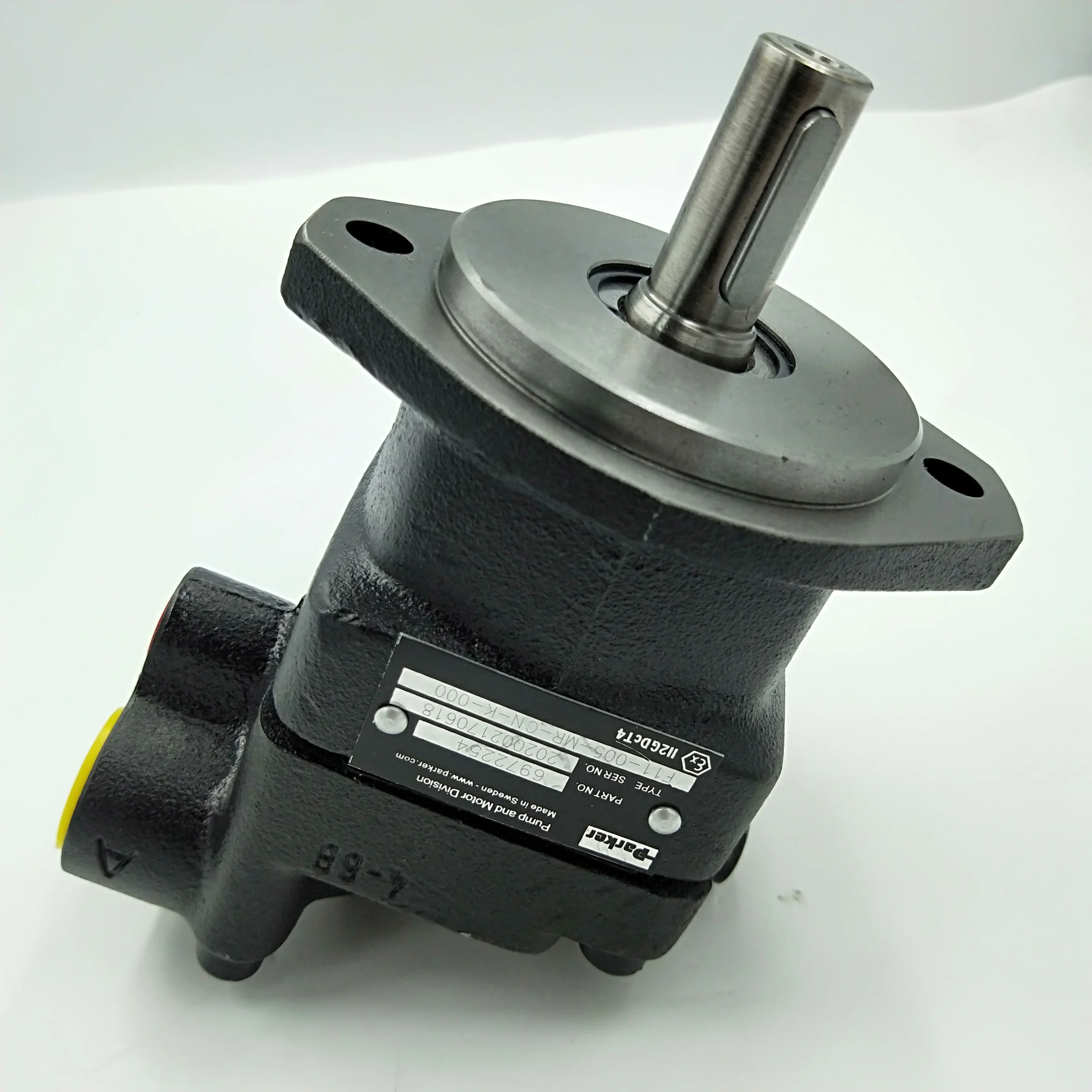

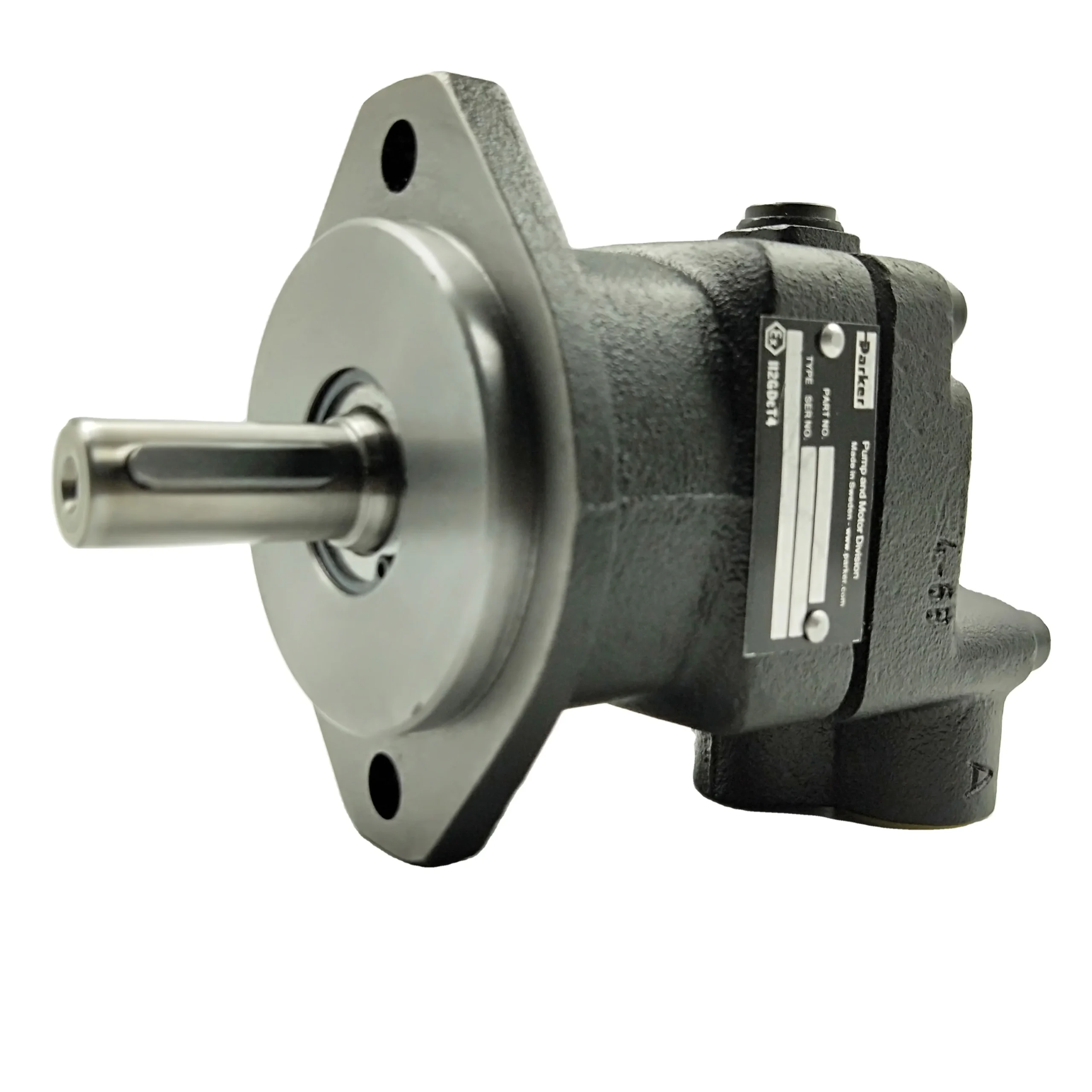

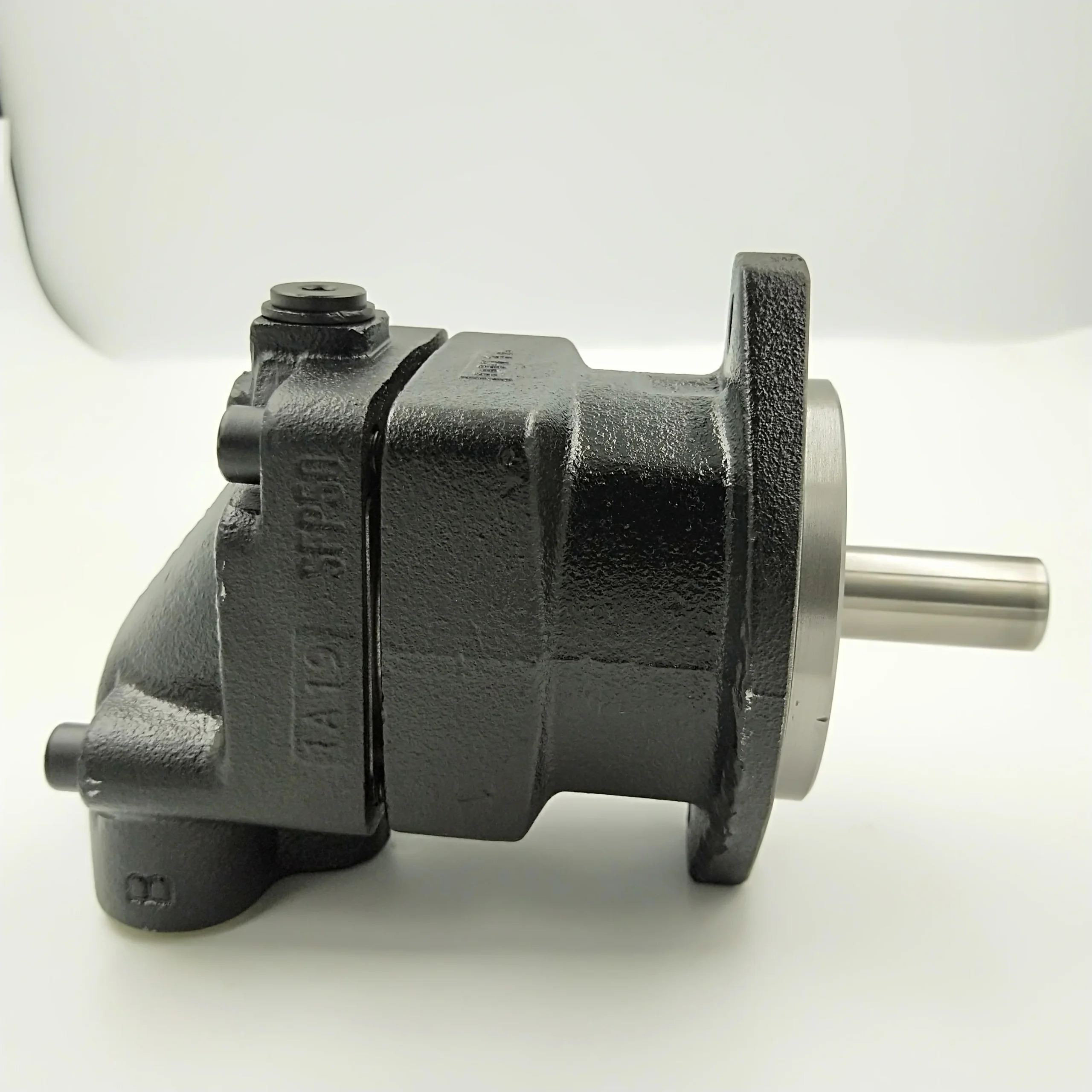

Parker F11 Motor | F11-005 F11-010 F11-014 F11-150 | Bent Axis Piston Motor | F11-005-MB-CV-K

Parker F11 Series High-Performance Bent Axis Hydraulic Motors

Product Overview: The Parker F11 Series is a premier fixed-displacement bent-axis motor engineered for the most punishing industrial and mobile applications. Leveraging advanced Bent Axis technology and spherical piston geometry, the F11 series delivers elite power-to-weight ratios and superior load tolerance. This category features the full range from 5cc to 250cc, highlighting the precision configuration: F11-005-MB-CV-K-209-000-0. These motors are the industry choice for forestry harvester heads, mower saw drives, hydraulic fan cooling systems, and industrial power units.

Key Technical Advantages:

• Elite High-Speed Performance: Optimized valve plates and piston architecture support extreme continuous RPMs with superior mechanical efficiency and minimal heat generation.

• Superior Shock Load Resilience: Equipped with laminated piston rings and reinforced bearings to withstand frequent starts, stops, and rapid reversals typical in heavy-duty cycles.

• Compact & Rugged Engineering: The bent-axis design reduces axial length compared to traditional axial motors, optimizing installation in restricted engine compartments.

• Extensive Modular Configurations: Available with diverse flanges (MB/HU/MF), sealing standards (CN/CV/SH), and shaft ends (K-Keyed/S-Spline/F-Flange).

• Technical Spec Decoding (F11-005-MB-CV-K…):

  • F11-005: Size 5cc, optimized for ultra-high speed and compact footprints.

  • MB / HU / QF: Corresponds to ISO, SAE, or cartridge mounting flange standards.

  • CV / CN / SH: Relates to Viton or Nitrile seals and various porting configurations.

  • K / S / F: Represents shaft configurations: Parallel Keyed, Involute Spline, or specialized flange shafts.

Detailed Models & Parameters:

• Core Series: Parker F11 Series (Fixed Displacement).

• Model Range Matrix:

  • Small Frame: F11-005, F11-010, F11-012, F11-014, F11-019.

  • Heavy Frame: F11-150, F11-250.

• Core Performance Specs:

  • Max Pressure: Continuous 350 Bar, intermittent peak up to 420 Bar (6000 PSI).

  • Max Speed: Small frame units can exceed 10,000 RPM depending on displacement.

  • Efficiency: Elite volumetric efficiency for precise machine control and responsiveness.
