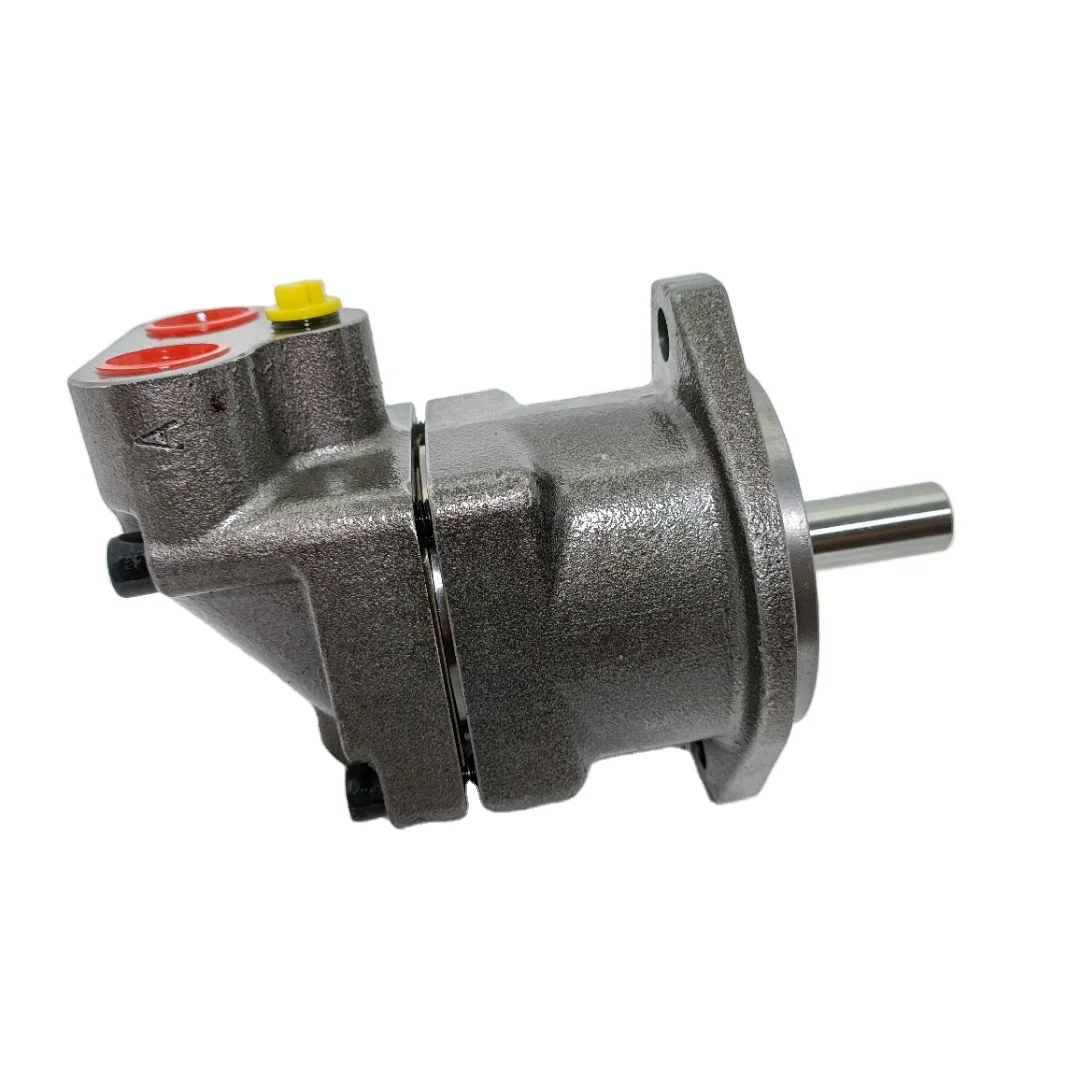

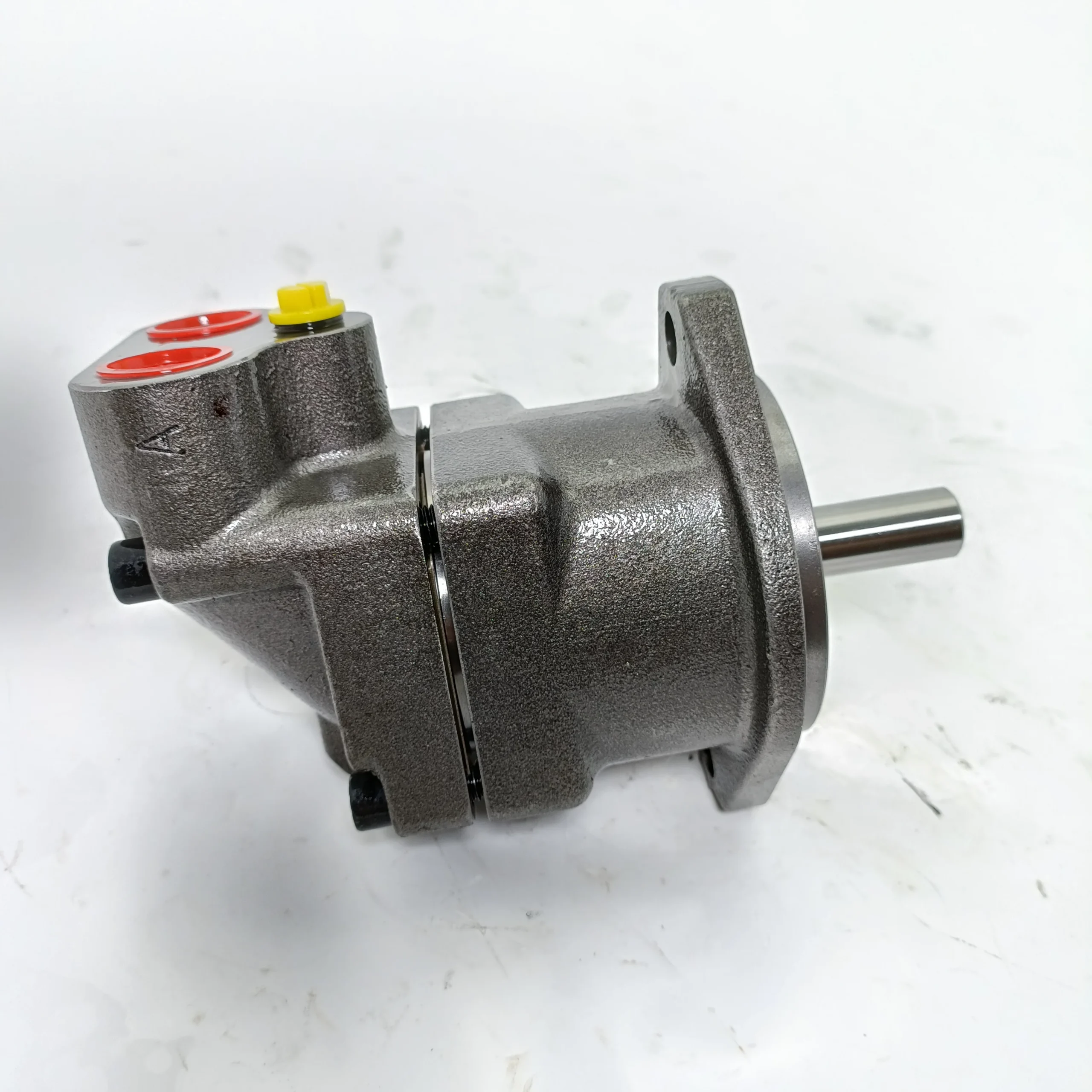

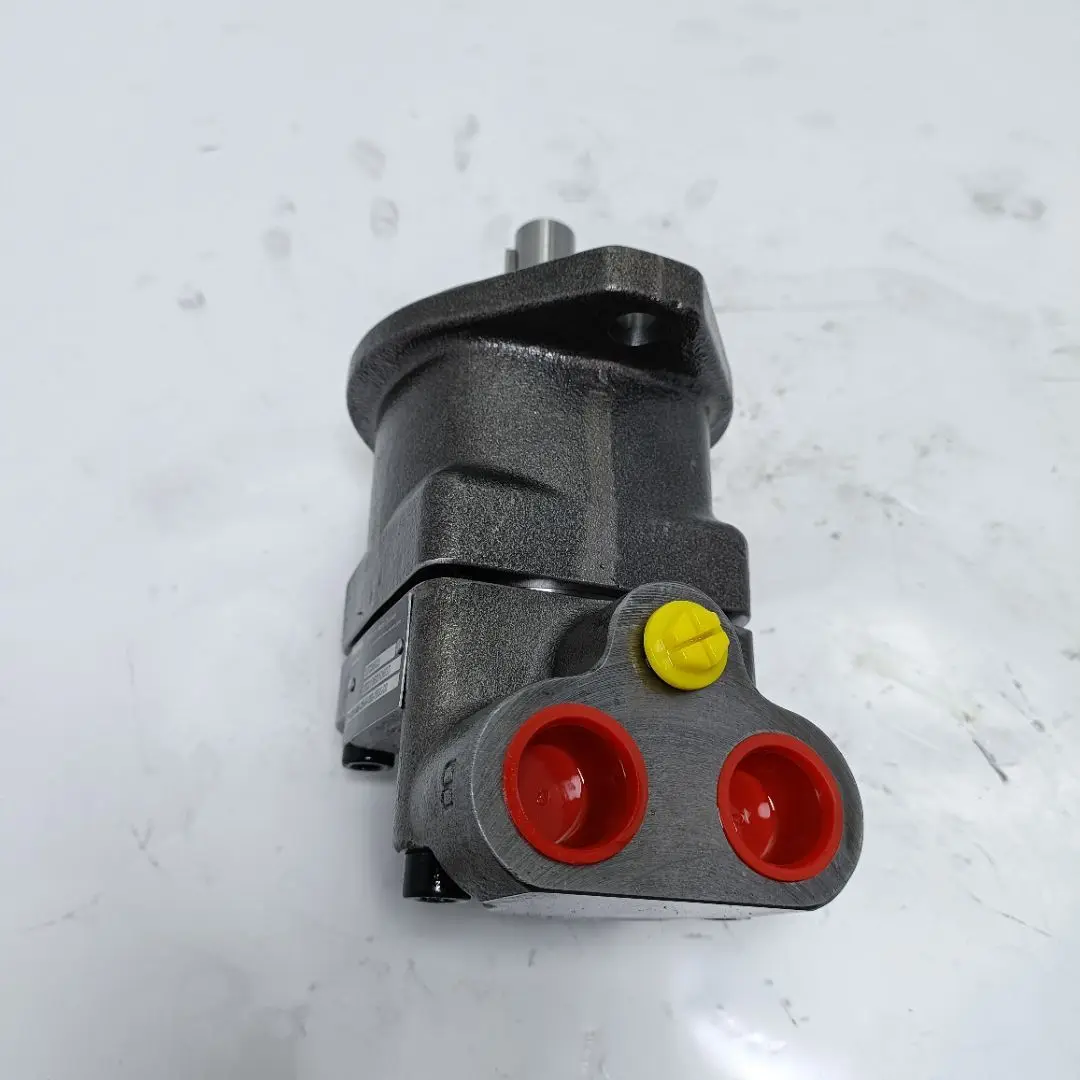

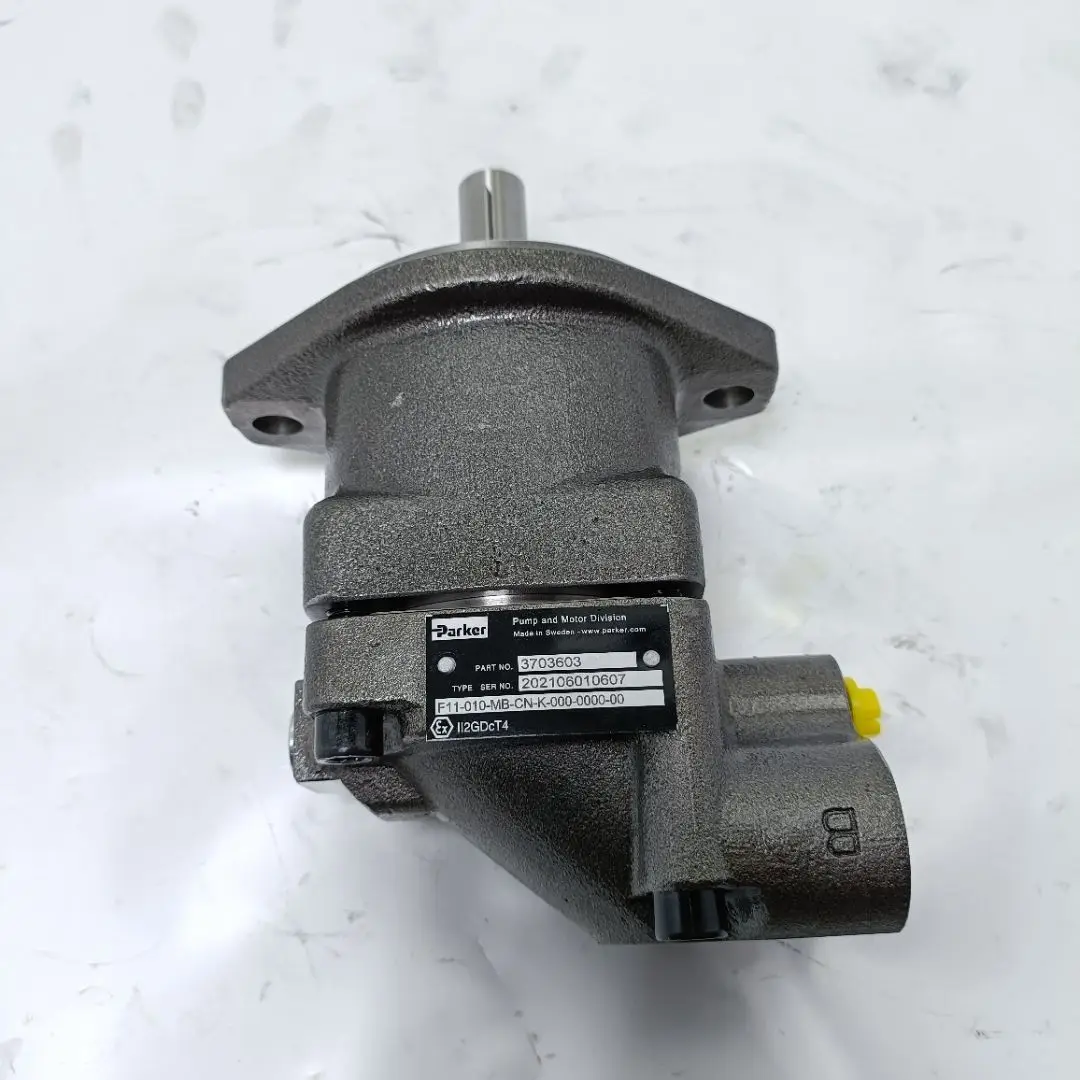

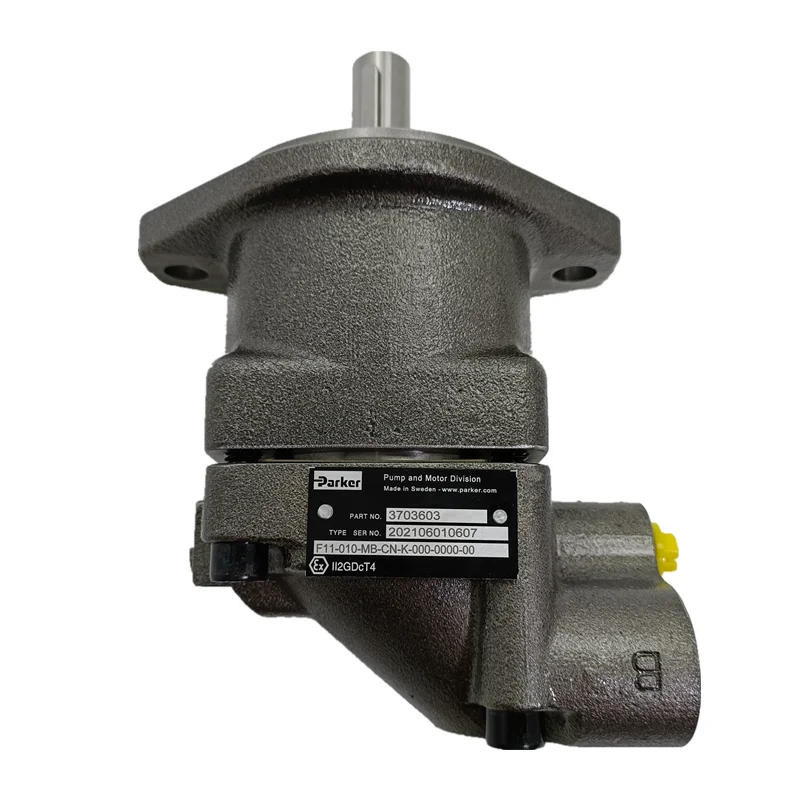

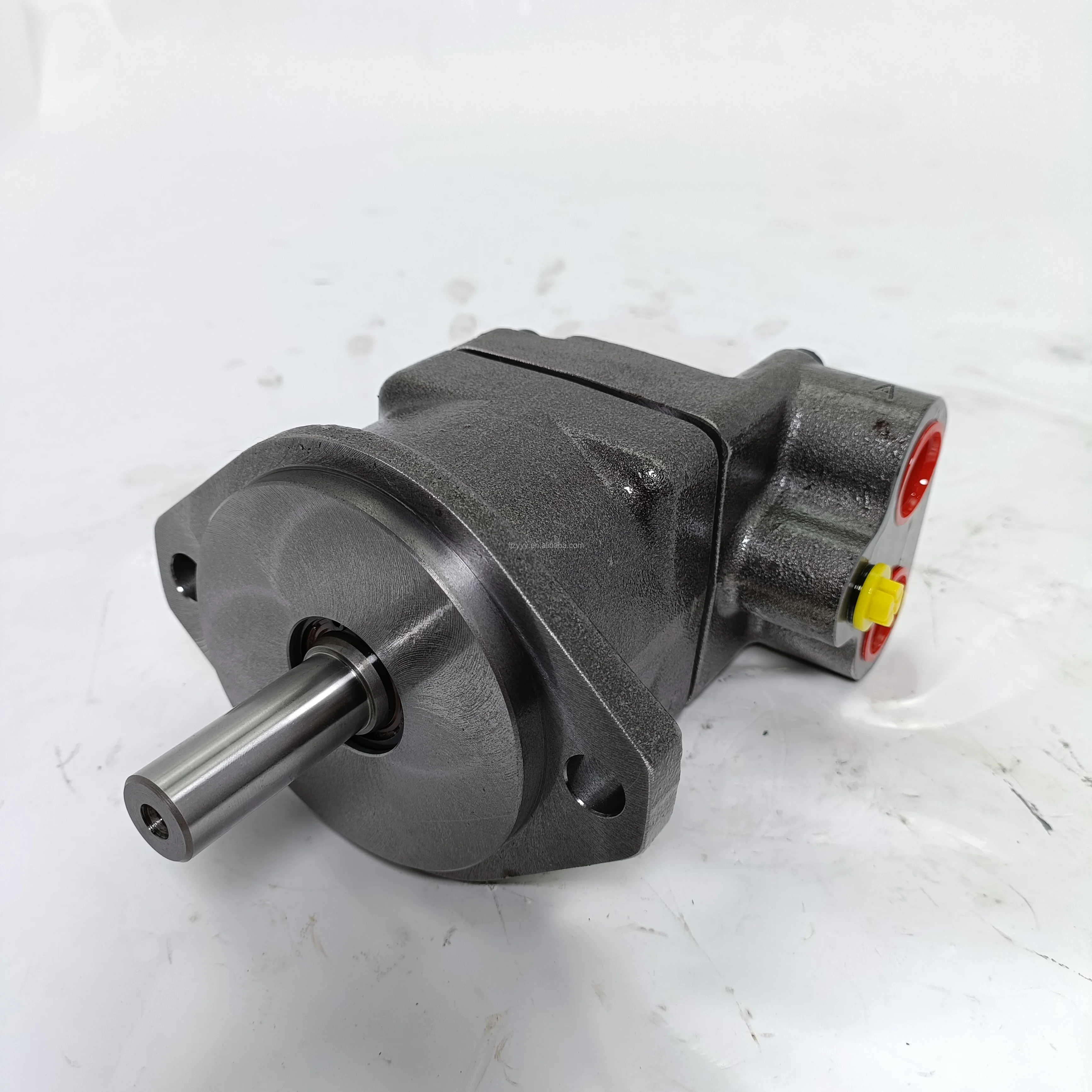

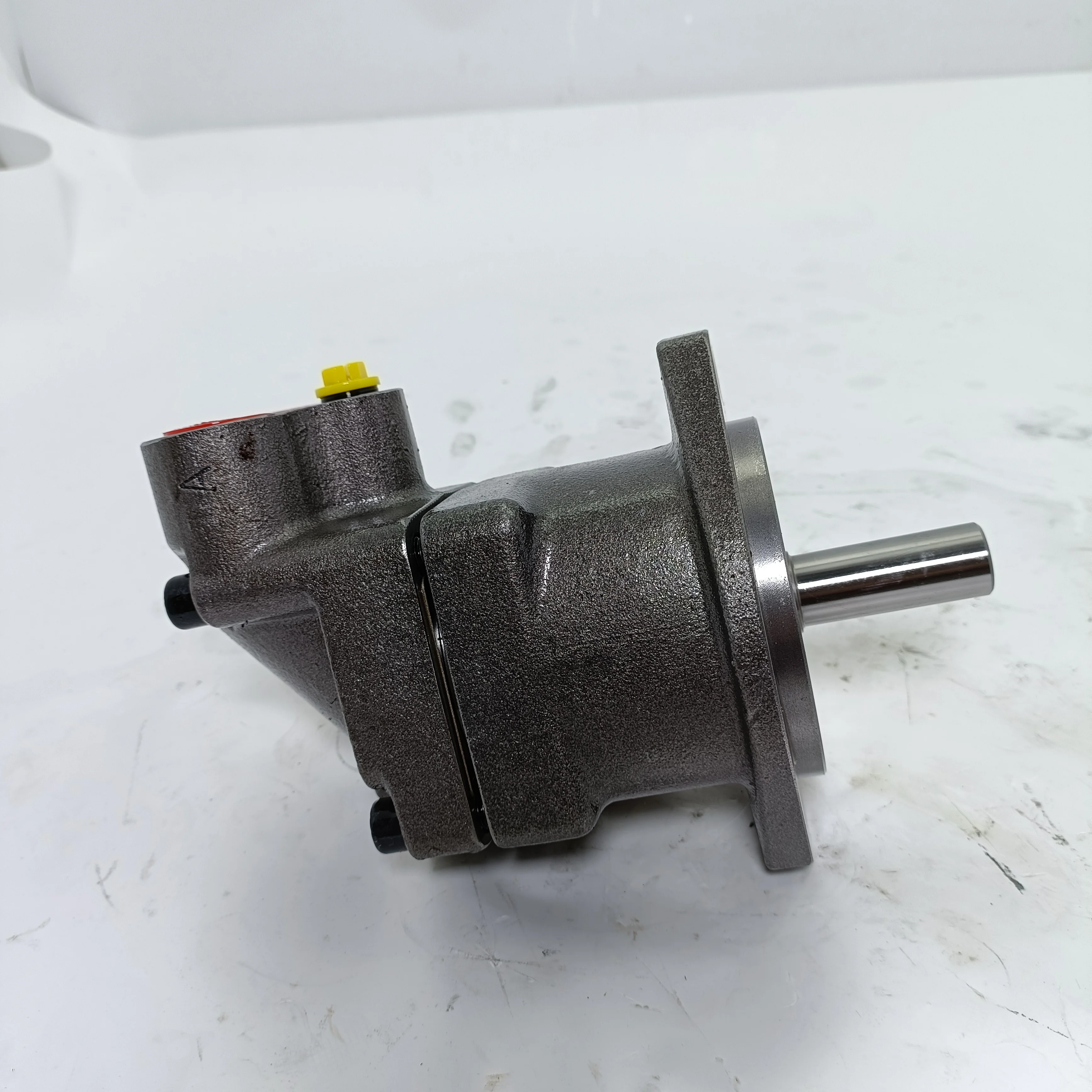

Parker F11-005 F11-010 Motor | F11-005-GB-CV-K | F11-010-GB-CN-K | Bent-Axis Hydraulic Pump

Parker F11 Series High-Speed Bent Axis Hydraulic Motor & Pump

Product Overview: The Parker F11 Series is the globally recognized benchmark for high-speed, high-pressure hydraulic power. Featuring a unique Bent-Axis piston design, the F11 series functions seamlessly as both a motor and a pump in either open or closed circuits. This page highlights precision small-displacement models: F11-005-GB-CV-K-000-000-0, F11-010-GB-CN-K-000, and the specialized F11-005-MB-CV-K-390-000-0. Utilizing spherical piston technology, F11 units deliver unparalleled reliability in forestry saw drives, racing transmissions, high-speed test rigs, and aerospace ground support.

Key Technical Advantages:

• Extreme RPM Capability: The F11 series is engineered for elite dynamic balance; the F11-005 model supports continuous speeds over 10,000 RPM, making it the premier choice for high-velocity drives.

• Bent-Axis Architecture: Compared to swash-plate designs, the bent-axis structure allows for a larger swivel angle and a more compact envelope, offering superior self-priming and vibration resistance.

• High-Pressure Resilience: Rated for 350 Bar (5000 PSI) continuous operation with peak capabilities reaching 420 Bar. The robust rotor group ensures an extended service life under frequent pressure spikes.

• CV/CN Sealing Excellence: Equipped with CV (Viton) or CN high-performance seals, these units withstand high temperatures and synthetic fluids while preventing shaft leakage.

• Modular Configuration (GB/MB): Available in various end-cap styles (GB standard or MB compact) and K (Keyed) or splined shaft options to meet global mechanical interface standards.

• Target Applications: Mower cutting head drives, auxiliary pumps for generator sets, centrifuge propulsion, and aerospace testing equipment.

Detailed Models & Parameters:

• Core Series: Parker Hannifin F11 Series High Speed Bent Axis.

• Model Keywords: F11-005, F11-010, F11-005-GB, F11-010-GB, F11-005-MB.

• Technical Specs Decoding:

  • F11-005: 5cc/rev displacement, optimized for maximum rotational velocity.

  • F11-010: 10cc/rev displacement, balancing torque output with high-speed response.

  • K: Denotes a Metric Keyed Shaft configuration.

  • 390 / 000: Refers to specific porting plates and auxiliary mounting options.

• Performance Specs: Mechanical efficiency exceeding 95%, supporting continuous high-frequency start-stop cycles.
