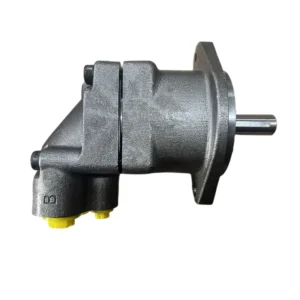

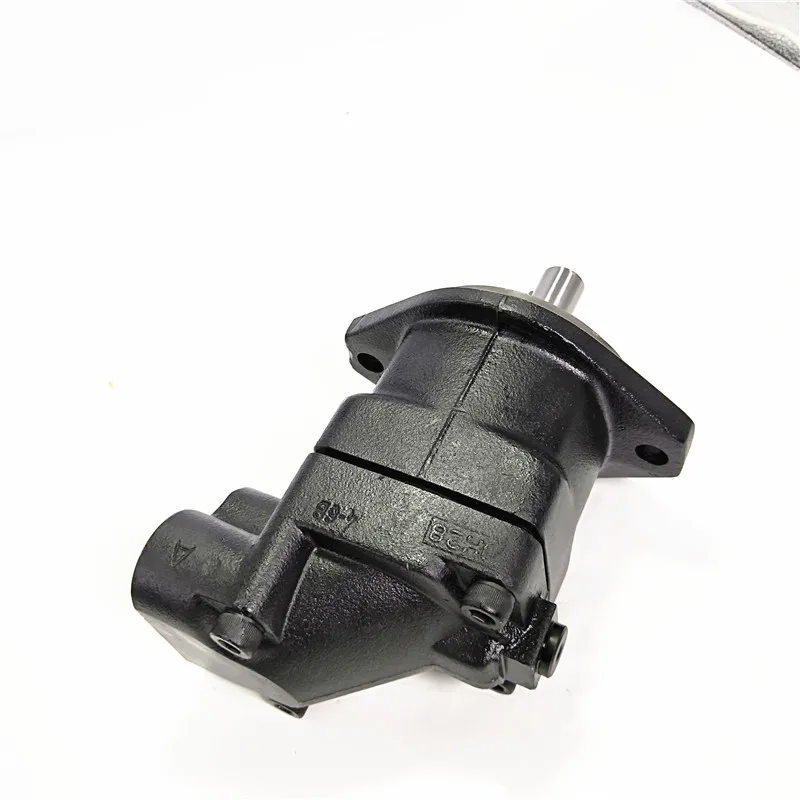

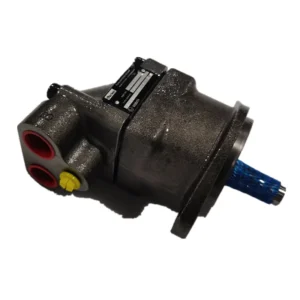

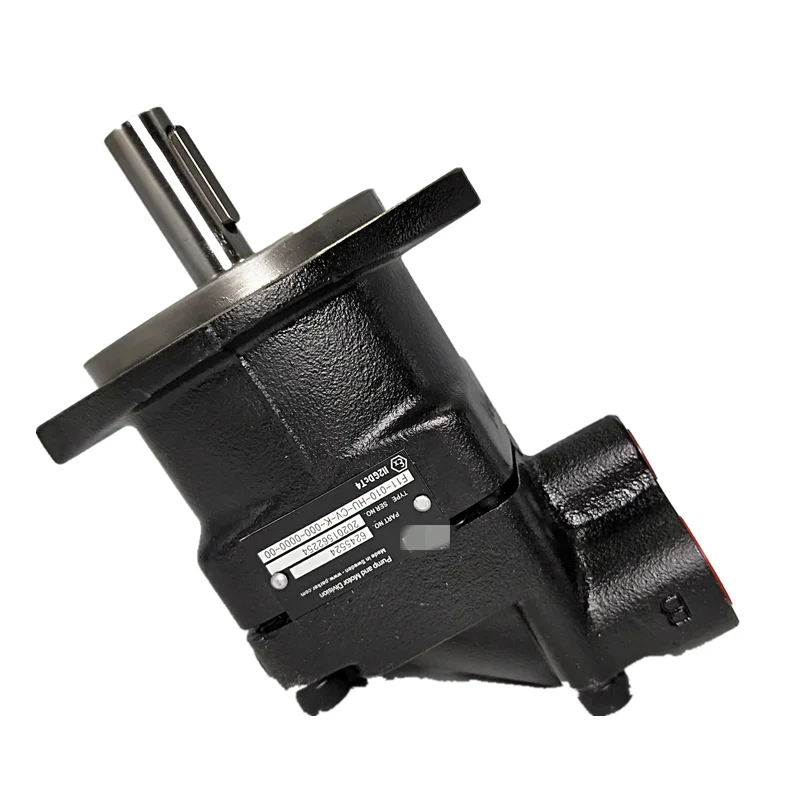

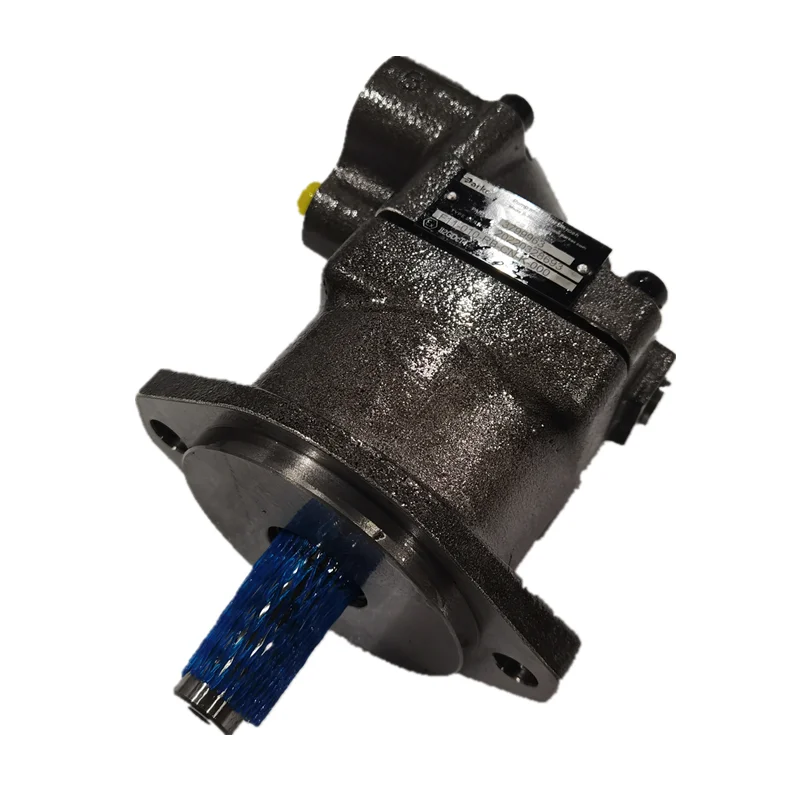

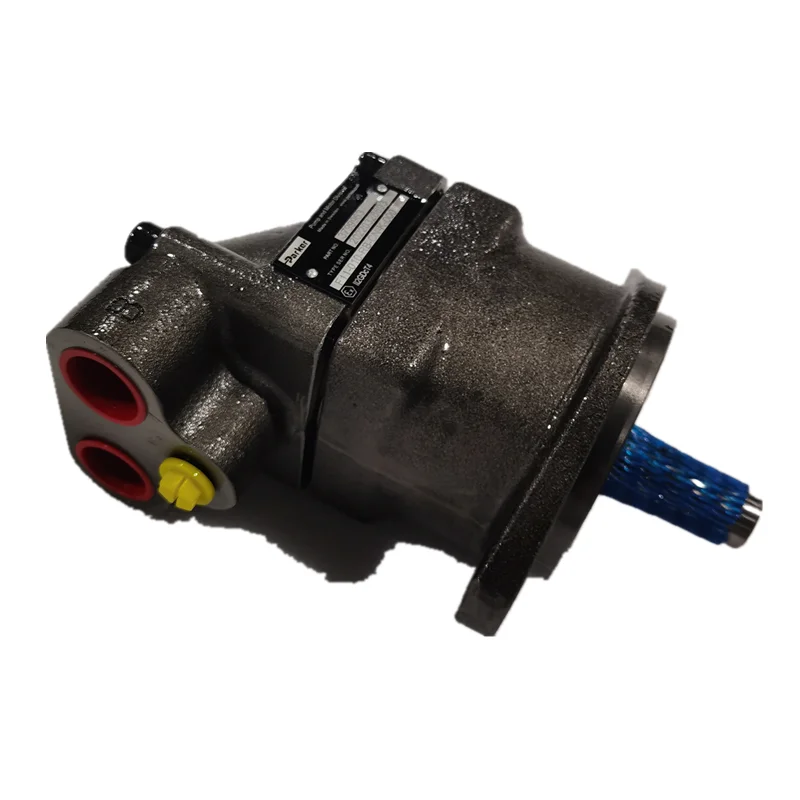

Parker F11 F12 Pump | F11-005, F12-090, F12-110 | 3707315 Hydraulic Motor

Model Number

F11, F11-005, F11-010, F12-090, F12-110, F11-028-HU-SH-S/3707315, F11-005-MB-CN-K-000-0000-00

Inquiry

Product Description

Parker F11 & F12 Series High-Performance Bent-Axis Pumps & Motors

Product Overview: The Parker F11 and F12 Series are the industry benchmarks for rugged, axial piston, bent-axis fixed displacement pumps and motors. Featuring a unique 40° (F11) and 30° (F12) bent-axis design, these units deliver superior power density and reliability in a compact envelope. This selection includes core specifications: from micro F11-005 and F11-010, to the versatile F11-028, and heavy-duty F12-090 and F12-110. It covers precision part numbers such as 3707315 (F11-028-HU-SH-S) and F11-005-MB-CN-K. These are widely used in saw drives, pruners, mowers, winches, fan drives, and heavy-duty mobile equipment.

Key Technical Advantages:

  • Superior Self-Priming Speeds: Optimized valve plate and piston synchronization allow high-speed operation while maintaining exceptional resistance to cavitation.

  • Extreme Pressure Capability: The F12 series is rated for up to 420 Bar continuous, with peak capability reaching 480 Bar (7000 PSI) for severe load spikes.

  • Maximum Mechanical Efficiency: The classic bent-axis architecture minimizes internal friction, ensuring high energy efficiency across all speed and pressure ranges.

  • Compact Integrated Design: A reduced number of moving parts lowers maintenance frequency and simplifies installation in congested industrial spaces and PTO mounts.

  • Thermal Shock Resilience: Specialized piston rings and shaft seals ensure consistent volumetric efficiency even during rapid temperature fluctuations.

  • Target Applications: Timber harvesting machinery, offshore winch systems, commercial vehicle hydraulics, and industrial power units.

Detailed Models & Parameters:

  • Core Series: Parker Hannifin F11 & F12 Series (Fixed Displacement).

  • Model Keywords: F11-005, F11-010, F11-028, F12-090, F12-110, F11-028-HU-SH-S, F11-005-MB-CN-K.

  • Key Part Number: 3707315 (F11-028 core configuration).

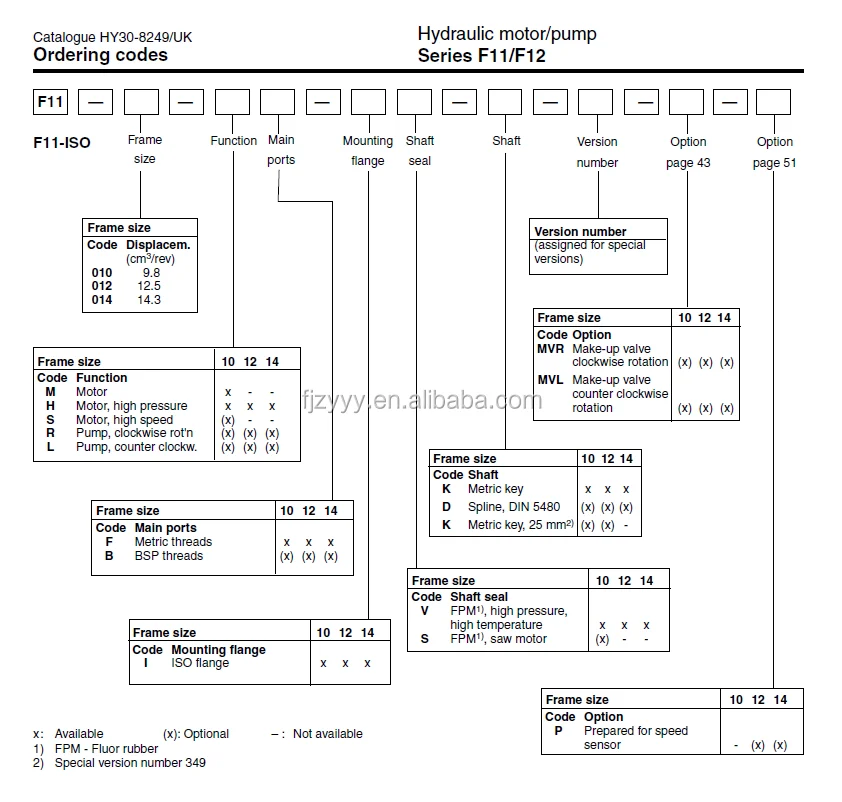

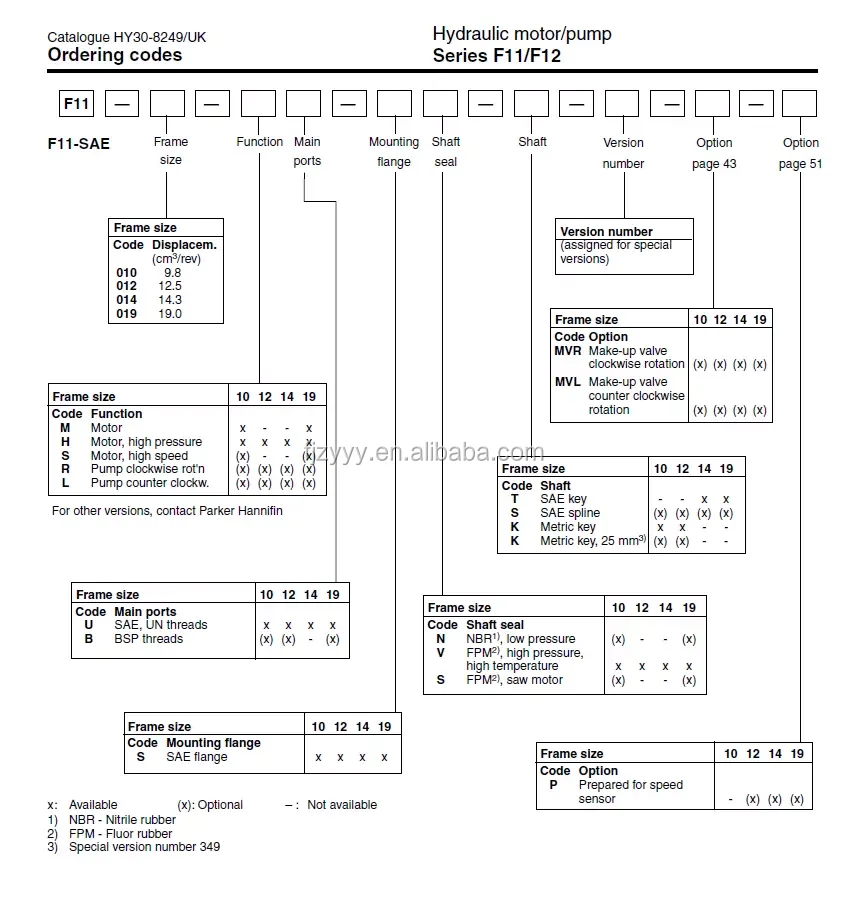

  • Technical Specs Decoding:

    • F11-005/010: 5cc to 10cc small displacement, high-speed motors.

    • F12-090/110: 90cc to 110cc high-capacity, heavy-duty motors.

    • MB-CN-K / HU-SH-S: Denotes specific mounting flanges (CETOP/ISO), shaft ends, and seal material codes.

  • Pressure Specs: Rated Operating Pressure up to 420 Bar (6000 PSI).
