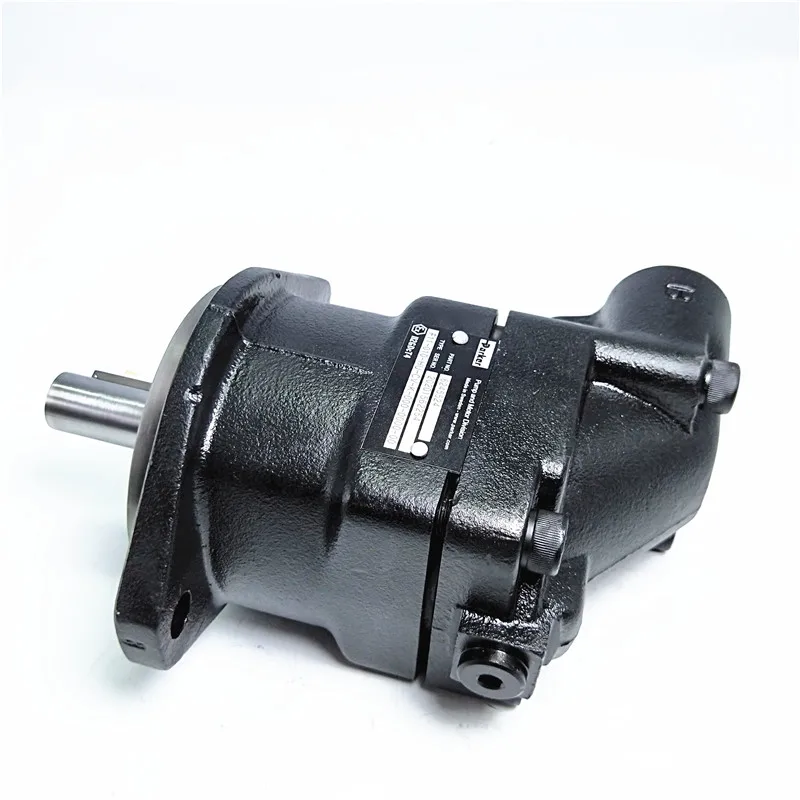

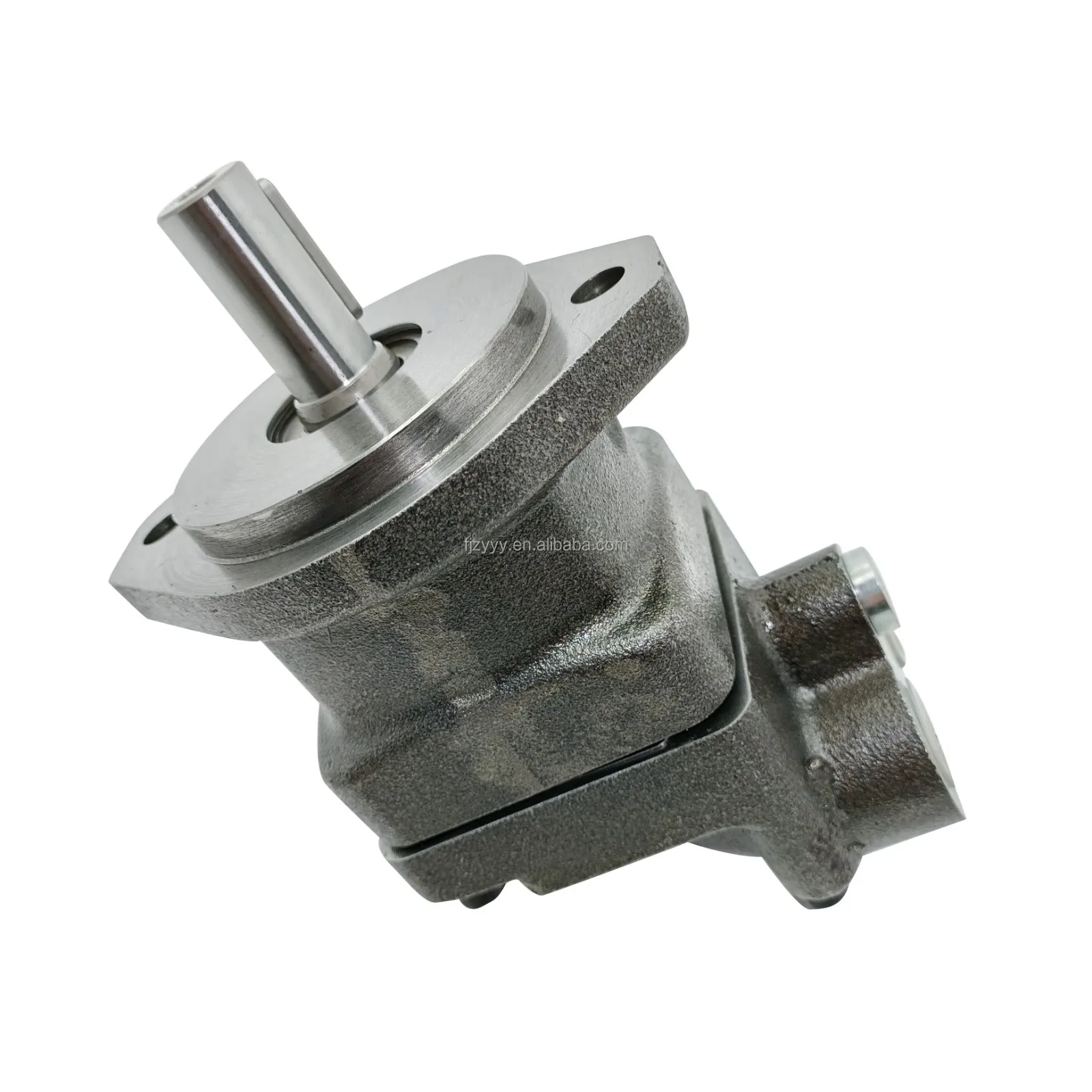

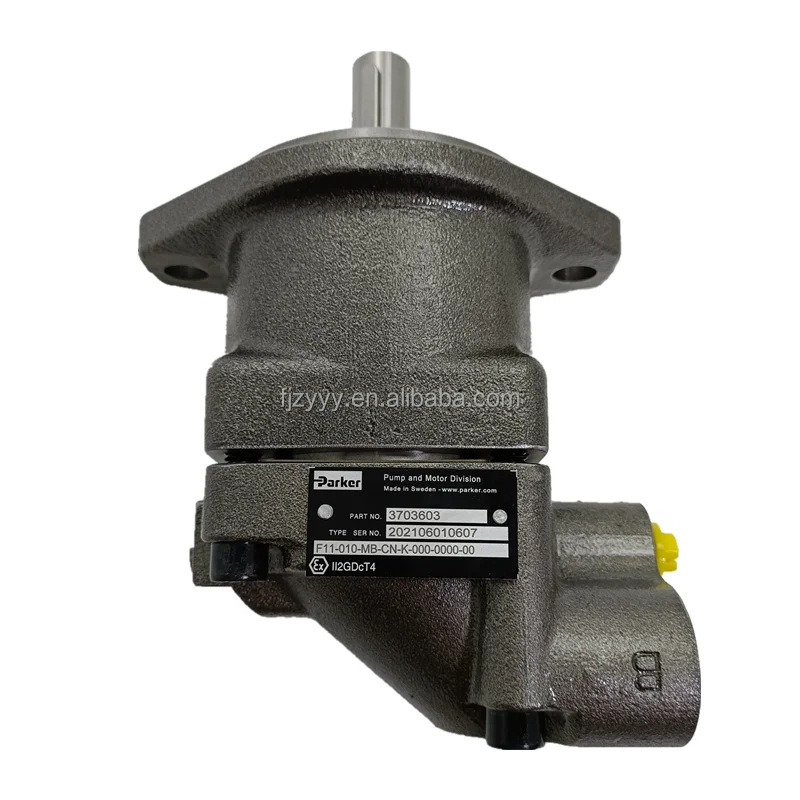

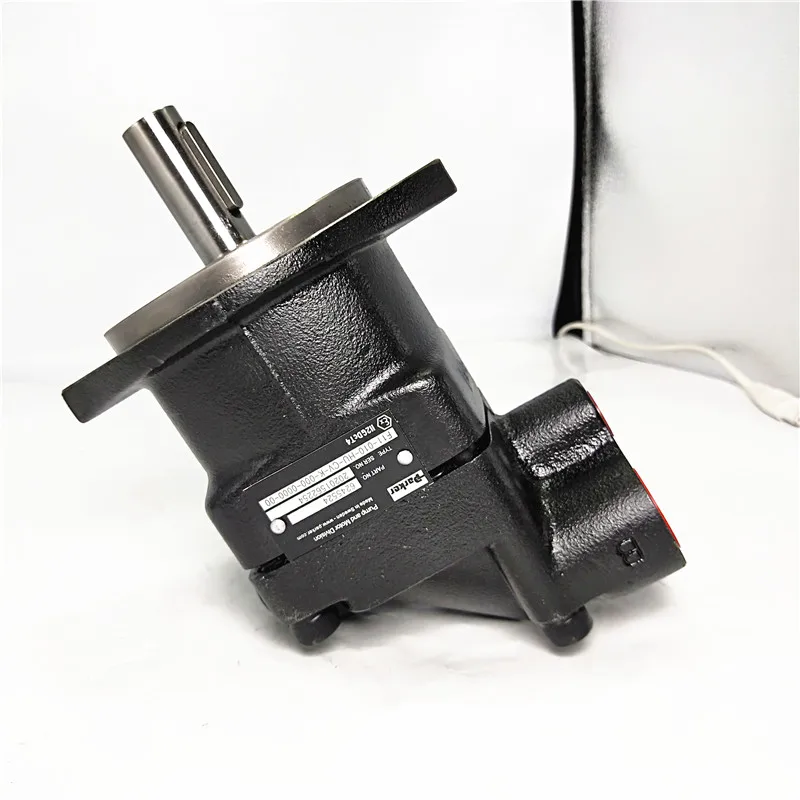

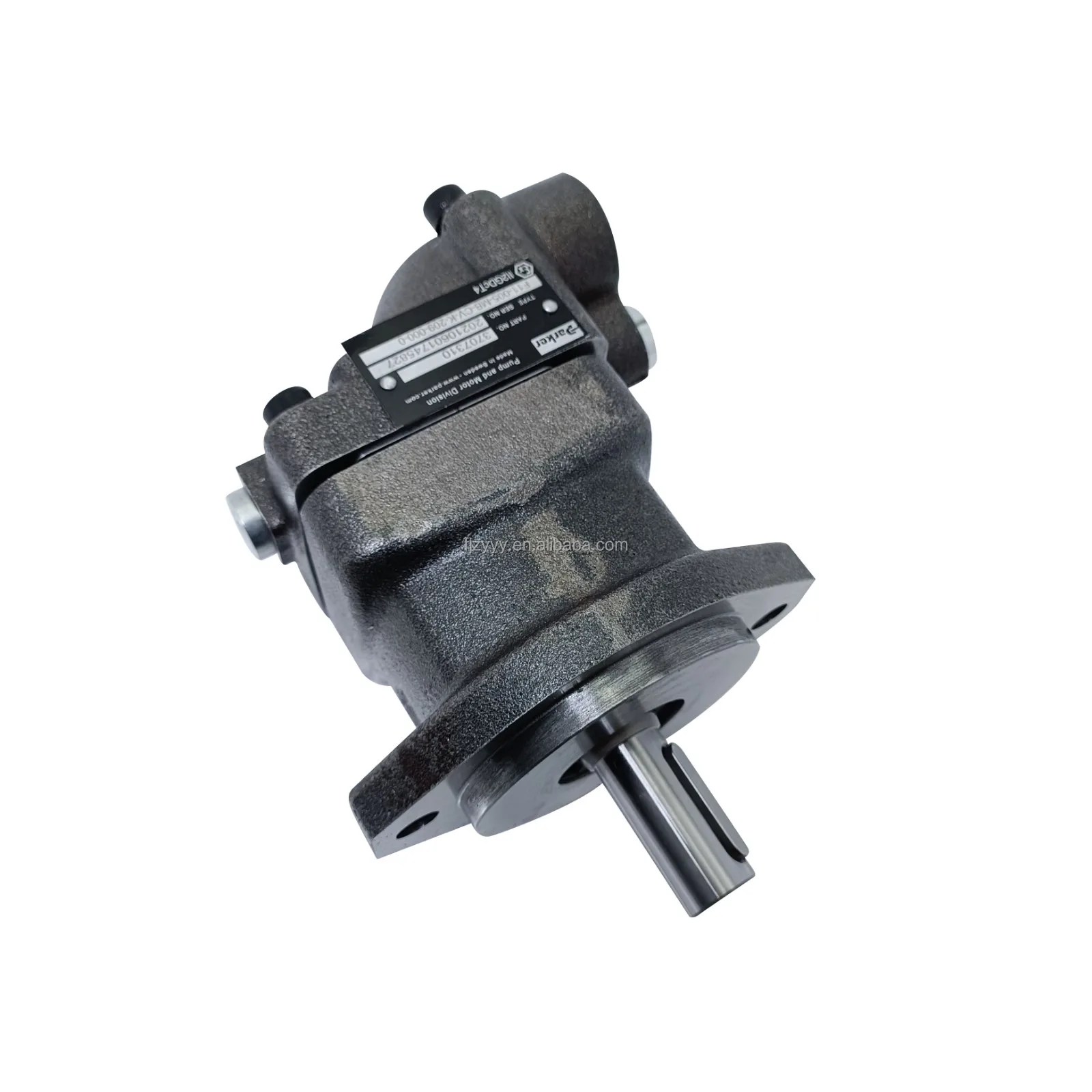

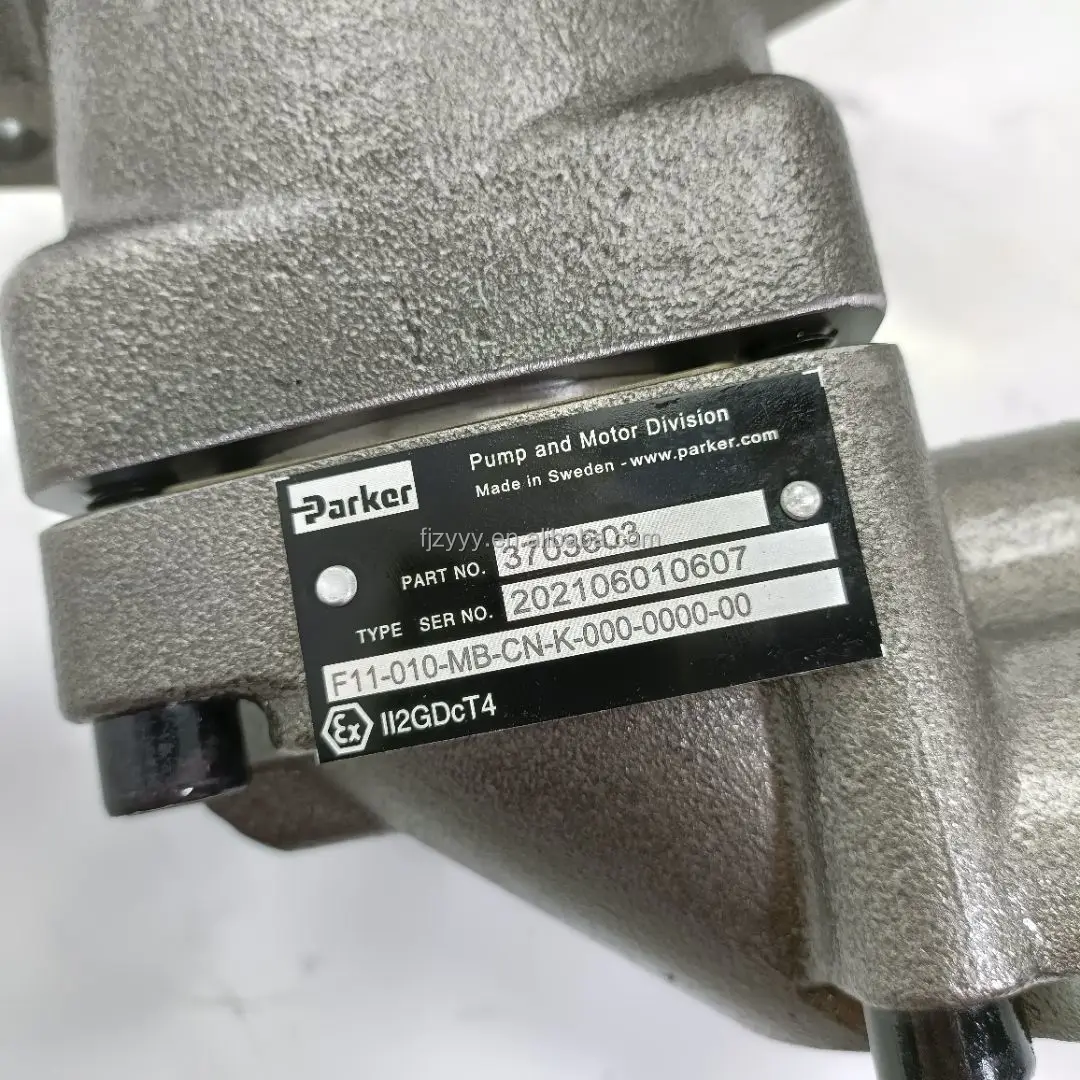

Parker F11 & F12 Motor | F11-005, F12-150, F11-005-MB-CV | Axial Piston Motor
| Model Number | F11-005-MB-CV-K-000-0000-00 |
|---|
Product Description
Parker F11 & F12 Series High-Speed Bent-Axis Axial Piston Motors
Product Overview: The Parker F11 and F12 Series represent the pinnacle of bent-axis piston technology. Utilizing the legendary 40° bent-axis design, these motors deliver exceptional starting torque combined with high-speed capabilities that surpass traditional swashplate motors. This selection covers the complete range from the compact F11-005 to the heavy-duty F12-250. Capable of operating at pressures up to 480 Bar, the F11/F12 series features a unique spherical piston design that minimizes friction, making it the premier choice for forestry saws, mobile machinery drives, marine propulsion, and mower deck drives.
Key Technical Advantages:
Elite 40° Bent-Axis Tech: The increased angle relative to standard 20° designs provides superior mechanical efficiency, higher speed limits, and a significantly smaller installation footprint.
Extreme Pressure Resilience: Rated for continuous operation at 350-420 Bar and peak pressures up to 480 Bar, ensuring structural integrity under grueling hydraulic cycles.
Spherical Piston Engineering: Parker’s patented spherical piston allows for ultra-high rotational speeds and offers exceptional resistance to thermal shock.
Synchronized Versatility: The F11 and F12 series are equally adept as high-efficiency motors or as high-pressure pumps in both open and closed-circuit systems.
Target Applications: Forestry harvesters (saw drives), marine deck cranes, combine harvesters, heavy material handling, and hydraulic breakers.
Detailed Models & Parameters:
Core Series: Parker Hannifin F11 & F12 Series (Small & Large Frame).
Model Keywords: F11-005, F11-006, F11-010, F11-012, F11-014, F11-019, F12-150, F12-250.

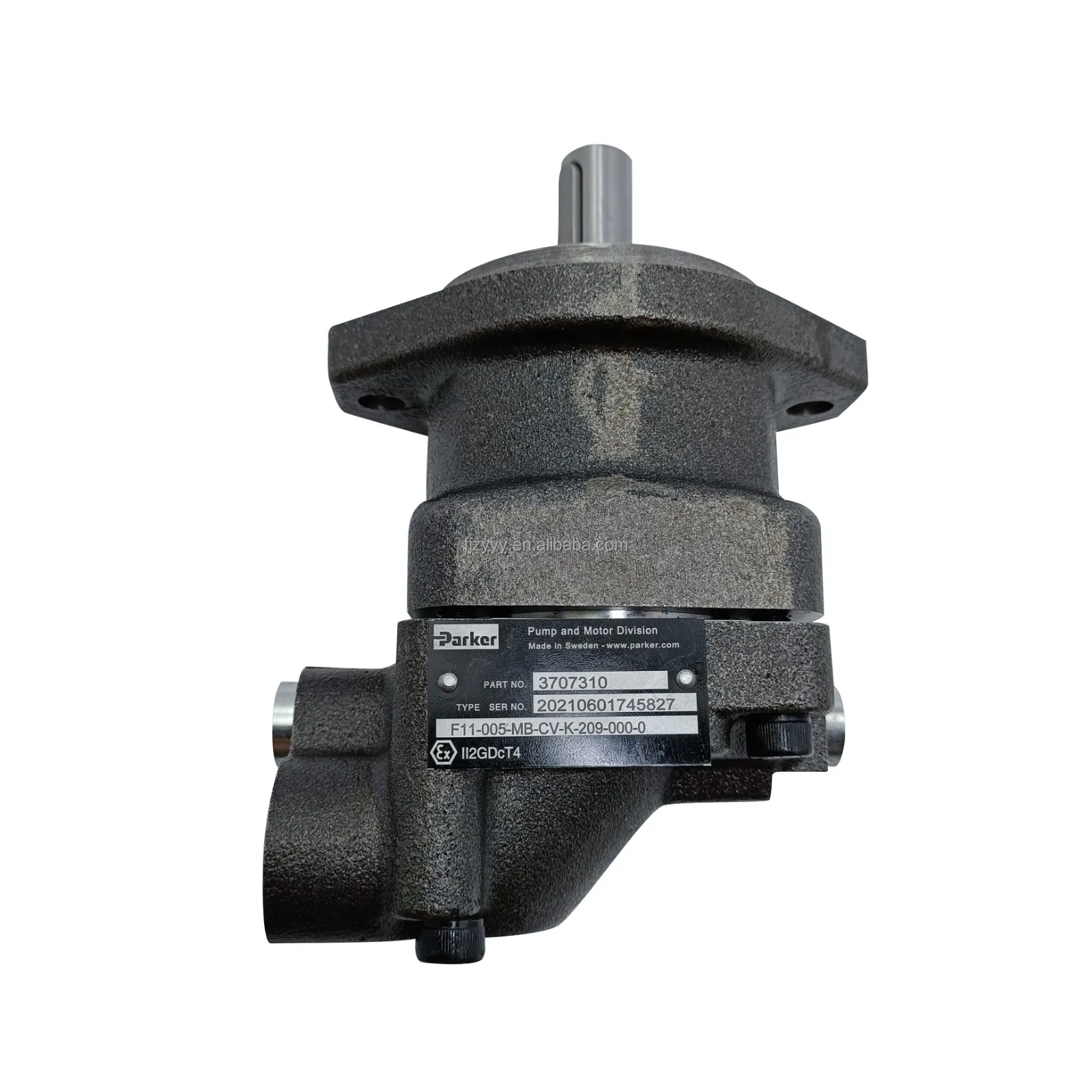

Technical Specs Decoding (e.g., F11-005-MB-CV):
F11-005: 4.9 cm³/rev displacement spec.
MB-CV-K: Refers to ISO mounting, metric shaft, and integrated specialized valve options.
Pressure Specs: Continuous pressure up to 420 Bar (6000 PSI), with peaks reaching 480 Bar (7000 PSI).
Speed Capabilities: Small F11 frame sizes can exceed 4000 RPM in self-priming modes (displacement dependent).
