Parker F11/F12 Series High-Speed Bent-Axis Piston Motors & Pumps

Product Overview: The Parker F11/F12 Series represents the pinnacle of hydraulic power transmission, featuring the world-renowned Bent-Axis technology. This series is celebrated for its unmatched reliability, high power-to-weight ratio, and extreme speed capabilities. This selection features heavy-duty core specifications: F11-150-MF-CN-K-000 (150cc displacement) and F12-152-MF-SV-S-000-0000-P0 (150cc high-performance variant). Engineered to withstand severe vibration, thermal extremes, and high-pressure spikes, the F11/F12 series is the ideal choice for saw drives, mulcher heads, marine winches, and demanding mobile machinery.

Key Technical Advantages:

• Exceptional High-Speed Performance: The unique 45° bent-axis angle combined with lightweight rotating parts allows for perfect dynamic balance and superior efficiency at high rotational speeds.

• Shock-Load Resistance: Robust laminated piston rings ensure outstanding sealing and durability under violent pressure fluctuations and frequent direction changes.

• Extreme Power Density: Delivers massive torque within an ultra-compact frame, rated for continuous pressures of 420 Bar and peak pressures up to 480 Bar.

• Bi-directional & Universal Integration: Compatible with both open and closed-circuit systems, featuring excellent self-priming capabilities for versatile mounting.

• Target Applications: Disc saw drives, forestry harvester heads, refuse trucks, marine deck machinery, and high-cycle industrial drives.

Detailed Models & Parameters:

• Core Series: Parker F11 / F12 Series (Fixed Displacement Bent-Axis).

• Model Keywords: F11-150, F12-152, MF (Motor Fixed), CN (ISO Flange), SV (SAE Flange).

• Technical Specs Decoding:

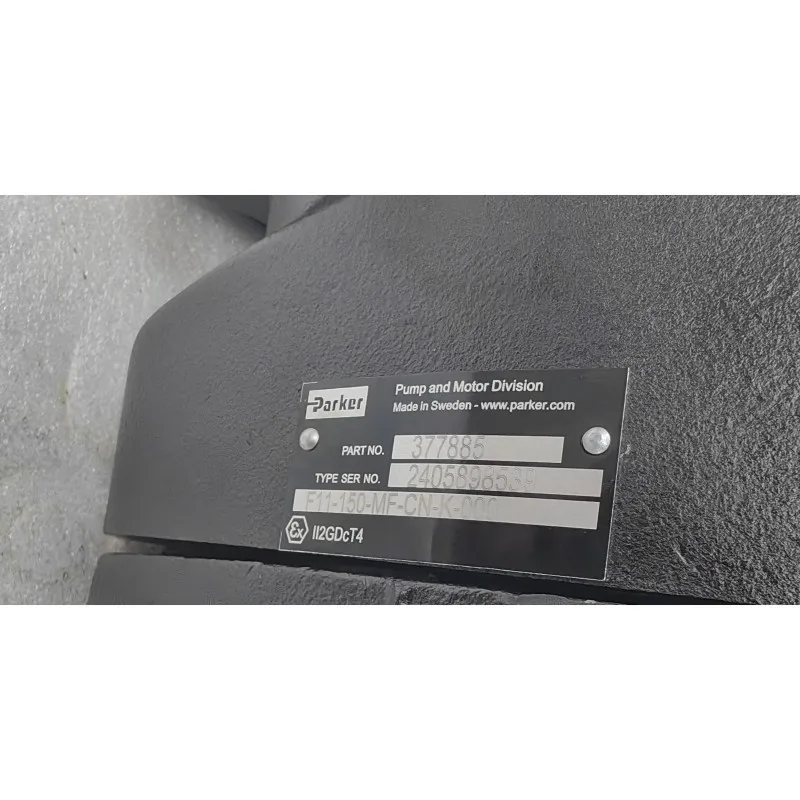

  • F11-150-MF-CN-K-000: 150cc displacement, ISO mounting, featuring K keyed shaft output.

  • F12-152-MF-SV-S-000-0000-P0: 150cc displacement, SAE standard, featuring S splined shaft and P0 reinforced configuration.

• Pressure Specs: Nominal pressure 420 Bar (6000 PSI), Peak pressure up to 480 Bar (7000 PSI).

• Speed Range: Supports continuous operation up to 3000-4000 RPM depending on specific installation criteria.
