Parker F11-005 Motor | F11-005-MB-CH-K-000 | High Speed Bent Axis Piston Motor
| Model Number | F11-005-MB-CH-K-000 |
|---|
Product Description

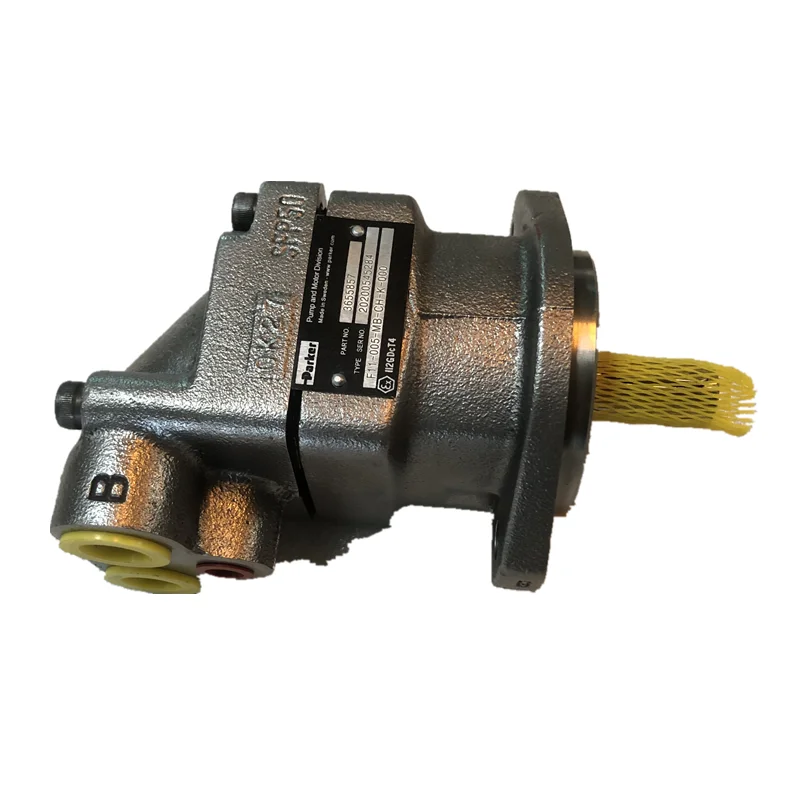

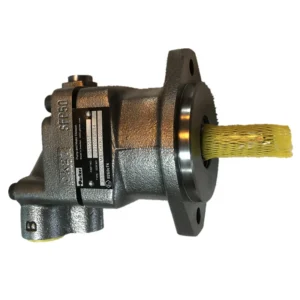

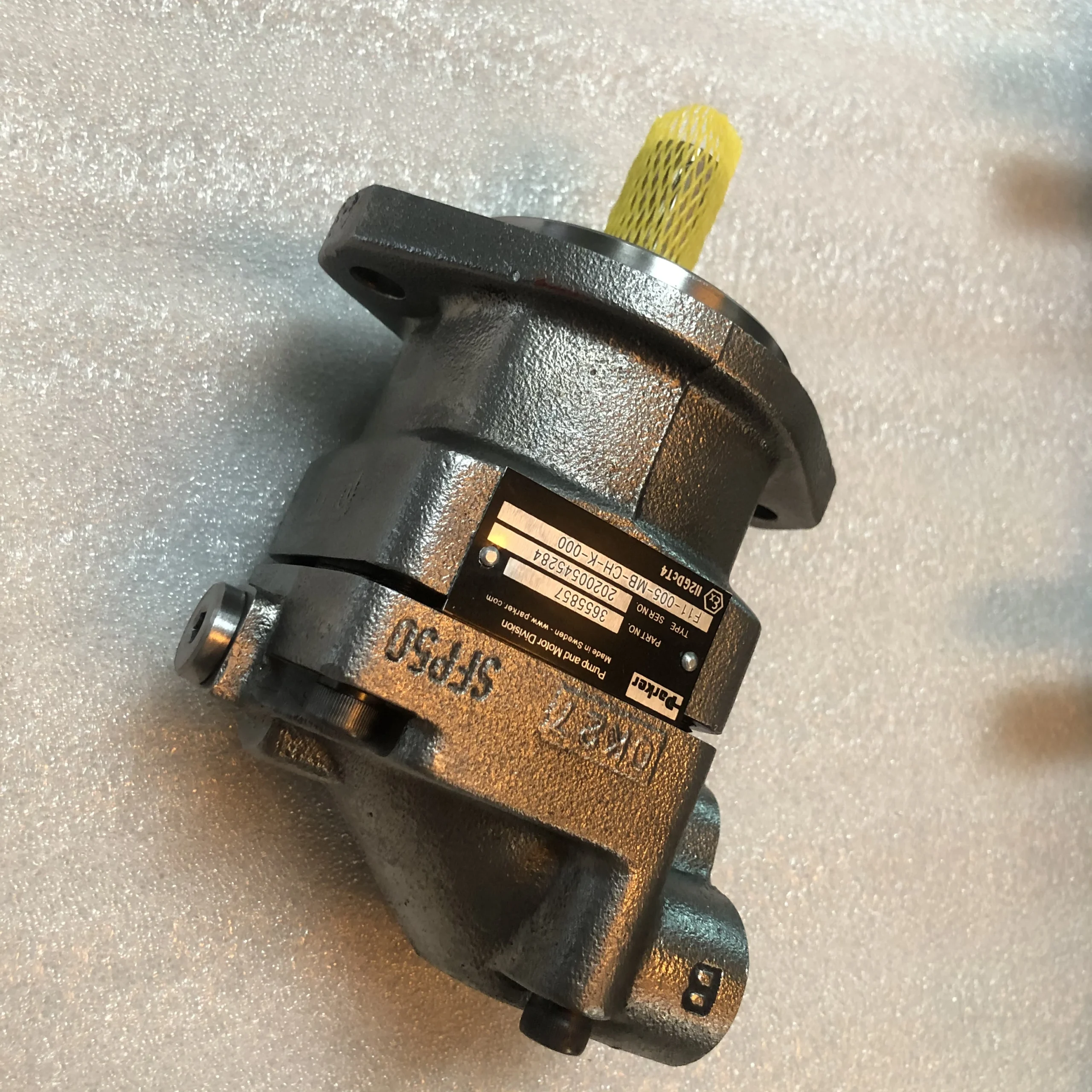

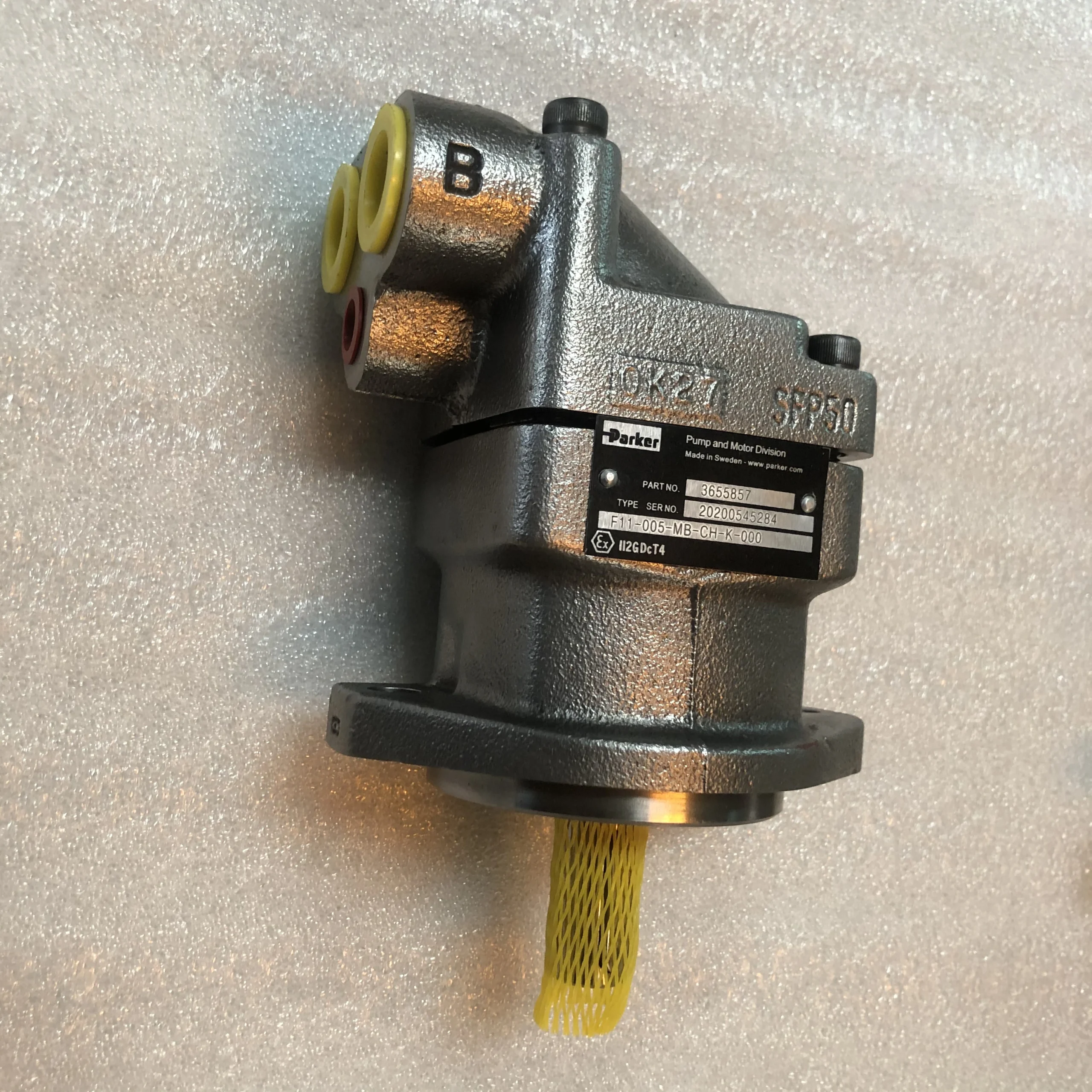

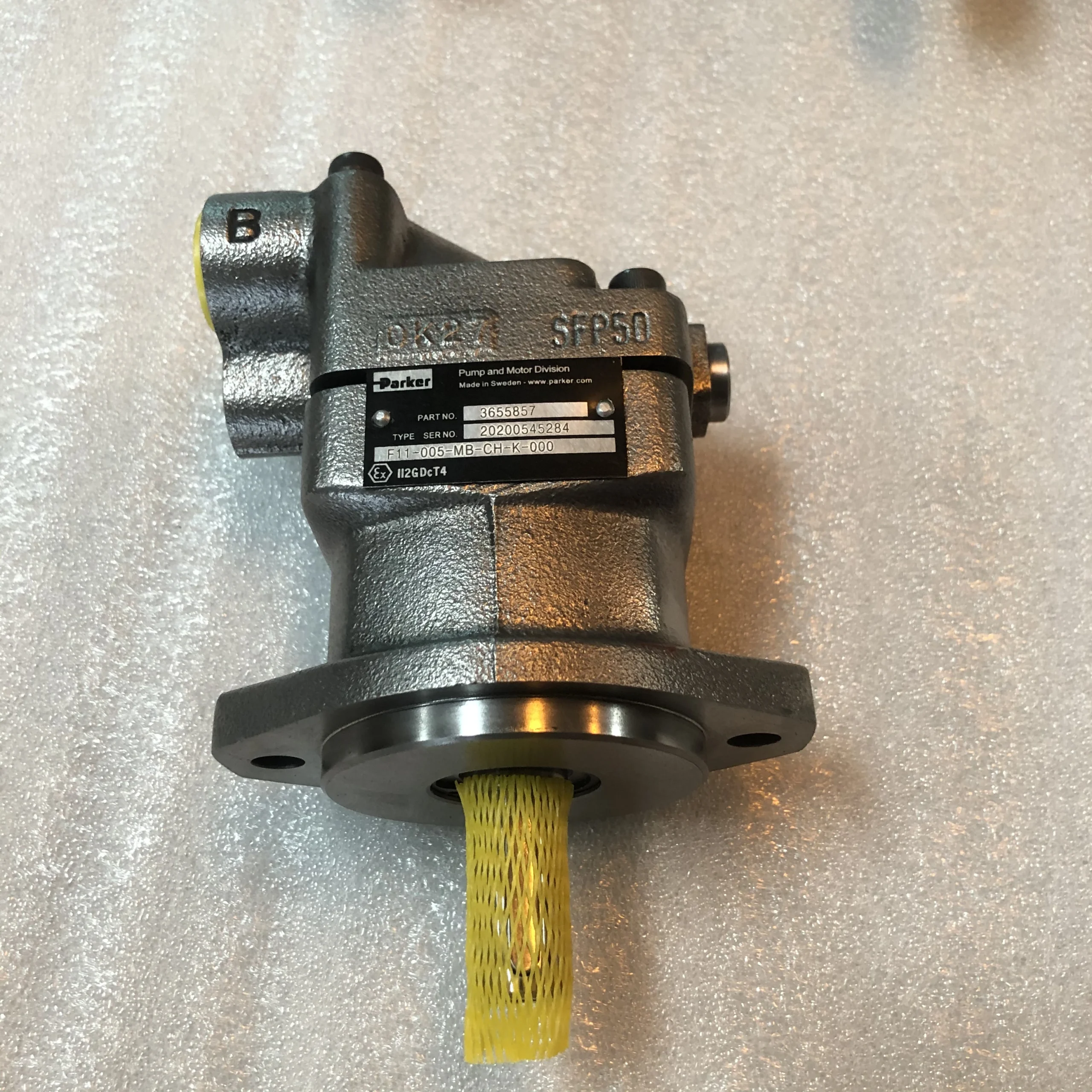

Parker F11-005 High-Speed Bent-Axis Piston Hydraulic Motor
Product Overview: The Parker F11-005 is a high-performance, fixed displacement motor built on premier Bent-Axis technology. Featuring a 40° angle and synchronized spherical pistons, the F11-005 delivers exceptional mechanical and volumetric efficiency at extremely high speeds. The specific model F11-005-MB-CH-K-000 is engineered for applications requiring rapid power response, compact installation, and high-pressure durability. Renowned for its superior shock resistance, it is the primary choice for forestry saw heads, high-speed cooling fans, municipal sweepers, and industrial power units.
Key Technical Advantages:
Elite Speed Capability: The bent-axis architecture enables rated speeds significantly higher than conventional axial piston motors, setting the benchmark for high-speed cutting and fan systems.
Spherical Piston Technology: Self-compensating spherical pistons minimize internal friction and heat generation, ensuring stable operation in the harshest environments.
Heavy-Duty Construction: Designed to withstand frequent start-stop cycles and intense pressure pulsations, with a rated continuous pressure of 350 Bar.
Compact Footprint: The 5cc displacement frame provides a top-tier power-to-weight ratio, maximizing installation flexibility in restricted spaces.
Target Applications: Forestry harvester saw heads, radiator fan drives, snow removal machinery, professional mowers, and auxiliary sweeper drives.
Detailed Model & Parameters:
Core Series: Parker Hannifin F11-005 Series.

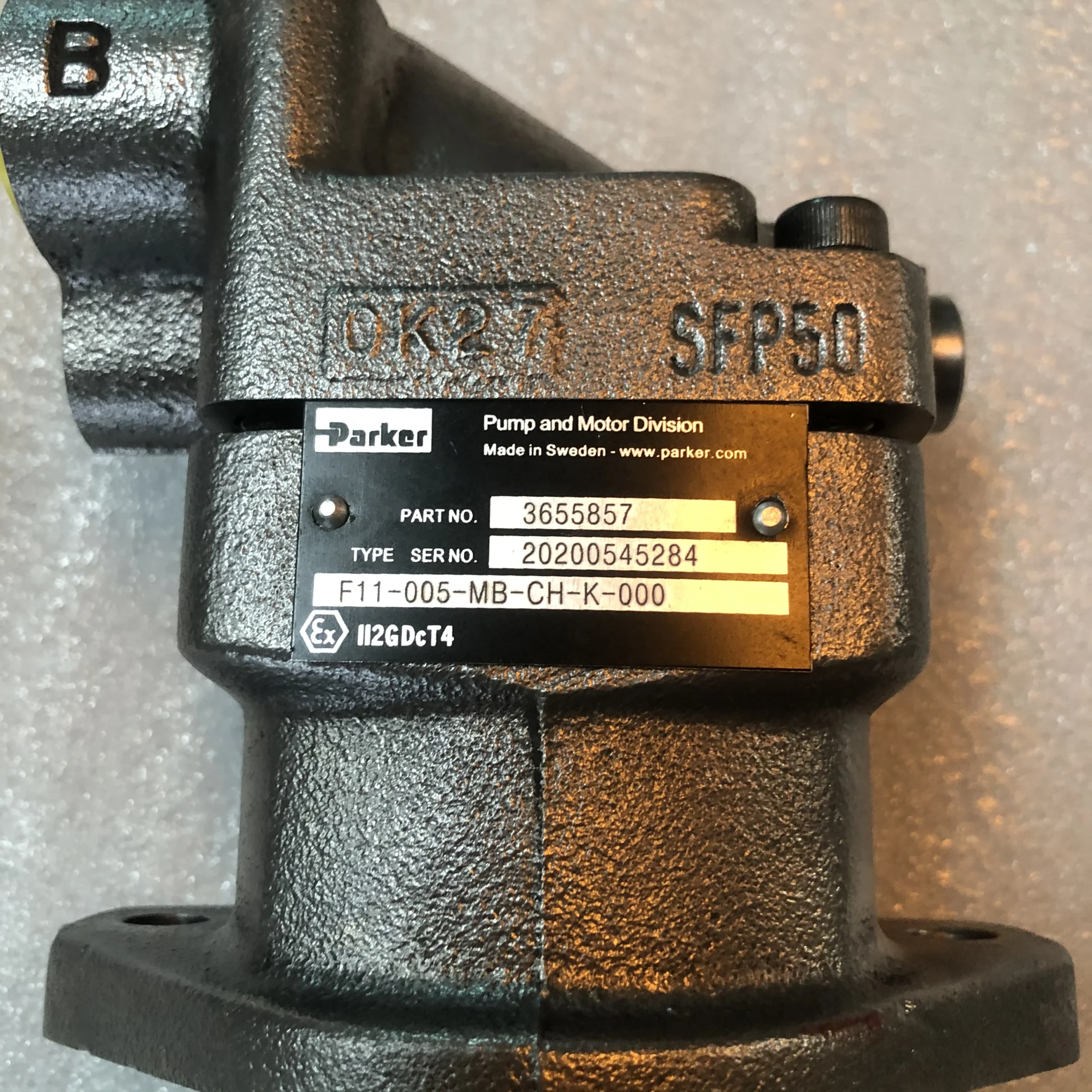

Full Configuration: F11-005-MB-CH-K-000.
Technical Specs Decoding:
F11-005: 4.9 cm³/rev (5cc) displacement.
MB: Metric flange mounting, ensuring robust structural integrity.
CH: Specialized port plate and connection configuration for optimized high-pressure flow.
K (Keyed): Output shaft features a parallel keyway for reliable high-torque transmission.
Pressure Specs: Continuous Operating Pressure of 350 Bar (5000 PSI), with peak capabilities up to 420 Bar.
