Parker Denison M5AF M5BF Motor | ZX470 Fan Motor | M5AF018 M5BF045 | Hydraulic Vane Motor

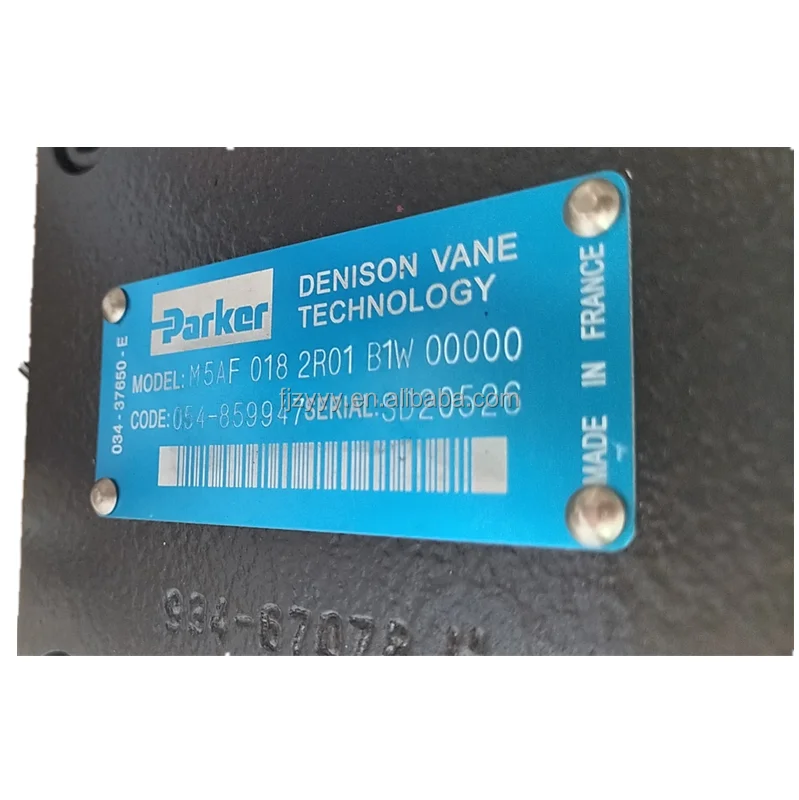

| Model Number | M5AF 018 2R01 B1W2, M5BF0451N03B1M000000 |
|---|
Product Description

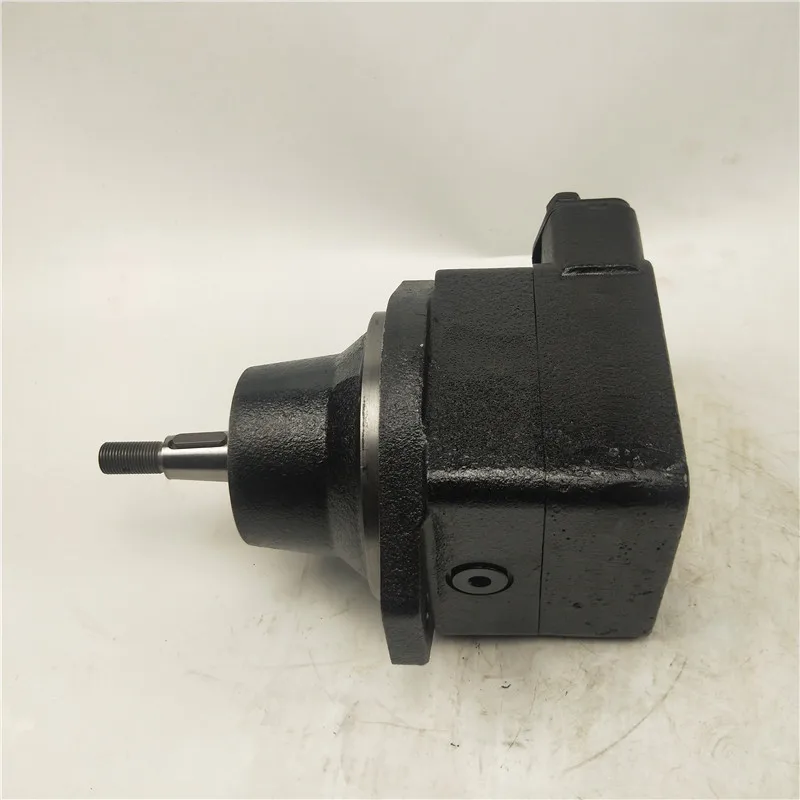

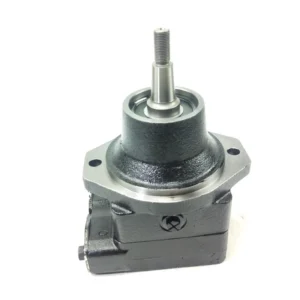

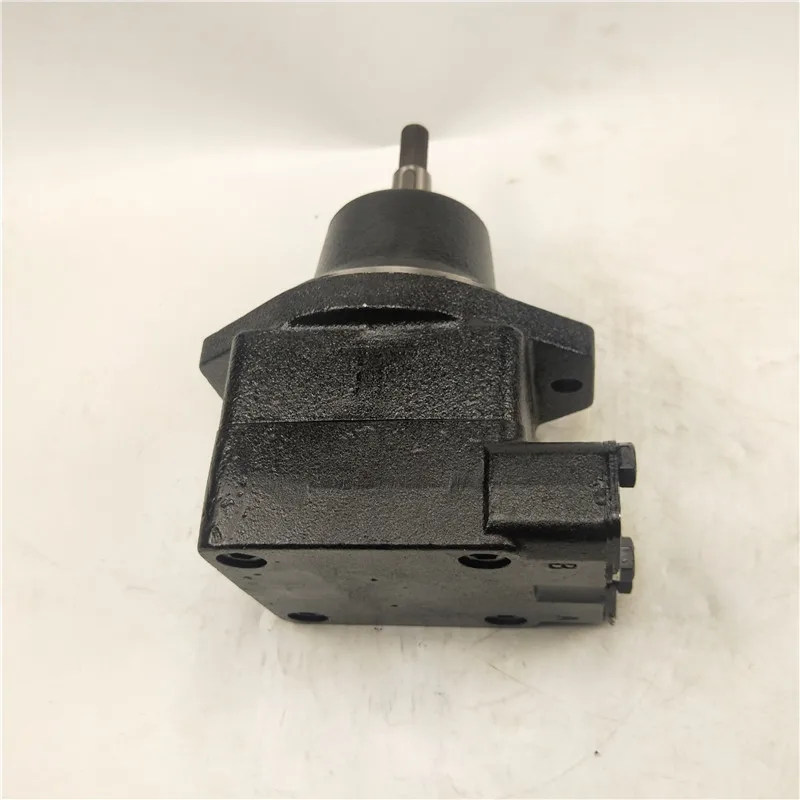

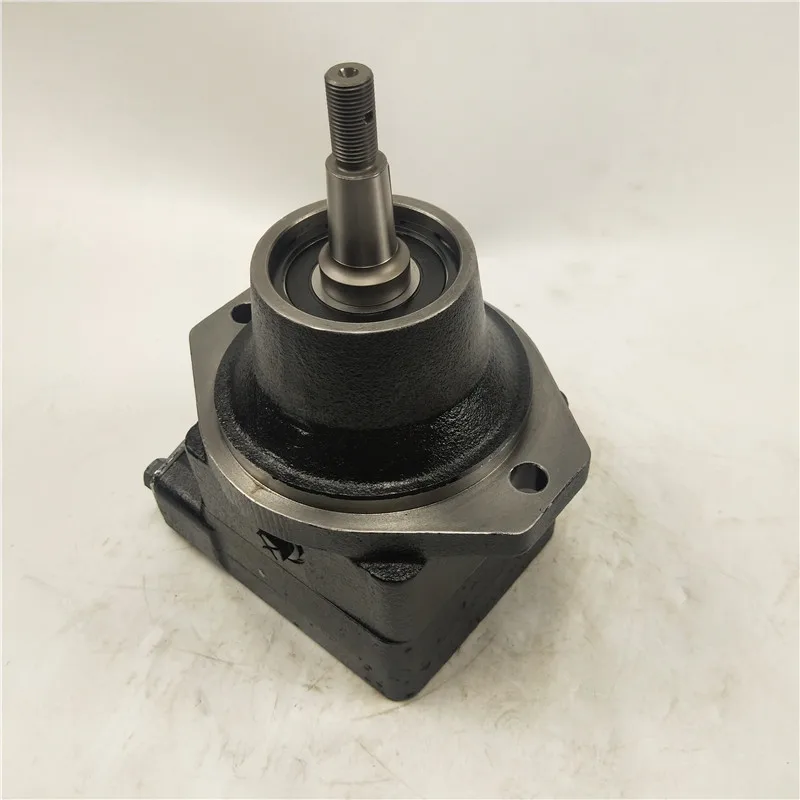

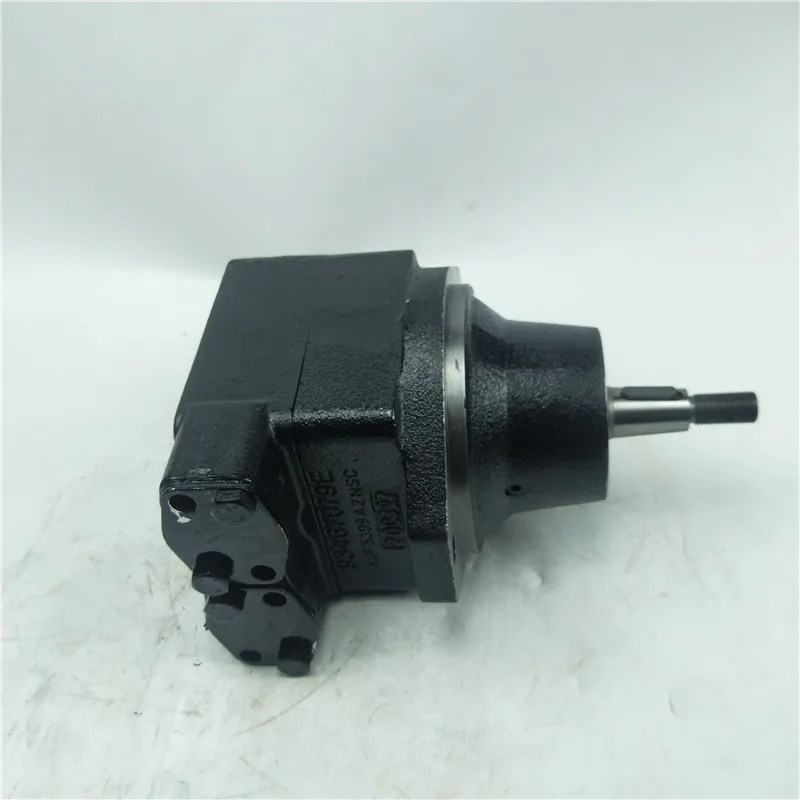

Parker Denison M5A & M5B Series Fan Drive Motors for Hitachi ZX470
Product Overview: The Parker Denison M5 Series represents the gold standard for fixed displacement vane motors in mobile equipment cooling systems. This category highlights precision models specifically engineered for Hitachi ZX470 Excavators and other heavy-duty machinery: M5AF0182L01B1W2, M5AF0182R04B1W00000, M5AF0182R01B1W2, and the high-output M5BF0451N03B1M000000. With an elite 320 Bar pressure rating and 4000 RPM speed stability, these motors ensure cooling fans deliver maximum airflow even in the harshest ambient temperatures, making them the premier choice for engine thermal management.
Key Technical Advantages:
Extreme Power Density: Achieves continuous operating pressures up to 320 Bar within a compact frame, offering performance comparable to piston motors.
Optimized Fan Drive Design: Engineered for cooling fan applications with low rotational inertia and exceptional dynamic response for frequent start-stop cycles.
Versatile Rotation Configurations: Available in multiple rotation directions (L-CCW, R-CW) to perfectly match various machine cooling circuit requirements.
Hydraulically Balanced Architecture: Internal forces are offset to eliminate radial bearing loads, drastically extending service life during high-speed operation.
Technical Spec Decoding:
M5AF / M5BF: Frame series (18cc/45cc).
018 / 045: Displacement codes (cc/rev).
2L / 2R / 1N: Relates to rotation direction and porting configuration.
ZX470 Compatibility: Optimized for Hitachi large-scale excavator fan systems.
Detailed Models & Specifications:
Core Series: Parker Denison M5 Series Fixed Displacement Vane Motor.
Featured Model Matrix:
M5AF0182L01B1W2 / M5AF0182R04B1W00000: Primary specifications for Hitachi ZX470 cooling systems.
M5BF0451N03B1M000000: High-displacement variant for maximum cooling requirements.
Core Performance Specs:
Rated Pressure: Continuous up to 320 Bar (4650 PSI).
Maximum Speed: Capable of sustained speeds up to 4000 RPM.
Displacement Range: 18.0 cc/rev to 45.0 cc/rev.
