Parker Denison M4C & M4SD Series Severe Duty Vane Hydraulic Motors

Product Overview: The Parker Denison M4 Series represents the gold standard in hydraulic drive technology, featuring both the versatile M4C and the M4SD (Severe Duty) engineered for extreme environments. This category highlights the precision models: M4C-024-1N00-A102, M4C-043-1N00-A102, and the heavy-duty M4SD-113-3N00-A102. Utilizing a unique dual-vane balanced architecture, the M4 series provides exceptional power density and stable torque delivery for marine winches, heavy-duty mobile equipment, injection molding drives, and recycling machinery.

Key Technical Advantages:

• Severe Duty Engineering: The M4SD series is structurally reinforced to handle high-frequency pressure spikes, serving as a robust and cost-effective alternative to piston motors.

• Elite High-Pressure Capability: Capable of continuous operation up to 230 Bar (3350 PSI) with peak handling up to 250 Bar, ensuring peak performance under load.

• Low-Speed Smoothness: Optimized vane-tip technology dramatically reduces startup torque loss, ensuring pulse-free operation even at minimal RPMs.

• Hydraulically Balanced Design: Internal forces are balanced to eliminate radial bearing loads, ensuring an extended service life even under continuous high-speed cycles.

• Technical Spec Decoding:

  • M4C / M4SD: Frame series (M4C for standard industrial, M4SD for severe duty).

  • 024 / 043 / 113: Displacement codes correlating to cc/rev (24, 43, 113).

  • 1N00 / 3N00: Shaft configuration (1N for standard keyed, 3N for high-strength options).

  • A102: Precise identifier for mounting flange and porting standards.

Detailed Models & Specifications:

• Core Series: Parker Denison M4 Series (Standard & Severe Duty).

• Featured Model Matrix:

  • M4C-024-1N00-A102: 24cc compact frame, ideal for high-speed auxiliary drives.

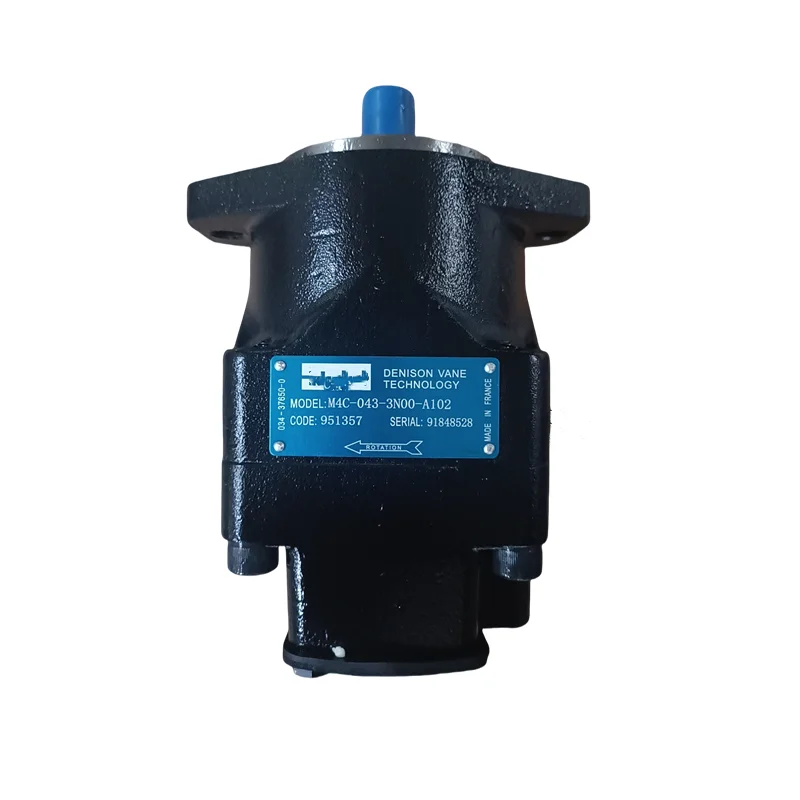

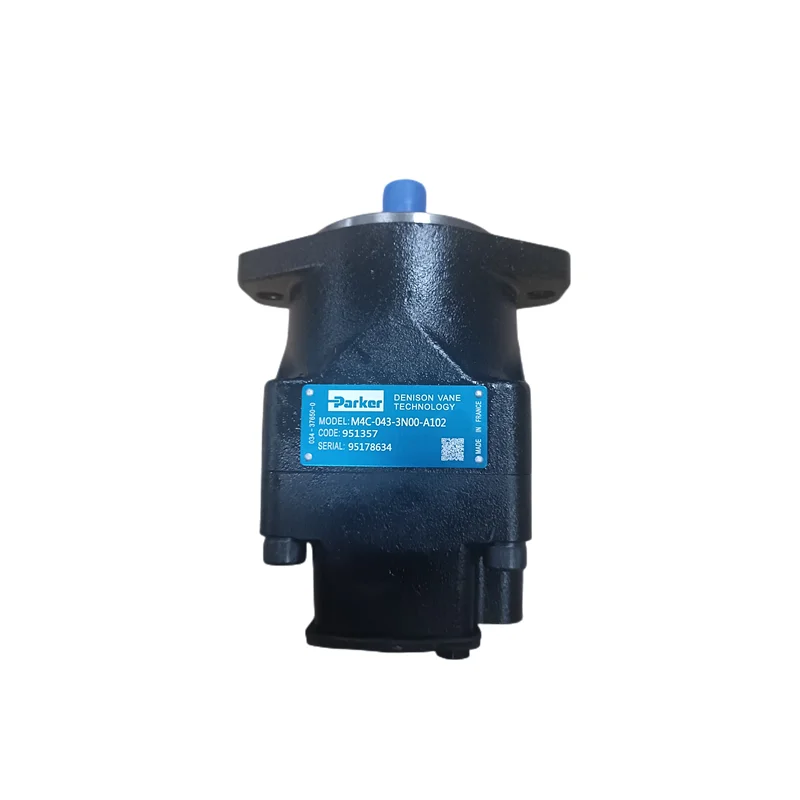

  • M4C-043-1N00-A102: 43cc versatile frame, widely used for fan drives and material handling.

  • M4SD-113-3N00-A102: 113cc severe duty frame, engineered for maximum torque in harsh environments.

• Key Performance Specs:

  • Max Pressure: Continuous up to 230 Bar; Intermittent up to 250 Bar.

  • Speed Range: Versatile performance from 400 RPM to 4000 RPM.

  • Fluid Compatibility: Optimized for anti-wear hydraulic oils and synthetic fluids.
