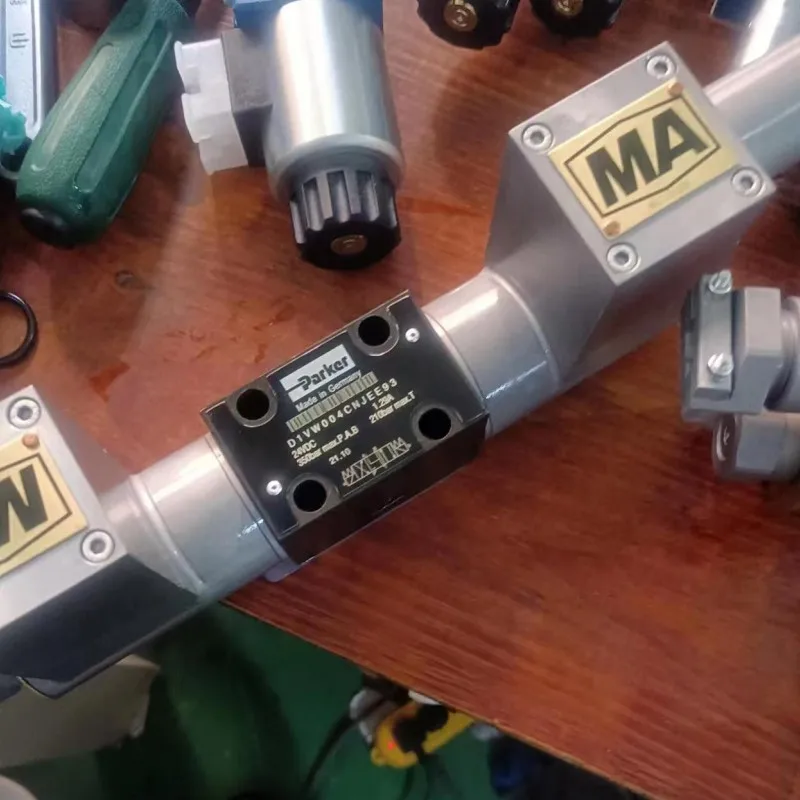

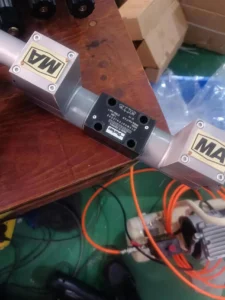

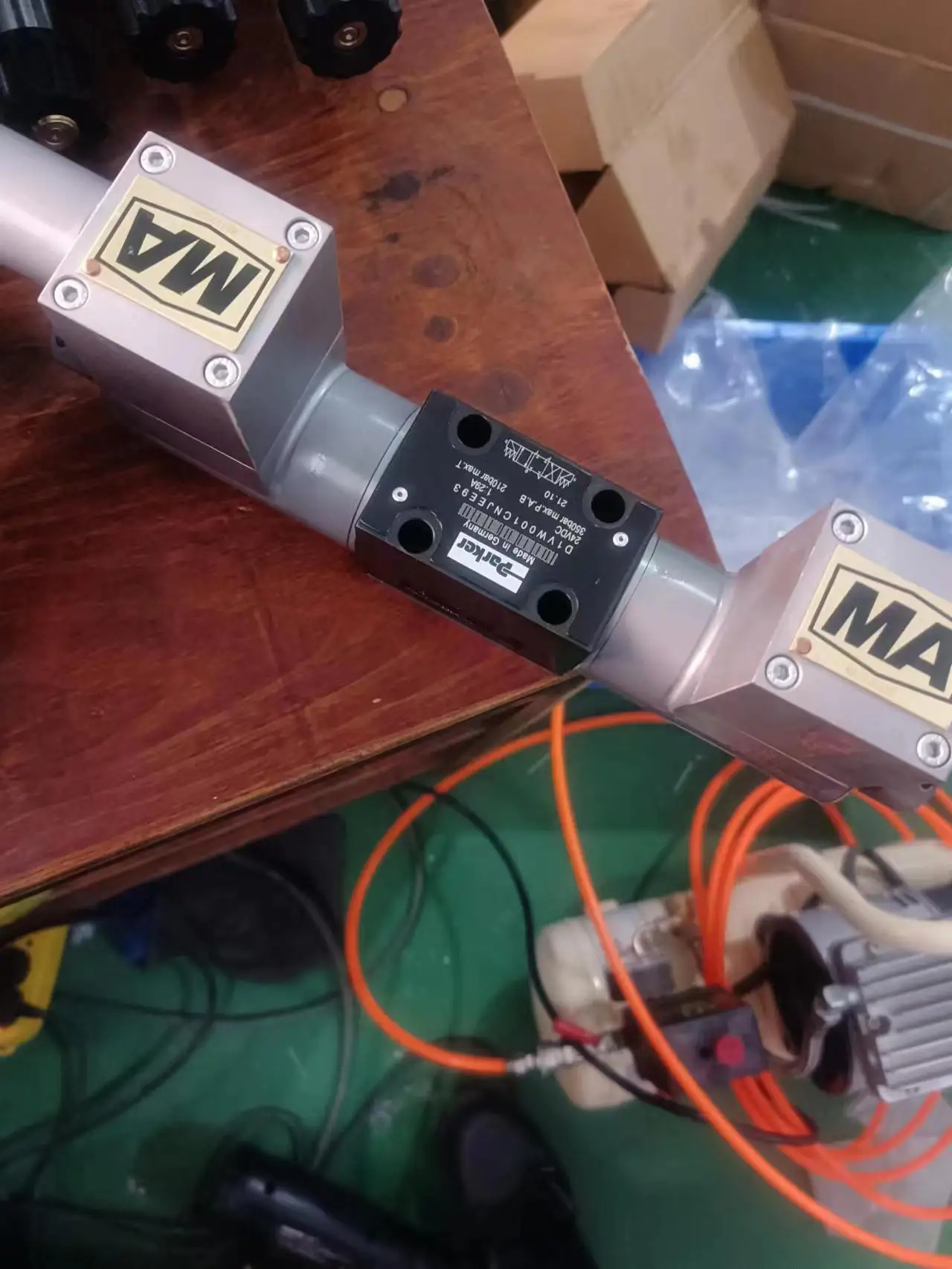

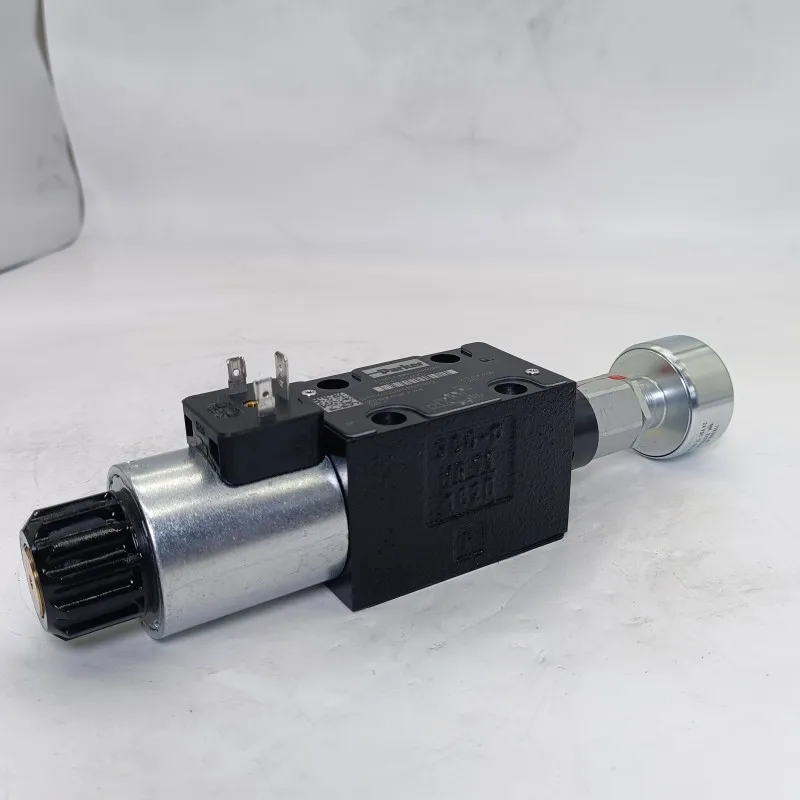

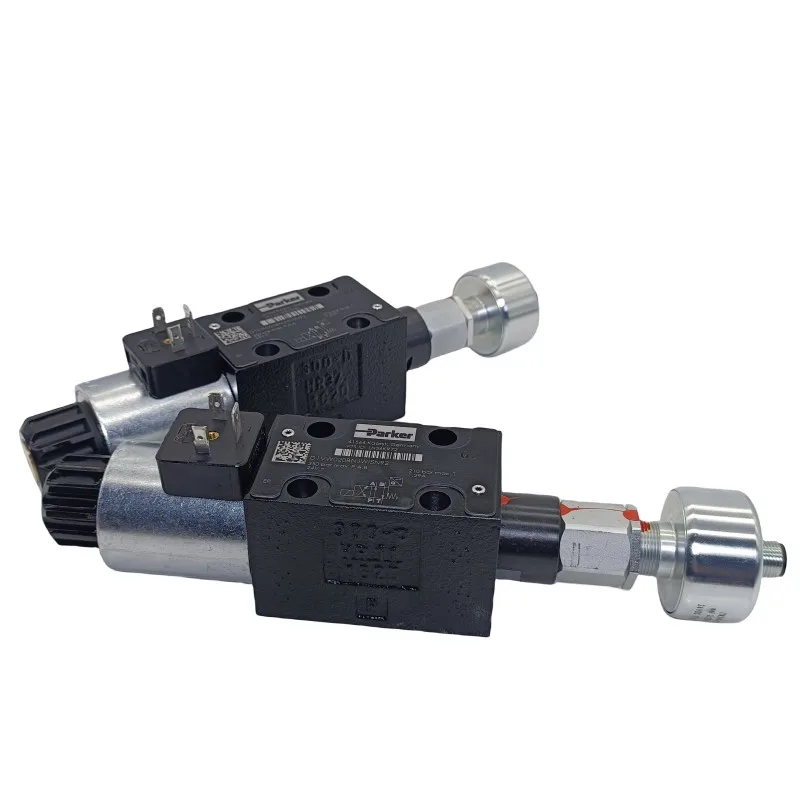

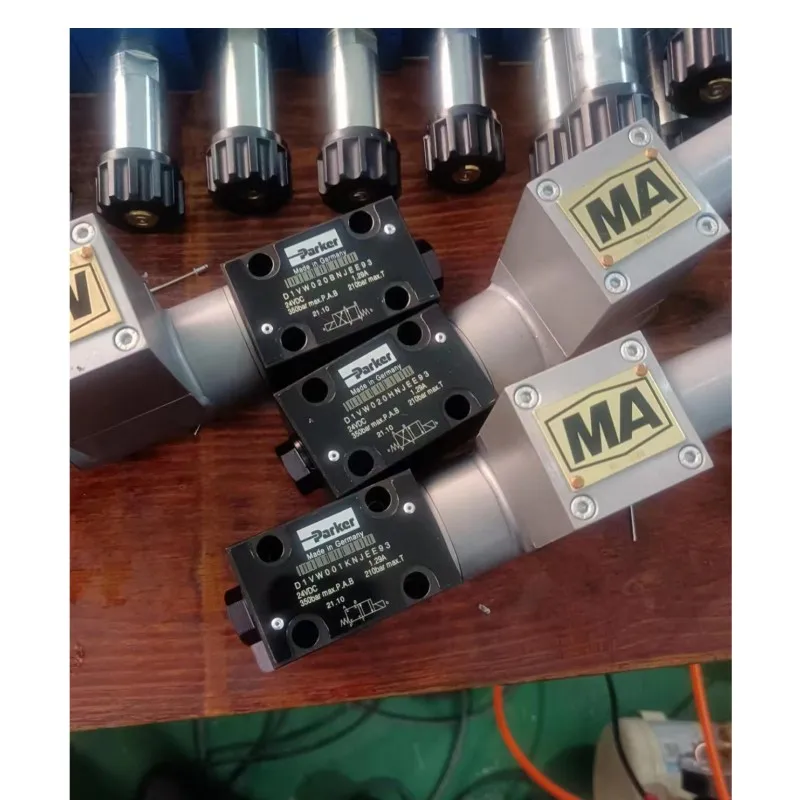

Parker D1VW Directional Valve | D1VW020BNJWI5N92 | D1VW004CNJEE93 | D1VW020HNJEE93
| Model Number | D1VW020BNJWI5N92, D1VW004CNJEE93, D1VW001KNJEE93, D1VW020HNJEE93, D1VW |
|---|
Product Description
Parker D1VW Series Hydraulic Solenoid Directional Control Valves
Product Overview:
The Parker D1VW Series is a high-performance, solenoid-actuated directional control valve with a standard NG6 (CETOP 03) interface. Renowned for its rugged “wet-pin” solenoid design, the armature operates submerged in oil, ensuring superior heat dissipation, internal lubrication, and dampened switching. This design significantly extends service life and reduces operational noise. Available in 3-position/4-way or 2-position/4-way configurations, the D1VW series delivers reliable shifting at pressures up to 350 Bar, making it the premier choice for machine tools, injection molding, and industrial automation.
Featured models on this page: D1VW020BNJWI5N92, D1VW004CNJEE93, D1VW001KNJEE93, and D1VW020HNJEE93.
Key Technical Advantages:
High Pressure & Flow Capacity: Optimized valve body casting allows for operating pressures up to 350 Bar and flow rates up to 80 L/min.
Wet-Pin Solenoid Technology: Provides smooth transitions without the risk of dynamic seal leaks, available in multiple voltages (e.g., JWI5 24VDC, JEE93 110VAC).
Versatile Spool Configurations:
020 (Type E/J): Closed-center or transition spools.
004 (Type G): Tandem center (P blocked, A/B/T connected).
001 (Type C): Open center (All ports connected).
Extreme Durability: The coated valve body offers excellent corrosion resistance, with coil protection ratings up to IP65 for harsh industrial environments.
Detailed Specifications & Parameters:
Core Model Matrix:

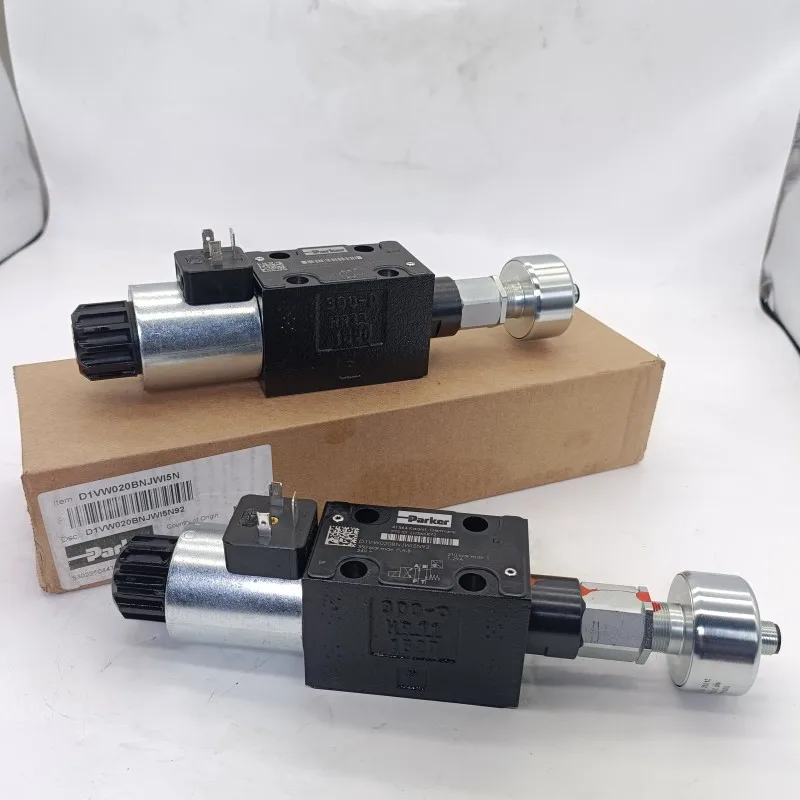

D1VW020BNJWI5N92: 2-position/4-way, JWI5 indicates DC24V solenoid with manual override.
D1VW004CNJEE93: 3-position/4-way, 004 spool, JEE93 indicates AC110V solenoid.
D1VW001KNJEE93: 3-position/4-way, H-type open center, optimized for unloading circuits.
D1VW020HNJEE93: 3-position/4-way, spring-centered functionality.
Core Technical Specs:

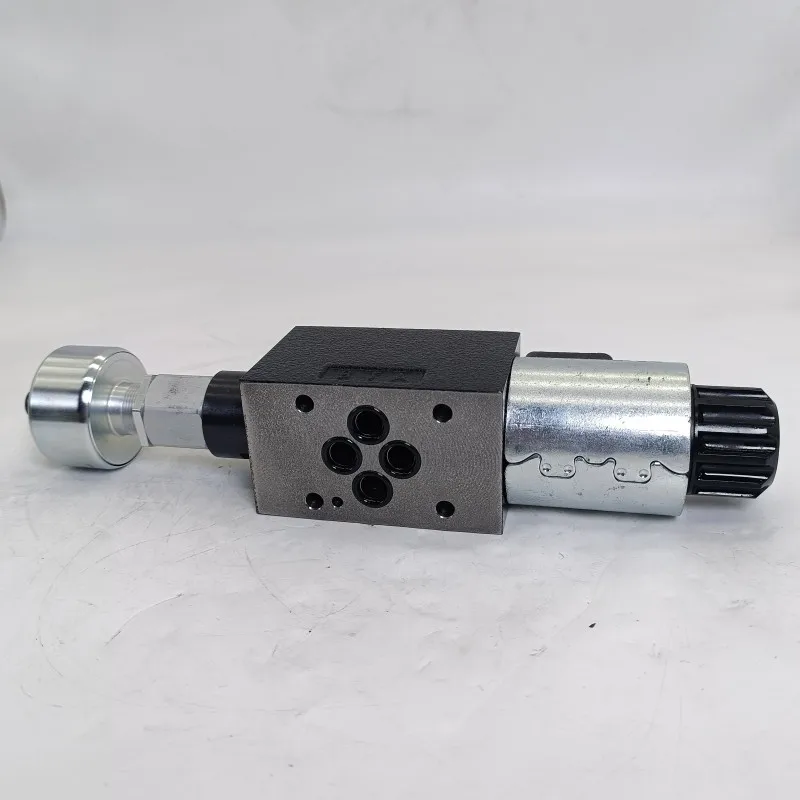

Mounting Interface: Standard DIN 24340 A6 / ISO 4401 / CETOP 03.
Max Operating Pressure: 350 Bar on P/A/B; 210 Bar (DC) / 160 Bar (AC) on T-port.
Max Flow Rate: 80 L/min (21 GPM).
Fluid Requirements: Recommended filtration $18/16/13$ (ISO 4406).
