Parker D1FPE Series High-Response Proportional Valves

Product Overview:

The Parker D1FPE series represents the pinnacle of proportional directional valve technology, specifically engineered for applications demanding ultra-high dynamic response and precision flow control. Equipped with integrated digital onboard electronics (OBE), the D1FPE utilizes advanced drive technology to achieve performance levels comparable to servo valves. Whether it’s the D1FPE50MB for precise pressure tasks or the high-flow D1FPE55HH, this series ensures maximum stability in sophisticated closed-loop control systems.

Featured models include: D1FPE50MB9NE0047X807, D1FPE50MB9NS00, D1FPE50HB9NB00, and D1FPE55HH9NK0039D25.

Key Technical Advantages:

• Servo-Class Dynamics: Featuring high bandwidth and ultra-fast step response times, making it a perfect alternative to traditional servo valves for high-frequency vibration or fast positioning.

• Integrated Onboard Electronics (OBE): The built-in amplifier supports $\pm 10V$ or $4-20mA$ signals, simplifying wiring and eliminating external EMI interference.

• Zero Lap Precision: Precision-ground spools ensure excellent linearity at the center position and minimal internal leakage.

• Advanced Diagnostics: Real-time spool position feedback is available via integrated interfaces, facilitating system tuning and predictive maintenance.

Detailed Specifications & Parameters:

• Featured Model Matrix:

  • D1FPE50MB9NS00: Standard proportional configuration, MB spool logic for general precision control.

  • D1FPE50HB9NB00: High-performance HB spool, optimized for specific pressure/flow gain characteristics.

  • D1FPE55HH9NK0039D25: High-flow specification optimized for large actuators with an enhanced feedback system.

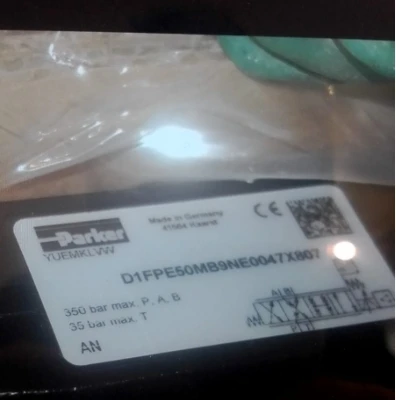

  • D1FPE50MB9NE0047X807: Specialized custom version with integrated electronic interface parameters (47X807).

• Core Technical Specs:

  • Nominal Size: NG6 / CETOP 03.

  • Max Operating Pressure: 350 bar (5075 PSI).

  • Rated Flow: 25 L/min to 40 L/min depending on model (at $\Delta p=35 bar$).

  • Response Time: Typical step response $< 10ms$.

  • Enclosure Rating: IP65.
