Northman Type DSV Valve | DSV-G02-2C DSV-G03-6C | NG6 NG10 Solenoid Valve | DC24 A220
| Model Number | DSV-G02-2C-A120-20 |
|---|
Product Description
Northman Type DSV-G02/G03 Series Solenoid Directional Control Valves
Product Overview: The Northman DSV Series is a highly cost-effective and reliable direct-operated solenoid directional valve range for industrial hydraulic control. Fully compliant with ISO 4401 international interface standards, the series covers both Size 02 (NG6 / CETOP 03) and Size 03 (NG10 / CETOP 05) footprints. Its high-efficiency wet-pin solenoid design ensures low temperature rise and excellent actuation consistency, even under continuous, high-frequency switching operations.
This series offers an exceptionally wide range of voltage options (including DC12/24V and A110/120/220/240V) and various spool logics (such as the 3-position closed-center 2C and the spool-type 6C). They are the premier choice for CNC machine tools, injection molding machinery, hydraulic power units (HPUs), and automated packaging equipment.
Key Technical Advantages:
Comprehensive Voltage Compatibility: Full range of coil solutions from DC to high-voltage AC, adapting to industrial power standards worldwide.
High-Response Wet-Pin Solenoids: The armature operates fully immersed in hydraulic oil for superior self-lubrication and noise reduction, significantly extending mechanical life and dampening switching shock.
Low Pressure-Drop Flow Paths: Precision-cast valve bodies feature fluid-dynamically optimized internal galleries, maintaining low pressure loss even at maximum flow rates.
Industrial-Grade Ingress Protection: Coils feature premium insulation and are available with various electrical interfaces (Terminal box or Plug-in) to resist oil and dust contamination.
Detailed Specifications & Parameters:
Core Series: Northman Type DSV Series.

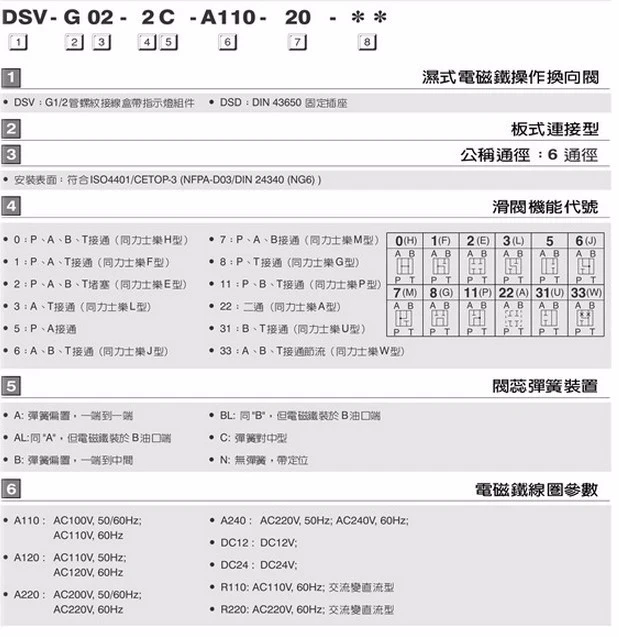

Featured Model Matrix: DSV-G02-2C-A120-20, DSV-G02-6C-DC24, DSV-G03-2C-A220, DSV-G03-6C-DC12.
Core Performance Specs:
Nominal Sizes: G02 (Size 02 / NG6) and G03 (Size 03 / NG10).
Max Operating Pressure: 25 MPa (3,600 PSI) to 31.5 MPa (4,500 PSI).
Max Flow Capacity: G02 up to 80 L/min; G03 up to 120 L/min.
Voltage Options: AC 110V, 120V, 220V, 240V; DC 12V, 24V.
Spool Functions: 2C (3-pos closed center); 6C (3-pos P-to-T center).
Design Sequence: 20 Series.
