Northman DSV Solenoid Valve | DSV-G02-6C-DC24 | DSV-G03-2C-DC24 | NG6 & NG10 Directional Valve | DSV-G02-2N
| Model Number | DSV-G02, DSV-G03 |
|---|
Product Description
DSV Series Industrial Solenoid Directional Valves (G02 & G03)
Product Overview: The DSV series solenoid-operated directional valves are renowned for their high-pressure, high-flow, and low-pressure-drop characteristics. These valves are widely utilized in injection molding machines, grinders, machine tools, and various hydraulic power units. This series features both direct-acting G02 (Size 6) and larger flow G03 (Size 10) specifications. Utilizing wet-pin solenoid technology, the armature operates smoothly within hydraulic fluid, which significantly reduces shifting shock and noise while ensuring an ultra-long service life under high-frequency operation.
Featured models: DSV-G02-6C-DC24-20, DSV-G02-2N-DC24-20, G03-2C-DC24-82, DSV-G03-7C-A120-20, and DSV-G02-2A-A110-20.
Key Technical Advantages:
Low Pressure Drop & Efficiency: Optimized internal flow channels reduce resistance, enhancing overall system energy efficiency.
Wet-Pin Solenoid Design: Excellent heat dissipation supports a 100% Duty Cycle (ED), preventing coil burnout and minimizing mechanical wear.
Versatile Spool Functions: Offers configurations like 2C (All ports blocked), 6C (P-blocked, ABT-connected), and 2N (Single solenoid) to meet various circuit control requirements.
Superior Sealing: Precision-engineered spool-to-body clearance ensures exceptionally low internal leakage even at maximum pressure.
Detailed Specifications & Parameters:
Featured Model Matrix:

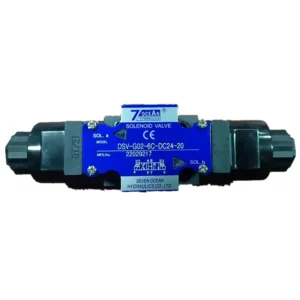

DSV-G02-6C-DC24-20: Size 6 (NG6), 6C spool, DC24V control, Series 20.
DSV-G02-2N-DC24-20: Size 6 (NG6), 2N single solenoid position, DC24V control.

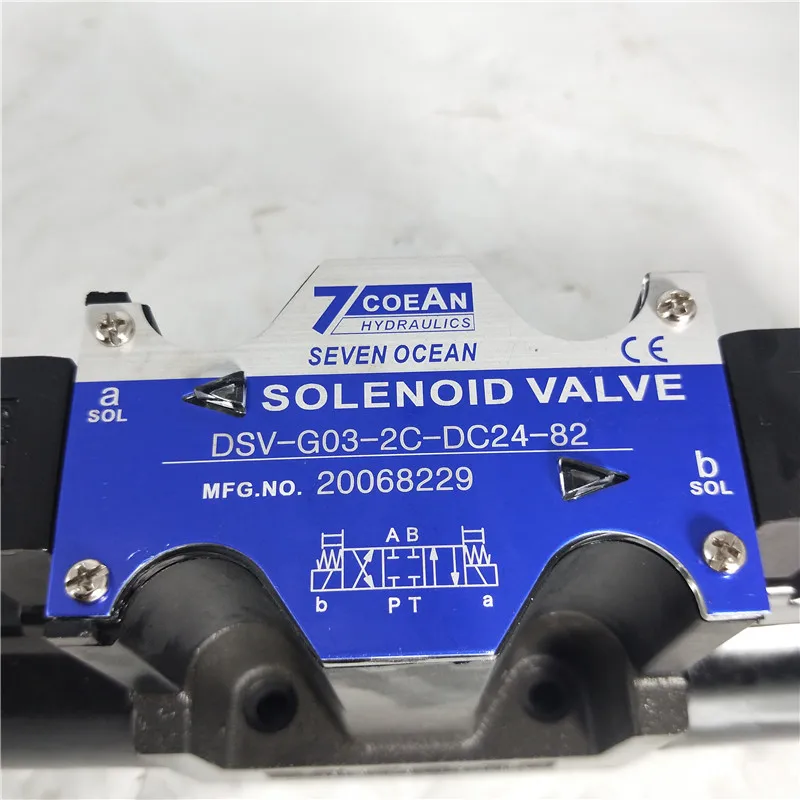

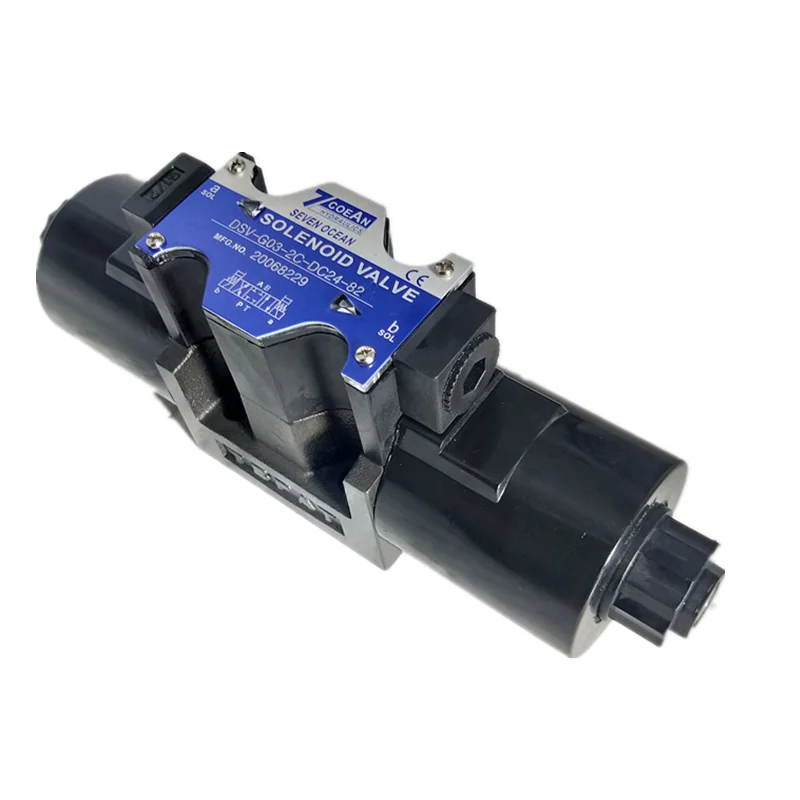

G03-2C-DC24-82: Size 10 (NG10), 2C spool, DC24V control, Series 82.
DSV-G03-7C-A120-20: Size 10 (NG10), 7C spool, AC120V control.
DSV-G02-2A-A110-20: Size 6 (NG6), 2A spool, AC110V control.
Core Technical Specs:
Max Operating Pressure: Up to 31.5 MPa (315 bar) on P, A, and B ports.
Max Flow Capacity: Up to 60-80 L/min (G02); 100-160 L/min (G03).

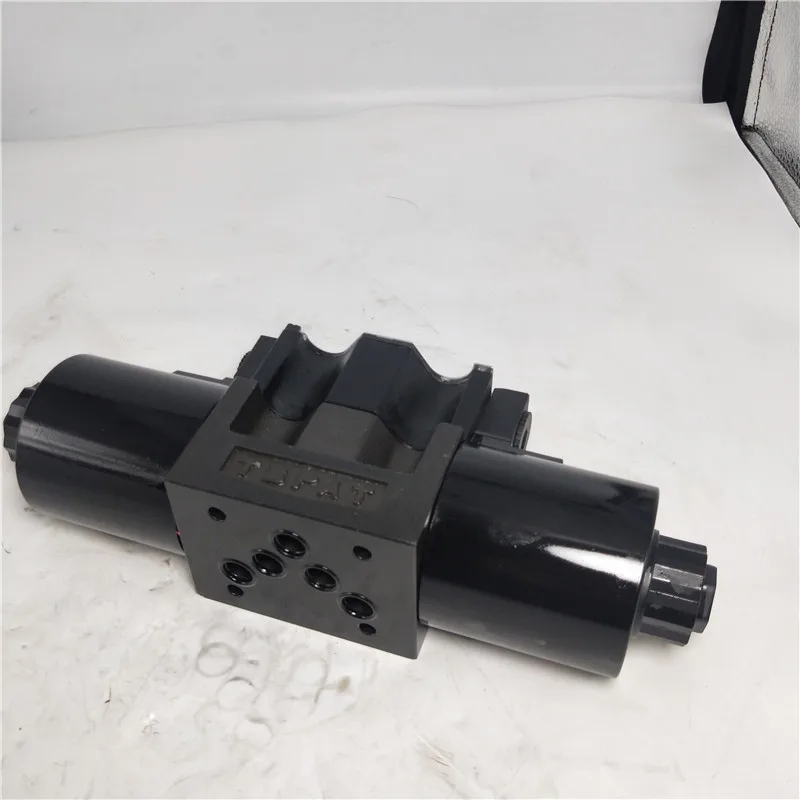

Mounting Interface: Complies with ISO 4401-03 (G02) and ISO 4401-05 (G03).
Protection Rating: IP65 rated with waterproof terminal box.
