Nachi SS Series Wet-Type Solenoid Valves (Size G01)

Product Overview: The Nachi SS Series represents the pinnacle of hydraulic control technology, widely integrated into machine tools, molding machinery, and industrial automation systems. At its core is the wet-type solenoid design, where the armature is lubricated by the system fluid. This significantly reduces impact shock and noise while eliminating the seal wear and external leakage common with traditional dry solenoids. Whether it is the SS-G01-A3X for unloading circuits or the SS-G01-C9 for complex directional logic, the SS series provides ultra-high switching frequencies and an exceptional service life.

Featured models include: SS-G01-A3X-R-C2-E22, SS-G01-C9-R-C115-31, and SS-G01-E3X-R-C2-E2.

Key Technical Advantages:

• Extended Life & Quiet Operation: The armature is immersed in oil, providing a cushioning effect that minimizes mechanical wear and ensures whisper-quiet shifting.

• High-Pressure & High-Flow Capacity: Despite its compact G01 (1/8″) size, the series is rated for pressures up to 35 MPa (350 Bar), making it suitable for high-intensity hydraulic applications.

• Pollution Resistance: Precision-ground spools combined with high-force return springs ensure reliable switching even in environments with fluctuating fluid cleanliness.

• Versatile Electrical Options: Available in various voltages (AC100V, AC110V, AC200V, DC24V, etc.) and connector styles to match any electrical control architecture.

Detailed Specifications & Parameters:

• Featured Model Matrix:

  • SS-G01-A3X-R-C2-E22: 2-position, 3-way design, AC200V coil, equipped with indicator light and surge suppressor.

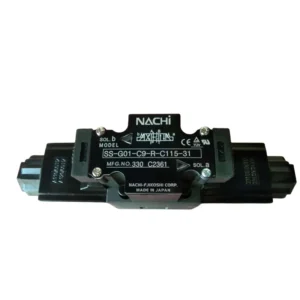

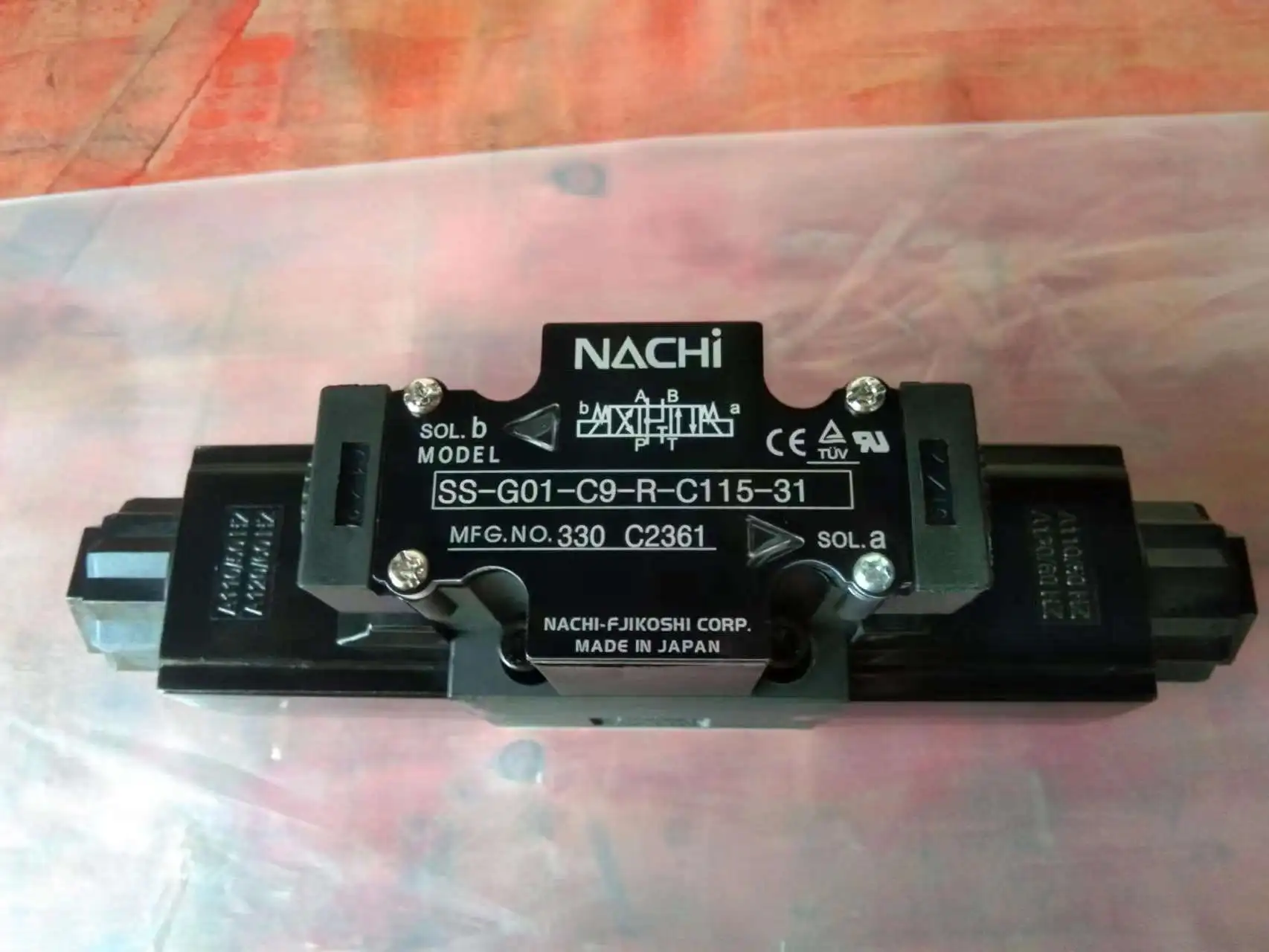

  • SS-G01-C9-R-C115-31: 3-position, 4-way (Open Center), AC115V high-voltage coil configuration.

  • SS-G01-E3X-R-C2-E2: 2-position, 4-way single solenoid, optimized for high-precision sequential control.

• Core Technical Specs:

  • Max Operating Pressure: 35 MPa (5076 PSI).

  • Max Flow Rate: Up to 100 L/min (depending on spool type).

  • Protection Rating: IP65 or higher.

  • Electrical Connection: Plug-in terminal or terminal box options.
