Modular Pilot Check Valve MPA MPB MPW Series | MP-02W-20-55 MP-03W-20-40 | NG6 NG10
| Model Number | MP-02W-20-55, MP-03W-20-40, MT-02Wi-55 |
|---|
Product Description

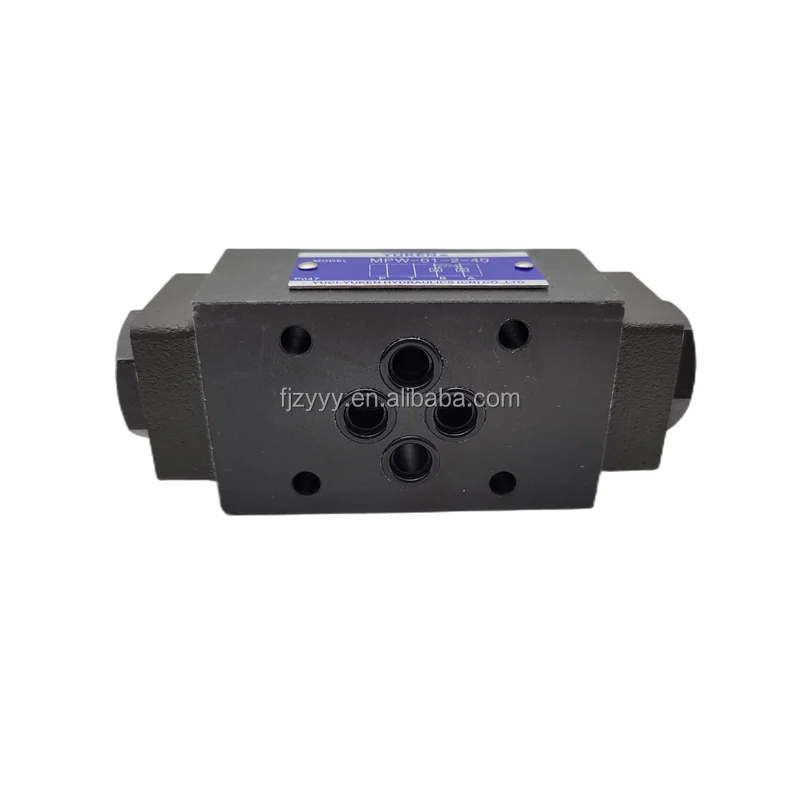

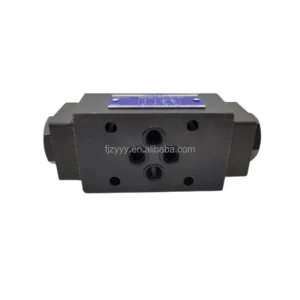

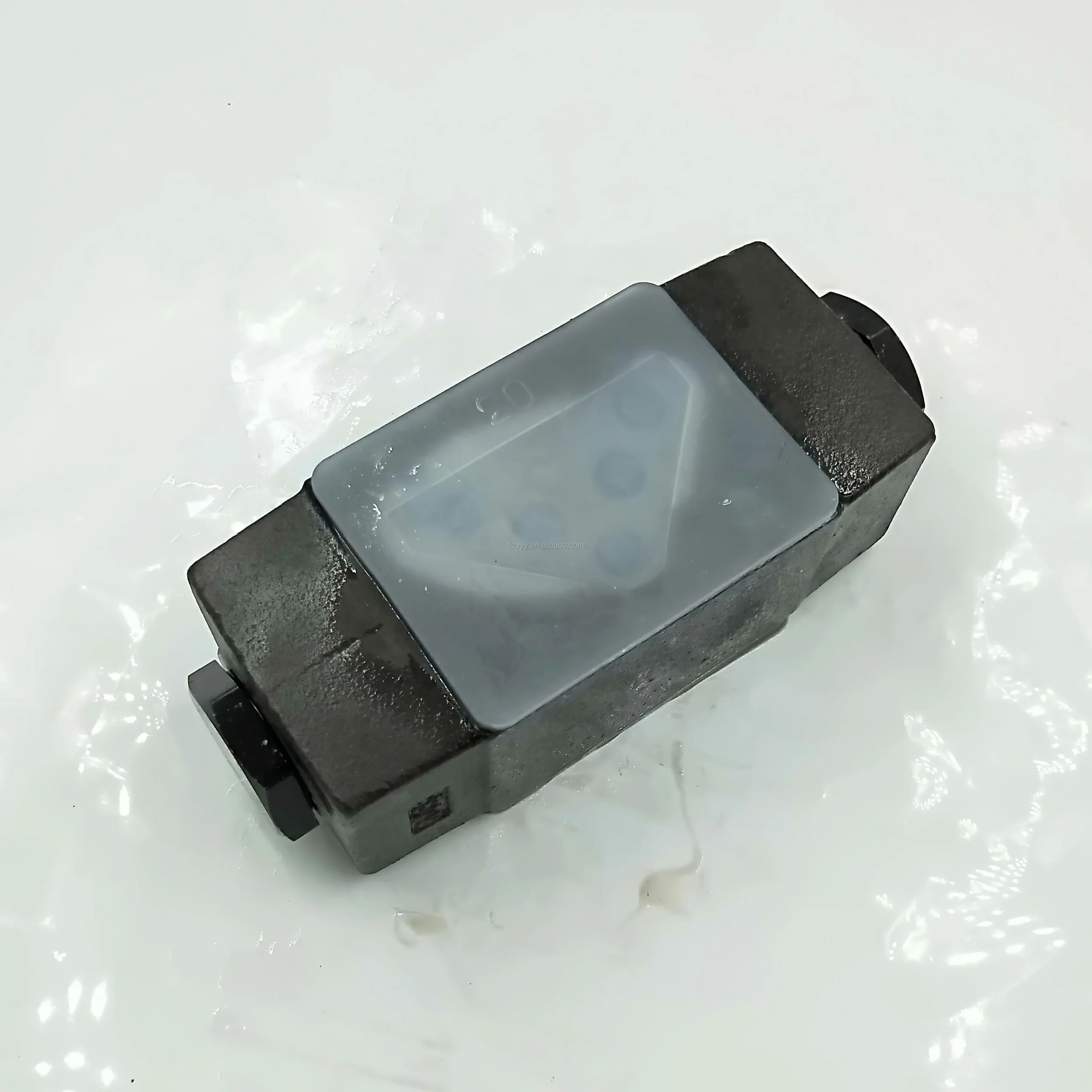

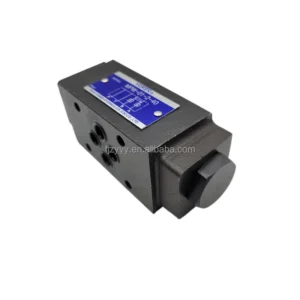

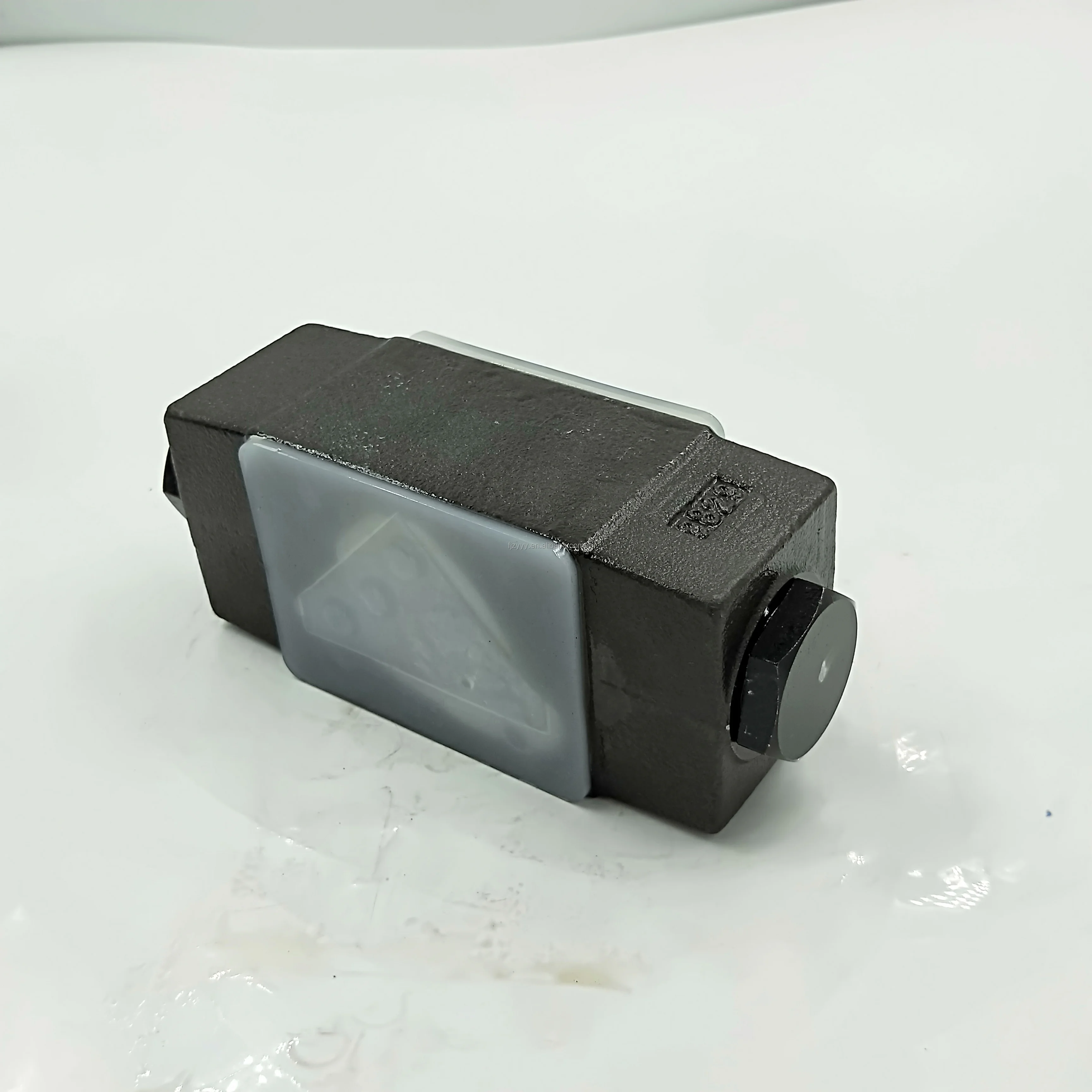

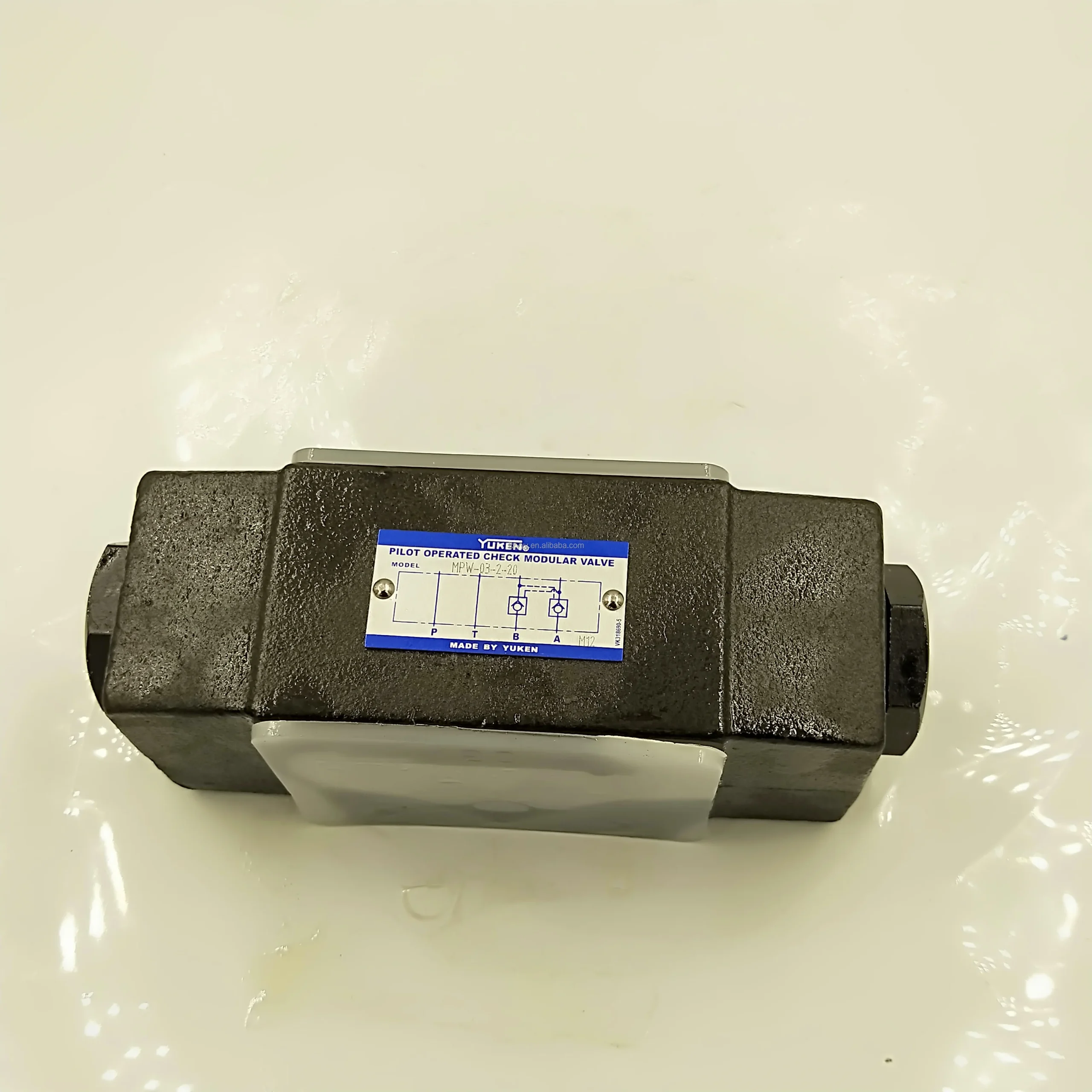

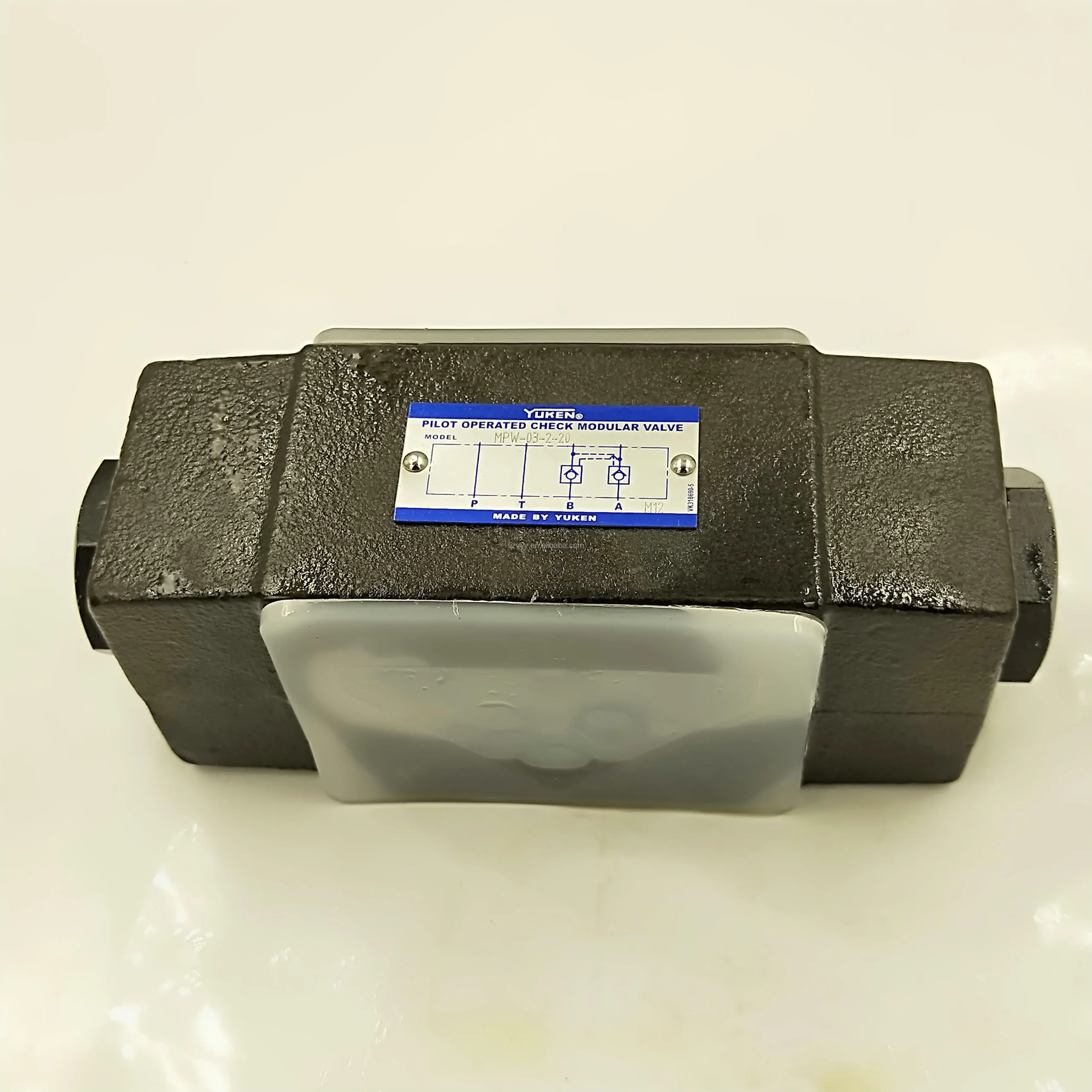

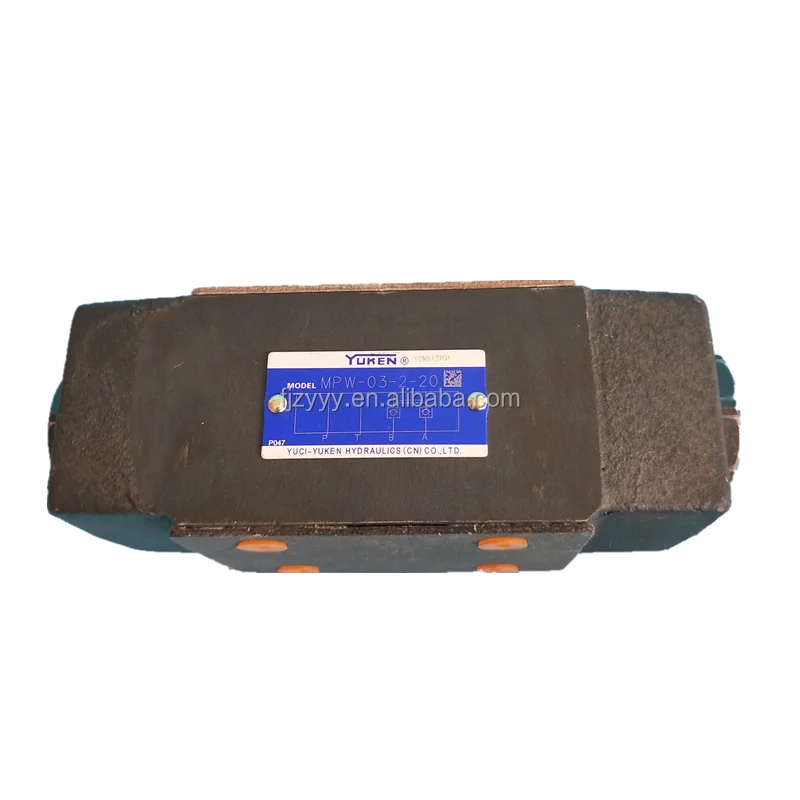

MPA/MPB/MPW Series Modular Pilot Operated Check Valves
Product Overview: The MP Series Modular Pilot Check Valves offer a compact, integrated solution for position holding and load locking in hydraulic circuits. Fully compliant with ISO 4401 mounting standards, these valves stack directly beneath directional control valves, providing a reliable hydraulic lock without external plumbing. Featured precision models include: MP-02W-20-55, MP-03W-20-40, and the specialized MT-02Wi-55.
By utilizing pilot pressure to release the check poppet, this series allows smooth reverse flow. The precision-ground seating ensures zero internal leakage in the closed position, making them the premier choice for CNC fixtures, hydraulic lifting platforms, injection molding locking circuits, and automated assembly lines.
Key Technical Advantages:
Standardized Modular Interface: Compatible with NG6 (01/02) and NG10 (03) sizes, significantly reducing system footprint and potential leak points.
Elite Sealing Integrity: Heat-treated alloy steel poppets and precision-ground seats prevent load drift, even during long-term high-pressure holding cycles.
Versatile Control Configurations:
MPA: Pilot control on Port A.
MPB: Pilot control on Port B.
MPW: Double-acting pilot lock for both A & B ports.
Shock-Resistant Architecture: High-tensile cast iron bodies are engineered to withstand system spikes up to 31.5 MPa.
Detailed Specifications & Parameters:
Core Series: Modular Pilot Check Valve (MP Series).
Featured Model Matrix: MPA-01, MPB-01, MPW-02W, MP-02W-20-55, MP-03W-20-40, MT-02Wi-55.
Core Performance Specs:
Nominal Sizes: 01/02 (NG6/CETOP 3), 03 (NG10/CETOP 5).
Max Operating Pressure: Rated up to 250 Bar (25 MPa) or 315 Bar.
Flow Capability: 02 Series (~50 L/min) and 03 Series (up to 100 L/min).
Cracking Pressure Codes: Multiple spring options available, such as 20 (2 Bar) and 55 (5.5 Bar), for precise response.
