Modular Check Valve MPW MPCV Series | MPCV-02W MPCV-03W MPC-04W | Pilot Operated Check Valve
| Model Number | MPW/MPCV-02W MPCV-03W/A/B MPC-04W-05-20 MPC-02W-05-35 |
|---|
Product Description

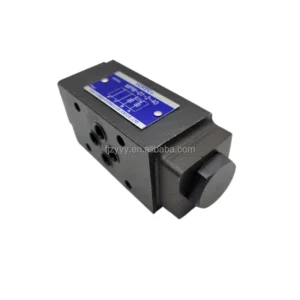

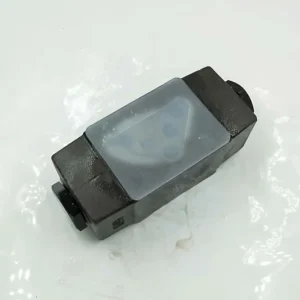

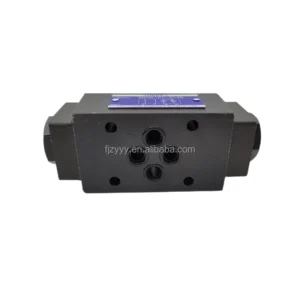

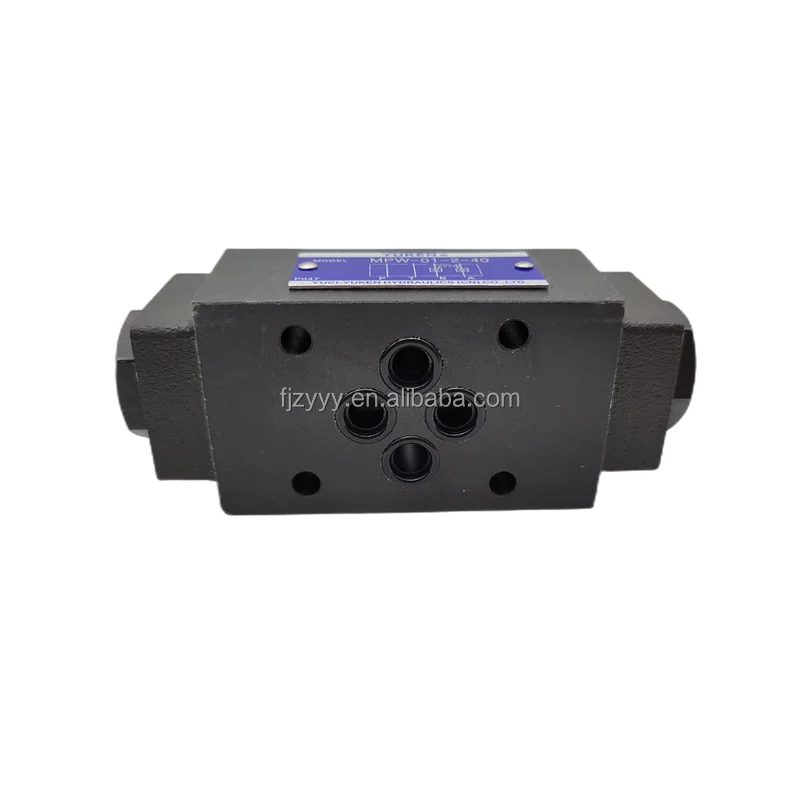

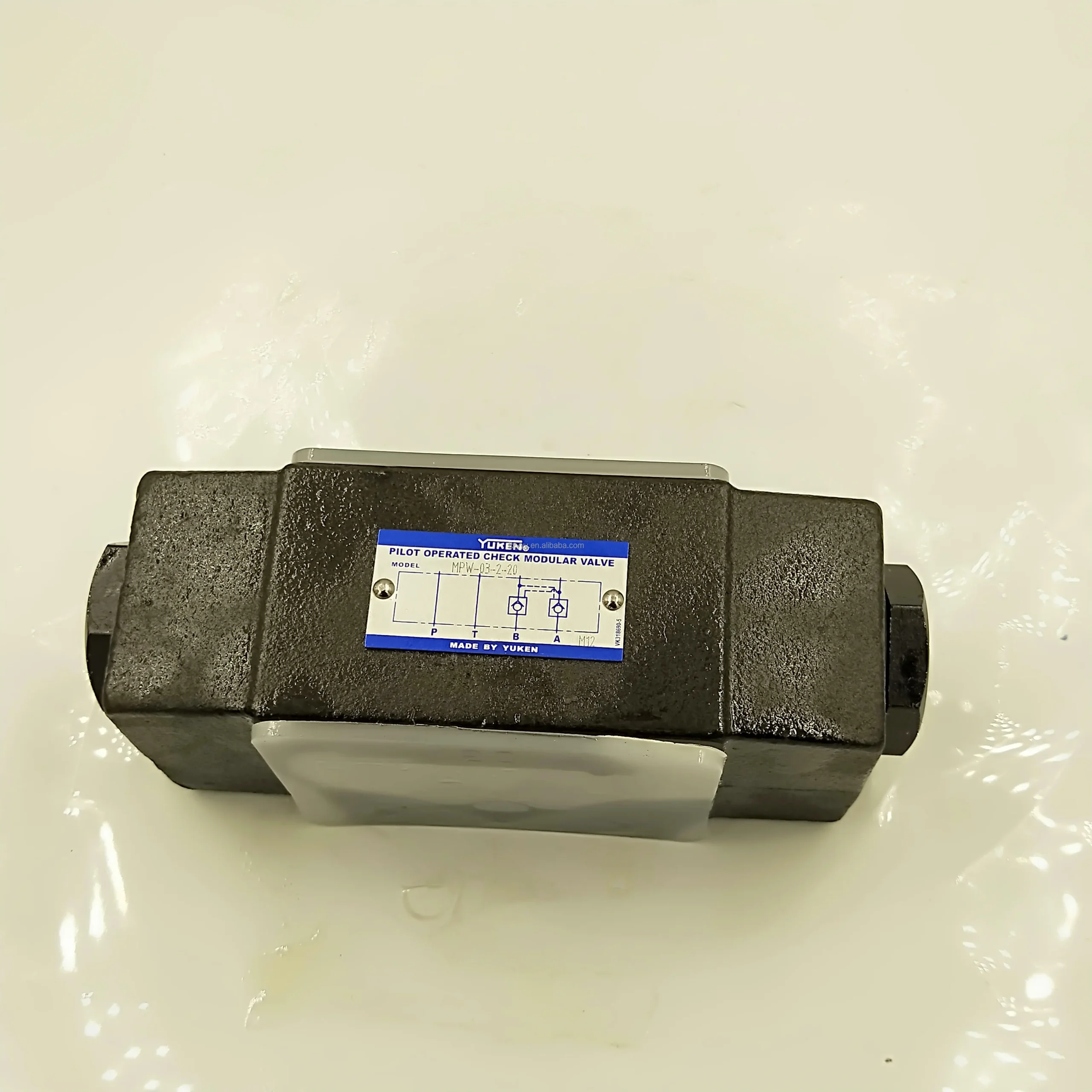

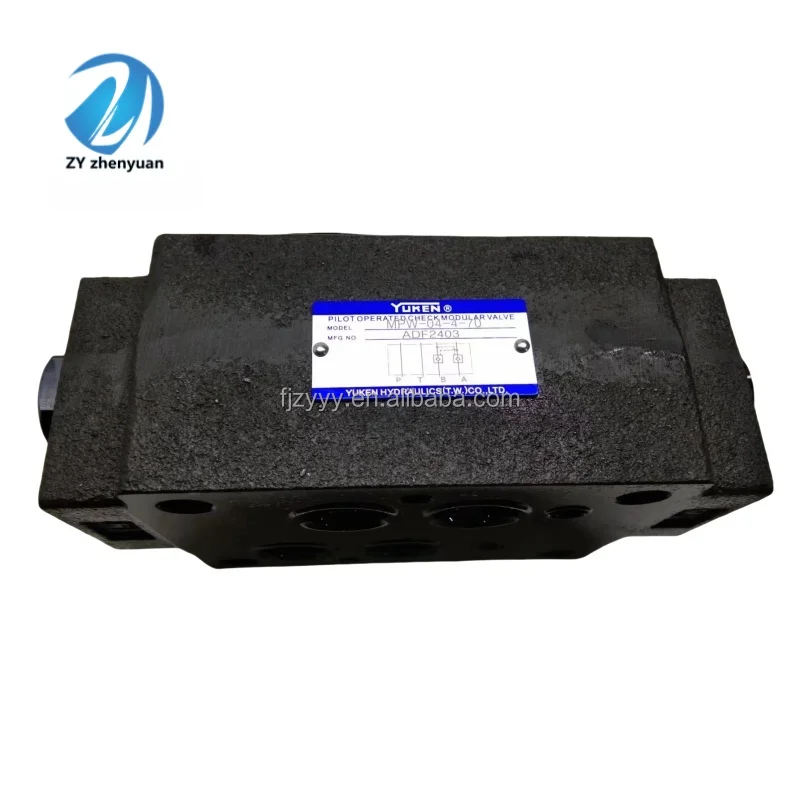

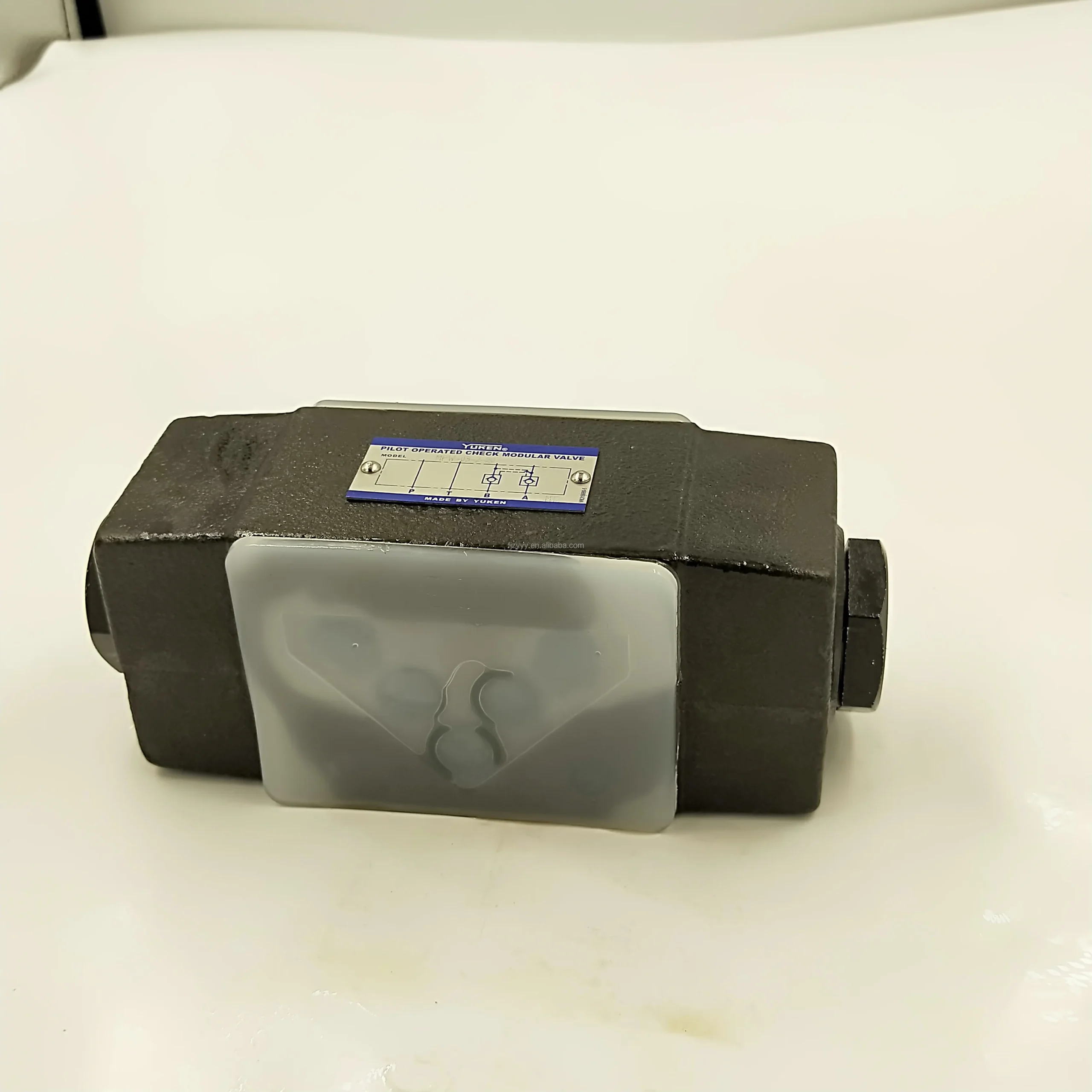

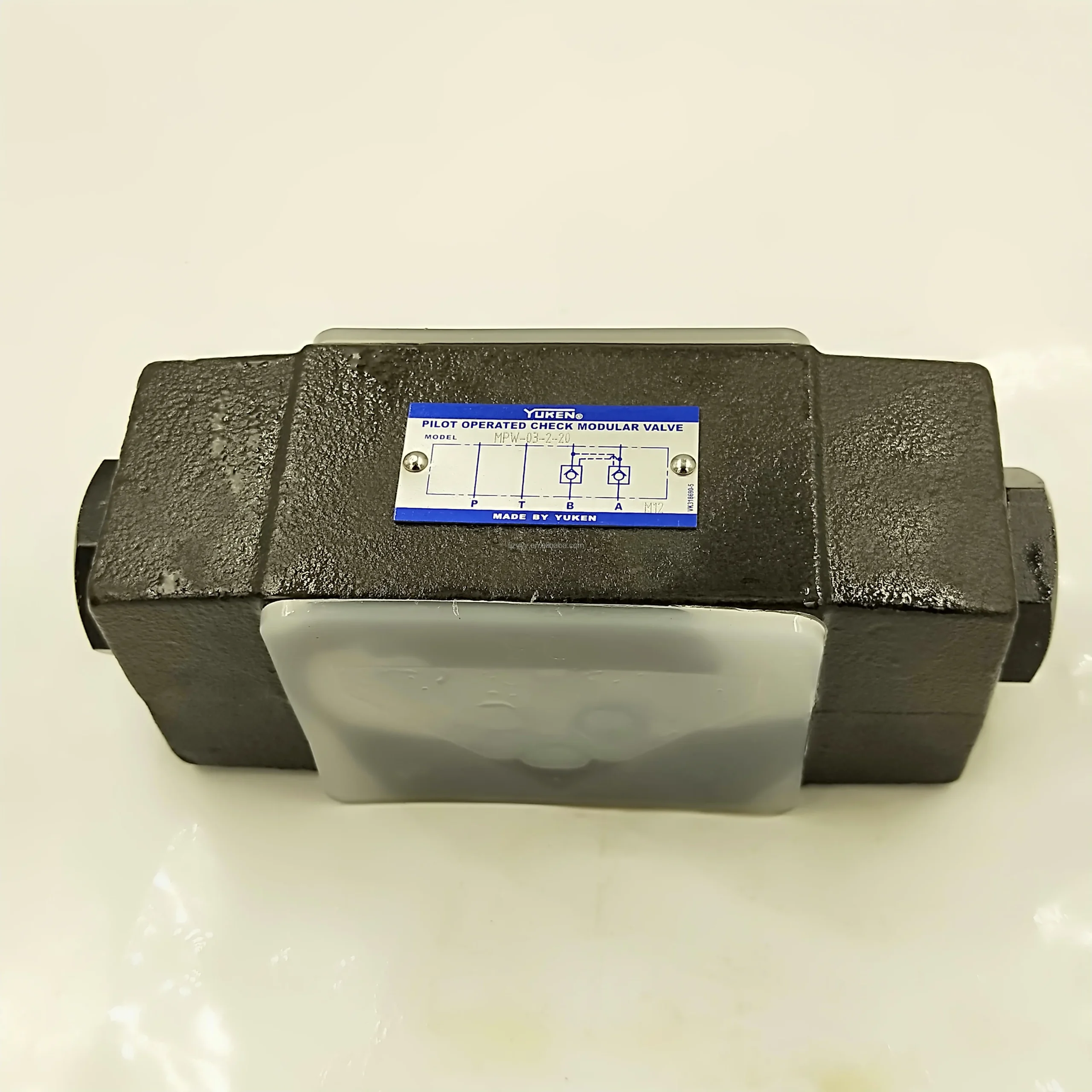

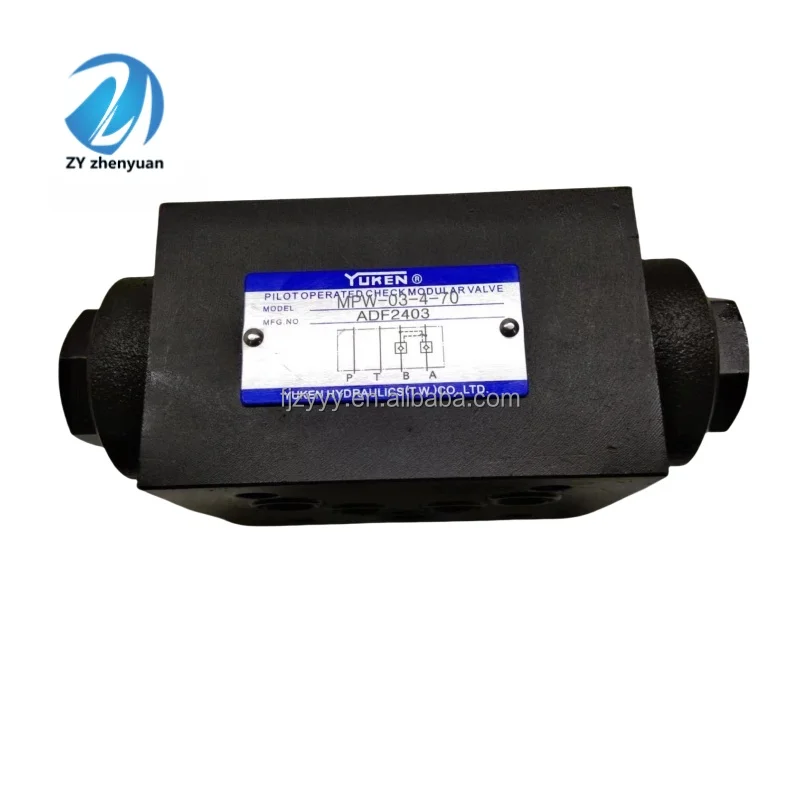

MPW & MPCV Series Modular Pilot Operated Check Valves
Product Overview: The MPW, MPCV, and MPC Series are essential modular stack components for secure actuator positioning in hydraulic systems. Featuring a standardized sandwich-plate design, these valves mount directly beneath directional control valves, providing a reliable hydraulic lock without the need for additional plumbing. This category highlights key precision models: MPCV-02W, MPCV-03W/A/B, MPC-04W-05-20, and MPC-02W-05-35.
By utilizing internal pilot pressure to open the check mechanism, these valves allow controlled reverse flow, ensuring superior load-holding performance for cylinders and motors. Their compact footprint and elite sealing integrity make them the premier choice for CNC machine tools, hydraulic clamping fixtures, injection molding locking systems, and automated assembly lines.
Key Technical Advantages:
Standardized Modular Interface: Fully compliant with ISO 4401 standards, covering NG6 (02), NG10 (03), and NG16 (04) sizes for easy integration and maintenance.
High-Precision Poppet Design: Hardened and precision-ground spools guarantee zero internal leakage in the locked position, effectively eliminating load drift.
Versatile Control Logic: Available in Port A control, Port B control, or W (Double-acting) configurations to suit various circuit requirements.
High-Pressure Resilience: Constructed from high-tensile cast iron or steel bodies to withstand frequent pressure spikes without structural fatigue.
Detailed Specifications & Parameters:
Core Series: Modular Pilot Operated Check Valves (MPW/MPCV/MPC).
Featured Model Matrix: MPCV-02W, MPCV-03W, MPCV-03A, MPCV-03B, MPC-04W-05-20, MPC-02W-05-35.
Core Performance Specs:
Nominal Sizes: 02 (NG6/CETOP 3), 03 (NG10/CETOP 5), 04 (NG16/CETOP 7).
Max Operating Pressure: Rated up to 25 MPa (250 Bar) or 31.5 MPa.
Flow Capability: 02 Series (~50 L/min), 03 Series (~100 L/min), and 04 Series (up to 200 L/min).
Cracking Pressure: Multiple spring options available, such as 0.05 MPa (code 05), 0.2 MPa, and 0.35 MPa (code 35).
