MFZ12-37YC Solenoid Coil | 24V & 12V DC Hydraulic Valve Coil | 37N Thrust Wet Type Electromagnet
| Title | Default Title |
|---|
Product Description
MFZ12-37YC Series Wet-Type Hydraulic Solenoid Coils (12V/24V)
Product Overview: The MFZ12-37YC is a high-performance, long-life wet-type DC solenoid coil engineered specifically for industrial hydraulic directional valves. Delivering a standard rated thrust of 37N, this coil ensures precise spool actuation. Its “Wet-Type” design allows the armature to operate within hydraulic fluid, utilizing the oil for superior heat dissipation and supporting a 100% Duty Cycle (ED) for continuous operation. Whether integrated into 24V industrial automation lines or 12V mobile machinery systems, the MFZ12-37YC provides powerful and reliable electromagnetic force.
Key Technical Advantages:
Dual Voltage Availability: Comes in standard 24V DC and 12V DC specifications to match various power supply environments.
High-Efficiency Wet Construction: The oil-immersed armature dampens switching shocks and reduces noise, significantly extending mechanical life compared to dry-type solenoids.
Class H Insulation: Manufactured with high-temperature enameled wire and premium resin encapsulation, offering excellent thermal and vibration resistance with an IP65 rating.
Stable Thrust Output: Provides a consistent 37N thrust throughout the entire stroke, ensuring complete spool shifting and preventing valve sticking.
Detailed Specifications & Parameters:
Core Model: MFZ12-37YC
Voltage Options: 12V DC / 24V DC

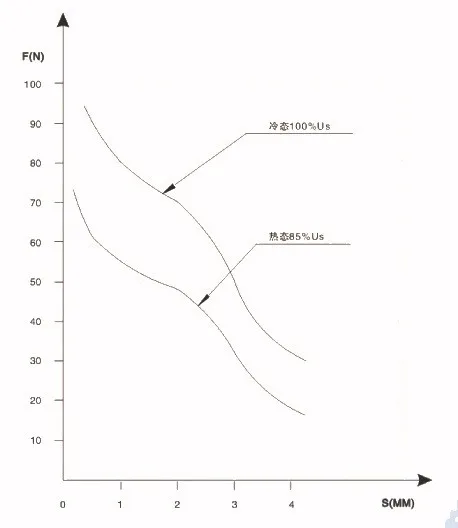

Rated Thrust: 37N (3.8 kgf)
Rated Stroke: 2.8 mm – 3 mm
Insulation Class: Class H (180°C heat resistance)
Electrical Interface: DIN 43650 standard connector (LED optional)
Compatibility: Primarily used for NG6 (Size 6) solenoid-operated directional valves.
