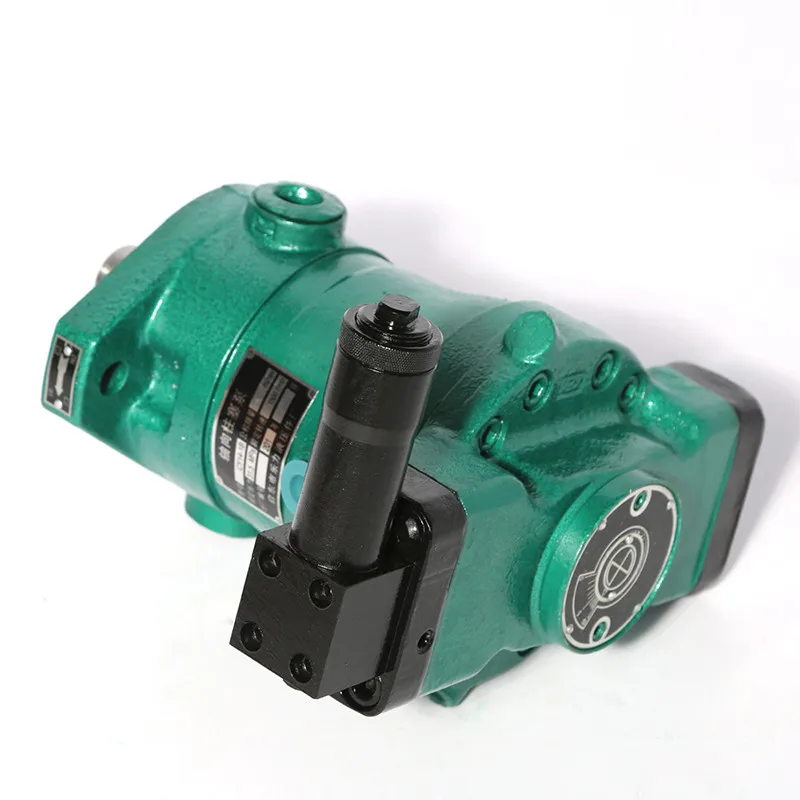

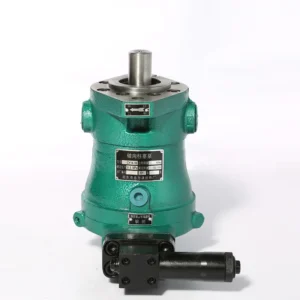

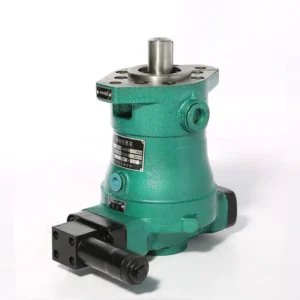

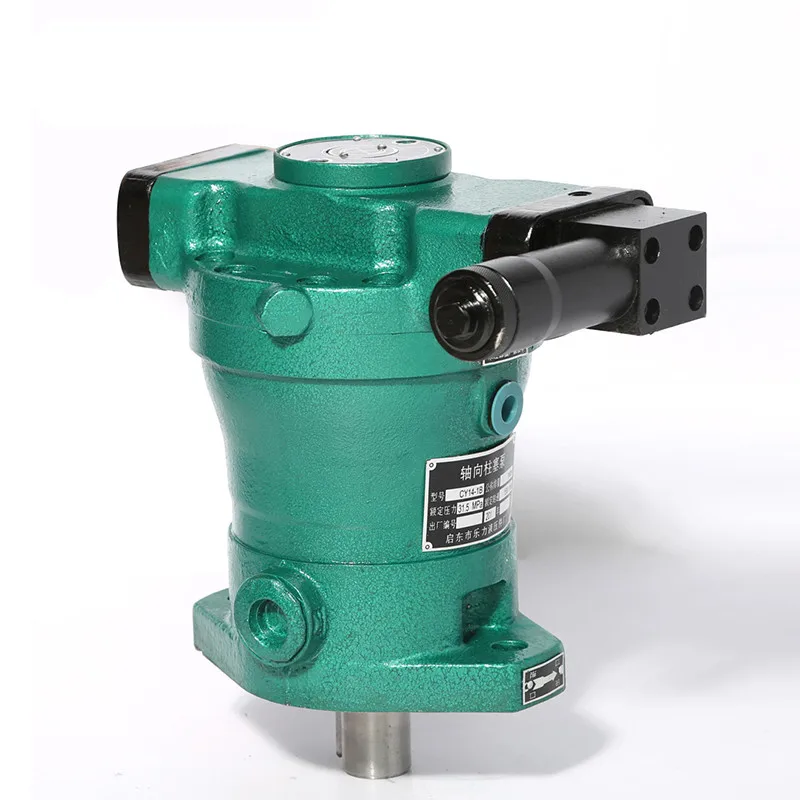

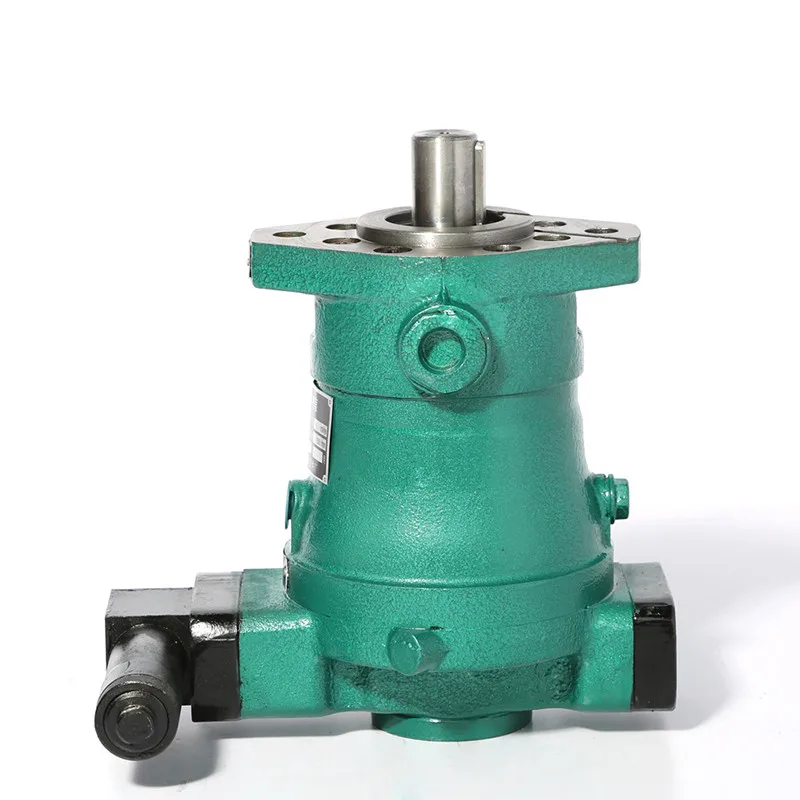

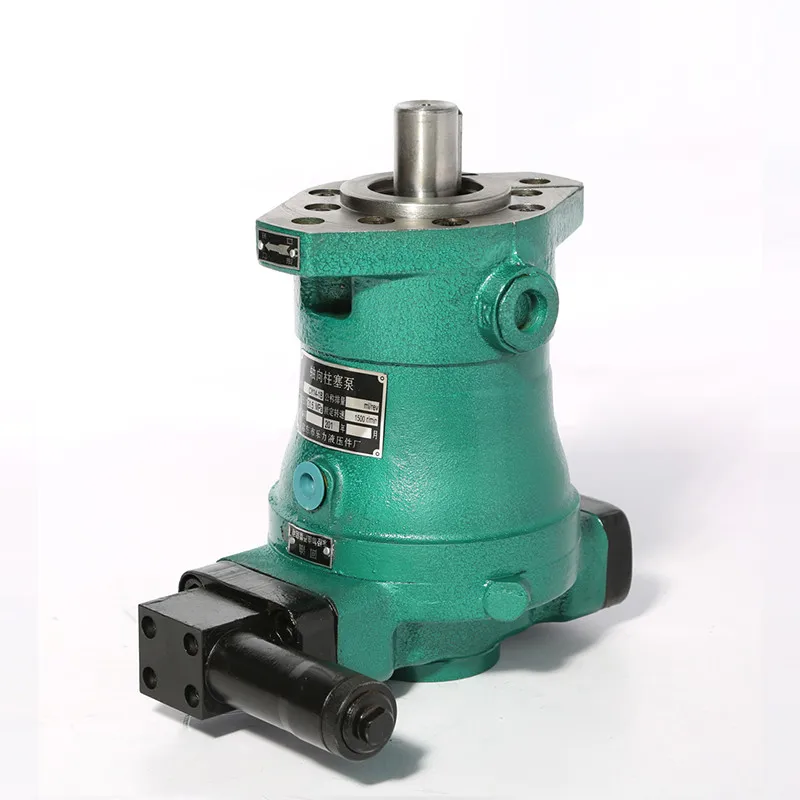

MCY14-1B Series High-Pressure Axial Piston Variable Pumps

Product Overview: The MCY14-1B series is a classic industrial-grade high-pressure axial piston variable pump range, widely utilized in various open-circuit hydraulic systems. This series offers an exceptionally flexible displacement portfolio, from the compact 2.5ml/r to the powerful 80ml/r. Featured models include the 10MCY14-1B, 25MCY14-1B, 40MCY14-1B, 63MCY14-1B, and 80MCY14-1B. Utilizing a balanced valve plate design, the MCY series ensures stable performance under high-pressure conditions up to 31.5 MPa. Renowned for its compact envelope, high volumetric efficiency, and low noise levels, it is the premier power source for metal-cutting tools, forging machinery, mining equipment, and heavy-duty industrial Hydraulic Power Units (HPU).

Key Technical Advantages:

• Superior High-Pressure Capability: Rated for continuous operation at 31.5 MPa (4500 PSI) with peak capabilities up to 40 MPa, managing heavy-duty extrusion and sustained pressure cycles effortlessly.

• Responsive Variable Control: Achieves infinitely variable flow modulation via swashplate adjustment, effectively reducing reactive power loss and minimizing system heat generation.

• Precision Valve Plate Balancing: Features a physically balanced interface between the valve plate and cylinder block, ensuring minimal internal leakage even at maximum pressures.

• Rugged Environmental Adaptability: Built with high-strength ductile iron housings for excellent shock resistance, capable of excelling in dusty and high-intensity industrial environments.

• Low Maintenance Cost: Core components (piston groups, valve plates, retainer plates) follow standardized designs for high interchangeability, facilitating rapid on-site repair and spare parts replacement.

Detailed Models & Parameters:

• Core Series: MCY14-1B Variable Series.

• Full Displacement Matrix: 2.5, 10, 25, 40, 63, 80 ml/r (cm³/rev).

• Representative Models: 10MCY14-1B, 25MCY14-1B, 40MCY14-1B, 63MCY14-1B, 80MCY14-1B.

• Pressure Ratings: Rated at 31.5 MPa (4500 PSI) continuous; Peak capability up to 40 MPa.

• Rated Speed: 1500 RPM.

• Rotation: Standard Clockwise (CW) from shaft end.

• Target Applications: CNC machine tools, brick presses, woodworking machinery, injection molder auxiliary systems, and heavy industrial power units.
