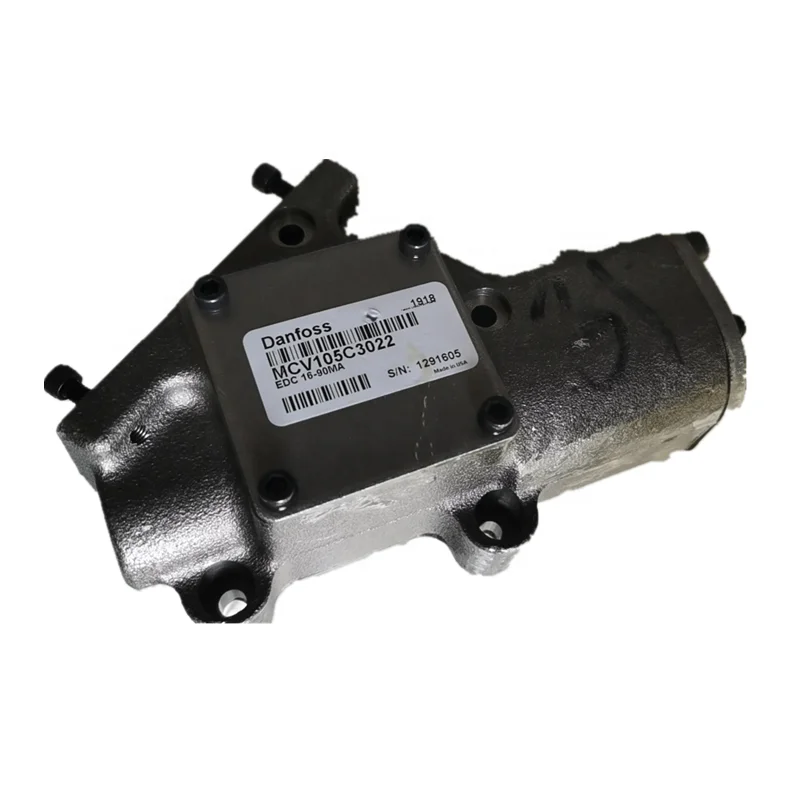

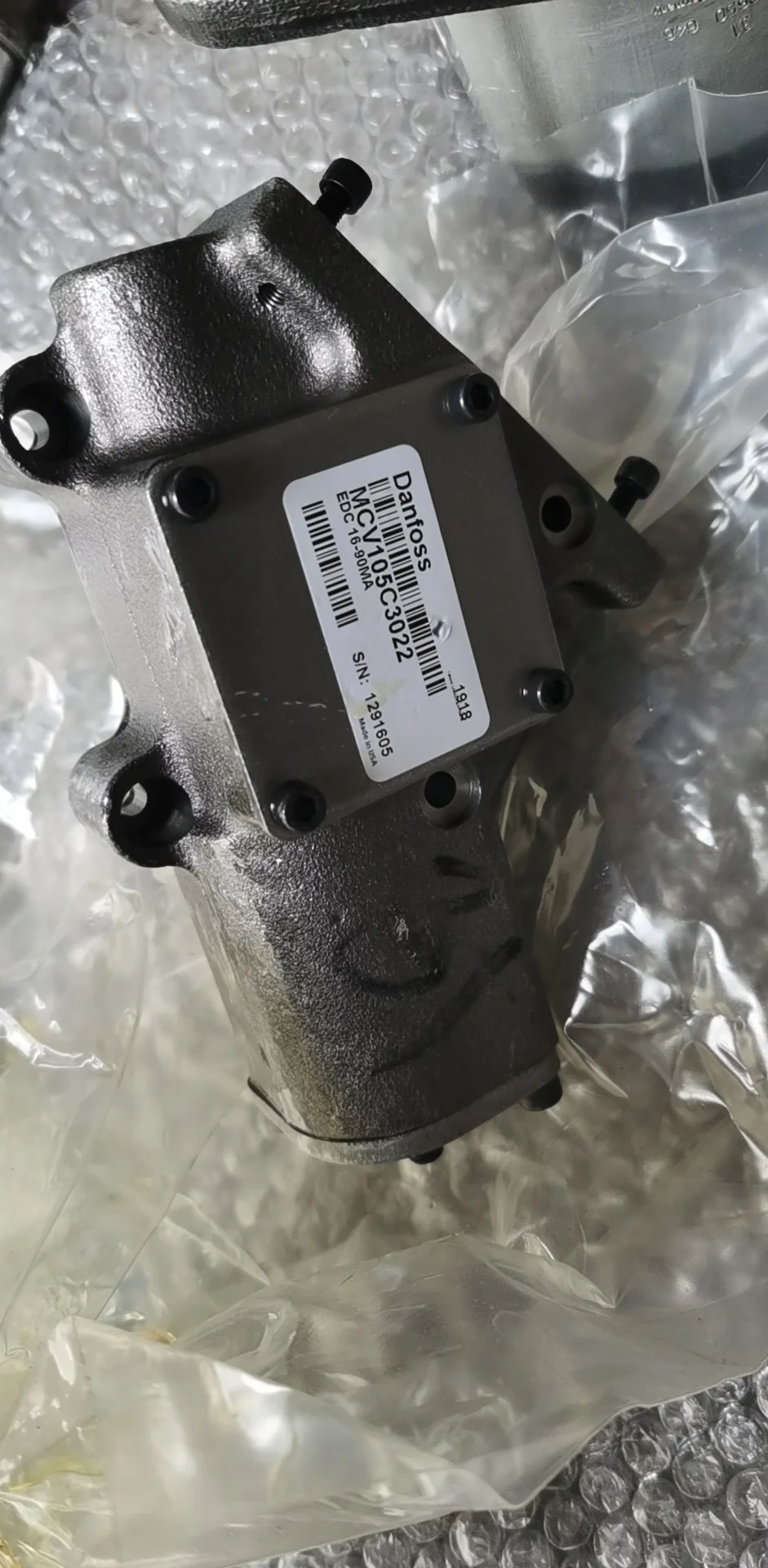

MCV105C Electrical Displacement Control | MCV105C3022 | MCV105C3023 | Danfoss Type EDC Valve
| Model Number | MCV105C3022, MCV105C3023 |
|---|
Product Description

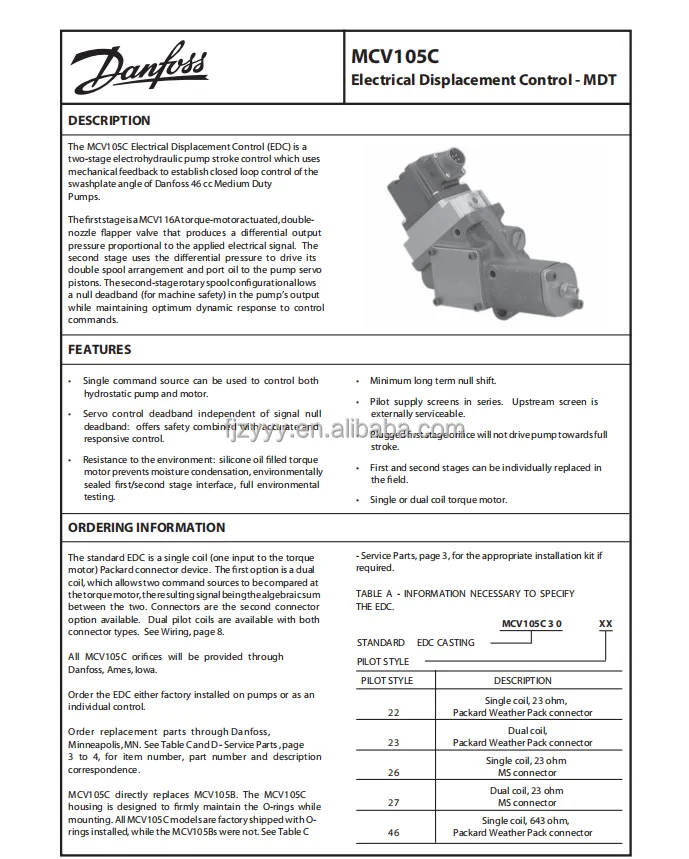

MCV105C Series Electrical Displacement Control (EDC)
Product Overview: The MCV105C is a high-performance electro-hydraulic proportional displacement control valve, specifically engineered to regulate the displacement of closed-circuit variable pumps (such as the 90 Series). Acting as the “brain” of the pump, it receives proportional current signals from the control system to precisely drive the pilot oil circuit, thereby adjusting the swashplate angle. The MCV105C3022 and MCV105C3023 are renowned for their superior control precision, low hysteresis, and high reliability in extreme environments, making them essential components for road construction machinery, agricultural equipment, and specialized vehicle drives.
Featured models: MCV105C3022, MCV105C3023, and the MCV105C30 series.
Key Technical Advantages:
Precision Proportional Control: Equipped with highly sensitive electromagnetic coils to ensure a highly linear relationship between output displacement and input current for smooth speed transitions.
Industrial-Grade Durability: Rugged housing combined with specially coated spools provides excellent wear and vibration resistance, tailored for harsh off-road operational environments.
Wet-Pin Solenoid Design: The coil is cooled by hydraulic fluid, supporting continuous high-load operation without thermal drift.
Plug-and-Play Compatibility: Standardized physical interfaces and electrical connections allow for direct replacement of original EDC units, significantly reducing downtime and maintenance costs.
Detailed Specifications & Parameters:
Featured Model Matrix:
MCV105C3022: Standard response version, compatible with mainstream 90 Series variable pump controls.
MCV105C3023: Advanced version optimized for specific flow gain requirements.
Core Technical Specs:
Control Type: Electrical Displacement Control (EDC).
Input Current Range: Typically 14-200 mA (customizable per system).
Supply Voltage: Compatible with 12V DC / 24V DC systems.
Max Pilot Pressure: Rated for pump-level pilot supply environments.
Protection Rating: IP67 rated, ensuring superior dust and water resistance.
