Linde 02 Series High-Pressure Variable Piston Pump & Motor

Product Overview: The Linde 02 Series represents the global gold standard in high-end hydrostatic transmission technology. Utilizing a unique swashplate architecture, this series spans from the driving HPV135-02 variable pump to the executing HMV210-02 and HMV75-02 variable motors. Featured models such as the HYX265D02325 and H2X237Z00694 are engineered for extreme heavy-duty cycles, delivering a rated operating pressure of 420 Bar. Renowned for superior low-speed torque and precise electronic response, the 02 series is the premier choice for paver travel drives, large drilling rig power heads, and heavy industrial applications.

Key Technical Advantages:

• Ultra-High Power Density: The 02 series provides higher flow and torque within a compact envelope, with peak pressure capabilities reaching 500 Bar.

• Precision Electro-Hydraulic Control (EPR/EPI):

  • The HPV135-02 pump enables infinitely variable displacement via current signals, ensuring exceptionally smooth starts and directional reversals.

  • HMV Variable Motors (e.g., HMV210) offer a wide displacement range, allowing automatic transitions from high-torque climbing to high-speed travel.

• Optimized Charge & Cooling: Integrated high-performance charge pumps ensure the closed-circuit remains pressurized and cooled even during high-frequency directional shifts.

• Rugged Industrial Configuration Codes:

  • H2X233U02294 / H2X237Z00694: Represent customized sensor interfaces, shaft specifications, and sealing options tailored for specific OEM requirements, ensuring 100% “plug-and-play” compatibility.

• Exceptional Low-Speed Stability: HMV motors maintain stable torque output even at ultra-low speeds, effectively eliminating the “judder” or “creeping” issues in travel systems.

Detailed Models & Parameters:

• Core Series: Linde 02 Series (HPV/HMV).

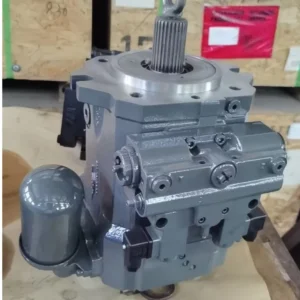

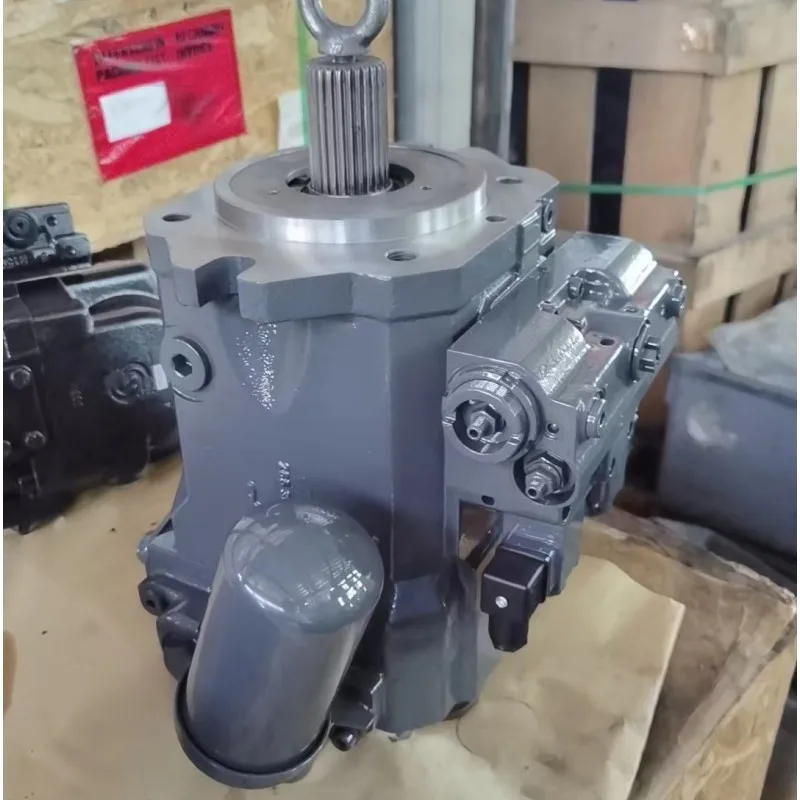

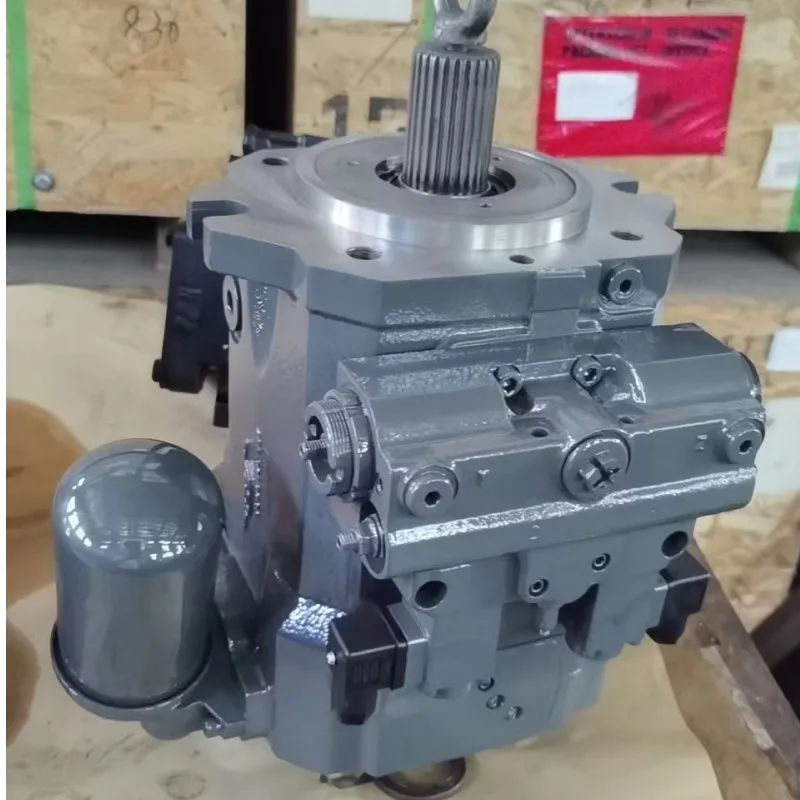

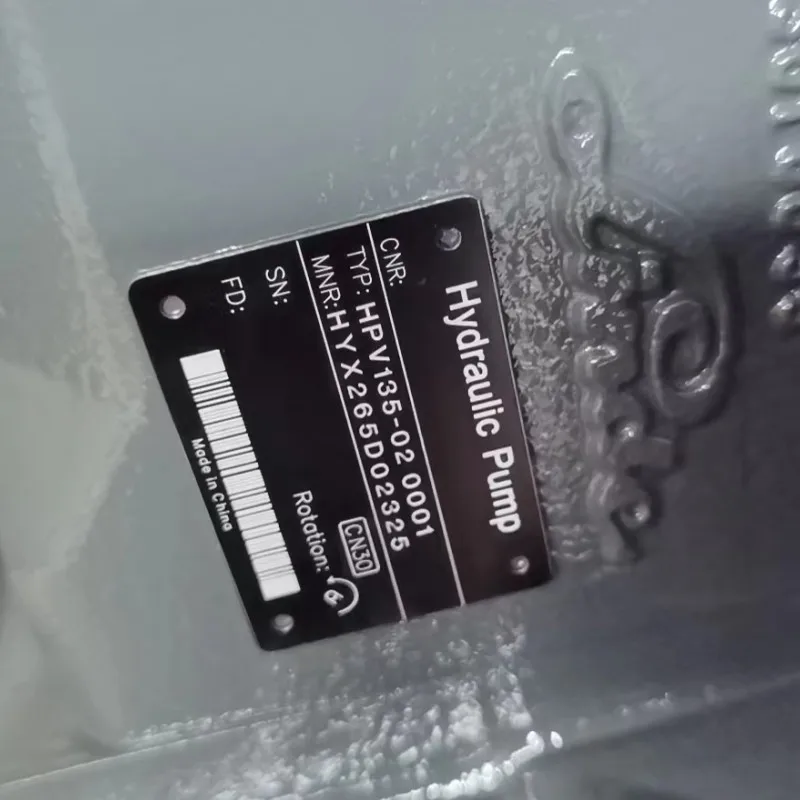

• Main Pump Models: HPV135-02 0001, HYX265D02325.

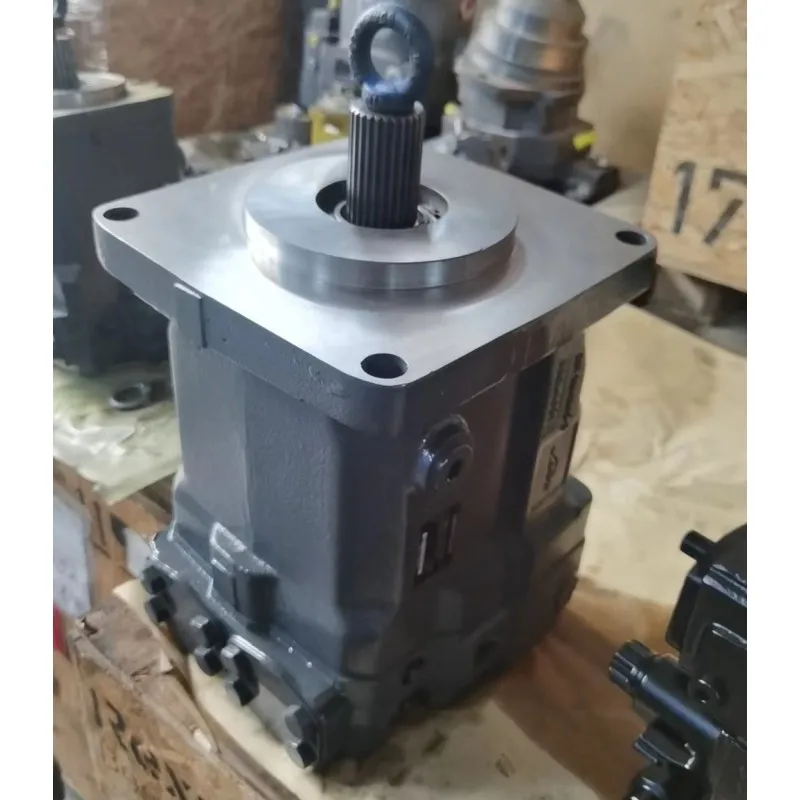

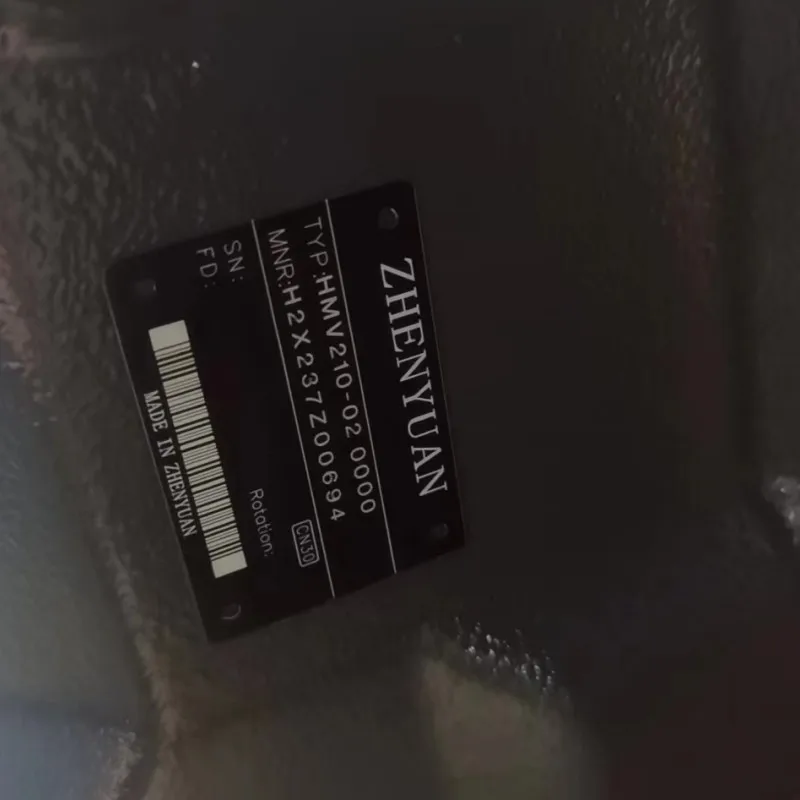

• Variable Motor Models: HMV210-02 0000 (H2X237Z00694), HMV75-02 2571 (H2X233U02294).

• Displacements: 75, 135, 210 cm³/rev.

• Pressure Ratings: Rated at 420 Bar (6100 PSI); Peak cycles up to 500 Bar (7250 PSI).

• Control Type: Electro-Hydraulic Proportional Control.
