Linde HPV-02 Series Pump | HPV105, HPV075, HPV135 | HPV105-02L 2586 | High Pressure Piston Pump

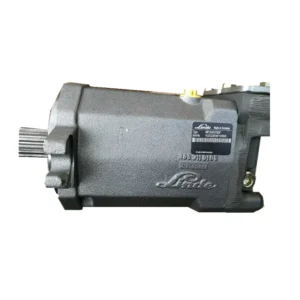

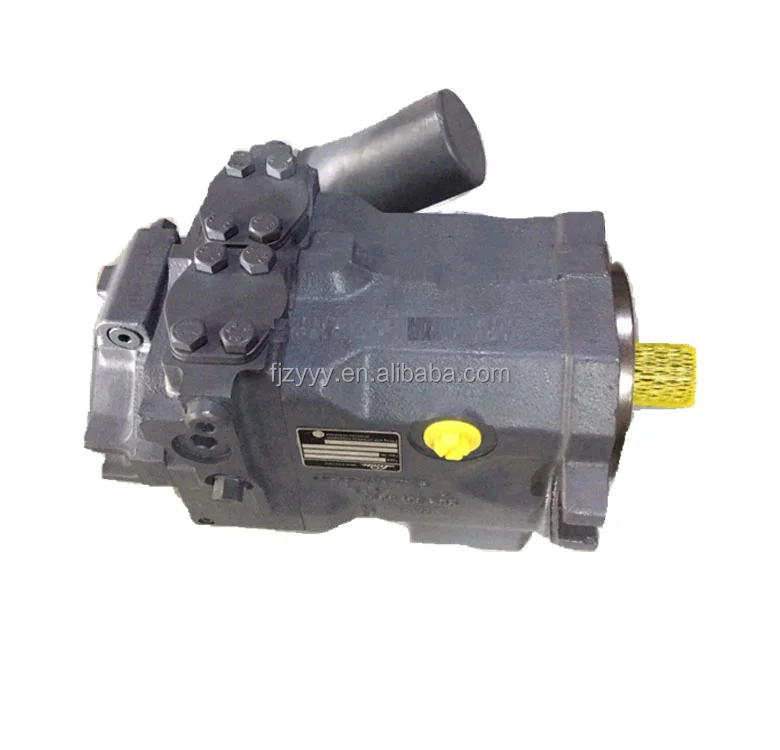

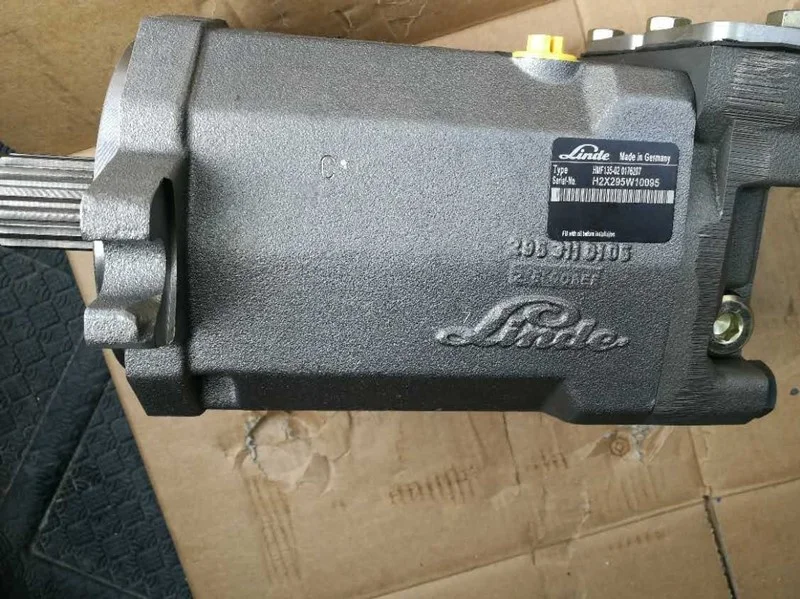

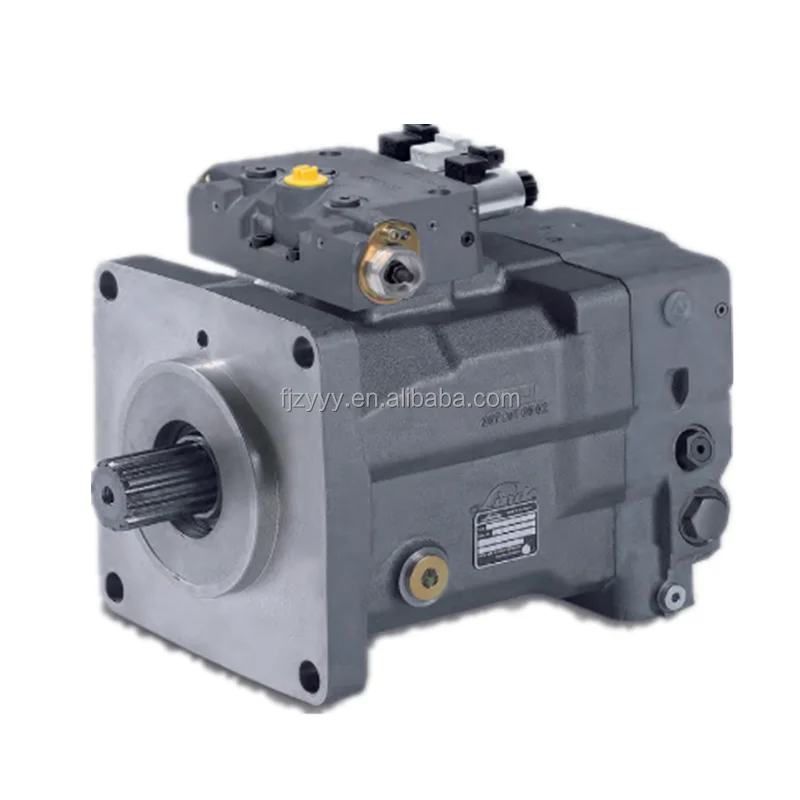

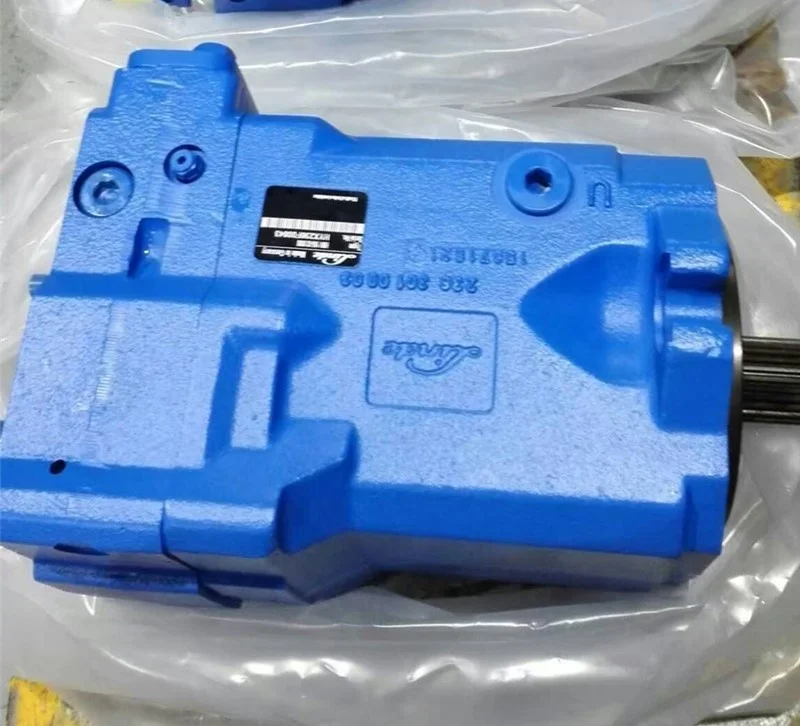

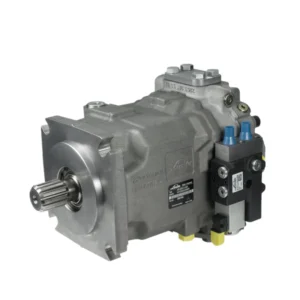

Linde HPV-02 Series High-Pressure Axial Piston Variable Pumps

Product Overview: The Linde HPV-02 series is a global benchmark in hydrostatic transmission technology. Specifically engineered for closed-circuit high-pressure applications, this series covers a comprehensive displacement range from HPV055 to HPV280. Featured models like the HPV105-02L 2586 (e.g., Serial No. H2X264W09636) are renowned for their exceptional “Precision Control” and “High Power Density.” The HPV-02 provides smooth, infinitely variable speed regulation under high-pressure conditions, making it the premier choice for large excavators, rotary drilling rigs, concrete pumps, and heavy-duty mobile machinery.

Key Technical Advantages:

• Precise Swashplate Modulation: Utilizes Linde’s patented control logic to ensure displacement accuracy even under severe load fluctuations, delivering silky-smooth operator feedback.

• Ultra-High Pressure Durability: Rated for continuous operation at 420 Bar (6100 PSI), with peak capabilities up to 500 Bar. The robust housing and reinforced pistons ensure longevity in extreme environments.

• Integrated Charge & Relief Valves: Features built-in charge pumps and high-pressure relief valves, simplifying closed-circuit system design and protecting against instantaneous pressure spikes.

• Compact Power Density: Offers a significantly smaller footprint compared to similar displacement pumps, facilitating easier integration into modern, space-constrained engine compartments.

• 100% Genuine Manufacturing Standards: Strictly adheres to Linde factory specifications (e.g., 2586 spec), ensuring splined shafts and mounting flanges align perfectly for a seamless “drop-in” replacement.

Detailed Models & Parameters:

• Core Series: Linde HPV-02 Series (Closed Circuit).

• Full Displacement Range: HPV055, HPV075, HPV105, HPV135, HPV165, HPV210, HPV280 cm³/rev.

• Model Keywords: HPV105-02L, HPV105-02R, 2586, H2X264W09636.

• Maximum Pressure: Rated at 420 Bar (6100 PSI); Peak capability up to 500 Bar.

• Control Types: E1 (Electric), M1 (Mechanical), H1 (Hydraulic Pilot).

• Target Applications: Crawler excavators, rotary rigs, pavers, forestry harvesters, and heavy cranes.
