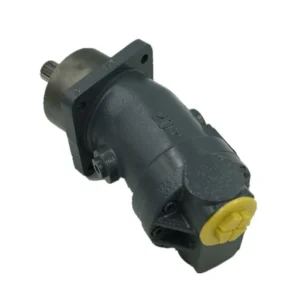

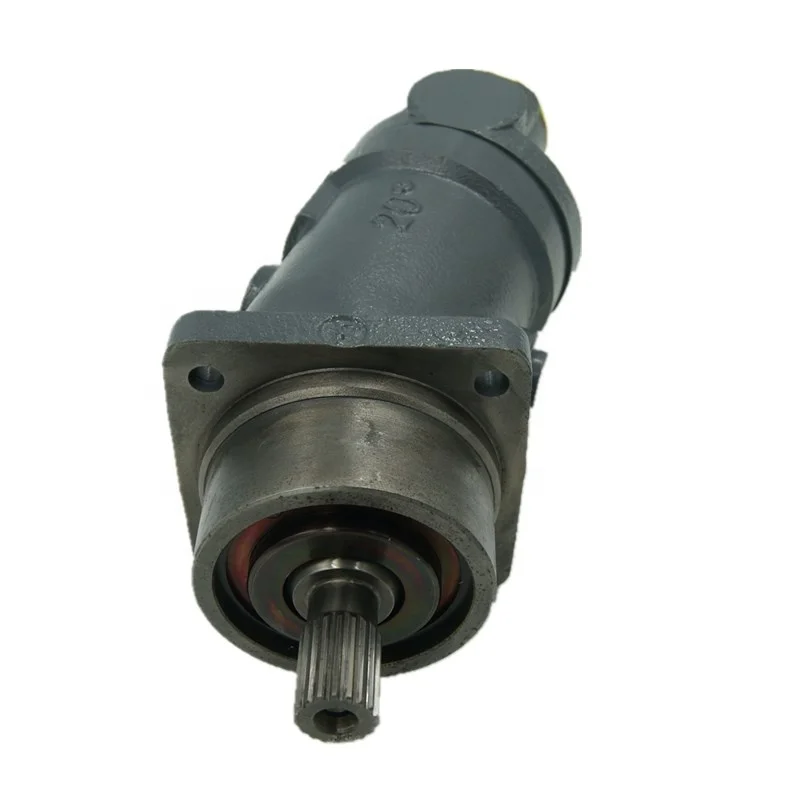

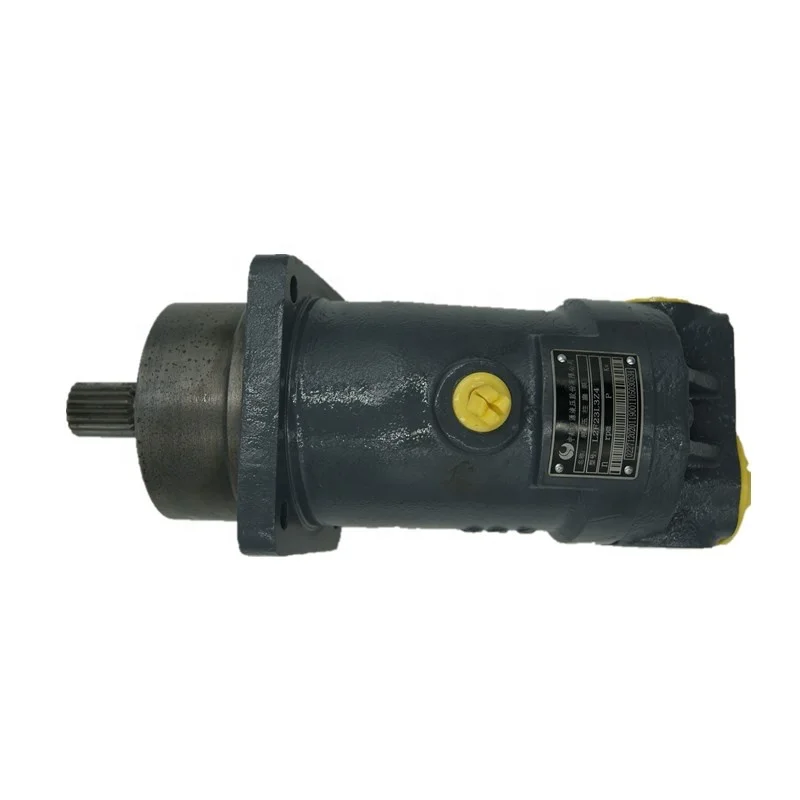

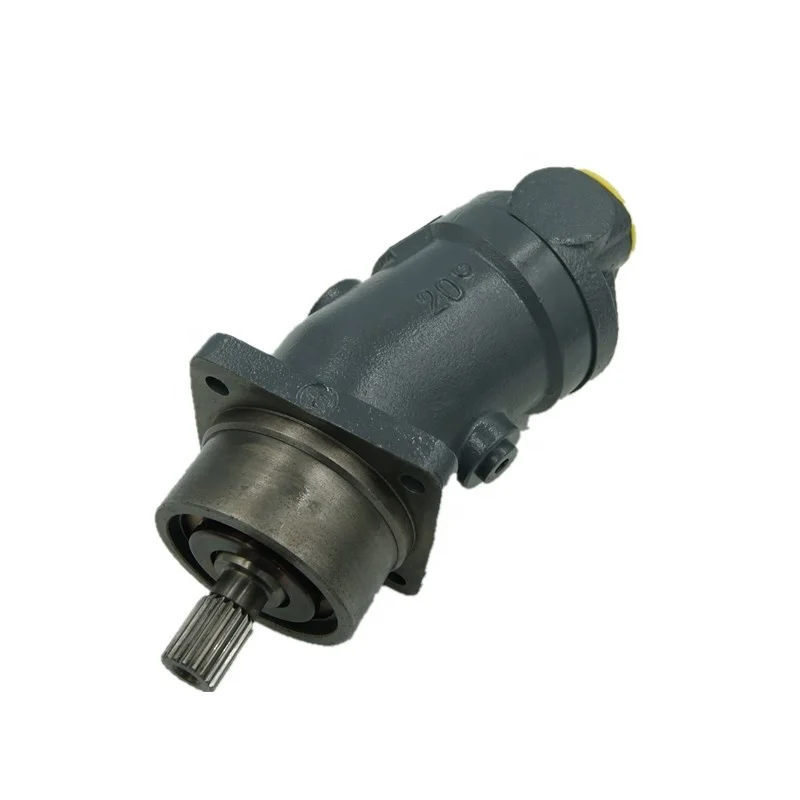

L2F Series Heavy-Duty Bent Axis Fixed Displacement Piston Motors

**Product Overview: ** The L2F Series is a high-performance, bent-axis fixed displacement piston motor engineered for hydrostatic transmissions in high-pressure and rigorous operating conditions. With its classic 40° angle architecture, the L2F series delivers powerful torque while maintaining elite volumetric efficiency. This selection features core displacements: L2F12, L2F23, L2F45, L2F55, and L2F63. We highlight precision configurations: L2F23L3Z4, L2F55L2P3, and L2F63W2P2. Their robust design makes them the primary choice for crawler drives, lifting winches, injection molding machinery, TBM auxiliary power, and various industrial power units.

**Key Technical Advantages: **

• High-Efficiency Bent Axis: The 40° bent-axis design with spherical pistons significantly reduces heat generation from friction, even under high-pressure cycles.

• Extreme Pressure Durability: Rated for operating pressures up to 350 Bar, easily handling instantaneous peak loads during frequent startup or directional reversals.

• Superior Self-Priming: Optimized port plate logic ensures excellent suction characteristics at high speeds, effectively preventing cavitation.

• Reinforced Bearing Assembly: Built-in high-strength roller bearings handle significant axial and radial loads, ensuring reliability during continuous duty cycles.

• **Target Applications: ** Excavator swing drives, marine winches, drill rig rotary heads, material handling cranes, and hydraulic press auxiliary drives.

**Detailed Models & Parameters: **

• **Core Series: ** L2F Bent Axis Piston Series.

• **Model Keywords: ** L2F12, L2F23, L2F45, L2F55, L2F63.

• **Technical Specs Decoding: **

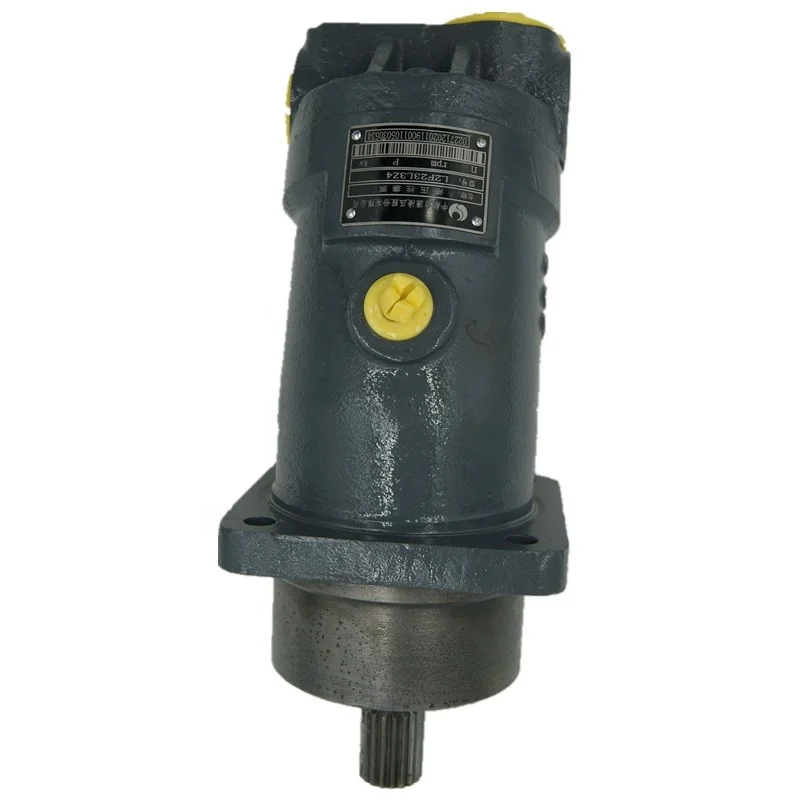

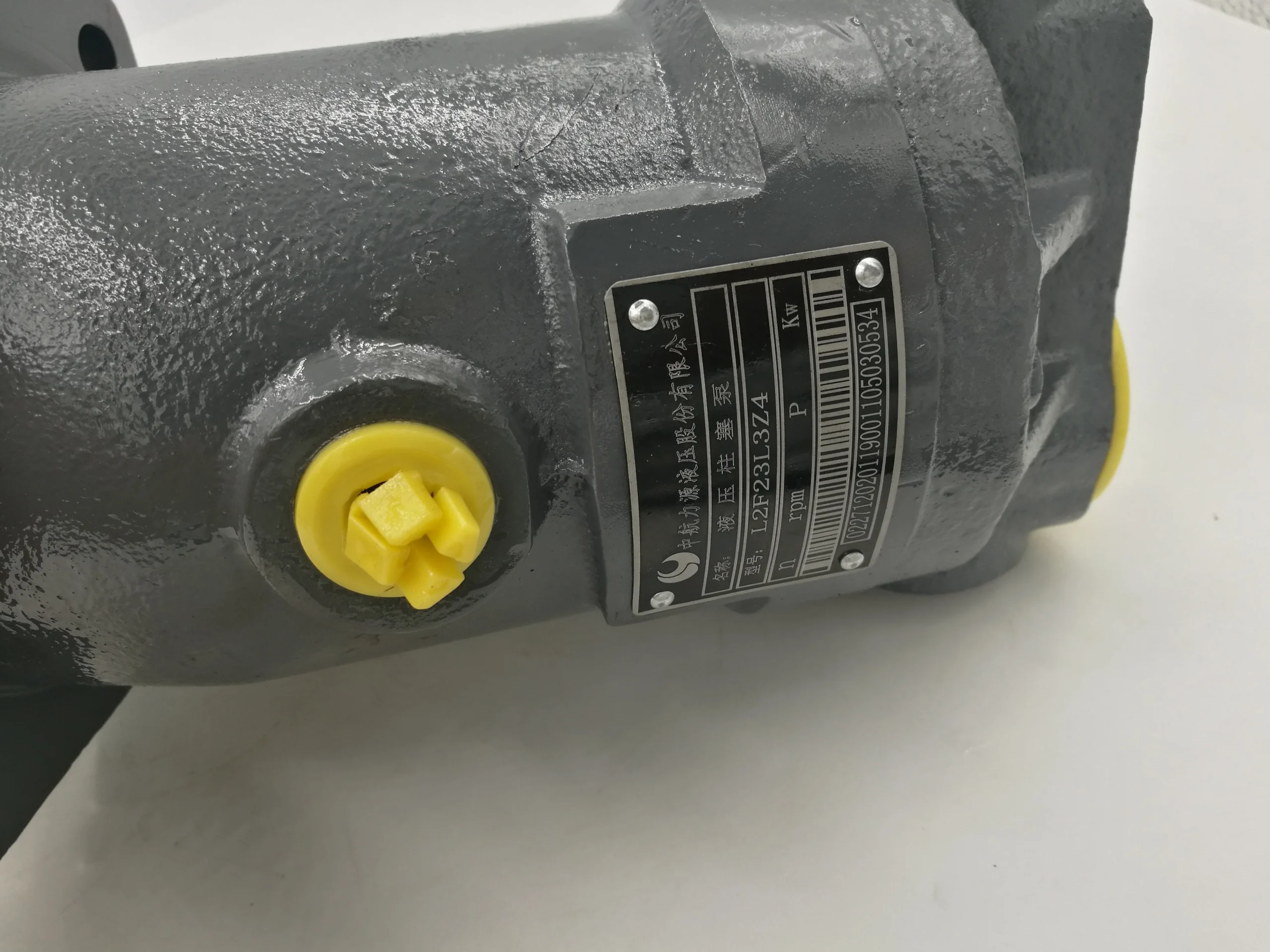

  • **L2F23L3Z4: ** 23cc displacement; ‘L’ denotes Counter-Clockwise (CCW) rotation; ‘Z4’ indicates specific shaft ends (e.g., splined).

  • **L2F55L2P3 / L2F63W2P2: ** Covers 55cc and 63cc mid-range displacements; ‘P’ indicates specific porting connection standards.

• **Pressure Specs: ** Continuous Pressure of 350 Bar (5000 PSI), with peak capabilities reaching 400 Bar.
