KF8RF1-D15 Gear Pump | KRACHT Type KF8 Transfer Pump | TFCP 80B-4 Motor Pump Set

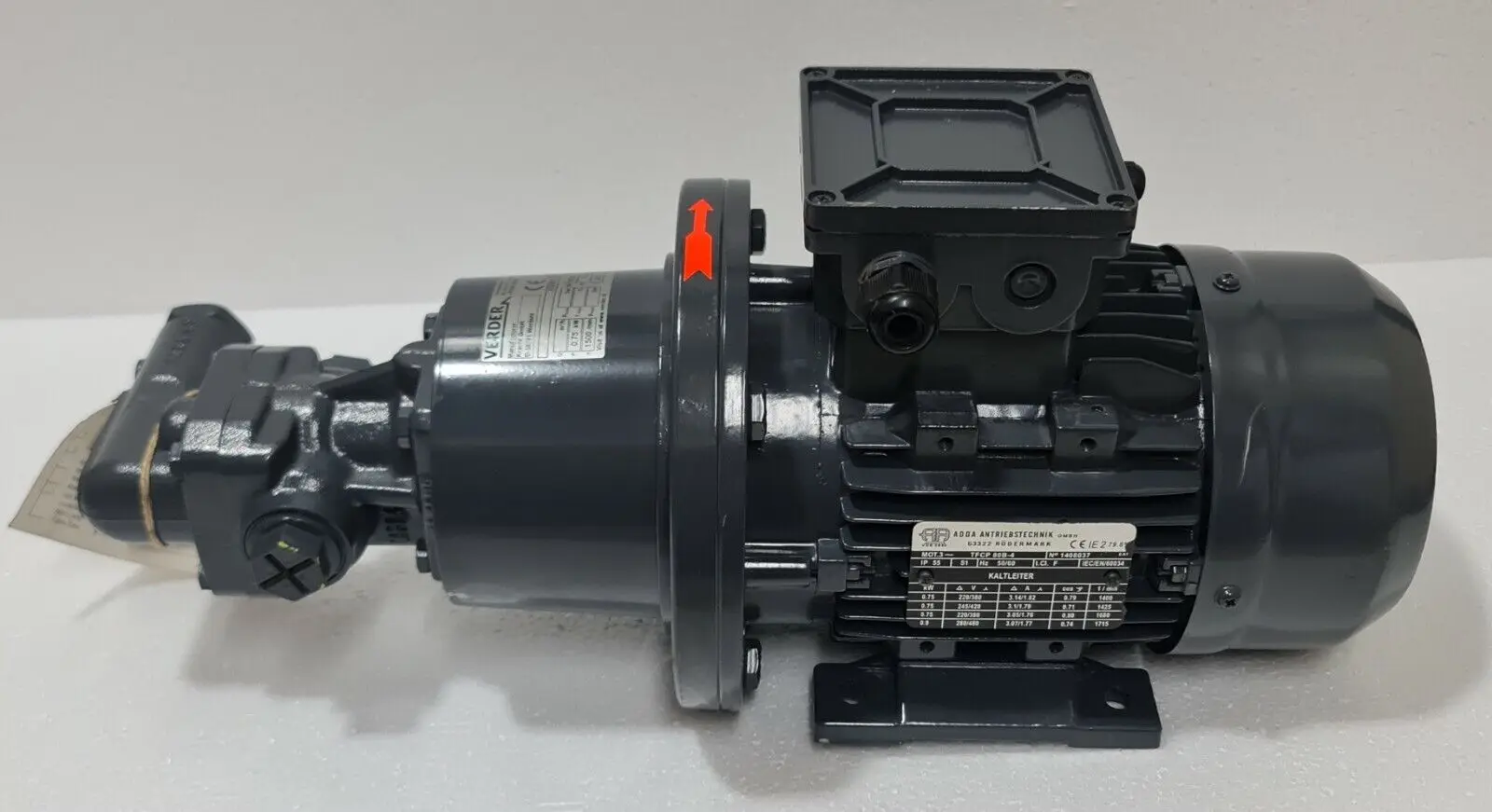

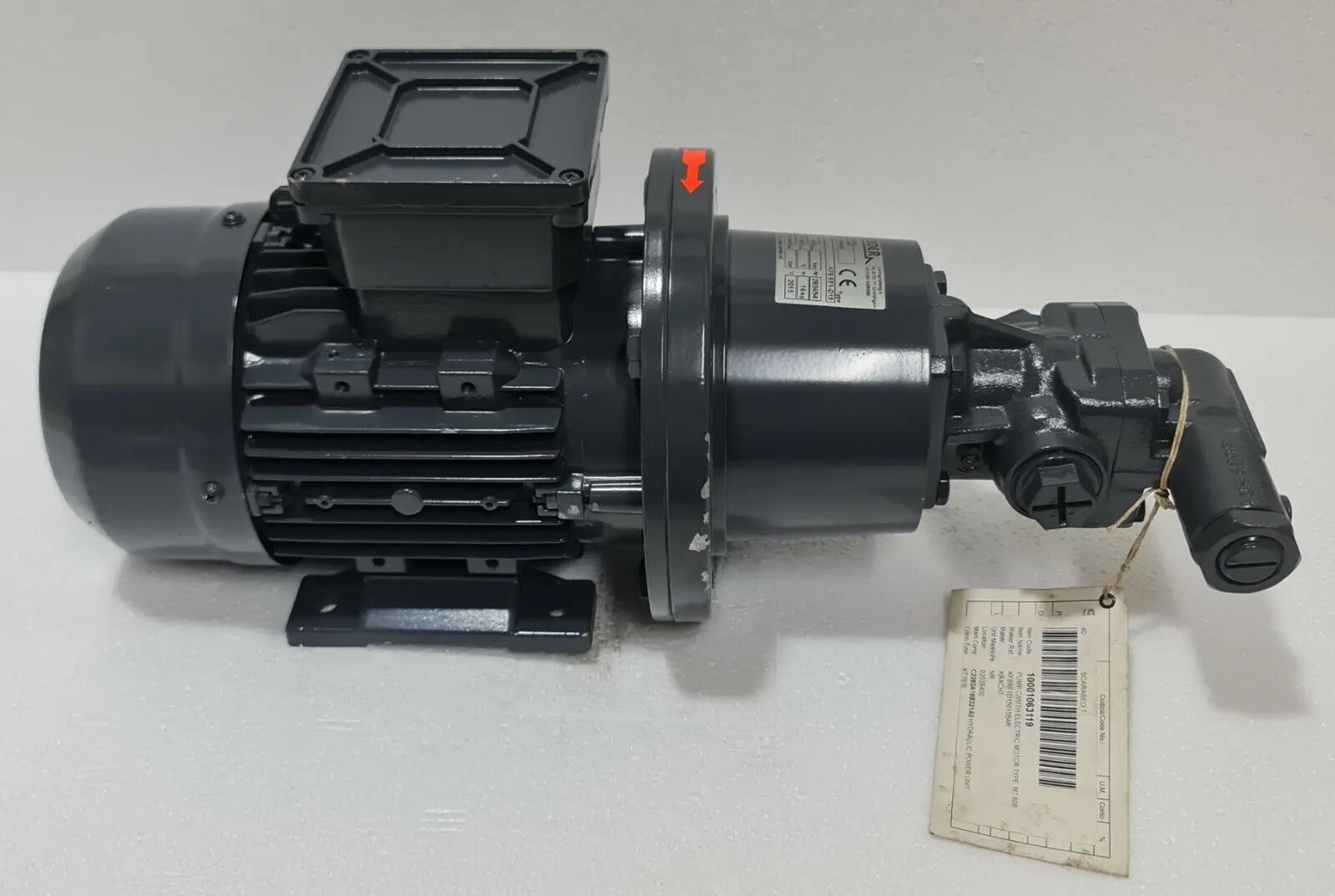

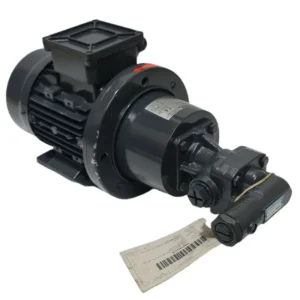

KF8RF1-D15 Transfer Gear Pump with TFCP 80B-4 Motor Set

Product Overview: The KF8RF1-D15 is a high-performance external transfer gear pump within the renowned KF series. Specifically engineered for pumping liquids with lubricating properties, this model is extensively used in centralized lubrication systems, fuel oil transfer, and cooling circuits for heavy machinery. Often supplied as a complete TFCP 80B-4 motor-pump unit, it offers a compact design and exceptional operational reliability. The unique RF1 design allows the pump to maintain consistent flow direction regardless of the drive shaft’s rotation direction.

Key Technical Advantages:

• Bidirectional Rotation (RF1): Features a specialized valve arrangement that ensures the suction and discharge ports remain constant, whether the drive shaft rotates clockwise or counter-clockwise.

• Rugged Cast Iron Construction: Built with high-grade spheroidal graphite iron and precision-ground gears, ensuring minimal wear and an extended service life under continuous duty.

• Integrated Motor Set (TFCP 80B-4): Pre-assembled with an 80B-4 specification motor to optimize alignment between the pump and drive, significantly reducing vibration and operational noise.

• Excellent Self-Priming: Optimized for transfer applications with superior vacuum suction capability, ensuring rapid pressure buildup even during cold starts.

• Target Applications: Lubrication for industrial gearboxes, fuel oil supply for burners, coolant circulation for machine tools, and centrifugal filtration units.

Detailed Models & Parameters:

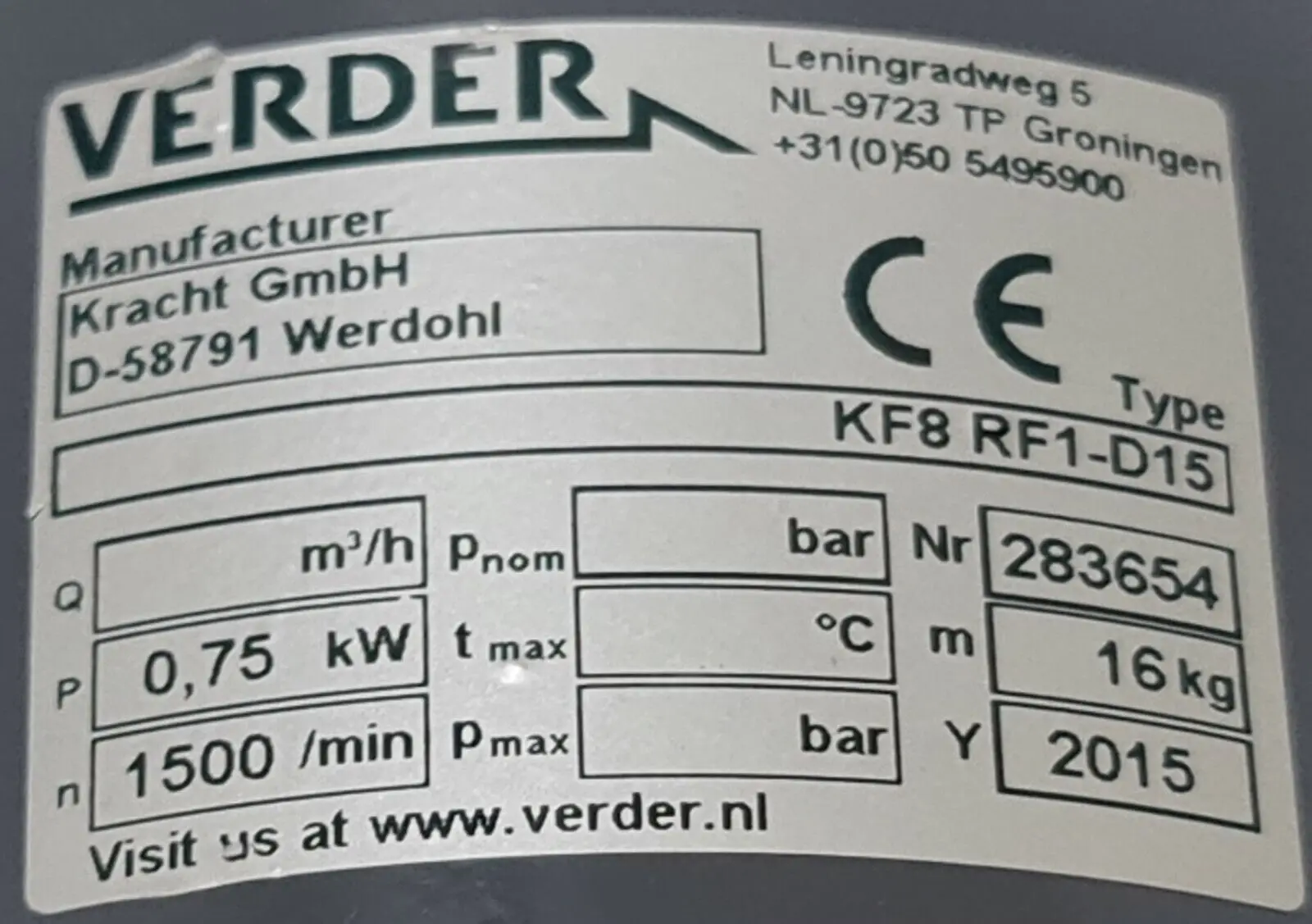

• Core Model: KF8RF1-D15 (Type: KF 8 RF 1 – D15).

• Serial/Production No.: P.0129230004.

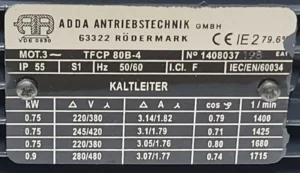

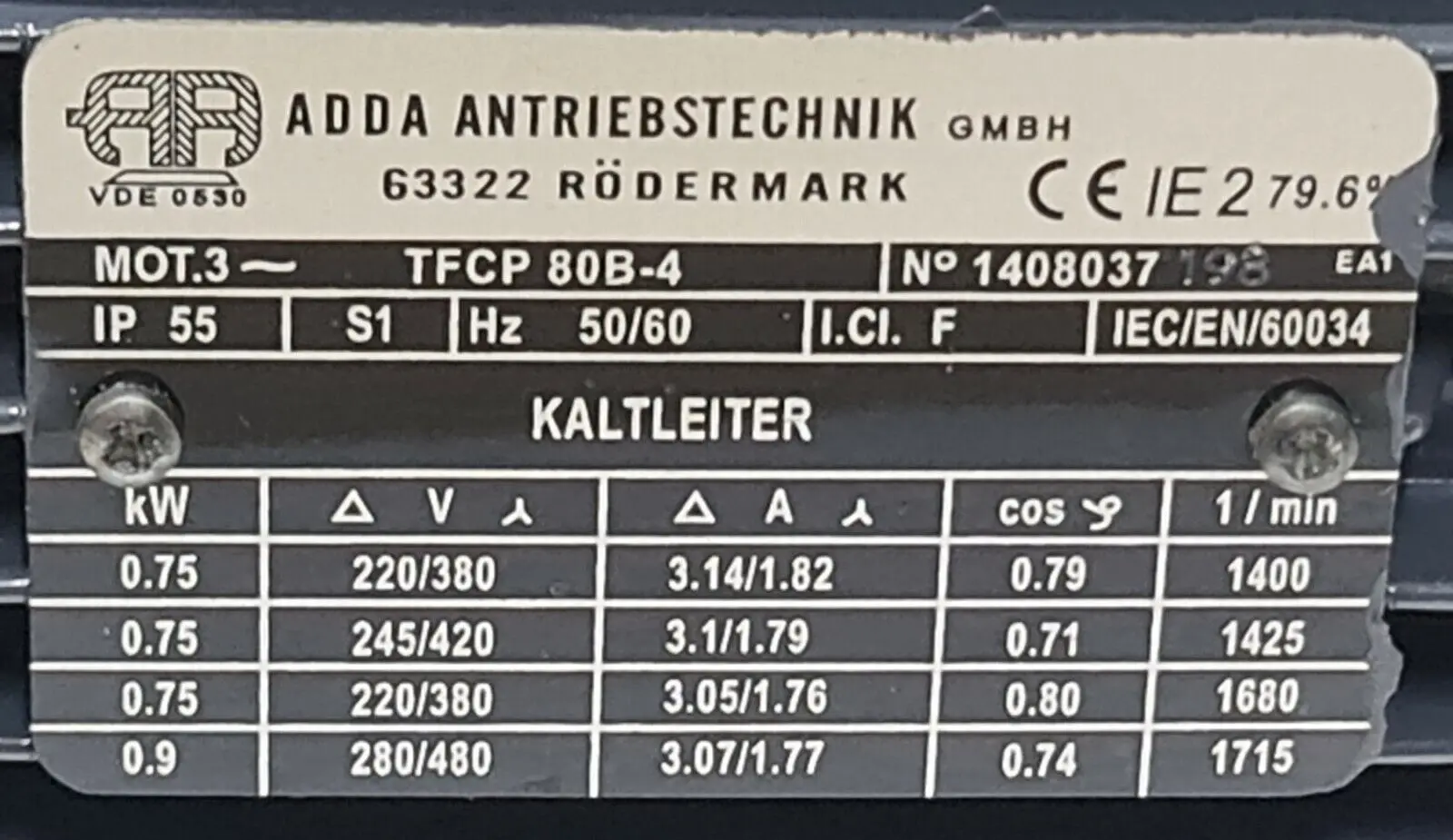

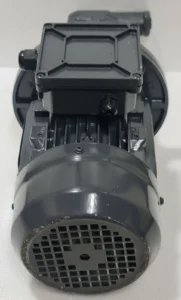

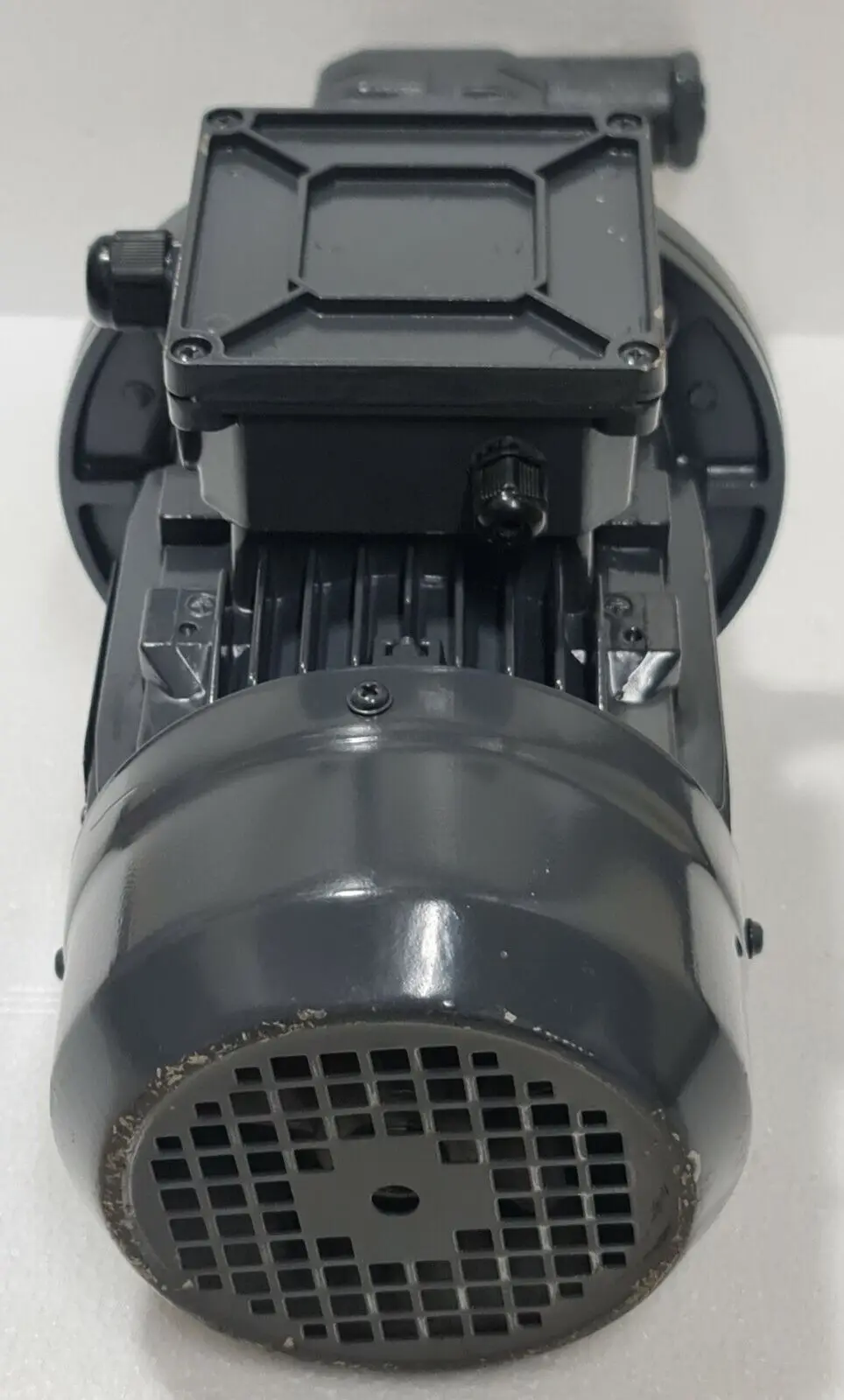

• Integrated Motor: TFCP 80B-4.

• Sealing Spec: D15 (Standard mechanical seal or specific sealing configuration).

• Operating Pressure: Suitable for transfer up to 25 Bar (depending on fluid viscosity).

• Media Compatibility: Mineral oils, synthetic oils, fuel oils, and lubricating fluids.
