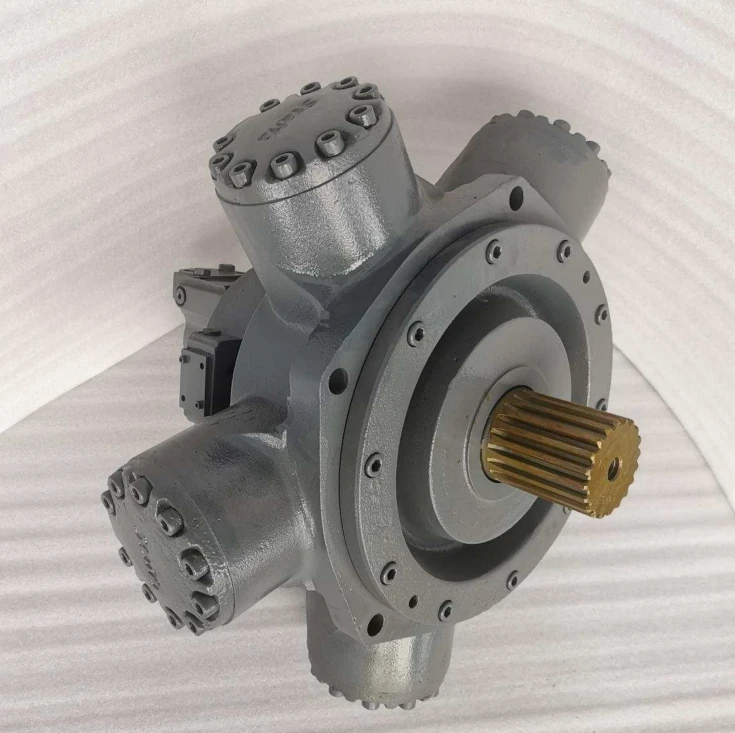

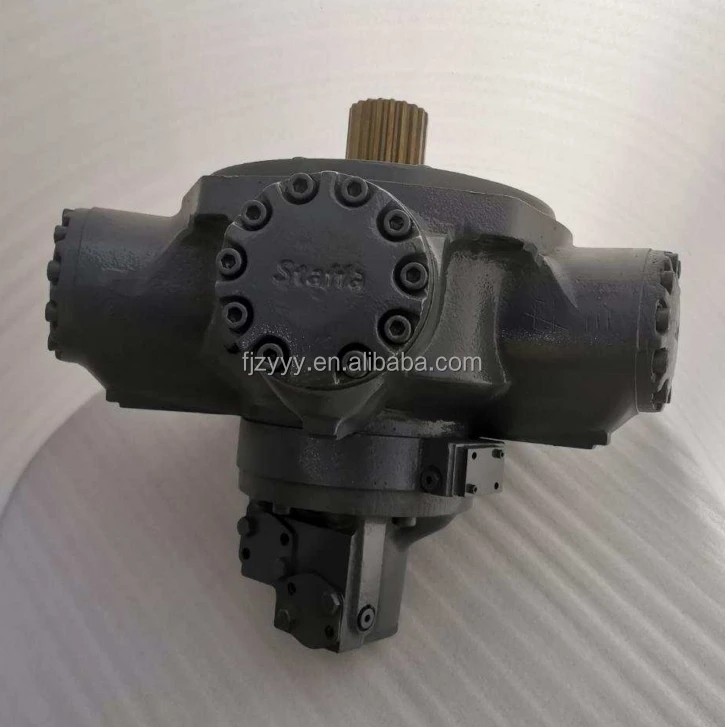

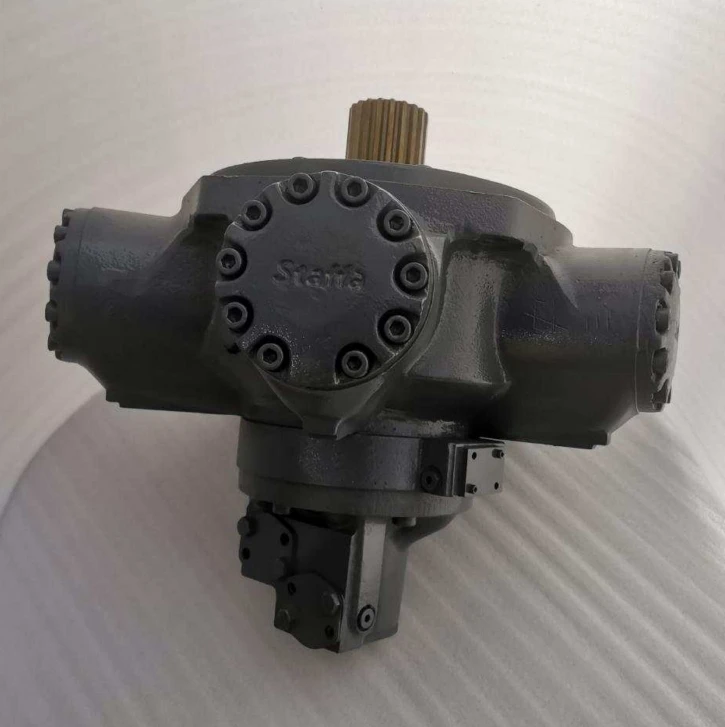

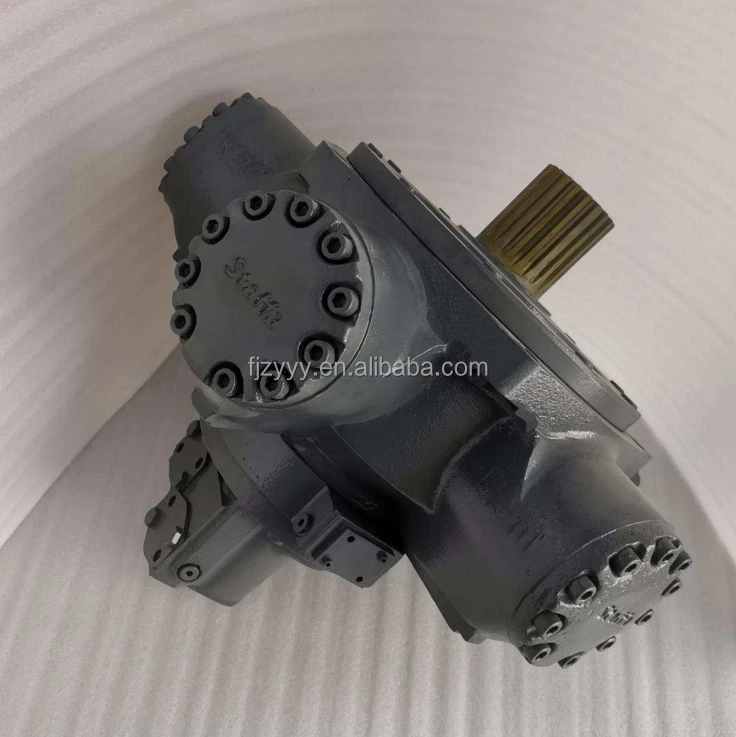

Kawasaki Staffa HMB Series High Torque Radial Piston Motors

Product Overview: The Staffa HMB Series is a world-renowned standard for heavy-duty hydraulic motors, featuring an advanced Radial Piston design. These motors are specifically engineered for rigorous applications requiring smooth, high-torque output at extremely low speeds. This selection covers core configurations: HMB045/S/30, HMB150-S-11, HMB200/S/FM4, and HMB325/PT/S04/70. With exceptional volumetric efficiency and shock-load resistance, the HMB series is extensively utilized in marine deck machinery, injection molding machines, mining equipment, and large-scale winch systems.

Key Technical Advantages:

• Superior Low-Speed Smoothness: Advanced hydrostatic balancing technology ensures smooth, “creep-free” torque delivery even at rotational speeds as low as 1 RPM.

• Extreme Power Density & Torque: Capable of generating massive starting and running torque within a compact frame, ideal for heavy-duty load handling.

• Shock-Load Resistance & Longevity: Robust housing and wear-resistant internal components allow the motor to withstand frequent directional changes and sudden pressure spikes, significantly extending service intervals.

• Versatile Mounting Compatibility: Offers various shaft options (Splined S, Tapered, Keyed) and distributor configurations (e.g., FM4) to comply with major global industrial standards.

• Target Applications: Marine anchor windlasses, fishing winches, plastic injection screw drives, mining conveyors, and TBM auxiliary drives.

Detailed Models & Parameters:

• Core Series: Kawasaki Staffa HMB Series (Fixed Displacement).

• Model Keywords: HMB045, HMB150, HMB200, HMB325, HMB45, HMB270.

• Technical Specs Decoding:

  • HMB045/S/30: 740 cm³/rev displacement with S splined shaft output.

  • HMB150-S-11: 2470 cm³/rev displacement, classic Staffa architecture.

  • HMB200/S/FM4: 3280 cm³/rev displacement featuring the FM4 distributor.

  • HMB325/PT/S04/70: 5330 cm³/rev large-scale specification with PT pressure testing ports.

• Pressure Specs: Continuous pressure up to 250 Bar (3625 PSI), Peak pressure up to 350 Bar (5000 PSI).

• Displacement Range: From 740 cm³/rev to 5330 cm³/rev.
