Kawasaki M Series High-Pressure Bent-Axis Piston Motors

Product Overview: The Kawasaki M Series piston motor is an industry benchmark for high-performance hydraulic drives. As a definitive bent-axis fixed displacement motor, it is engineered to deliver exceptional power density and reliability under extreme stress. This comprehensive selection features the full displacement range: M5, M12, M18, M25, M28, M41, M45, M50, M63, M80, M90, M108, M125, M160, and M180, with a specialized focus on M63A and M63AW2 (e.g., M63AW2LOMZ00SVF). With pressure capabilities up to 400 Bar and superior self-priming, the M series is the premier choice for excavator swings, rotary drilling rigs, crane winches, TBMs, and heavy-duty industrial hydraulic systems.

Key Technical Advantages:

• Elite Power-to-Weight Ratio: The bent-axis technology allows for massive starting torque and continuous power within a compact envelope.

• Peak Pressure & High-Speed Stability: Rated for continuous operation at 350-400 Bar. Precision-balanced piston assemblies ensure low-vibration performance at exceptionally high RPMs.

• High Mechanical & Volumetric Efficiency: Optimized valve plate designs significantly reduce internal leakage, boosting overall energy utilization.

• Rugged & Durable Engineering: Reinforced bearing systems and shock-resistant housing offer an extended service life in harsh construction and mining environments.

• Versatile Model Customization: The M63AW2 series supports various porting configurations (such as LOMZ00SVF), ensuring seamless integration into global hydraulic circuits.

• Target Applications: Crawler travel propulsion, winch drives, radiator fan cooling, and rotary drilling head drives.

Detailed Models & Parameters:

• Core Series: Kawasaki M Series (Bent-Axis Fixed Displacement).

• Model Keywords: M5, M12, M18, M63A, M63AW2, M108, M125, M160, M180.

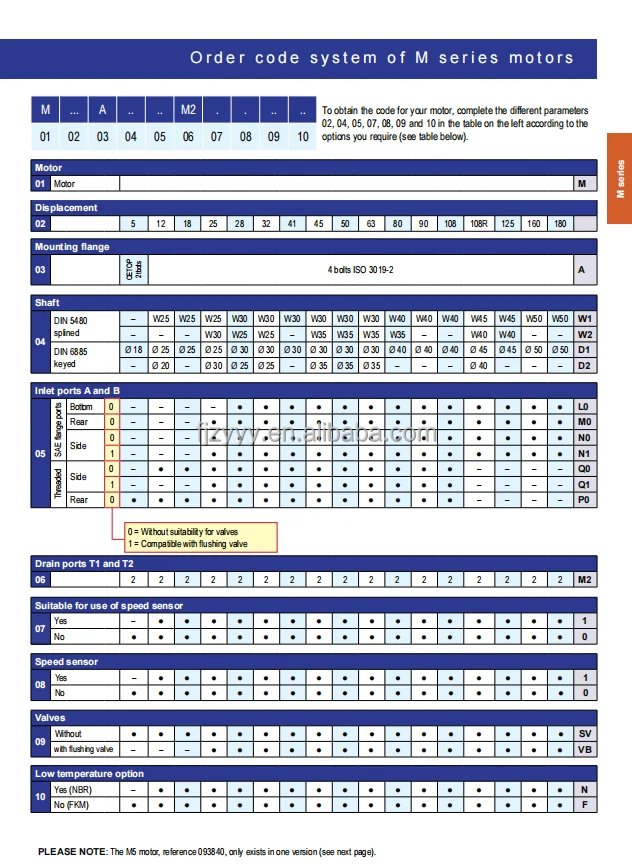

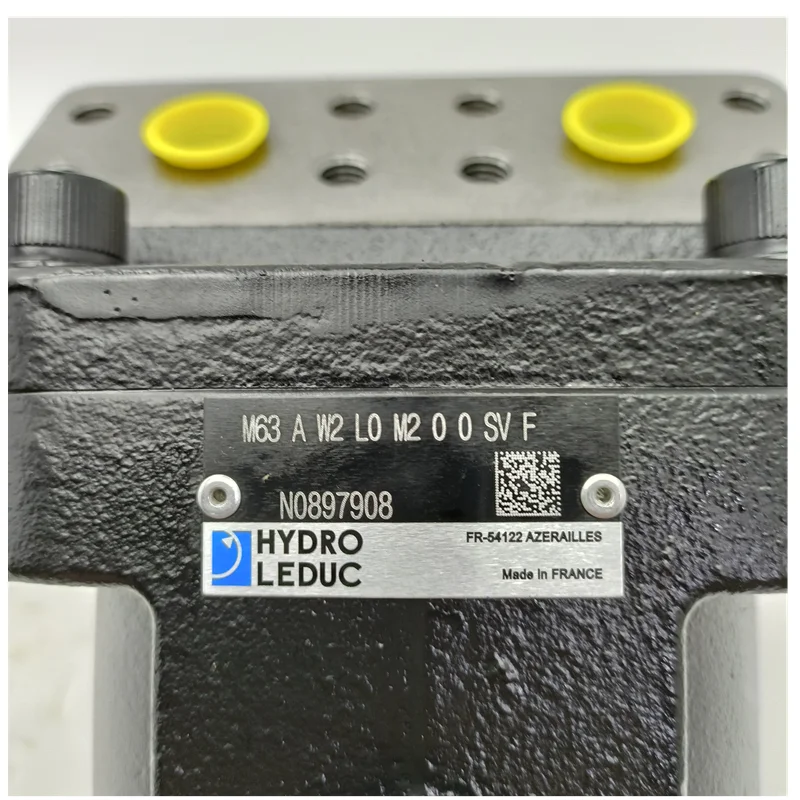

• Technical Specs Decoding (M63AW2LOMZ00SVF):

  • M63AW2: 63cc/rev nominal displacement, AW2 design iteration.

  • LOM/MZ: Denotes specific porting positions, mounting flanges, and sealing types.

  • SVF: Denotes integrated safety valves or specialized control options.

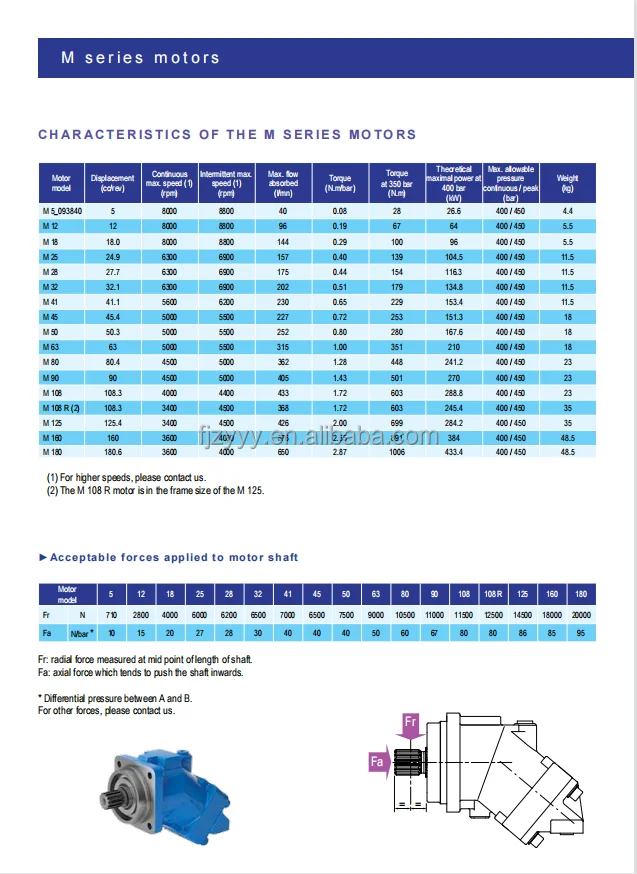

• Performance Specs: Nominal Pressure up to 350 Bar, Peak Pressure up to 400 Bar (5800 PSI).
