Kawasaki K3VL Series Pump | K3VL28, K3VL80, K3VL145, K3VL200 | 320 Bar Variable Piston Pump

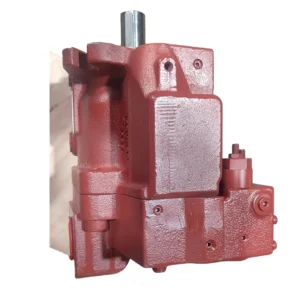

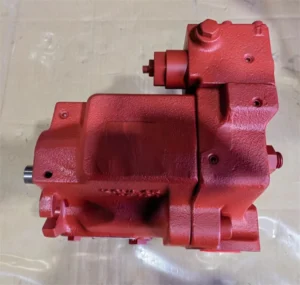

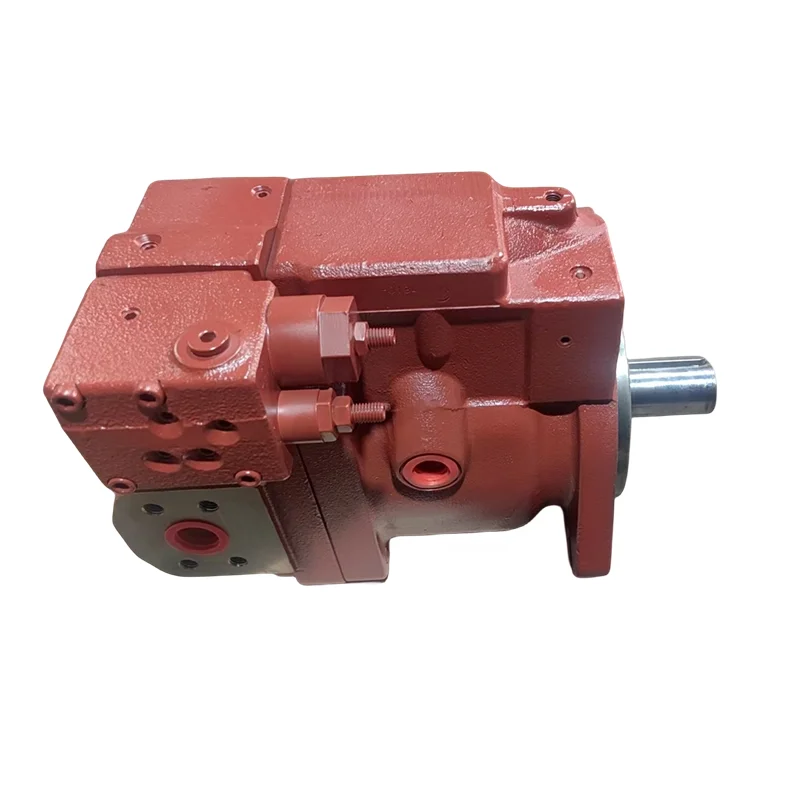

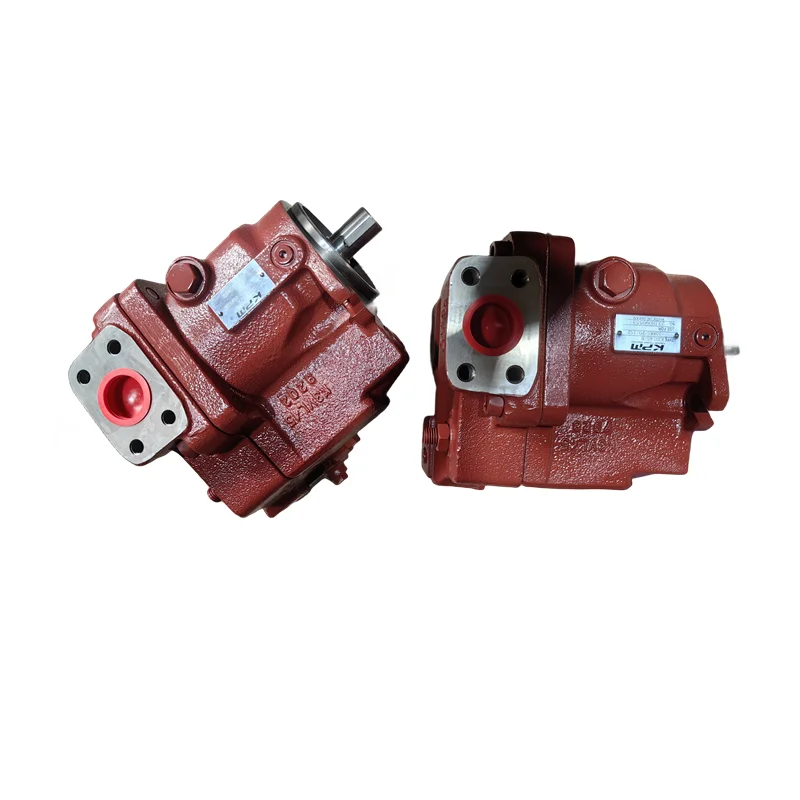

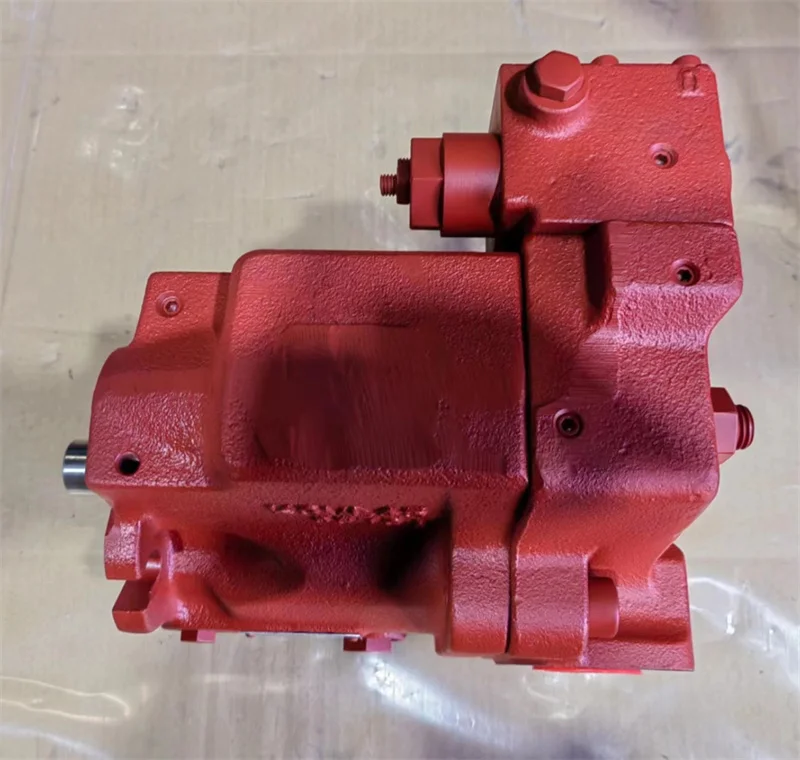

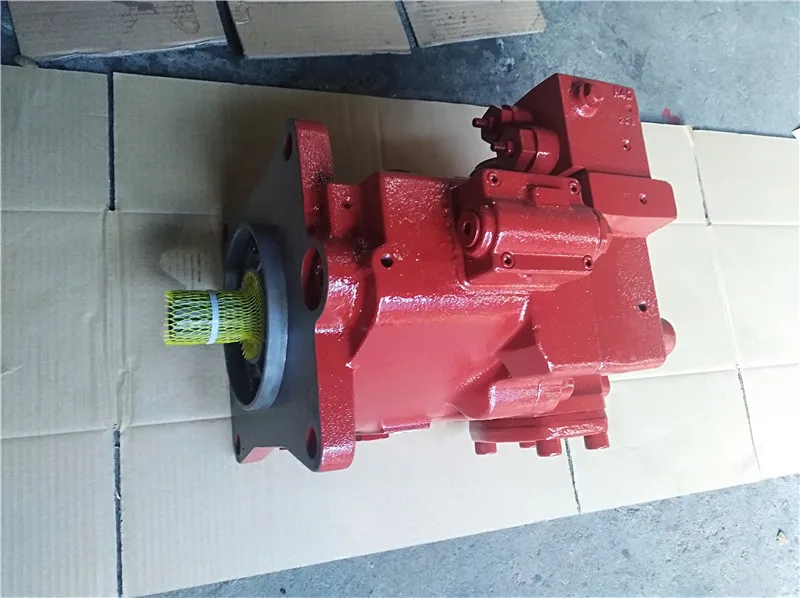

Kawasaki K3VL Series Variable Piston Pump for Industrial & Mobile Applications

Product Overview: The Kawasaki K3VL series is a range of high-performance swashplate-designed axial piston pumps engineered for Open Circuit hydraulic systems. This series covers a vast displacement range from the ultra-compact 28cc (K3VL28) to the high-output 200cc (K3VL200). Renowned for their superior self-priming speeds and a continuous operating pressure of 320 Bar, K3VL pumps maintain peak volumetric efficiency even during high-speed operation and severe load fluctuations. Whether in the lightweight K3VL28/C-1NPSM or the heavy-duty K3VL200B, Kawasaki provides precise Load Sensing and Pressure Compensation control.

Key Technical Advantages:

• Exceptional Self-Priming Ability: Optimized for high-speed drives. The internal porting ensures higher rated speeds without auxiliary inlet boosting, drastically reducing the risk of cavitation.

• Heavy-Duty Pressure Reliability (4600 PSI): Rated at 320 Bar (4600 PSI) with peak cycles reaching 350 Bar, featuring reinforced bearings to ensure structural integrity over long-term industrial service.

• Intelligent Control Modulations (L0/L1):

  • Load Sensing (LS): Models like the K3VL28/C-1NPSM-L0 feature high-sensitivity LS valves to synchronize flow output with actuator demand, slashing energy waste.

  • Pressure Compensator: Automatically de-strokes the pump when preset pressure is reached, protecting components and optimizing thermal efficiency.

• Compact Modular Design: Superior thru-drive capability allows for tandem mounting of secondary pumps (e.g., code H6), streamlining multi-circuit power distribution layouts.

• Low Noise Design: Utilizing Kawasaki’s patented silent valve plate technology, these pumps effectively suppress fluid pulsations, making them ideal for indoor factory environments like injection molding and pressing machines.

Detailed Models & Parameters:

• Core Series: Kawasaki K3VL Series.

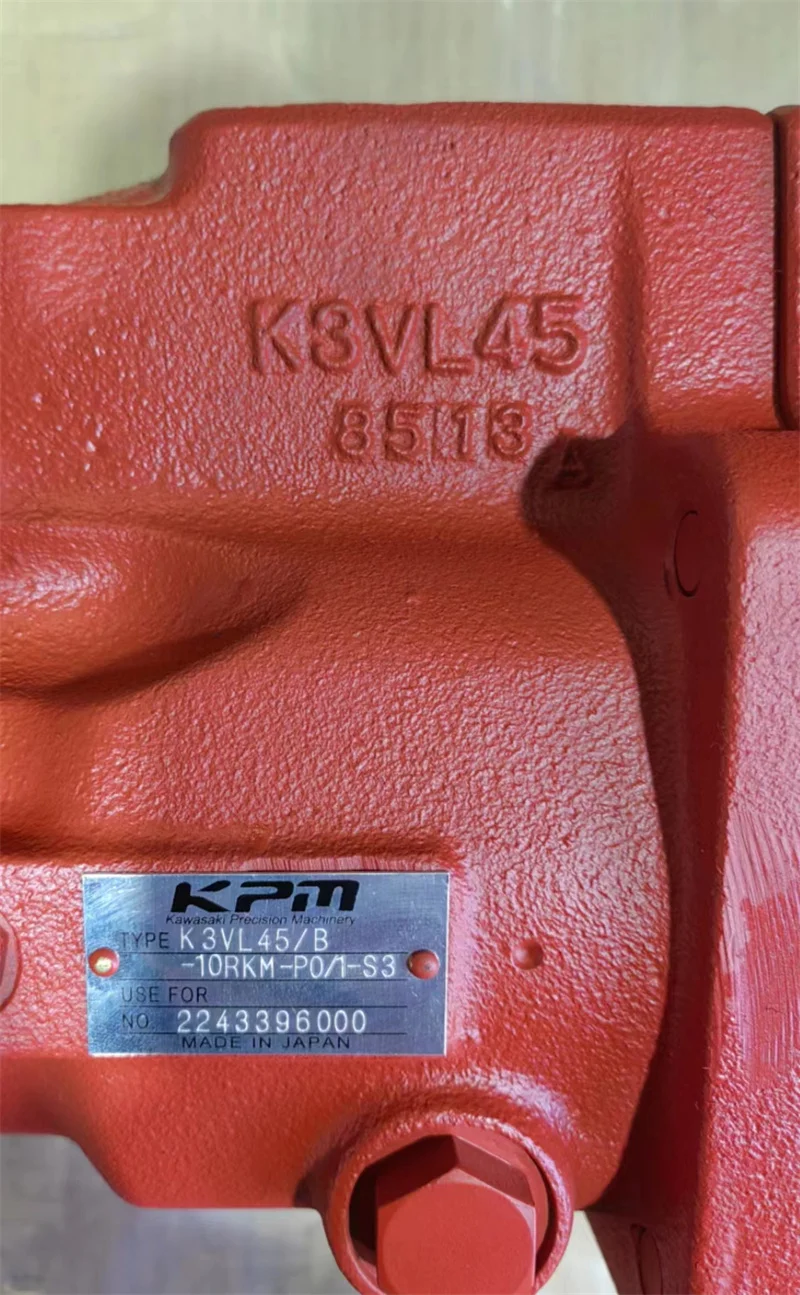

• Representative Models: K3VL28/C-1NPSM-L0, K3VL45, K3VL60, K3VL80, K3VL112, K3VL145, K3VL200B-10RKM-L01-H6.

• Displacements: 28, 45, 60, 80, 112, 145, 200 cm³/rev.

• Pressure Ratings: Rated at 320 Bar (32 MPa); Peak cycles up to 350 Bar (35 MPa).

• Rotation: R (Clockwise) / L (Counter-clockwise).
