Kawasaki K3V Series Pump | K3V112DT, K3V180DT, K3V63 | Main Hydraulic Pump for Excavator
| Model Number | K3V 63 K3V112 K3V180 |
|---|
Product Description

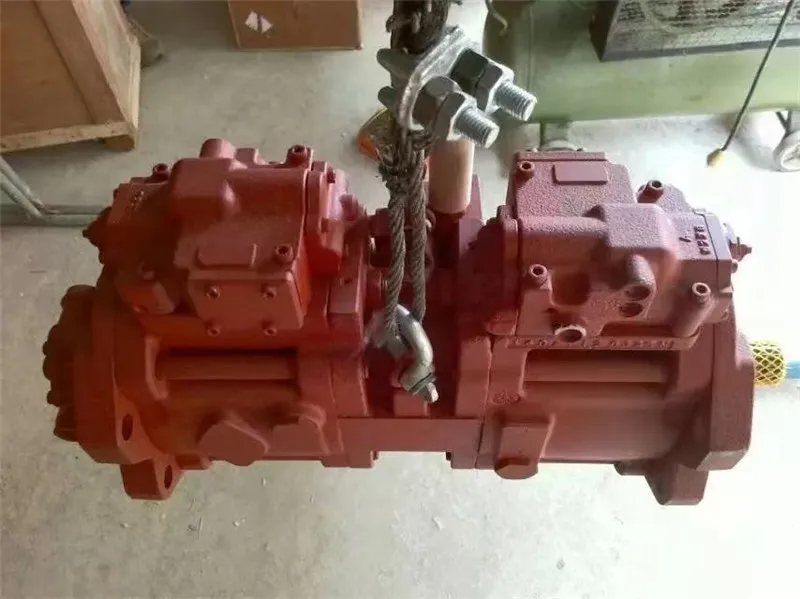

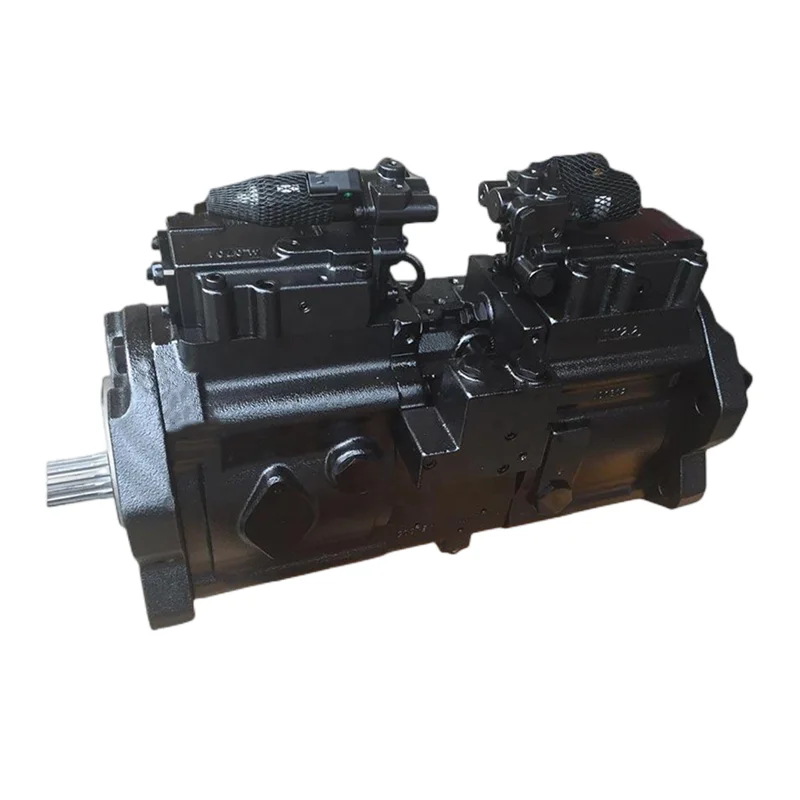

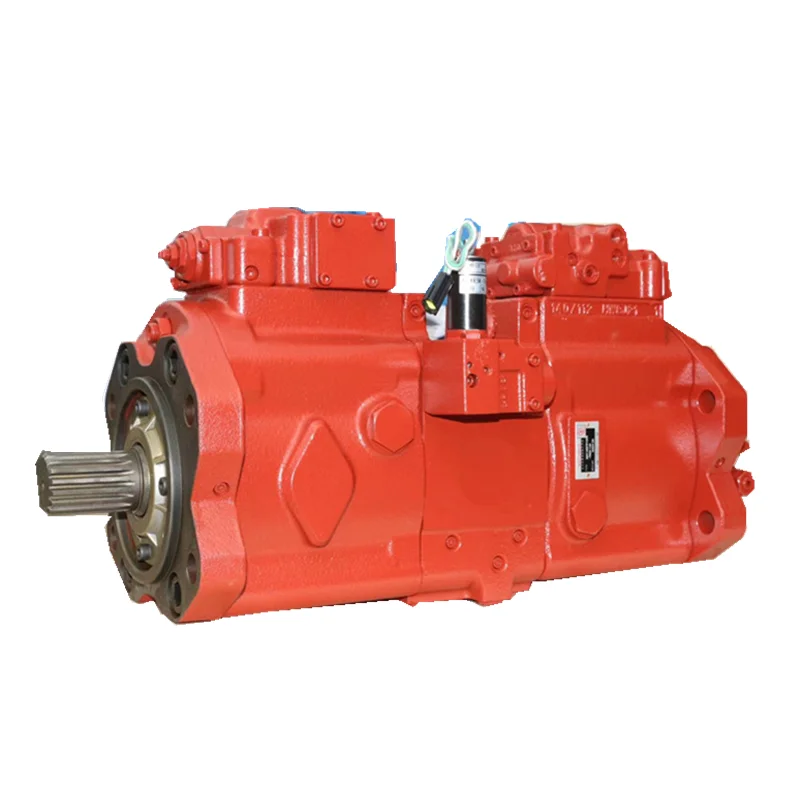

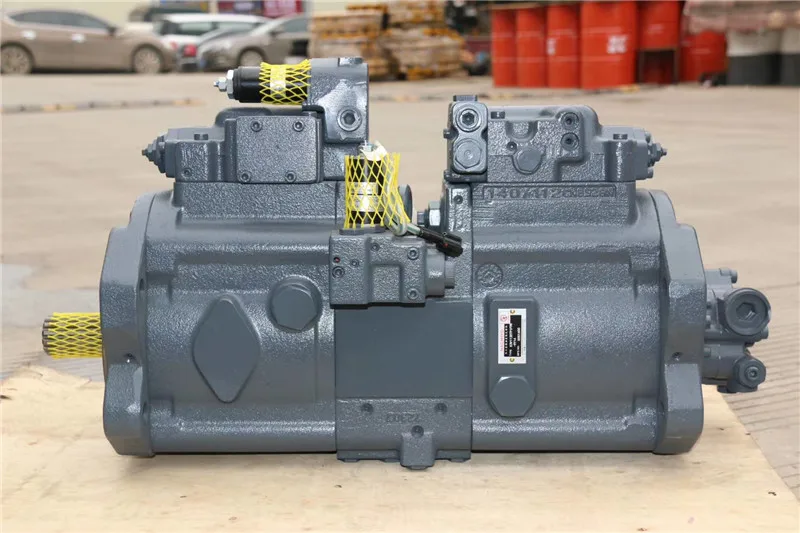

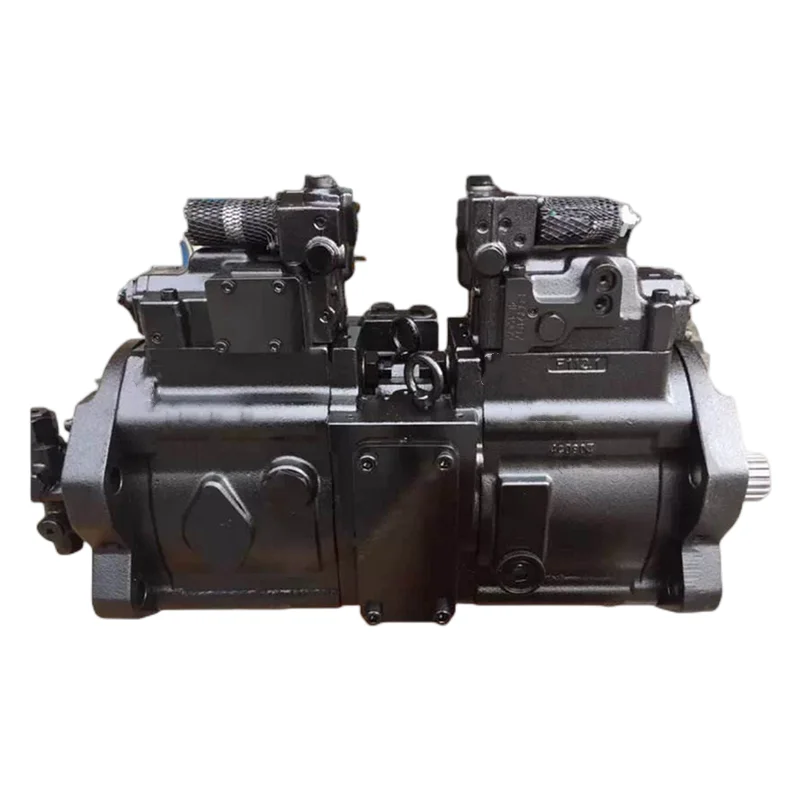

Kawasaki K3V Series Axial Piston Main Pump for Excavators
Product Overview: The Kawasaki K3V series is the global industry standard for excavator hydraulic systems. Featuring a high-pressure swashplate axial piston design, this series is engineered for the rigorous duty cycles of modern heavy machinery. Featured models like the K3V112DT-1F5R-2N19 (for 20-ton class) and K3V180DT-1RER-9C69-DL (for 30-ton class) utilize a tandem (DT) configuration. This delivers two independent variable outputs from a single drive shaft, managed by advanced negative flow or total power control logic to ensure precise, powerful, and fuel-efficient movements during simultaneous digging, traveling, and swinging operations.
Key Technical Advantages:
Superior Power-to-Weight Ratio: Highly integrated and compact design maximizes flow output while minimizing overall pump weight.
Exceptional Volumetric Efficiency: Precision-lapped piston groups and valve plates maintain minimal internal leakage under rated pressures of 34.3 MPa, ensuring no loss of digging force.
Heavy-Duty Durability: Reinforced support bearings and tilting swashplate components are built to withstand frequent load shocks, significantly extending maintenance intervals.
Versatile Control Logic: Supports Negative Flow Control (NFC), Positive Flow Control, and Constant Power Control, perfectly matching the hydraulic systems of Kobelco, Hyundai, Volvo, and Sany.
100% OEM Standard Compatibility: Manufactured to strict Kawasaki factory specifications, ensuring splined shafts, mounting flanges, and regulator porting align perfectly for a seamless “drop-in” replacement.
Detailed Models & Parameters:
Core Series: Kawasaki K3V Series (K3V63, K3V112, K3V140, K3V180, K3V280).
Specific Models: K3V112DT-1F5R-2N19, K3V180DT-1RER-9C69-DL.
Displacements: 63cc, 112cc, 180cc/rev (per single pump section).
Pressure Ratings: Rated at 34.3 MPa (5000 PSI) continuous; Peak capability up to 39.2 MPa.
Rotation: R (Clockwise/CW).
Compatible Machines: Widely used on Kobelco SK200/SK350, Hyundai R210/R300, Volvo EC210/EC290, and more.
