JRP Series Relief Valve | JRP-G02-2-23 | JRP-G02-3-30 | JRP-G02-03-30 | Solenoid Proportional Control
| Model Number | JRP–G02-3-30, JRP-G02-03-30 |
|---|
Product Description

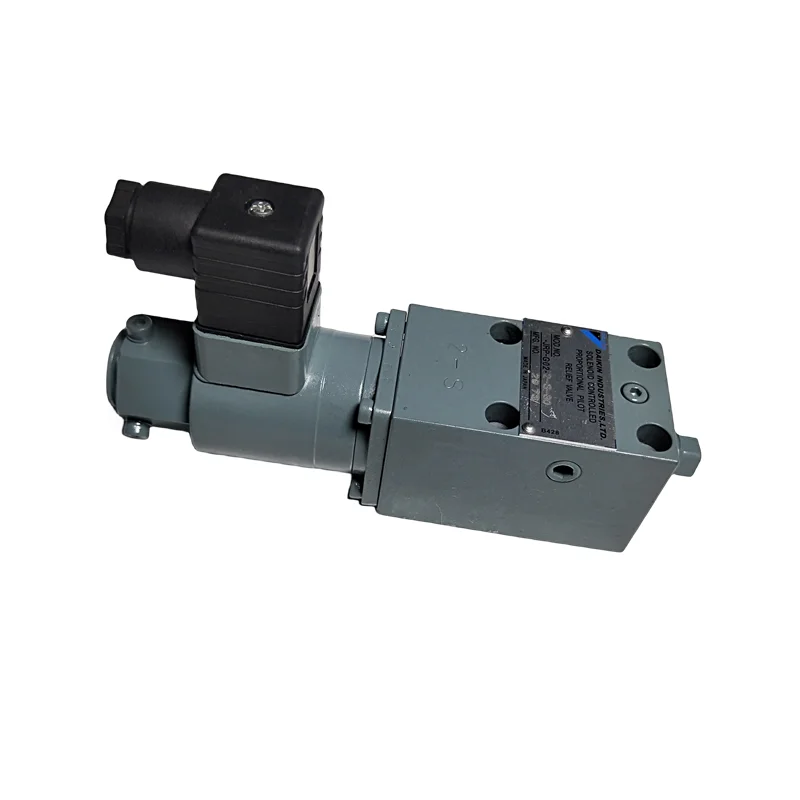

JRP Series Solenoid Controlled Proportional Relief Valves
Product Overview: The JRP series is a high-precision, solenoid-controlled proportional relief valve designed for stepless, remote pressure regulation in hydraulic systems. By modulating the input current to the proportional solenoid, users can adjust the system’s relief pressure in real-time based on load requirements. Whether using the JRP-G02-2 or JRP-G02-3, this series remains the preferred choice in 2026 for automated machine tools, industrial presses, and injection molding circuits, delivering superior linear response and system stability.
Featured models: JRP-G02-2-23, JRP-G02-03-30, and JRP-G02-3-30.
Key Technical Advantages:
Precise Proportional Pressure Control: Features a high-sensitivity proportional solenoid ensuring an excellent linear relationship between input current and output pressure with minimal hysteresis.
Tiered Pressure Ranges: Offers multiple pressure adjustment ceilings (e.g., -2 or -3 suffixes) to accommodate applications ranging from low-pressure precision to high-pressure heavy-duty tasks.
23 & 30 Design Sequence Optimization: Spans the classic 23 and modern 30 design sequences; the 30 series provides optimized internal channels for enhanced dynamic stability during high-flow relief cycles.

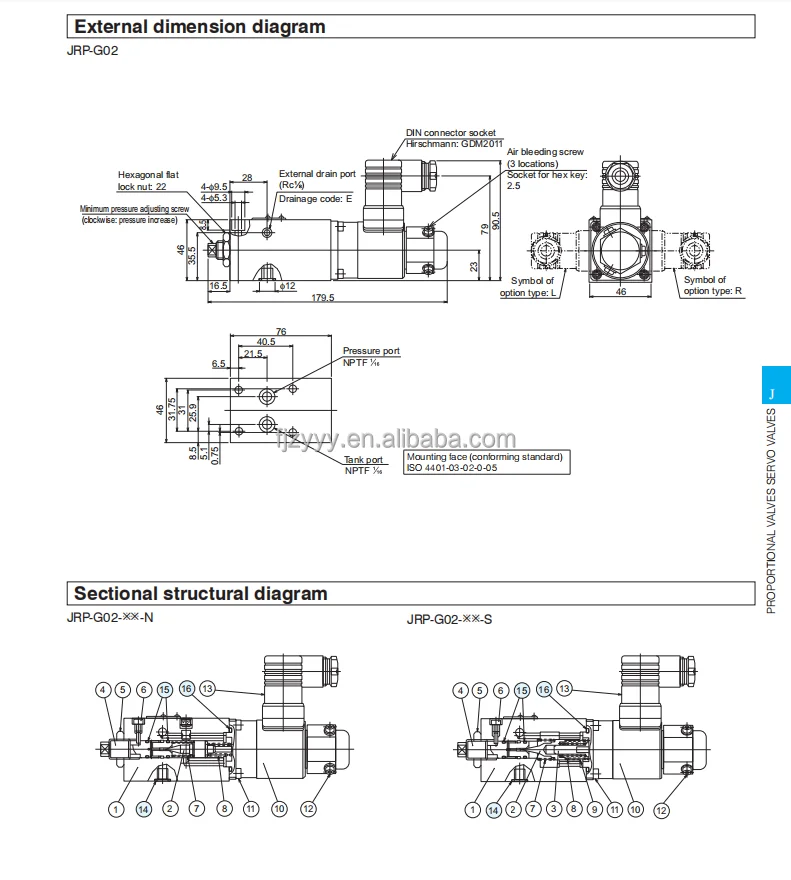

Standard G02 (NG6) Mounting: Fully compliant with international subplate mounting standards, allowing for seamless integration with standard hydraulic manifolds.
Rapid & Smooth Response: The optimized pilot stage effectively suppresses pressure fluctuations and switching noise, extending the service life of hydraulic pumps and other system components.

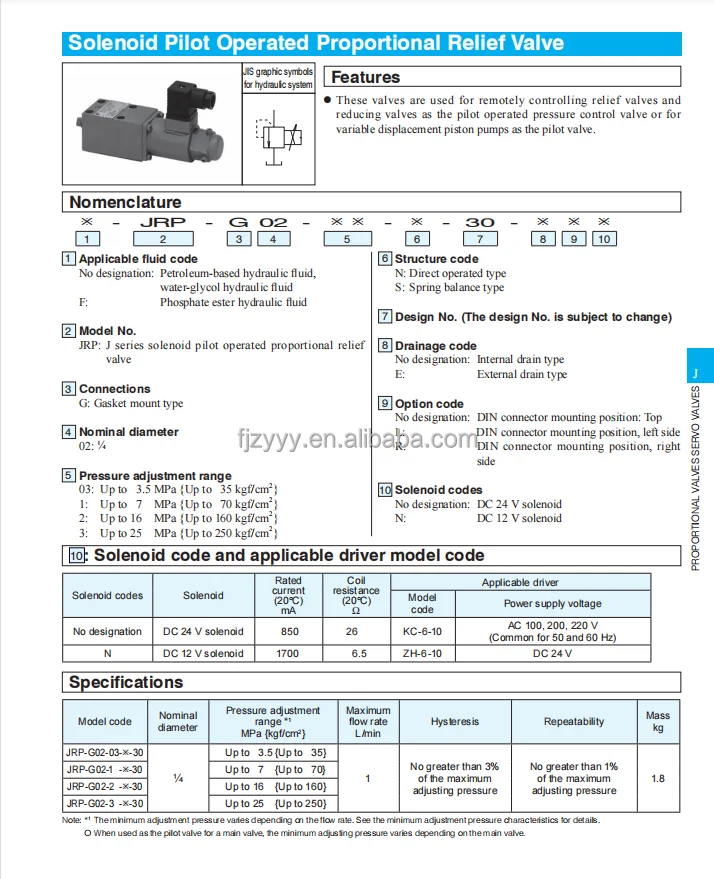

Detailed Specifications & Parameters:
Featured Model Matrix:
JRP-G02-2-23: Size 02 (NG6), Pressure Range Series 2, Design Sequence 23.
JRP-G02-3-30: Size 02 (NG6), Pressure Range Series 3, Latest Design Sequence 30.
JRP-G02-03-30: Flow/Pressure optimized variant for specialized industrial applications.
Technical Specifications:
Max Operating Pressure: Up to 21 MPa (210 bar) or 25 MPa (250 bar).
Rated Current: Typically 0 – 800mA (DC).
Coil Resistance: Approx. 10Ω (at 20°C).
Minimum Set Pressure: Ultra-low, ideal for precision pressure-holding systems.
