High-Pressure Hydraulic Solenoid Valve | D5-02 | D4-03 | 3C4 2B3 2B2L | NG6 NG10 Directional Control Valve
| Model Number | D5-02-2B2 |
|---|
Product Description
D4 / D5 Series Industrial Solenoid Directional Valves
Product Overview: The D4 and D5 series solenoid-operated directional valves are pivotal control components in hydraulic systems, engineered for precise shifting, starting, and stopping of actuators (cylinders or motors). This range covers two standardized sizes: Size 02 (NG6) and Size 03 (NG10). Renowned for high-pressure durability and high flow capacity, these valves utilize wet-pin solenoid technology. The armature operates within hydraulic fluid for superior cooling and quiet switching, ensuring an exceptionally long service life even under the most demanding high-frequency industrial cycles.

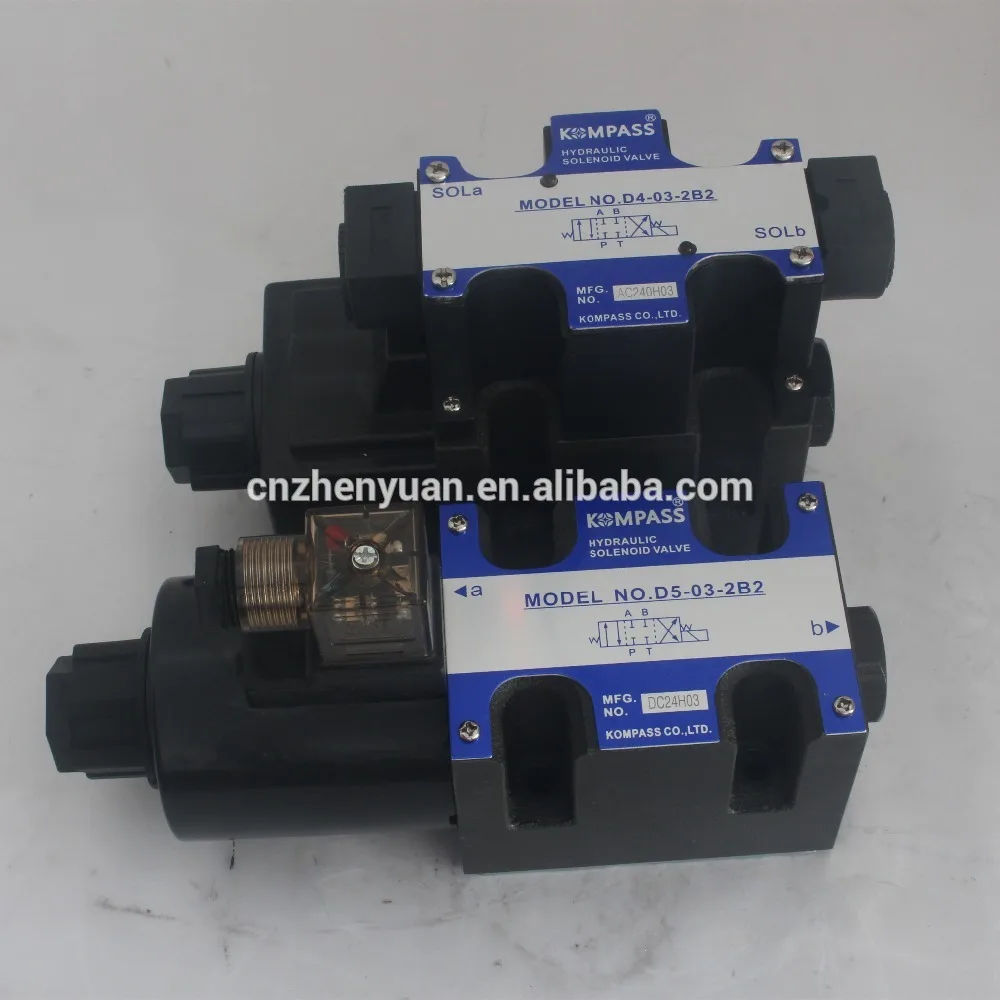

Featured models include: D4-03-2B3, D4-03-3C12, D4-03-2B8, D5-02-2B2, D5-03-3C4, and more.
Key Technical Advantages:
Optimized Flow Channels: Hydrodynamically designed internal paths significantly reduce pressure drops, enhancing overall system efficiency.
Versatile Spool Functions: Available in 3C (3-position) and 2B (2-position) configurations, including closed center, float center, and tandem center to suit diverse circuit logics.
Wet-Armature Solenoids: The oil-immersed armature dampens mechanical impacts and supports 100% ED (Continuous Duty) operation.
Robust Environmental Protection: Achieving an IP65 rating with standard terminal boxes or connectors, ensuring reliability in damp or dusty conditions.
Detailed Specifications & Parameters:
Featured Model Matrix:

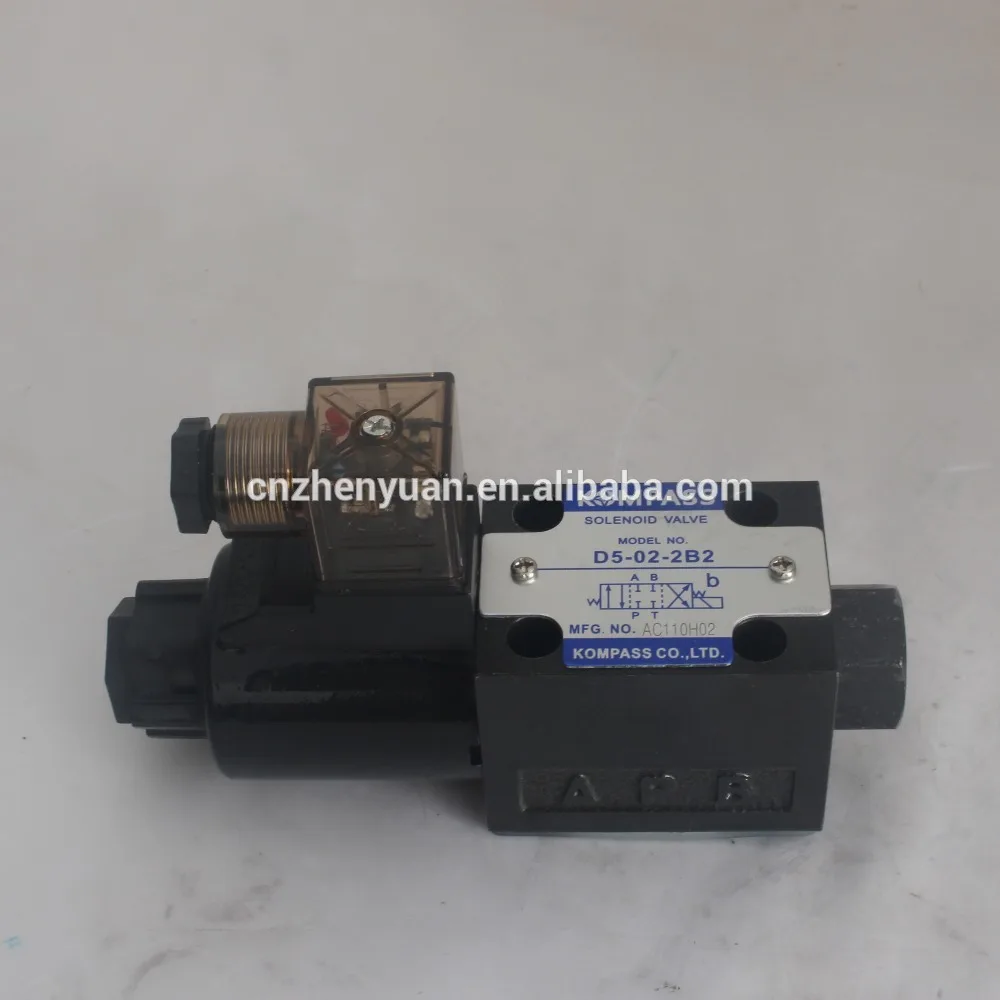

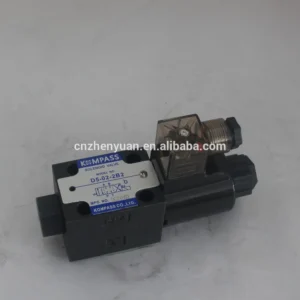

D5-02-2B2: Size 02 (NG6), 2-position 4-way, spring-offset spool function.
D4-03-3C4 / D5-03-3C4: Size 03 (NG10), 3-position 4-way, all-ports-closed center spool.
D4-03-2B3 / 2B8 / 2B2L: Size 03 variants offering distinct return mechanisms and flow characteristic curves.
Core Technical Specs:
Max Operating Pressure: Up to 31.5 MPa (315 bar).
Max Flow Capacity: Up to 80 L/min (Size 02); Up to 120 L/min (Size 03).
Mounting Standard: Compliant with ISO 4401-03 (NG6) and ISO 4401-05 (NG10).
