Linde Hydraulic Pump & Motor | SNZ193412293, SNZ223507648BP, SNZ215012977

SNZ Series Heavy-Duty Axial Piston Hydraulic Pumps & Motors

Product Overview: The SNZ high-pressure hydraulic components are engineered as the power core for extreme industrial environments and heavy-duty mobile machinery. As critical replacement parts in global construction machinery (notably Linde-based hydraulic systems), these axial piston pumps and motors are renowned for superior volumetric efficiency and stability under continuous 420 Bar high-pressure conditions. This selection highlights four core material numbers: SNZ193412293, SNZ223507648BP (with enhanced configuration), SNZ215012977, and SNZ202109855. Whether utilized in closed-loop hydrostatic transmissions or open-loop power sources, these units deliver precise flow control and peak torque output.

Key Technical Advantages:

• Precise Material Matching: Tailored for SNZ-specific serial numbers to ensure 1:1 original replacement, matching mounting dimensions, spline specs, and control response perfectly.

• Extreme Pressure Resilience: Rated for continuous operation at 420 Bar (6000 PSI) with peak shock pressure support up to 500 Bar, effectively handling transient loads in heavy excavation, drilling, and material handling.

• Superior Power Density: Optimized piston and slipper assembly designs achieve maximum power output within a compact housing, reducing overall system heat generation.

• Low Internal Leakage: Precision-lapped valve plates and cylinder faces ensure minimal internal leakage at full-speed operation, enhancing overall system fuel efficiency.

• Target Applications: Rotary drilling head drives, crawler travel mechanisms, large industrial mixing stations, heavy crane winches, and forestry machinery transmissions.

Detailed Models & Parameters:

• Core Series: SNZ Heavy Duty Axial Piston Series.

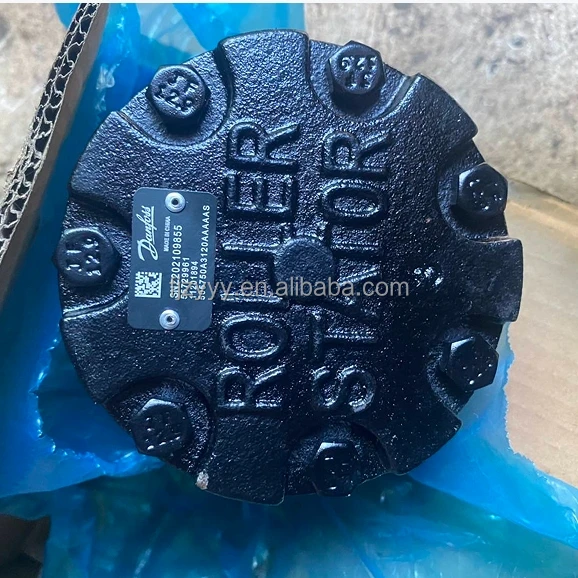

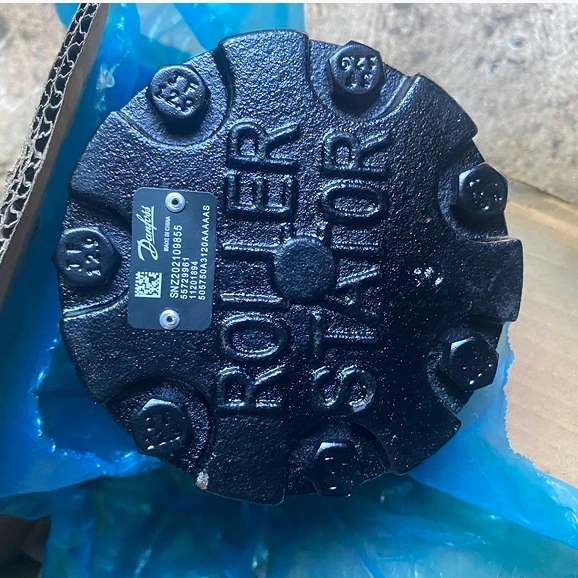

• Model/Serial Number Keywords: SNZ193412293, SNZ223507648BP, SNZ215012977, SNZ202109855.

• Technical Specs Decoding:

  • SNZ193412293: Standard high-pressure piston assembly.

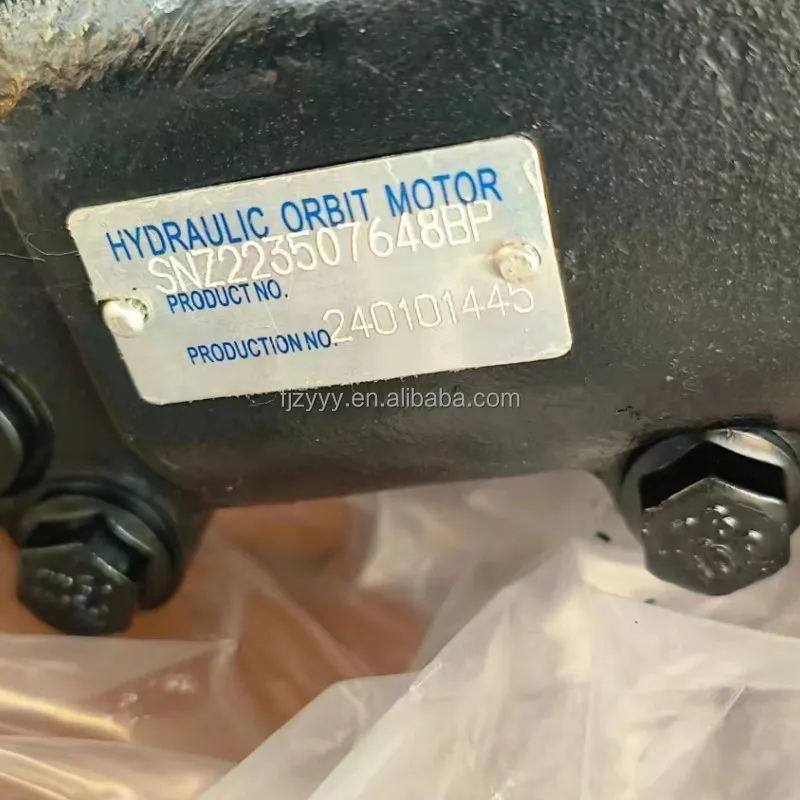

  • SNZ223507648BP: Enhanced configuration (BP version), typically featuring higher sealing grades or specialized control valve feedback.

• Pressure Specs: Nominal Continuous Pressure 420 Bar, Peak Pressure 500 Bar (7250 PSI).

• Compatibility: Widely adapted to specific application standards within Linde, Rexroth, and other heavy-duty hydraulic systems.
