Hydac Type WSM06020 Solenoid Poppet Valve | WSM06020Z | WSM06020Y | 10V 12V 24V DC | Zero Leakage

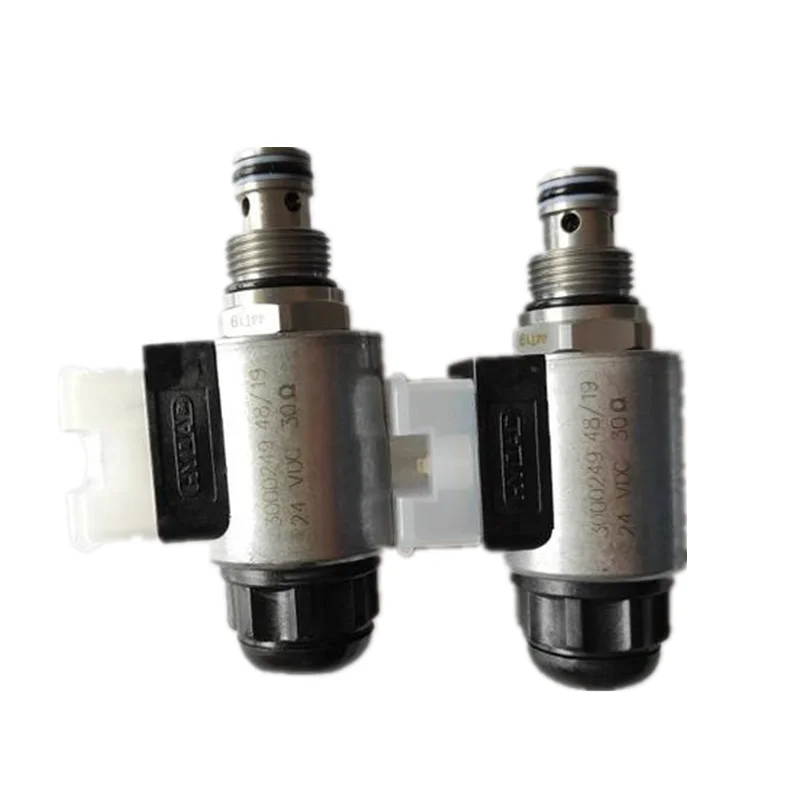

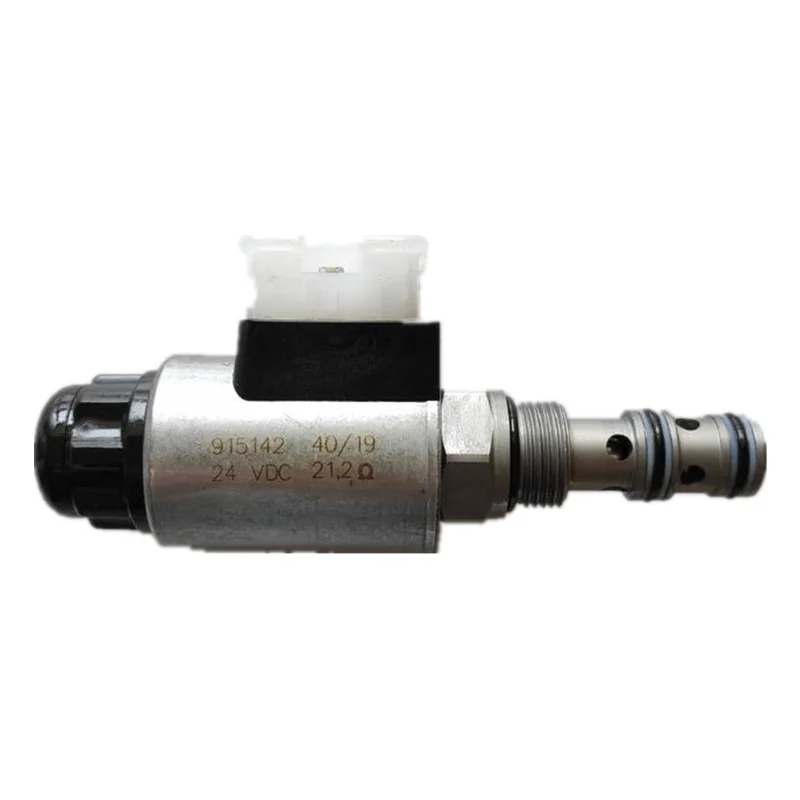

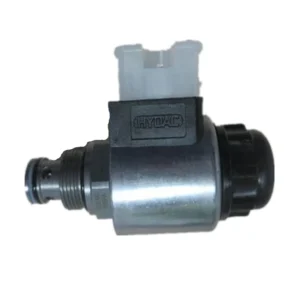

WSM06020 Series Direct-Acting Solenoid Poppet Valves

Product Overview: The WSM06020 series is a high-performance, cartridge-style direct-acting solenoid poppet valve. Unlike conventional spool valves, this series utilizes a poppet sealing architecture to achieve absolute zero leakage during operation. This makes it the premier choice for hydraulic outriggers, lifting platforms, and any circuit requiring long-term pressure retention. Compactly designed for the UNF 3/4-16 (Size 06) cavity, it offers rapid response times and exceptional mechanical durability.

Featured models include: WSM06020Z-01-C-N-10DG, WSM06020Z-01-C-N-12DG, WSM06020Z-01-C-N-24DG, and the normally open WSM06020Y-01-C-N-24DG.

Key Technical Advantages:

• Bidirectional Blocking & Zero Leakage: The poppet-type design ensures a complete hydraulic seal in the closed position, eliminating actuator drift caused by internal leakage.

• High-Pressure Compactness: Despite its small footprint, it handles operating pressures up to 250-350 bar, ideal for high-power-density mobile machinery.

• Comprehensive Voltage Range: Available in 10V (10DG), 12V (12DG), and 24V (24DG) DC ratings, perfectly adapting to various construction vehicles and battery-powered industrial systems.

• Wet-Pin Solenoid Construction: Coils are 360° rotatable. The armature operates within the fluid for superior cooling and shock resistance.

Detailed Specifications & Parameters:

• Featured Model Matrix:

  • WSM06020Z Series: Normally Closed (N.C.).

  • WSM06020Y Series: Normally Open (N.O.).

  • DG Spec: Equipped with DIN 43650 standard connectors.

• Core Technical Specs:

  • Cavity: Size 06 (UNF 3/4-16).

  • Max Operating Pressure: 250 bar (3625 PSI).

  • Rated Flow Rate: Up to 20 L/min.

  • Response Time: Energized ≤ 30ms; De-energized ≤ 50ms.

  • Enclosure Rating: IP65 (with standard plug).

WSM06020Z-01-C-N-12DG
WSM06020Z-01-C-N-24DG
WSM06020Z-01-C-N-36DG WSM06020Z-01-C-N-48DG
WSM06020Z-01-C-N-110DG
WSM06020Z-01-C-N-24AG
WSM06020Z-01-C-N-115
WSM06020Z-01-C-N-230AG
WSM06020Z-01M-C-N-24DG
WSM06020Z-01M-C-N-48DG
WSM06020Z-01M-C-N-110DG
WSM06020Z-01M-C-N-24AG
WSM06020Z-01M-C-N-115
WSM06020Z-01M-C-N-230AG
WSM06020ZR-01M-C-N-24DG
WSM06020ZR-01-C-N-24DG
WSM06020Y-01M-C-N-24DG
WSM06020Y-01-C-N-24DG
WSM06020YR-01M-C-N-24DG
WSM06020YR-01-C-N-24DG
WSM06020W-01M-C-N-24DG
WSM06020W-01-C-N-24DG
WSM06020YR-01-C-N-24DG
WSM06020YR-01-C-N-230AG
WSM08130C-01-C-N-24DG
WSM08130C-01-C-N-230AG
WSM10120Z-01-C-N-24DG
WSM10120Z-01-C-N-230AG
WSM10120ZR-01-C-N-24DG
WSM10120ZR-01-C-N-230AG
WSM10120Y-01-C-N-24DG
WSM10120Y-01-C-N-230AG
WSM10120YR-01-C-N-24DG
