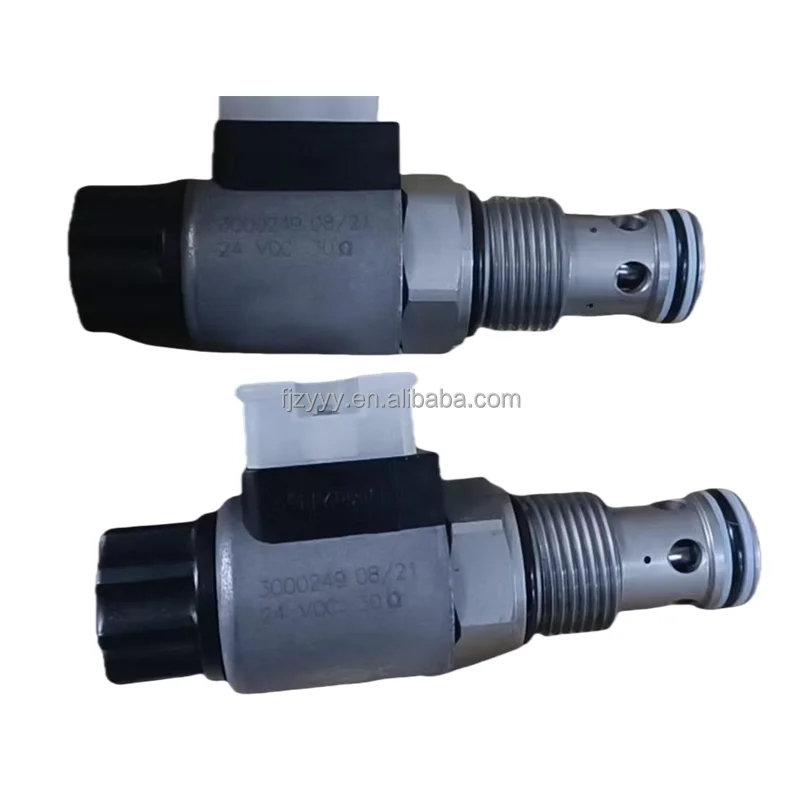

HYDAC Type WSM Valve | WSM08130D WSM06020W | Solenoid Cartridge Valve | 24V DC 24DG
| Model Number | WSM08130D-01M-C-N-24DG |
|---|
Product Description
HYDAC Type WSM Series Solenoid Directional Cartridge Valves
Product Overview: The WSM Series represents a premium range of industrial high-performance screw-in solenoid directional cartridge valves. Specifically engineered for highly integrated hydraulic control systems with space constraints, these valves are designed to be screwed directly into hydraulic manifolds for compact direction management. The WSM series is renowned for its exceptional sealing, rapid dynamic response, and high-pressure ratings, making it a staple in mobile machinery, machine tools, lifting equipment, and various industrial hydraulic power units (HPUs).
This category highlights the normally closed poppet type WSM06020W and the spool-function WSM08130D. All models are equipped with high-quality 24V DC (24DG) coils to ensure stable and continuous operation under demanding conditions.
Key Technical Advantages:
Compact Cartridge Architecture: The screw-in mounting simplifies manifold block design and eliminates external plumbing connections, significantly reducing potential leakage points and saving valuable space.
High-Efficiency Wet-Pin Solenoids: The armature operates fully immersed in hydraulic oil for superior heat dissipation and self-lubrication, providing smoother switching and a longer service life compared to dry solenoids.
Robust Sealing & Reliability: Precision-hardened internal components handle rated pressures up to 350 Bar, maintaining excellent switching accuracy and minimal internal bypassing even under extreme loads.
Ease of Maintenance: The cartridge design allows for direct replacement or service of the valve core without dismantling the entire hydraulic circuit, drastically reducing equipment downtime.
Detailed Specifications & Parameters:
Core Series: HYDAC Type WSM Cartridge Valve.
Featured Model Matrix: WSM08130D-01M-C-N-24DG, WSM06020W-01M-C-N-24DG.
Core Performance Specs:
Nominal Sizes: 06 (Size 06) and 08 (Size 08).
Max Operating Pressure: Rated up to 350 Bar (5,000 PSI).
Voltage Specs: 24DG (24V DC Supply).
Sealing Material: N (NBR/Buna-N), compatible with standard mineral oils.
Manual Override: 01M (Equipped with manual emergency operation).
Electrical Interface: C (Standard DIN 43650 connector).
