HYDAC Type WSM Valve | WSM06020V WSM12120V WSM0602W | Solenoid Cartridge Valve
| Model Number | WSM0602W, WSM06020V, WSM12120V, WSM |
|---|
Product Description

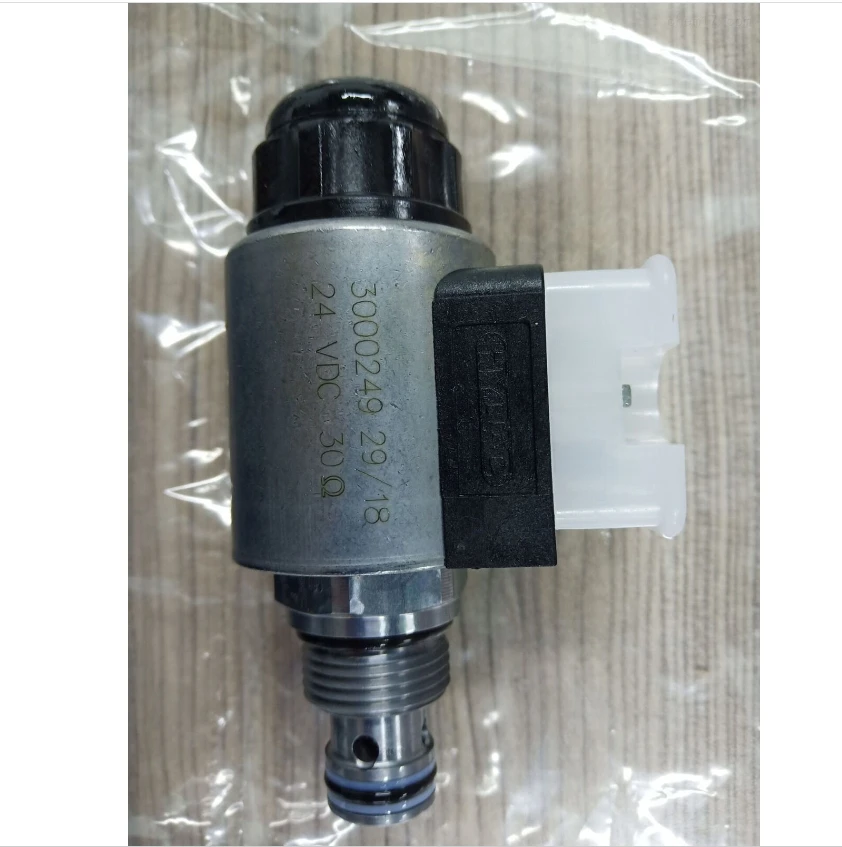

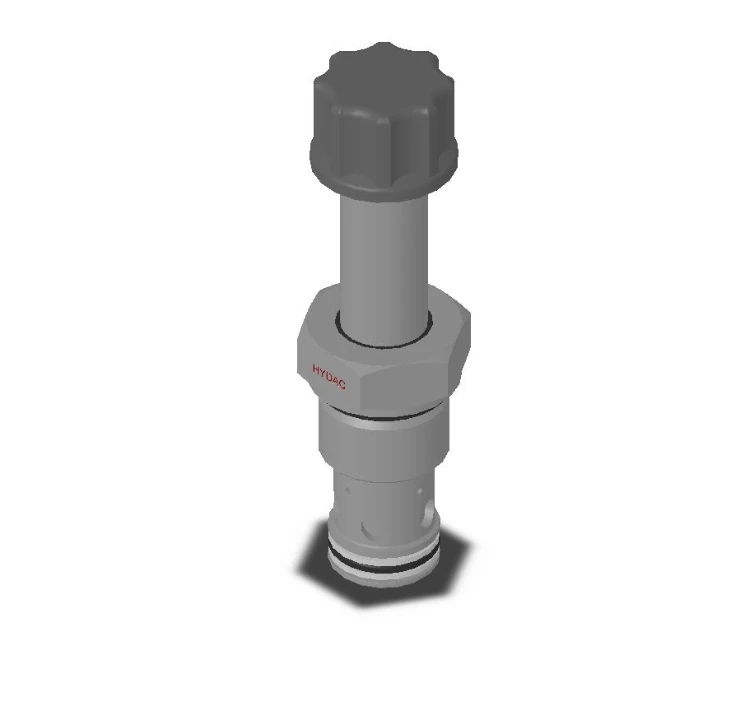

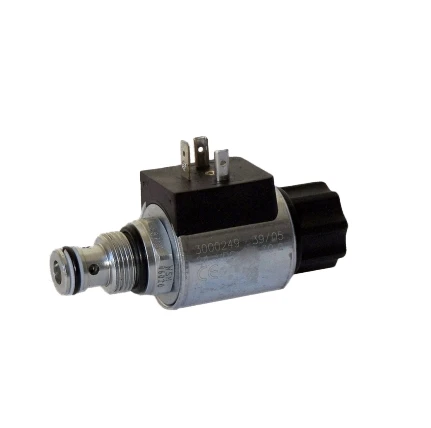

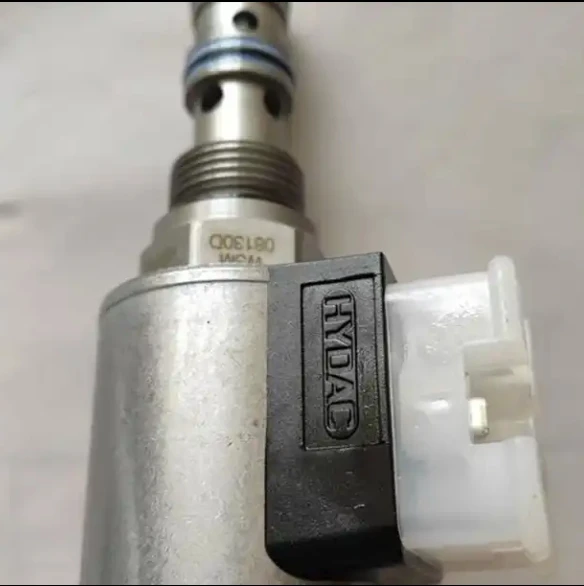

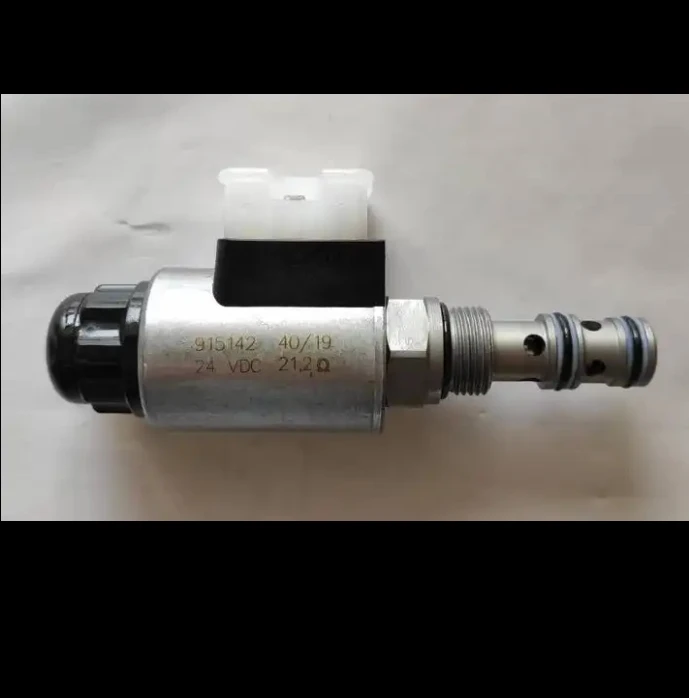

HYDAC Type WSM Series Solenoid Threaded Cartridge Valves
Product Overview: The WSM Series represents a premium range of direct-acting solenoid threaded cartridge spool valves, specifically engineered for space-efficient integration in hydraulic manifolds. With its compact architecture and superior sealing integrity, the WSM series provides precise control over hydraulic fluid start/stop and directional flow. It is the premier choice for mobile machinery, Hydraulic Power Units (HPUs), and diverse industrial automation systems.

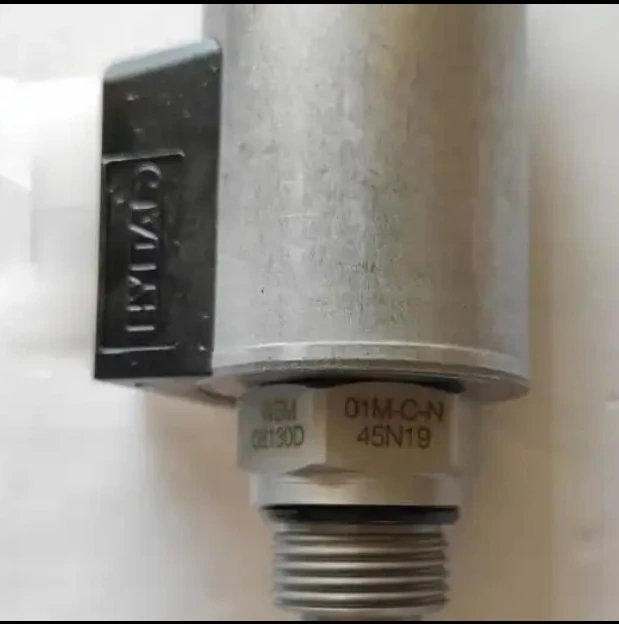

This category features essential configurations, including the standard WSM0602W, the high-temperature rated WSM12120V-01, and the manual override version WSM06020V-01M. The entire range supports 24V DC operation and offers multiple electrical interfaces like the Z5L junction box.
Key Technical Advantages:
High-Pressure Capability: Precision-machined from high-strength steel, these valves handle operating pressures ranging from 250 Bar to 350 Bar, ideal for heavy-duty applications.
Space-Saving Cartridge Design: The minimized footprint allows for high-density installation within complex manifold blocks, simplifying overall system layout.
Rapid Response Solenoid Actuation: The wet-pin solenoid design ensures ultra-short opening and closing times, capable of sustaining high-frequency switching cycles.
Corrosion Resistance: External components are typically zinc-plated, offering excellent protection against harsh outdoor and industrial environments.
Detailed Specifications & Parameters:
Core Series: HYDAC Type WSM Series.
Featured Model Matrix: WSM0602W-01-C-N-24DG, WSM12120V-01-C-N-24VDC-Z5L, WSM06020V-01M-C-N-24DG.
Core Performance Specs:
Nominal Sizes: Size 06 and Size 12.
Max Operating Pressure: Rated up to 250 – 350 Bar (3,600 – 5,000 PSI).
Max Flow Capacity: Depending on size, e.g., approx. 20-40 L/min for Size 06.
Voltage Specs: 24DG (24V DC); 24VDC (with Z5L connector option).
Valve Functions: 2/2-way or 2/3-way spool logic.
Seal Material: V (FKM/Viton for high temp); N (Buna-N).
