HYDAC Type WSM Solenoid Valve | WSM06020-Y01 | WSM08 WSM12 | 24V DC | Directional Cartridge Valve
| Model Number | WSM, WSM08, WSM06, WSM12, WSM06020-Y01-CN24DG, WSM06020V-01M-C-N-24DG |
|---|
Product Description

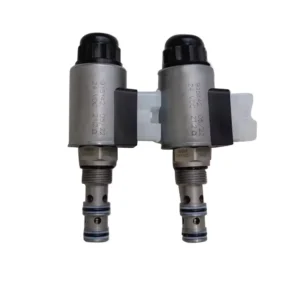

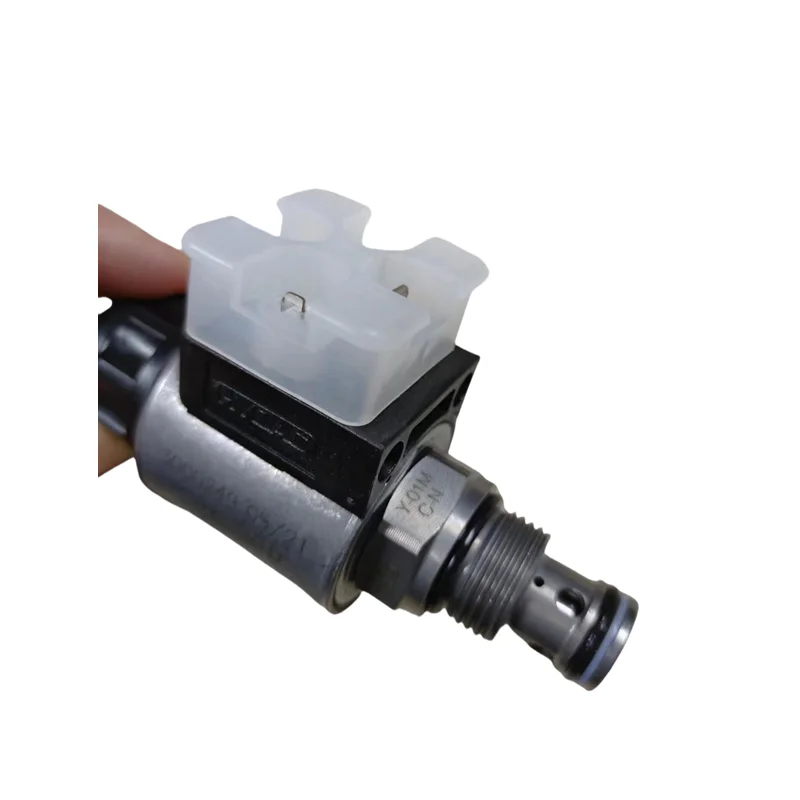

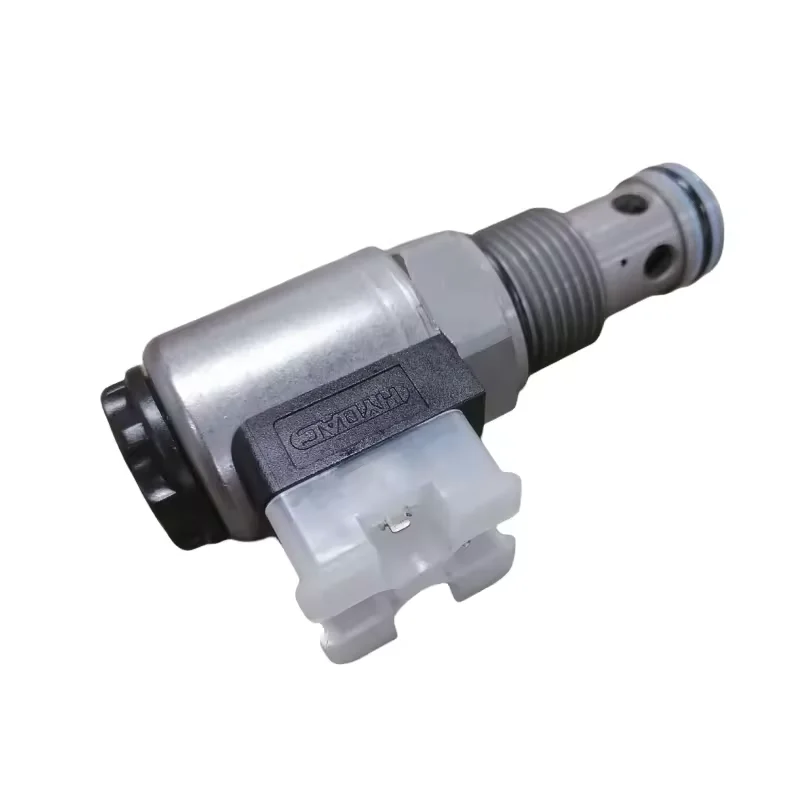

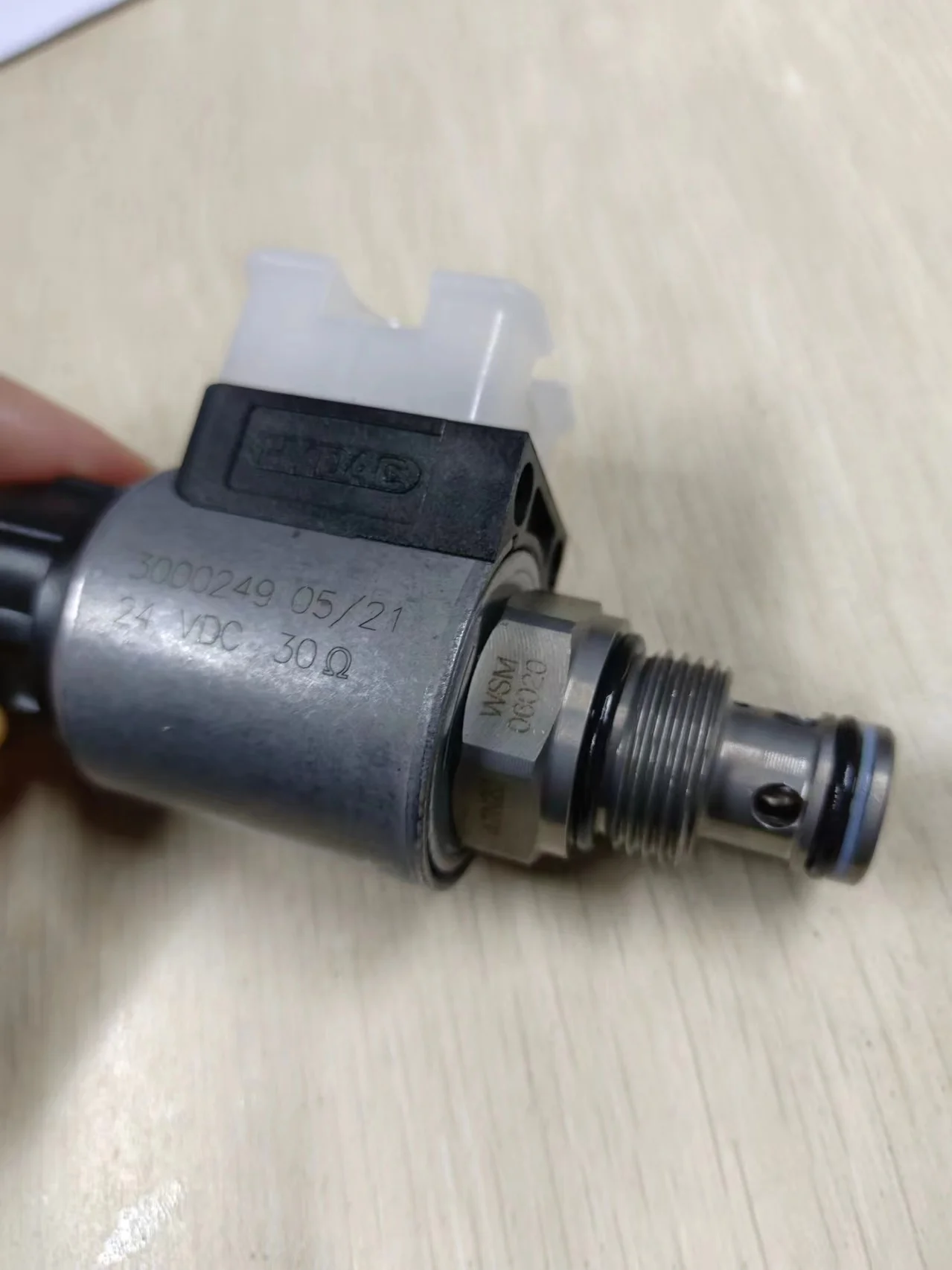

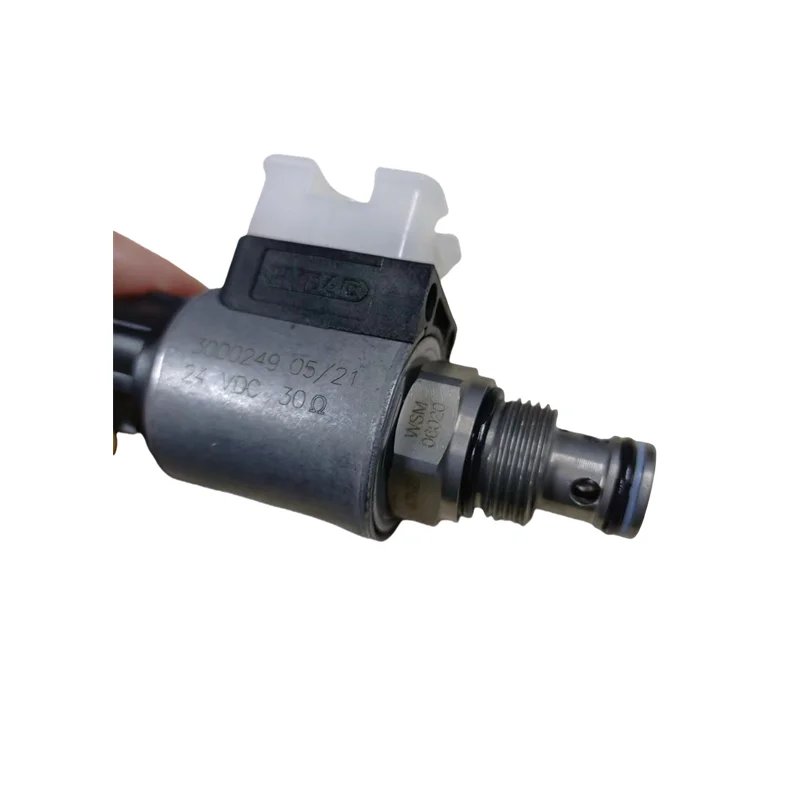

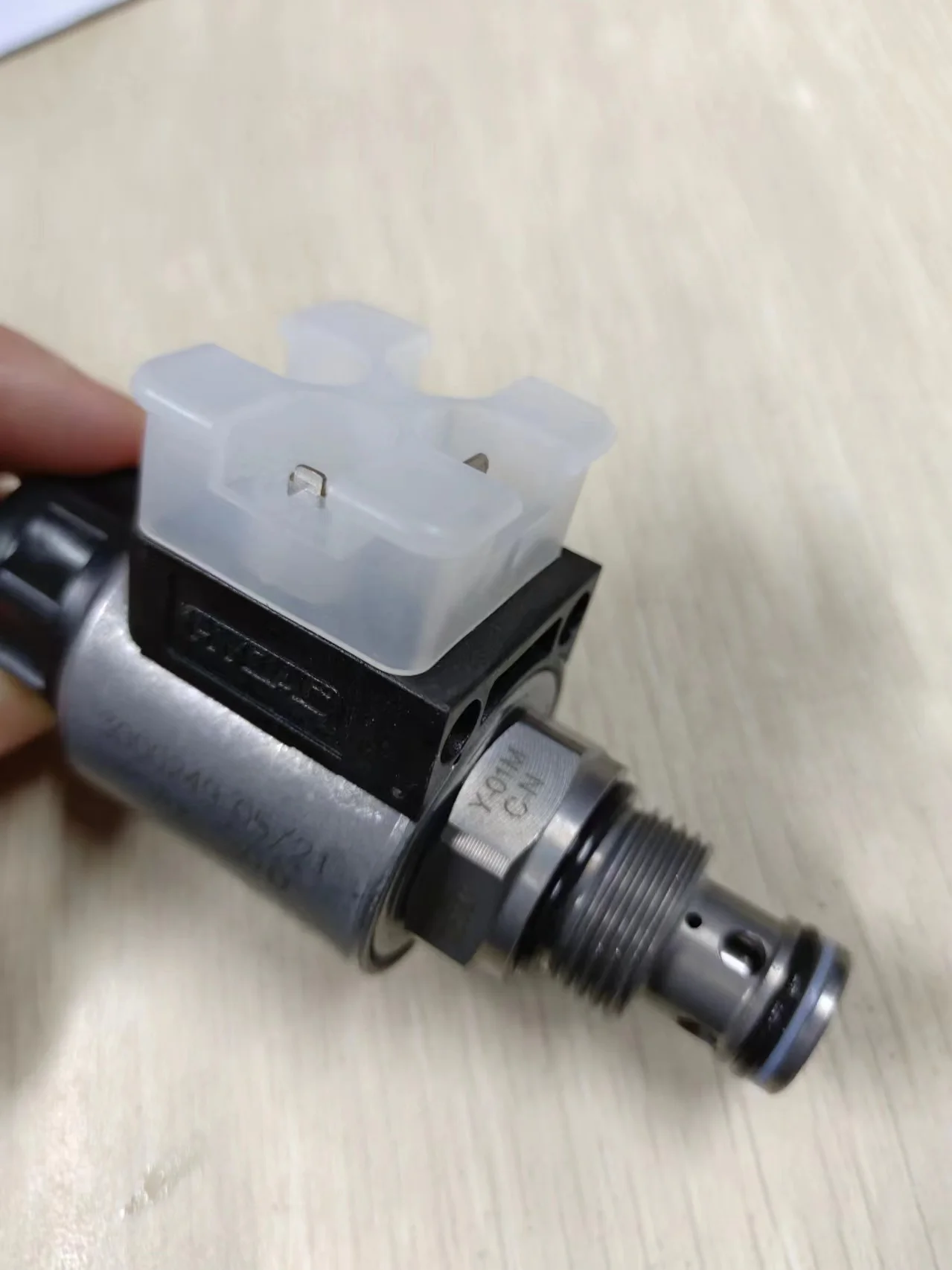

WSM Series High-Performance Solenoid Directional Cartridge Valves
Product Overview: The WSM series represents premium screw-in solenoid directional cartridge valves engineered for space-constrained hydraulic systems requiring ultimate reliability. Renowned for their high power density and compact design, these valves screw directly into hydraulic manifolds, significantly reducing potential leak points and simplifying system plumbing. Whether in mobile equipment control circuits or industrial pilot stages, the WSM series delivers precision switching under operating pressures up to 350 bar.
Featured models: WSM06020-Y01-CN24DG, WSM06020V-01M-C-N-24DG, and the WSM08/WSM12 product range.
Key Technical Advantages:
Screw-in Modular Installation: Utilizes international standard cavities for effortless installation and maintenance, allowing for ultra-compact manifold layouts.
Wet-Pin Solenoid Technology (24DG): Equipped with 24V DC (24DG) coils, the armature operates within the oil for superior heat dissipation and quiet operation.
Manual Override Options (01M): Specific models feature a manual override push-button (e.g., 01M option) to ensure control during power loss or system commissioning.
High Temperature & Chemical Resistance (V): Models with the V designation feature FKM (Viton) seals, capable of handling high temperatures and synthetic hydraulic fluids.
Detailed Specifications & Parameters:
Featured Model Matrix:
WSM06020-Y01-CN24DG: Size 06, 2-position 2-way function, standard 24V DC coil.
WSM06020V-01M-C-N-24DG: Size 06, FKM seals (V), with Manual Override (01M), C-type connection.
WSM08 / WSM12: Denotes Size 08 and Size 12 specifications for higher flow requirements.
Core Technical Specs:
Max Operating Pressure: Rated up to 350 bar (5000 PSI).
Max Flow Capacity: WSM06 up to 20-40 L/min; WSM12 supports significantly higher rates.
Control Voltage: 24V DC (24DG), compatible with various connector standards.
Protection Rating: Up to IP65/IP67 for solenoid components.
