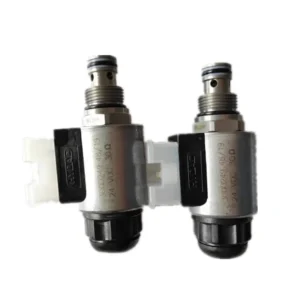

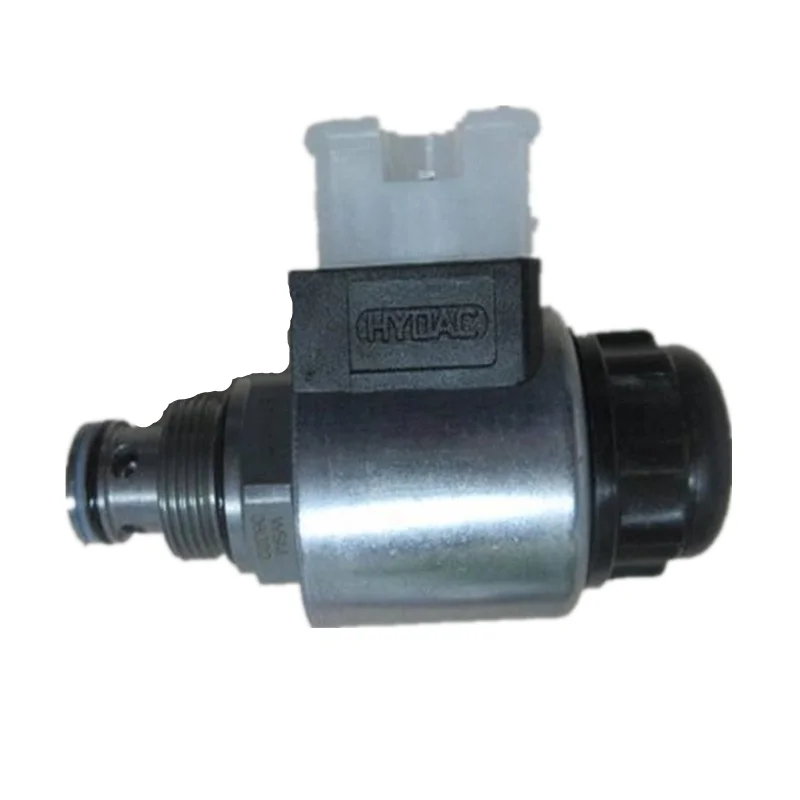

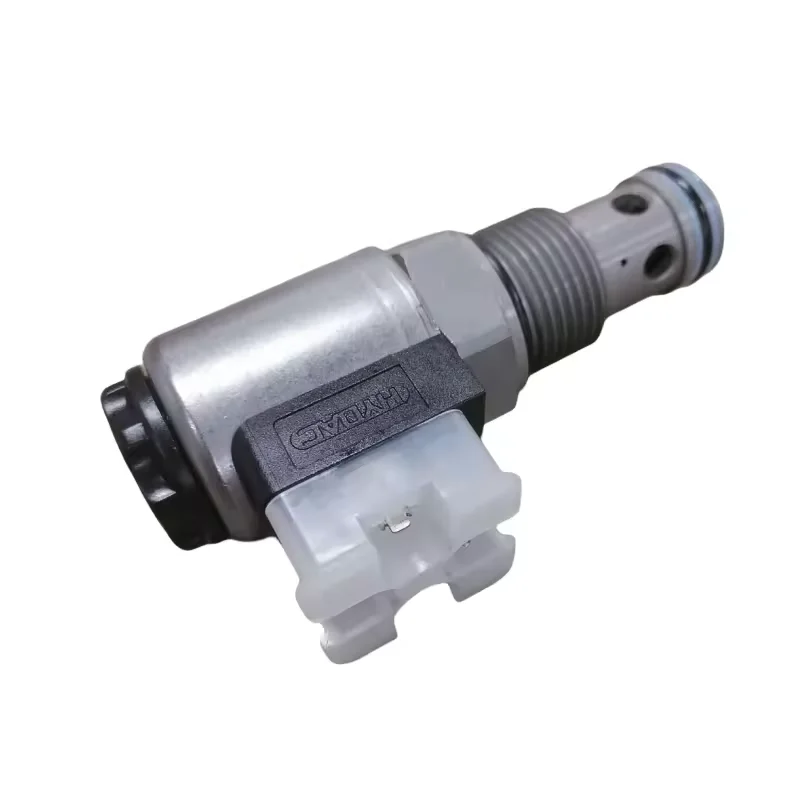

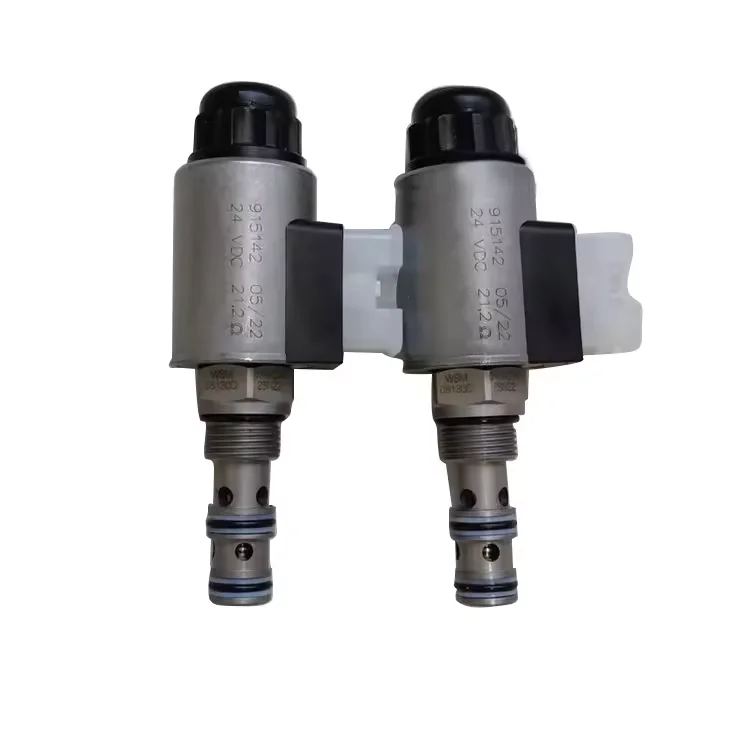

HYDAC Type WSM Solenoid Valve | WSM06020W | WSM08130D | WSM12120W | 24V DC | Cartridge Directional Valve
| Model Number | WSM, WSM06020W-01M-C-N-24DG, WSM12120W-01-C-N-24DG, WSM08130D-01M-C-N-2 |
|---|
Product Description
WSM Series High-Performance Solenoid Directional Cartridge Valves
Product Overview: The WSM series is a premium range of screw-in solenoid directional cartridge valves engineered for highly integrated hydraulic systems. By screwing directly into hydraulic manifolds, these valves significantly reduce system footprints and eliminate external leak points. From the compact WSM06 for small power units to the high-capacity WSM12, each valve utilizes wet-pin solenoid technology to ensure superior switching reliability and extended mechanical life under operating pressures up to 350 bar.
Featured models include: WSM06020W-01M-C-N-24DG, WSM08130D-01M-C-N-2, and WSM12120W-01-C-N-24DG.
Key Technical Advantages:
Ultra-Compact Cartridge Design: The screw-in mounting enables high-density manifold integration, making it the preferred choice for mobile hydraulics and compact industrial HPUs.
Wet-Pin DC Solenoid (24DG): Equipped with 24V DC coils, the armature operates in oil for superior heat dissipation, minimal switching shock, and exceptionally quiet operation.
Manual Override (01M): Specific models feature a manual override push-pin, allowing for flow control during power failures or system commissioning.
High Response & Pressure Rating: Rated up to 350 bar, the precision-ground spools ensure millisecond-range response times and excellent switching stability.
Detailed Specifications & Parameters:
Featured Model Matrix:
WSM06020W-01M-C-N-24DG: Size 06, 2/2-way function, with manual override, 24V DC control.

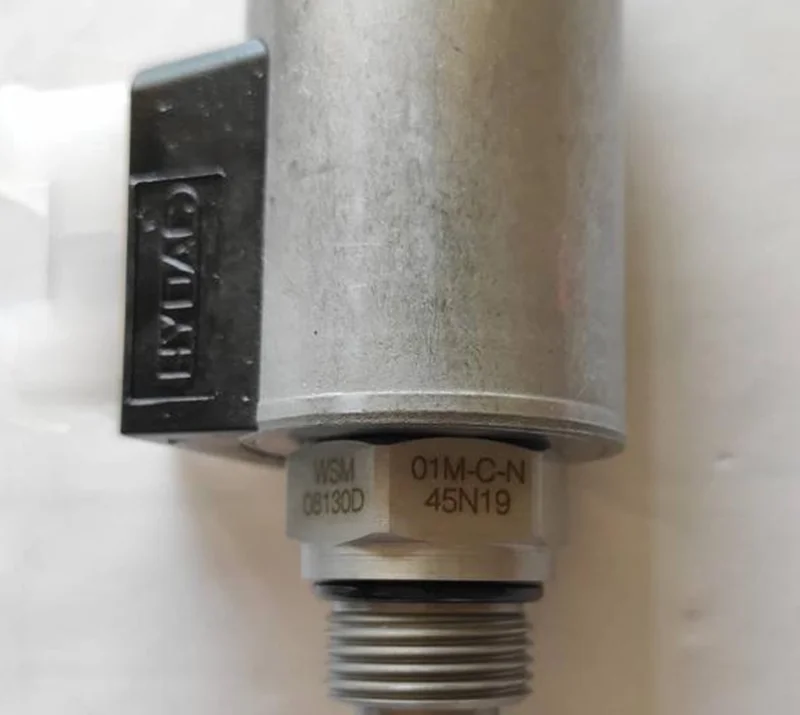

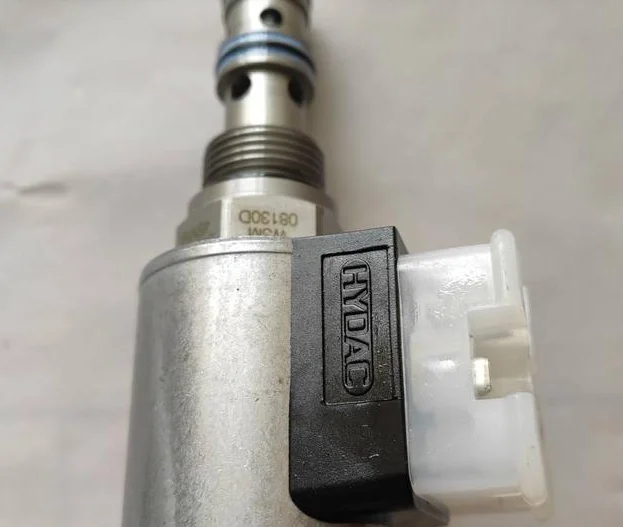

WSM08130D-01M-C-N-2: Size 08, reinforced 2/3-way configuration for medium-flow control.
WSM12120W-01-C-N-24DG: Large Size 12 specification, ideal for heavy-duty systems requiring high flow capacity.
Core Technical Specs:
Max Operating Pressure: Rated up to 350 bar (5075 PSI).
Flow Range: Supports capacities from 20 L/min to 120 L/min depending on the model.
Electrical Connection: Standard DIN connectors or lead-wire types (C-N specification).
Seals: Standard NBR, with FKM (Viton) options available for specialized fluids.
