High-Performance Filter | 1300R005ON-V | 2600R020BN4HC-V-KB | A1320D005BH4HCV | N15DM002

Extreme Condition Hydraulic Filters (Viton Seals & High-Collapse)

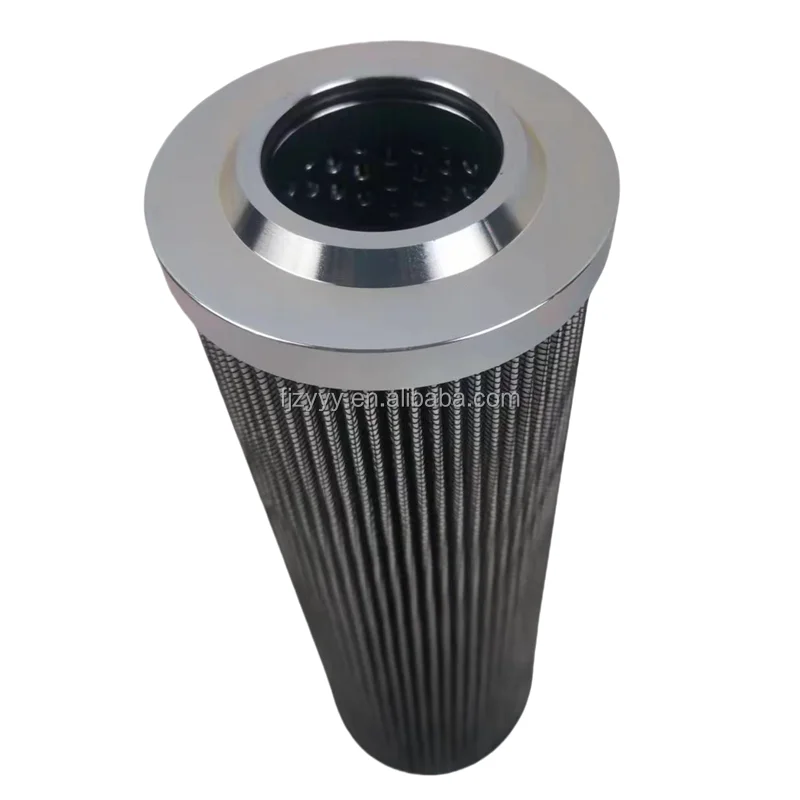

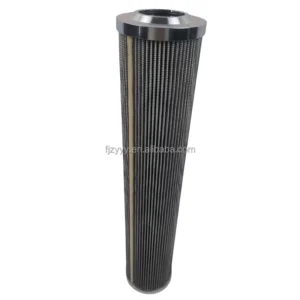

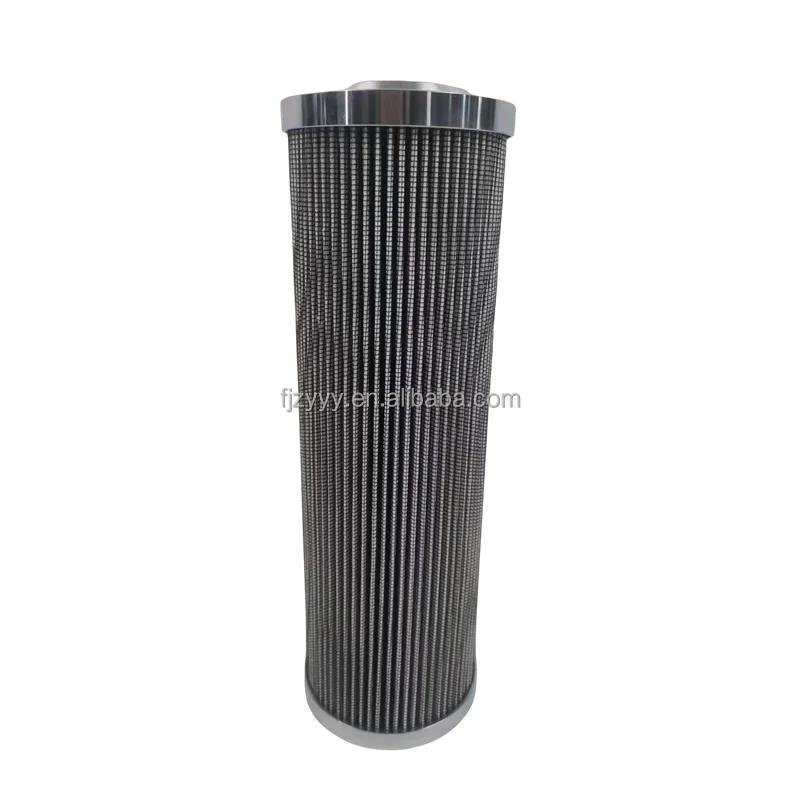

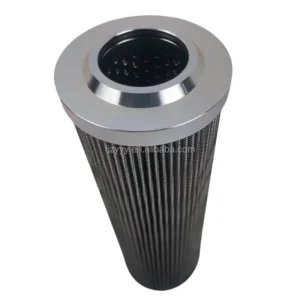

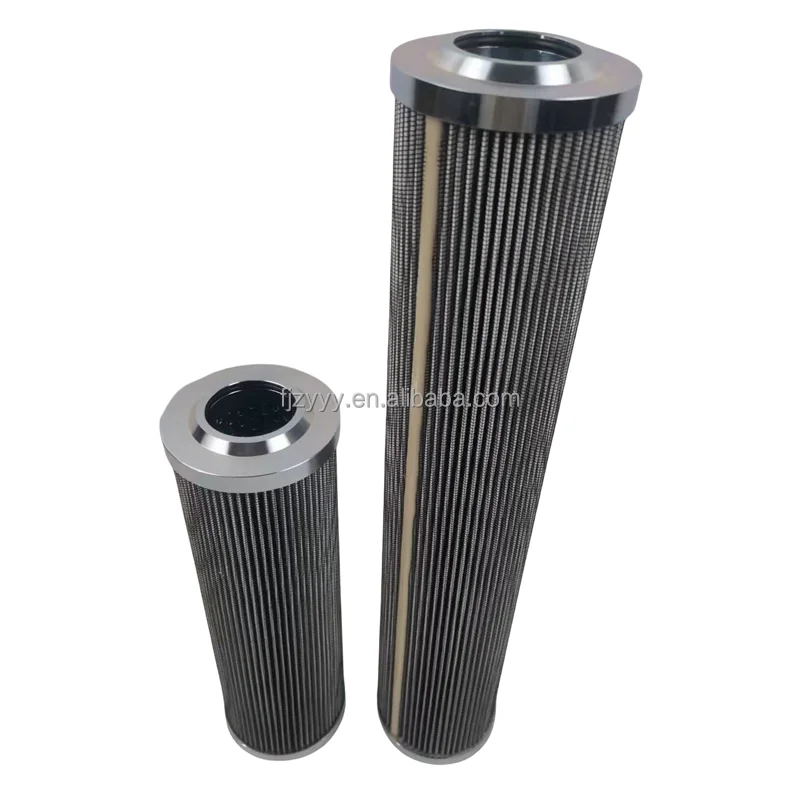

Product Overview:

This series is engineered as a premium replacement for Hydac and specialized specifications (such as the N15DM series). In 2026, across high-temperature metallurgical workshops, power plant flame-resistant oil systems, and wind power hydraulics, these models—integrating V (Viton) seals and BH4HC high-collapse technology—ensure structural stability and cleanliness control within a range of $-20^\circ\text{C}$ to $+120^\circ\text{C}$.

Featured Model Range:

• 1300R005ON/-V: $5\mu\text{m}$ Absolute, optimized for high-temperature environments.

• N15DM002-1251590: Customized ultra-precision filter element.

• 2600R020-BN4-HC/-V-KB: High-flow return element, $20\mu\text{m}$, with Bypass Valve (KB) and Viton seals.

• A1320-D-005-BH4HC/V: Pressure line grade, $5\mu\text{m}$, with $210 \text{ bar}$ collapse resistance.

Key Technical Advantages:

• V (Viton/FKM) Sealing System: Models with the -V suffix feature premium Viton seals, offering superior chemical compatibility and thermal resistance. Perfect for phosphate ester fluids (HFD) and preventing seal degradation.

• BH4HC Extreme Collapse Resistance: The A1320-D series features reinforced cores designed for high-pressure circuits without bypass valves, sustaining up to $210 \text{ bar}$ to prevent element collapse.

• KB (Bypass Valve) Safety: The 2600R size with the -KB suffix includes an internal bypass valve. This protects the system from cavitation during cold starts or when the element reaches saturation.

• ON/BN4 Performance Media: Utilizes multi-layer gradient inorganic glass fiber with a beta ratio of $\beta_x(c) \ge 1000$, capturing ultrafine particles while maximizing Dirt Holding Capacity.

• High-Flow Optimization: Large formats like 1300R and 2600R feature optimized pleat spacing to ensure low initial differential pressure.

Detailed Specifications:

• Filtration Ratings: $2\mu\text{m}, 5\mu\text{m}, 20\mu\text{m}$ (Absolute).

• Collapse Rating: $20 \text{ bar}$ to $210 \text{ bar}$ (Model dependent).

• Seal Material: Viton (FKM).

• Operating Temp: Up to $120^\circ\text{C}$.

• Compatible Series: 1300R, 2600R, A1320D, N15DM.
