HY Series Axial Piston Pump | HY63Y, HY80Y, HY107Y, HY125Y | High Pressure Hydraulic Pump | HY63S-RP

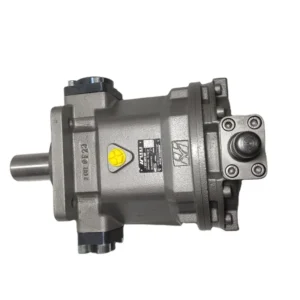

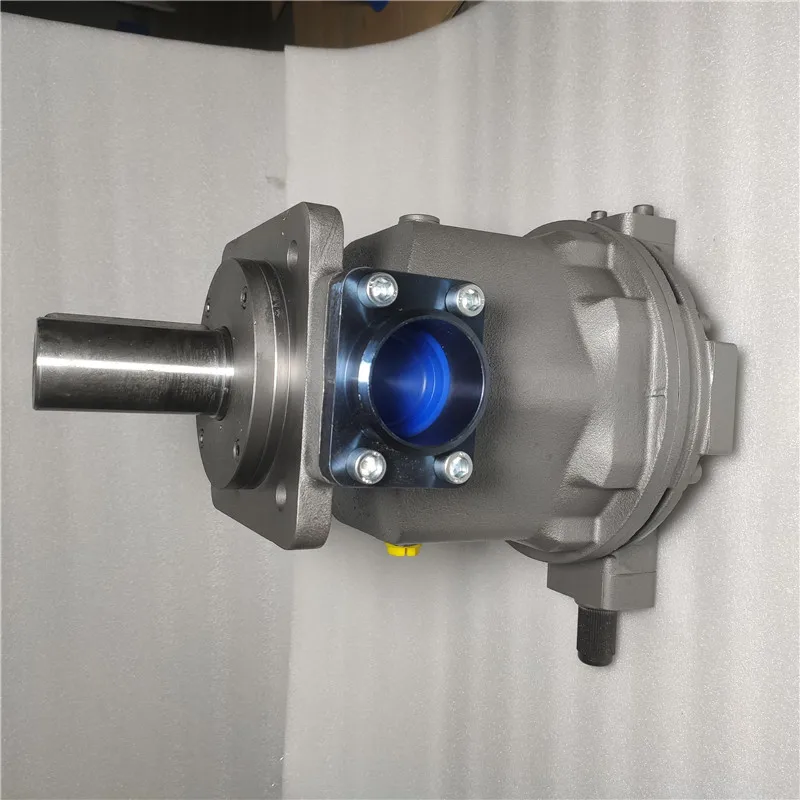

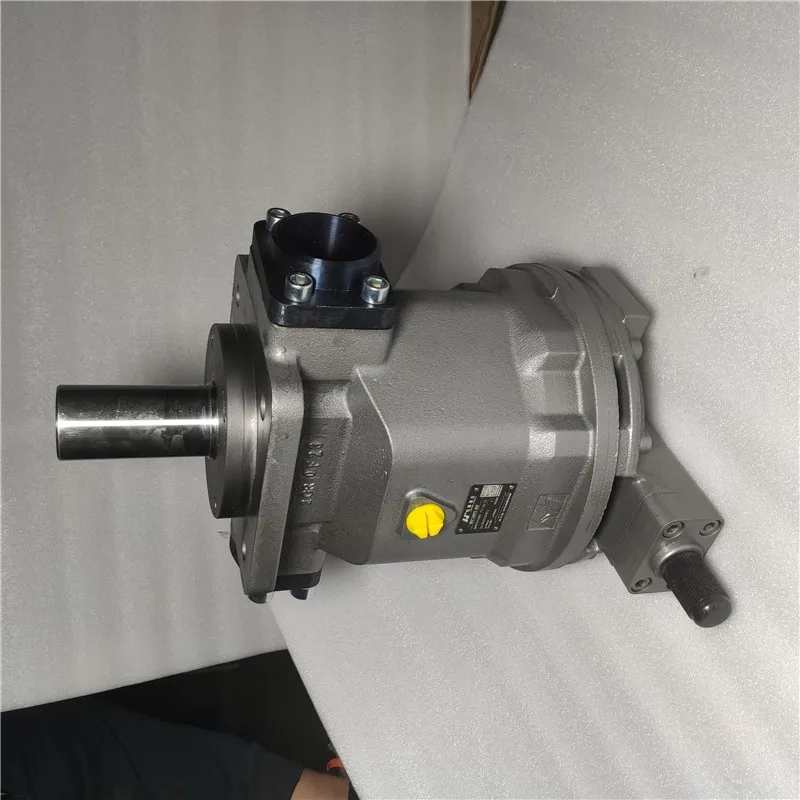

HY Series High-Pressure Axial Piston Hydraulic Pumps

Product Overview: The HY Series (including HY-Y and HY-S types) represents the gold standard for high-pressure axial piston pumps in industrial hydraulic applications. Specifically engineered for extended high-pressure duty cycles, this series covers a comprehensive displacement range from the compact 25cc (HY25Y) to the large-scale 125cc (HY125Y). Featured models like the HY63Y-RP, HY107Y-RP, and the specialized HY63S-RP(LP) provide extremely stable flow output under continuous load. With a rugged cast-iron housing and precision-engineered piston groups, the HY series is the premier power source for ceramic brick presses, metal forging machines, scrap balers, and various industrial Hydraulic Power Units (HPU).

Key Technical Advantages:

• Ultra-High Pressure Stability: Rated for continuous operation at 31.5 MPa (315 Bar), effortlessly handling high-pressure loads in clamping, extrusion, and pressing functions.

• Versatile Modulation Controls: Offers diverse regulator options including RP (Pressure Compensation) and LP (Load Sensing), allowing real-time displacement adjustment to minimize system heat and energy loss.

• Superior Self-Priming Performance: Streamlined inlet designs ensure excellent self-priming capability at rated speeds, reducing the need for auxiliary charge systems.

• Rugged & Serviceable Design: Constructed with high-strength ductile iron housings. Internal components are designed for easy maintenance or replacement, offering exceptional cost-effectiveness and a long service life.

• Global Compatibility: Follows standardized mounting dimensions, facilitating rapid replacement and upgrades in both domestic and international hydraulic equipment.

Detailed Models & Parameters:

• Core Series: HY Series (Axial Piston Technology).

• Model Keywords: HY25Y-RP, HY63Y-RP, HY80Y-RP, HY107Y-RP, HY125Y-RP, HY63S-RP(LP).

• Displacements: 25ml/r, 63ml/r, 80ml/r, 107ml/r, 125ml/r.

• Pressure Ratings: Rated at 31.5 MPa (4500 PSI) continuous; Peak capability up to 40 MPa (5800 PSI).

• Control Types: Pressure Compensated (RP), Manual Control, Constant Power.

• Target Applications: Ceramic machinery, forging presses, metallurgical equipment, marine deck machinery, and heavy-duty hydraulic stations.
