HPP Series Hydraulic Pump | HPP-VB2V-F8A3, HPP-VC2V-F14A5 | Variable Piston Pump
| Model Number | HPP, HPP-VB2V-F8A3/F8A5/L8A3/L8A5-03, HPP-VC2V-F14A5-A |
|---|
Product Description

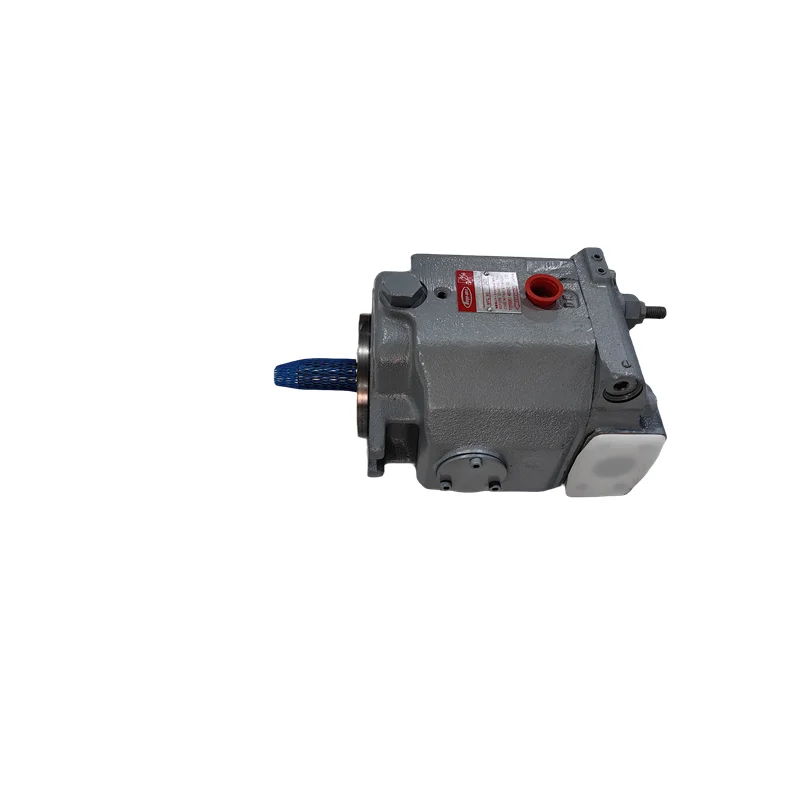

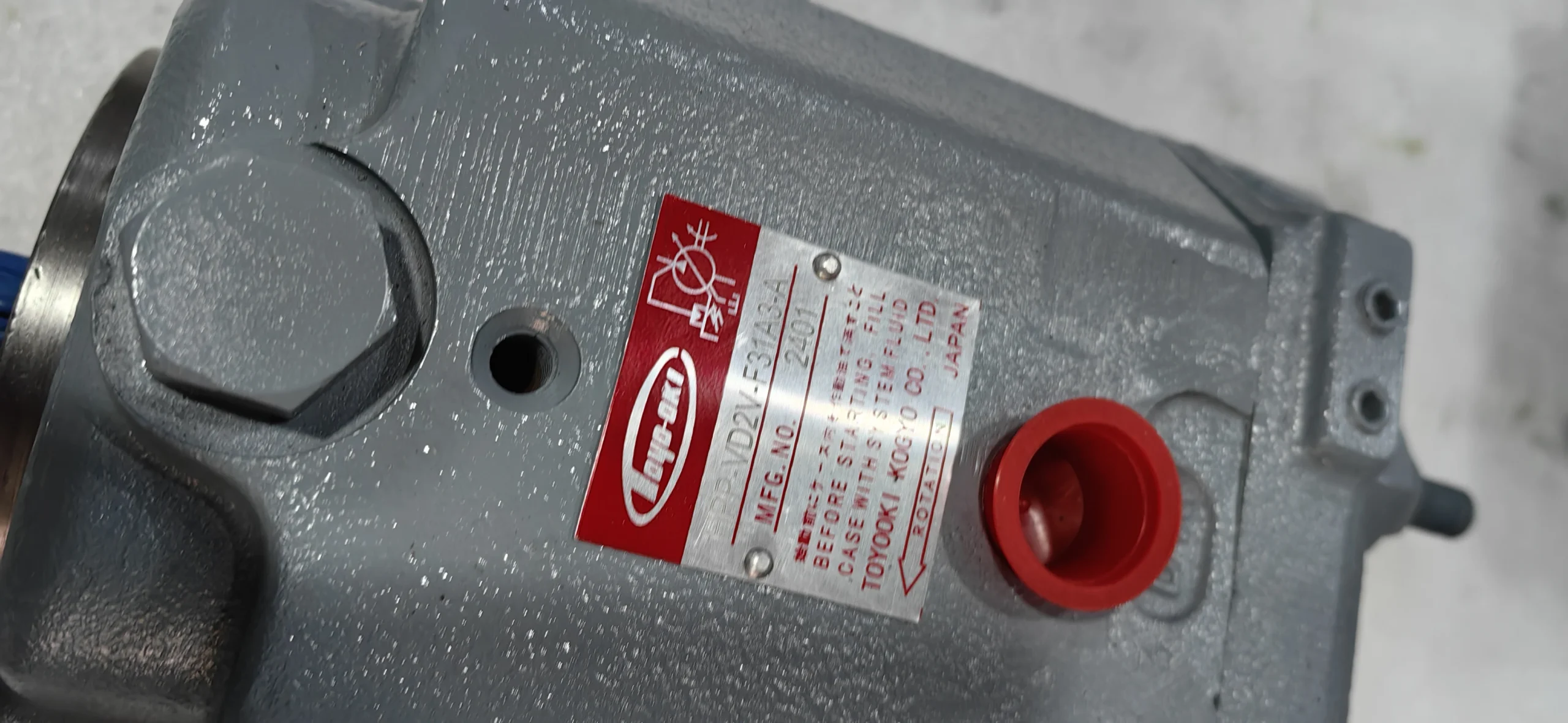

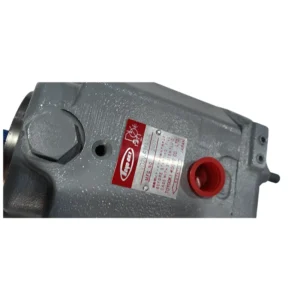

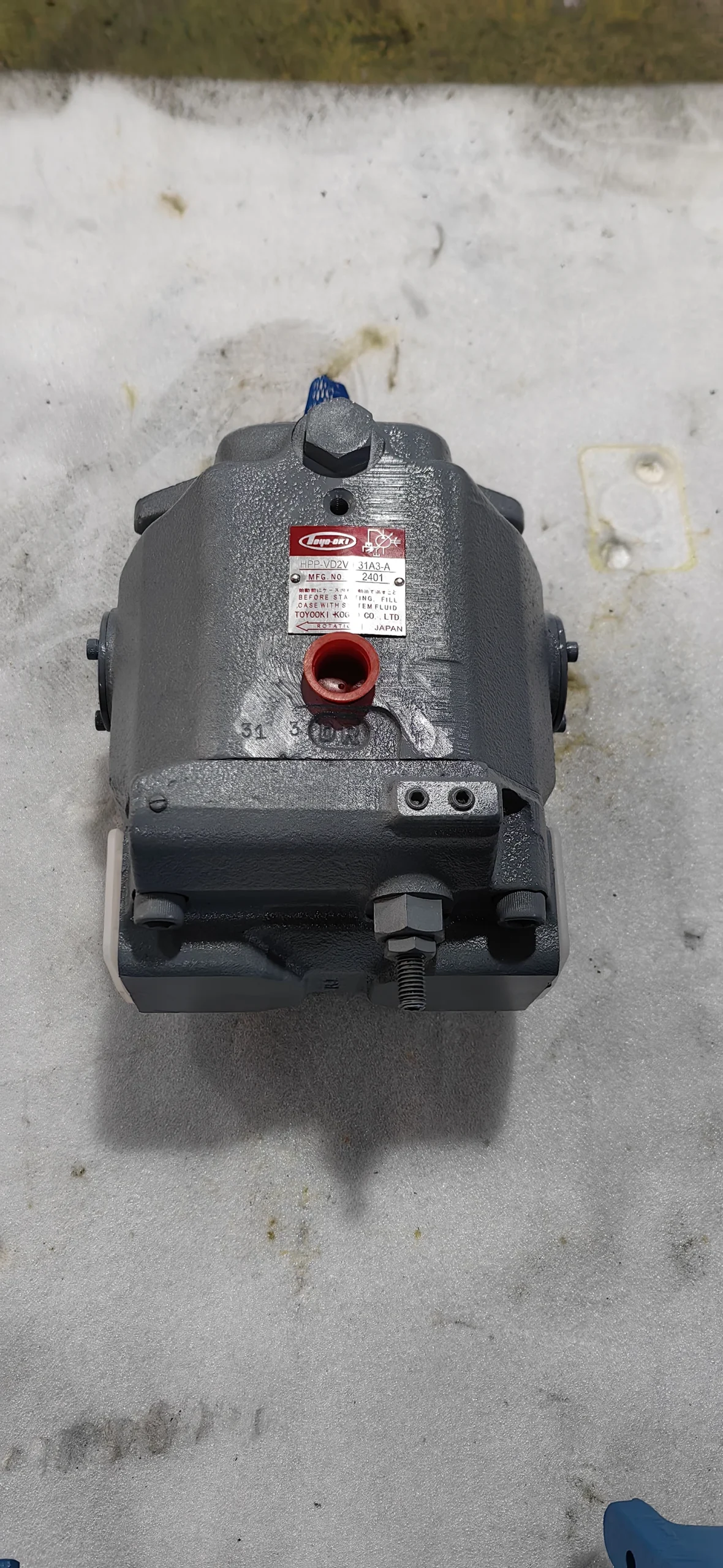

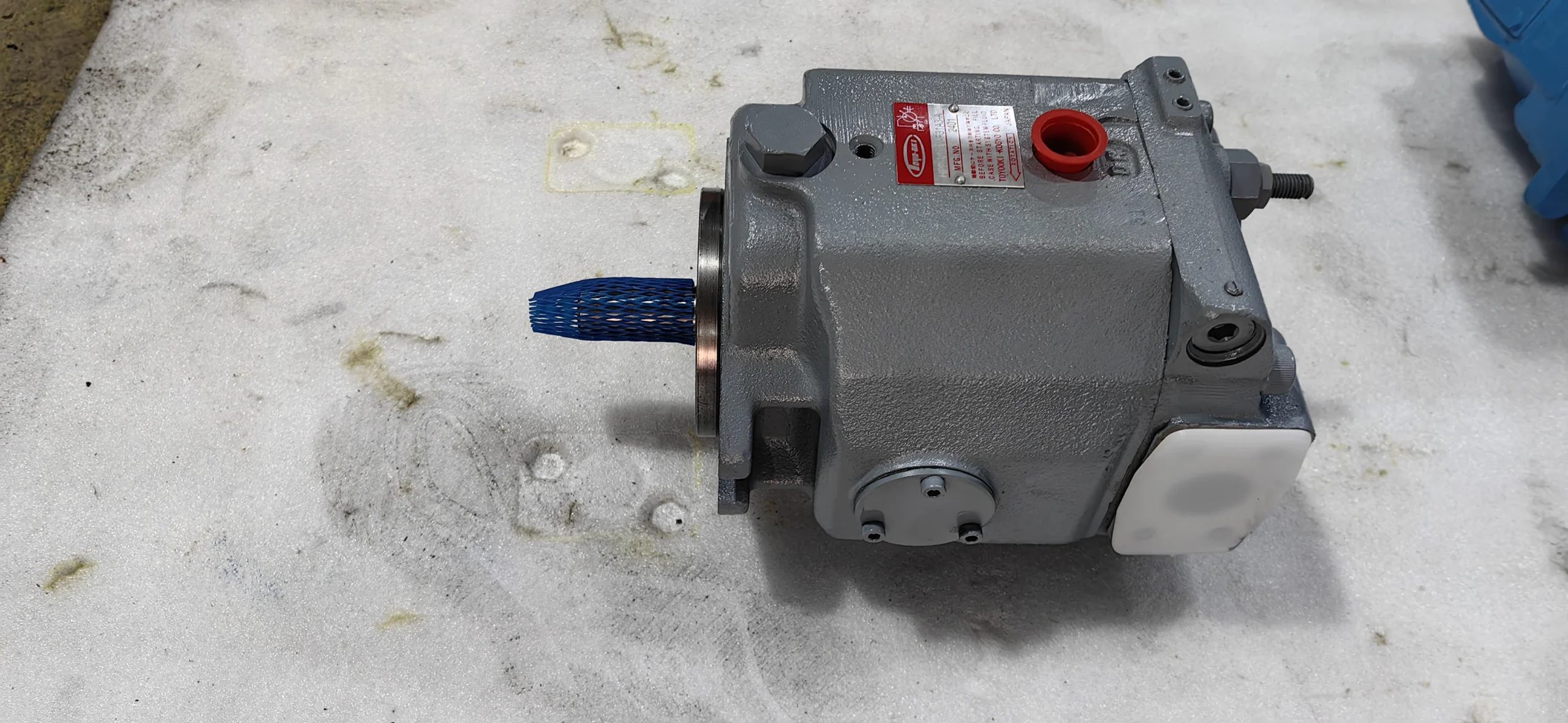

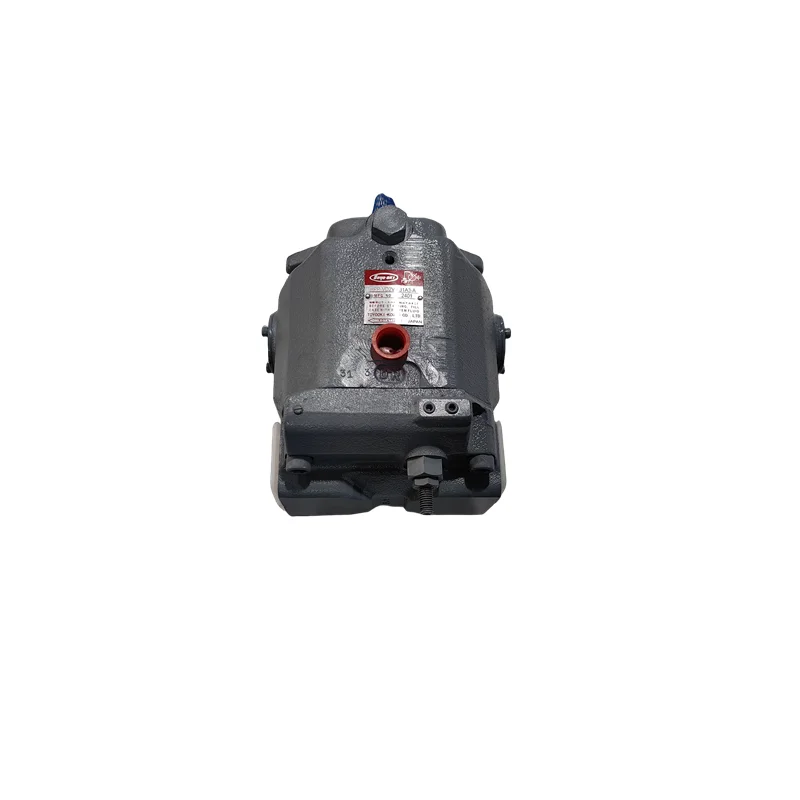

HPP Series Precision High-Pressure Variable Axial Piston Pump
Product Overview: The HPP series variable axial piston pump is a premier power source for precision industrial hydraulic systems. Known for its ultra-compact design and exceptional silent performance, this series is widely utilized in small-to-medium hydraulic stations, precision machine tools, footwear machinery, and automated clamping systems. Featured models include the HPP-VB2V-F8A3/F8A5 (8cc) and HPP-VC2V-F14A5-A (14cc). Its primary advantage lies in the high-sensitivity pressure compensation mechanism, which provides instantaneous flow-on-demand, maintaining high system pressure while significantly reducing standby energy consumption.
Key Technical Advantages:
Superior Silent Operation: Engineered with optimized valve plates and damping structures to maintain extremely low noise levels even under full pressure, making it ideal for indoor factory environments.
High-Sensitivity A3/A5 Pressure Compensation: * A3/A5 Logic: Automatically adjusts the swashplate angle based on load pressure. Once the preset pressure is reached, the pump shifts to a near-zero flow standby state, preventing oil overheating.
Extended Service Life: Critical rotating groups (pistons and cylinders) are manufactured from specialized wear-resistant alloys, reinforced for long-cycle high-frequency industrial operations.
Compact Installation Layout: The VB2V / VC2V housings are lightweight and compact, saving valuable space on hydraulic reservoirs and easing integration into mobile power units.
100% Industrial Grade Reliability: Manufactured to standard mounting specifications, ensuring seamless integration and drop-in replacement for existing hydraulic circuits.
Detailed Models & Parameters:
Core Series: HPP Series (VB2V, VC2V).
Representative Models: HPP-VB2V-F8A3, HPP-VB2V-F8A5, HPP-VB2V-L8A3, HPP-VB2V-L8A5-03, HPP-VC2V-F14A5-A.
Displacements: 8 cm³/rev, 14 cm³/rev.
Maximum Pressure: Rated at 210 Bar (21 MPa); supports instantaneous peak surges.
Control Options: A3 (Pressure Compensation), A5 (Remote/Dual Pressure Control).
Rotation: F (Clockwise/CW), L (Counter-Clockwise/CCW).
