D-Series Industrial High-Pressure Hydraulic Filter Elements

Product Overview:

This series of filter elements is specifically engineered for Hydac D-series high-pressure line filters, providing essential protection for servo drives, precision proportional valves, and high-pressure power units. In 2026, within high-precision injection molding, power plant actuators, and metallurgical equipment, these elements (such as 0160D003BN4HC) utilize patented Betamicron® microglass technology to maintain fluid integrity to ISO 4406 standards, preventing sudden downtime caused by particulate contamination.

Core Range Covered:

• Sizes: 0160D, 0240D, 0280D, 0330D, 0480D, 0500D and more.

• Key Specs: 003BN4HC ($3\mu\text{m}$), 005BN/HC ($5\mu\text{m}$), 025W/HC ($25\mu\text{m}$).

Key Technical Advantages:

• BN4HC/BN/HC High-Performance Media: Features next-generation gradient-structured composite media with outstanding $\beta_x(c) \ge 1000$ efficiency. The 0160D003BN4HC is specifically designed for servo systems with ultra-high cleanliness requirements.

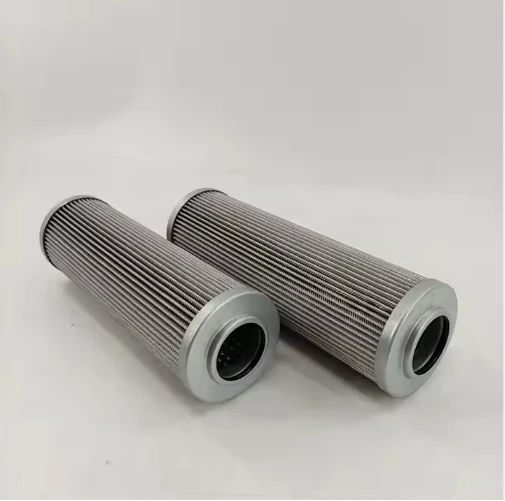

• W/HC Stainless Steel Mesh: Such as the 0160D025W/HC, utilizing premium stainless mesh for erosion resistance and washability. Ideal for high-viscosity fluids or primary system protection.

• High Collapse Stability: Reinforced internal cores (collapse ratings up to $20 \text{ bar} – 210 \text{ bar}$ depending on suffix) ensure the media remains intact during high-viscosity cold starts or instantaneous pressure pulses.

• Precision Physical Interchangeability: Manufactured strictly to OEM dimensional tolerances, ensuring end caps and seal sizes provide a $100\%$ leak-proof fit with the filter base.

• Superior Dirt Holding Capacity: Scientifically optimized pleat technology maximizes effective surface area, significantly extending service intervals and lowering operating pressure drops.

Detailed Specifications & Parameters:

• Featured Model Matrix:

  • 0160D003BN4HC: Size 0160D, $3\mu\text{m}$ rating, High-performance BN4HC Microglass.

  • 0160D005BN/HC: Size 0160D, $5\mu\text{m}$ rating, Classic BN/HC Microglass.

  • 0160D025W/HC: Size 0160D, $25\mu\text{m}$ rating, Stainless Steel Mesh media.

• Technical Specifications:

  • Filtration Ratings: $3, 5, 10, 20, 25\mu\text{m}$ available.

  • Seal Material: Standard NBR, with optional Viton (FKM).

  • Operating Temperature: $-30^\circ\text{C}$ to $+110^\circ\text{C}$.
