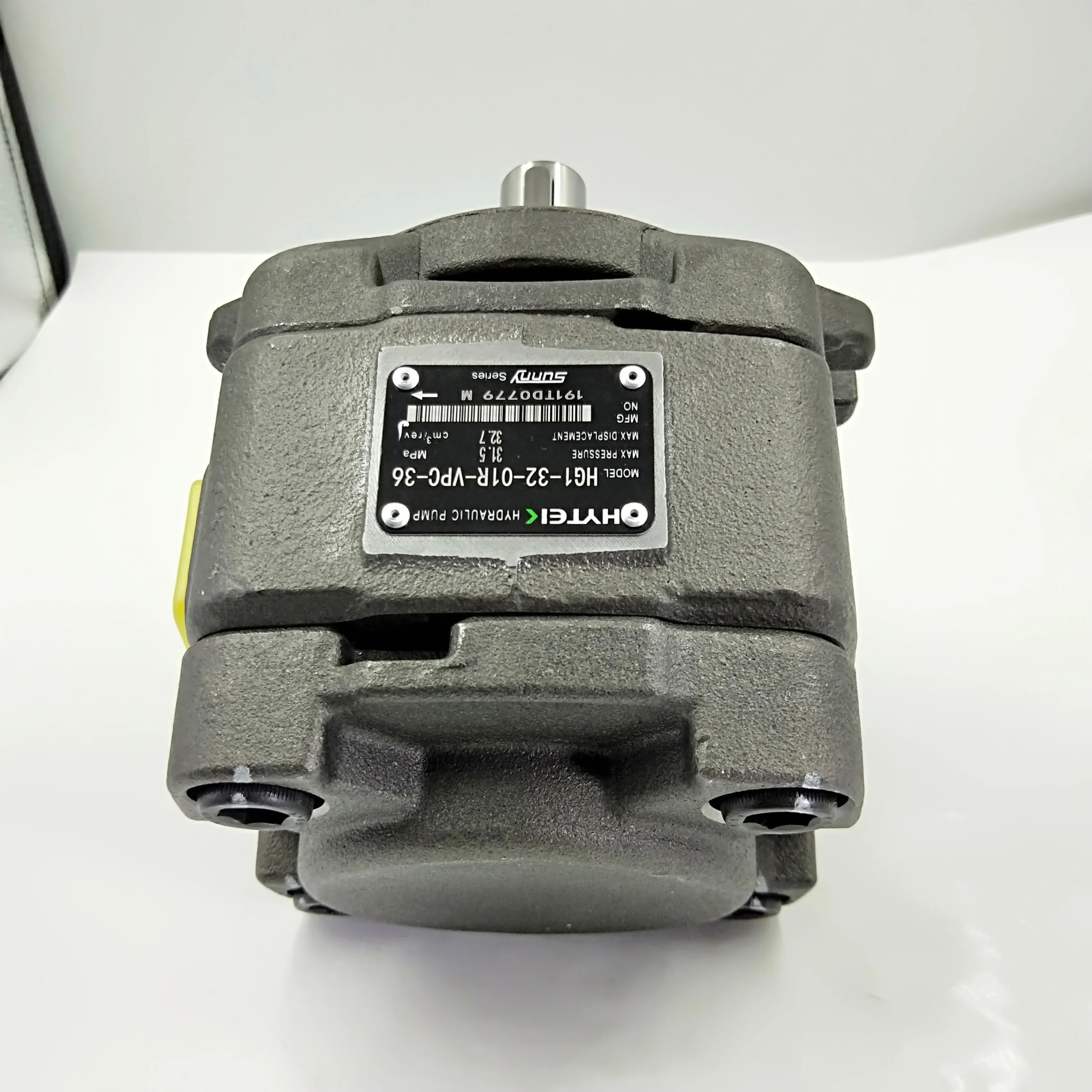

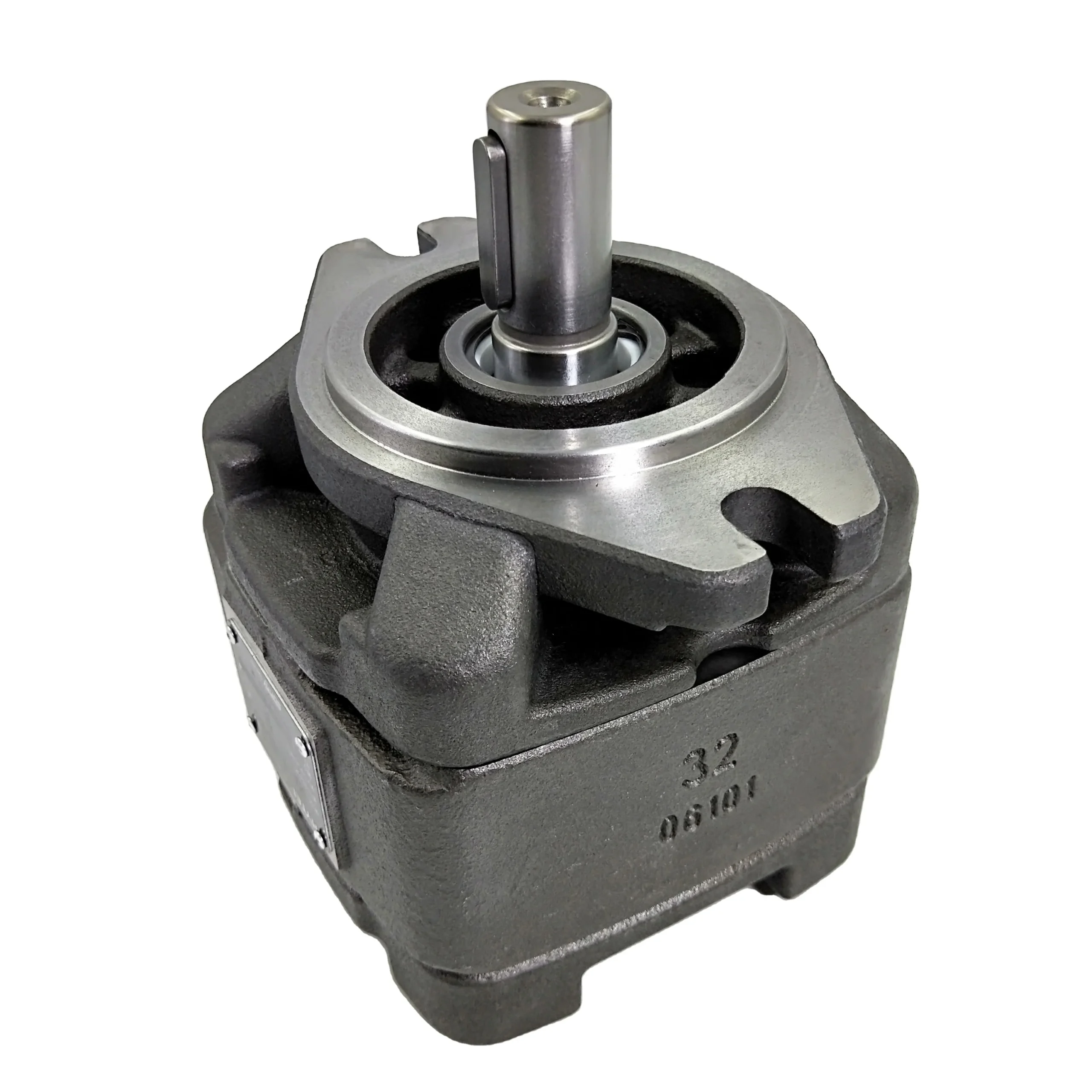

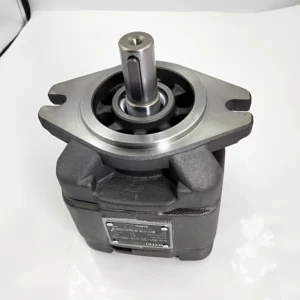

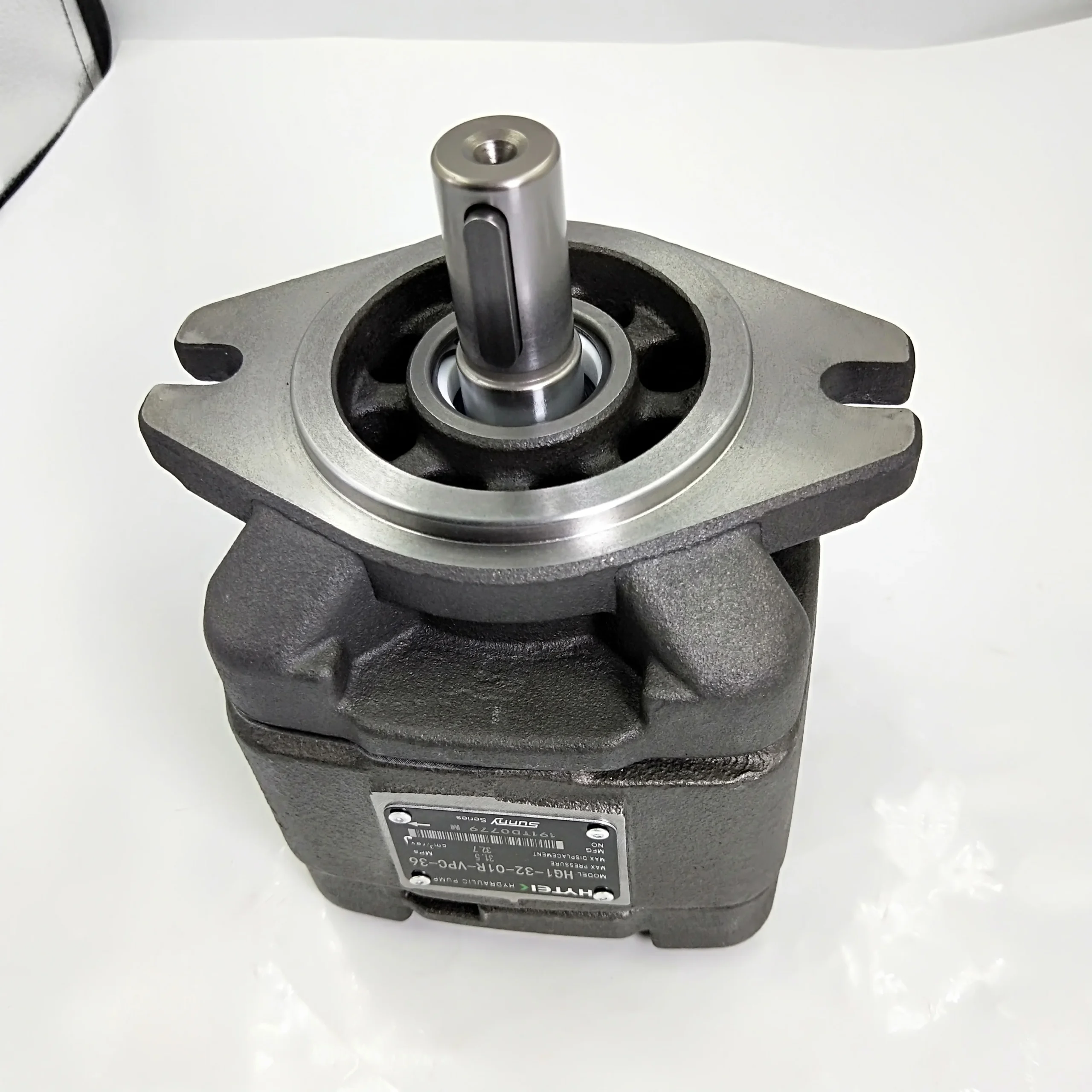

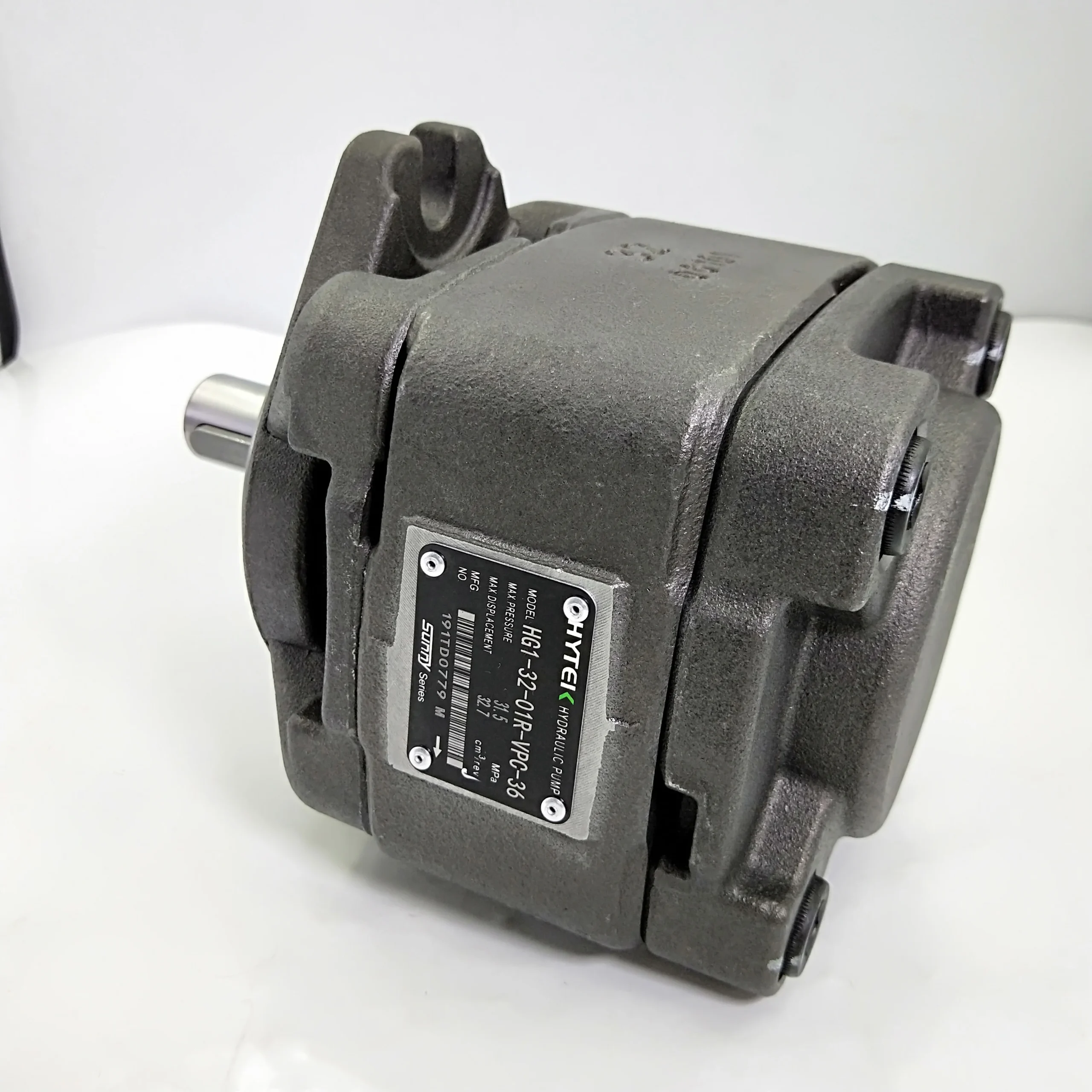

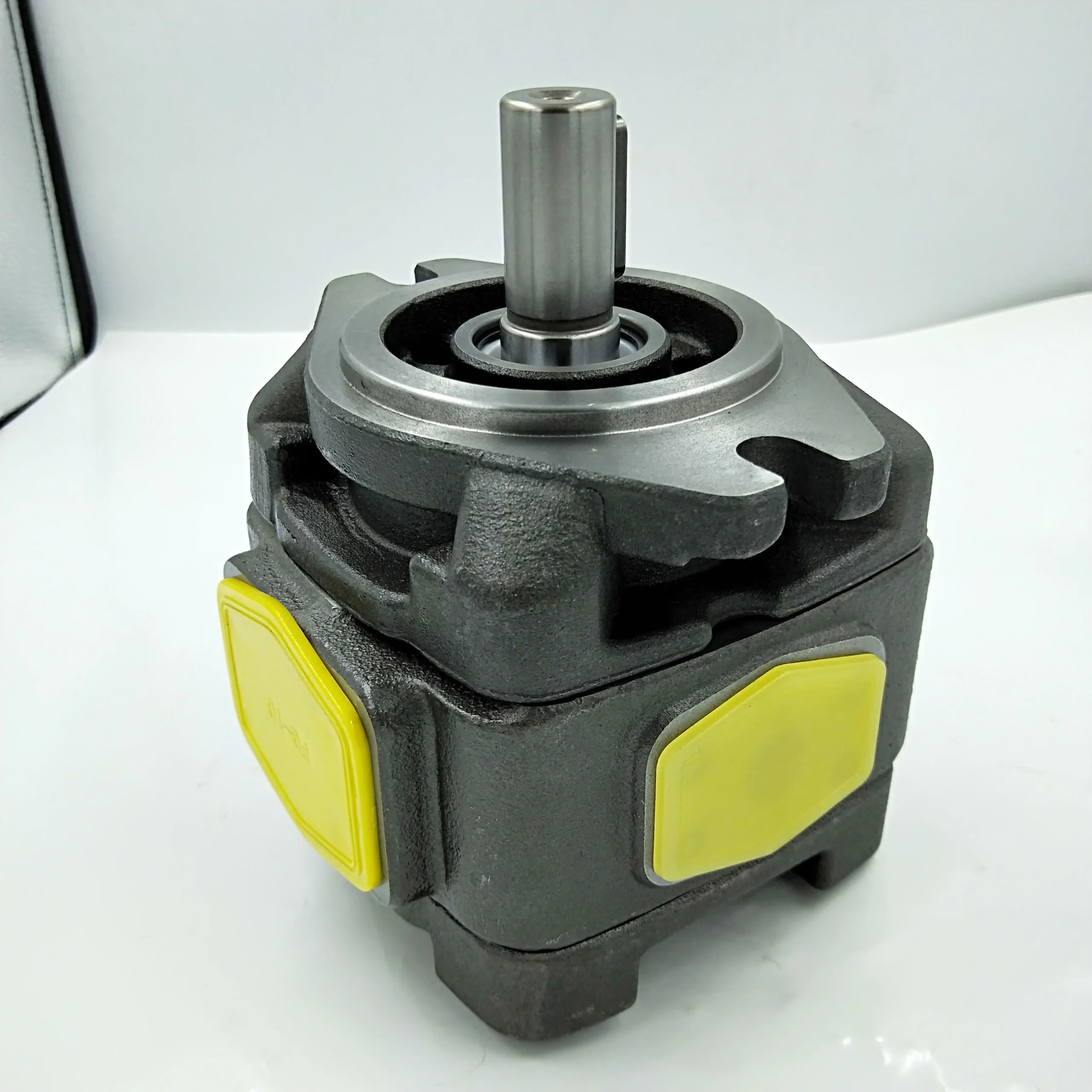

HG1 Series Injection Moulding Machine Pump | HG1-63, HG1-50, HG1-40 | Silent Internal Gear Pump

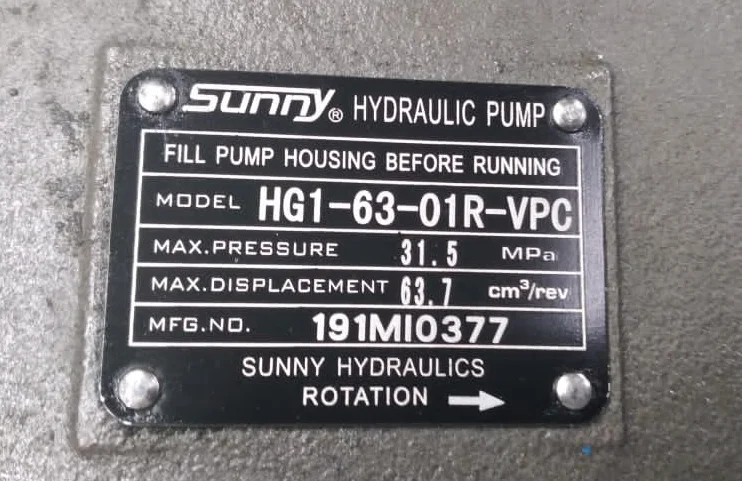

| Model Number | HG1-63-01R-VPC |
|---|
Product Description
HG1 Series High-Performance Silent Internal Gear Pumps for Injection Moulding Machines
Product Overview: The HG1 Series is the definitive power source for modern precision injection moulding machine (IMM) hydraulic systems. As a high-performance internal gear pump, this series is specifically engineered to meet the extreme pressure stability demands (Rated 31.5 MPa) of servo-hydraulic drive systems. This featured range includes the entire lineup: the flagship HG1-63-01R-VPC, along with HG1-25, HG1-32, HG1-40, and HG1-50. Its unique gap compensation technology ensures near-perfect volumetric efficiency, especially under variable-speed servo-drive conditions.
Key Technical Advantages:
Ultra-Quiet & Low Pulsation: Utilizing the internal meshing principle, operational noise levels are significantly lower than conventional pumps. Minimal pressure ripples (typically <1%) drastically enhance the dimensional stability of injection-molded parts.
Dual Gap Compensation: Equipped with automated axial and radial pressure compensation mechanisms. Even at continuous high pressures of 31.5 MPa (315 Bar), it maintains volumetric efficiency above 95%, effectively minimizing oil overheating.
Optimized for Servo Drives: Supports stable high-pressure output at extremely low RPMs. It synchronizes perfectly with servo motor dynamics, helping injection moulding machines achieve extreme energy savings (up to 30%-70%).
100% Direct OEM Replacement: Codes like 01R-VPC define the standard flange mounting, clockwise rotation, and specific port protocols, ensuring seamless compatibility with original systems.
Target Applications: Fully automatic precision injection moulding machines, die-casting machinery, CNC bending machines, and high-end automated hydraulic power units.

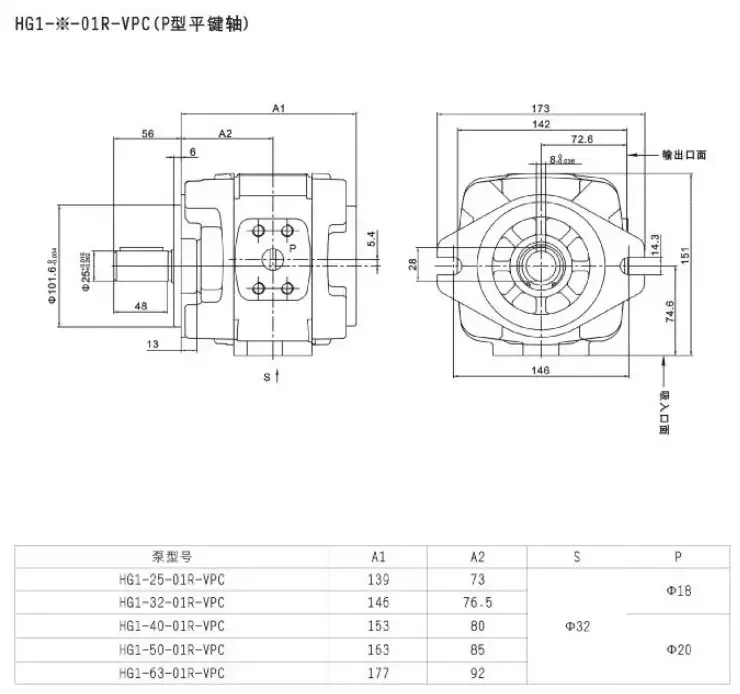

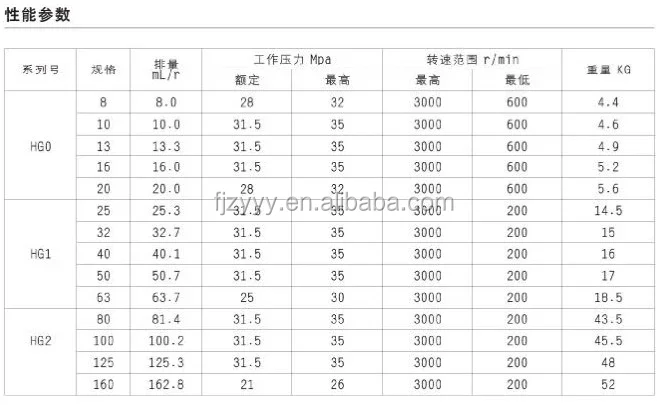

Detailed Models & Parameters:
Core Series: HG1 High Pressure Series.
Model Keywords: HG1-63-01R-VPC, HG1-50-01R-VPC, HG1-40-01R-VPC, HG1-32-01R-VPC, HG1-25-01R-VPC.
Displacements: Covering precise specs: 25, 32, 40, 50, and 63 ml/rev.
Pressure Ratings: Rated at 31.5 MPa (315 Bar); Peak pressure up to 35 MPa (5075 PSI).

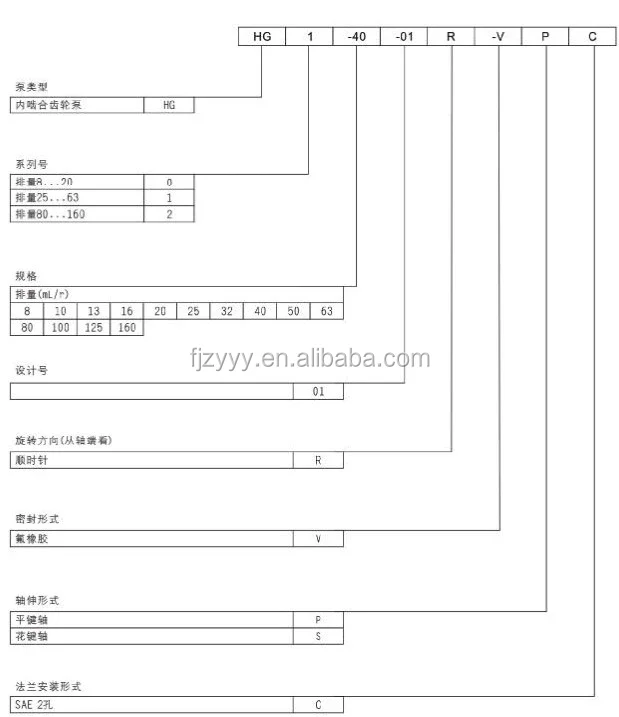

Technical Codes: 01R (Standard Clockwise Rotation); VPC (Specific interface configuration).
