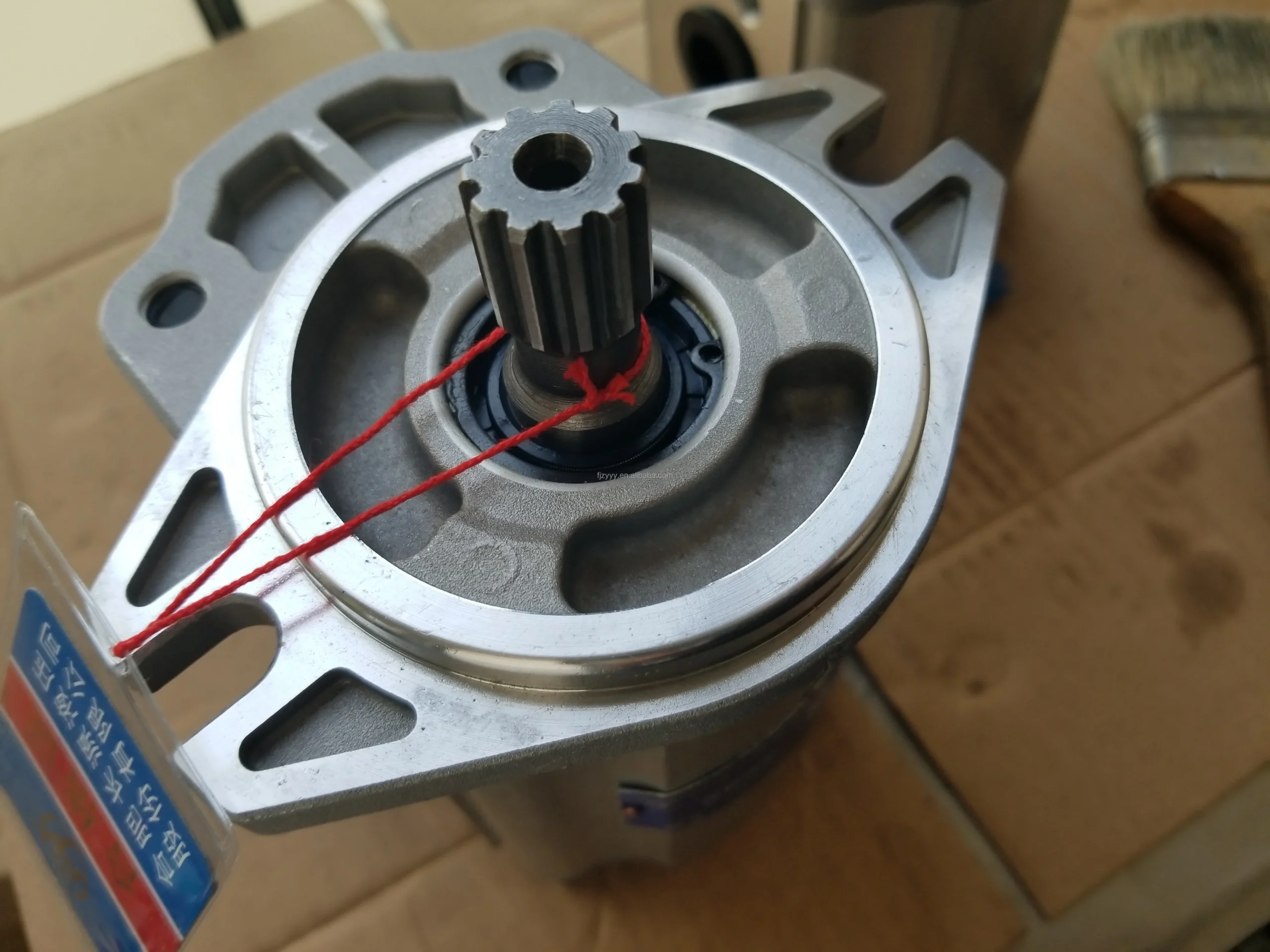

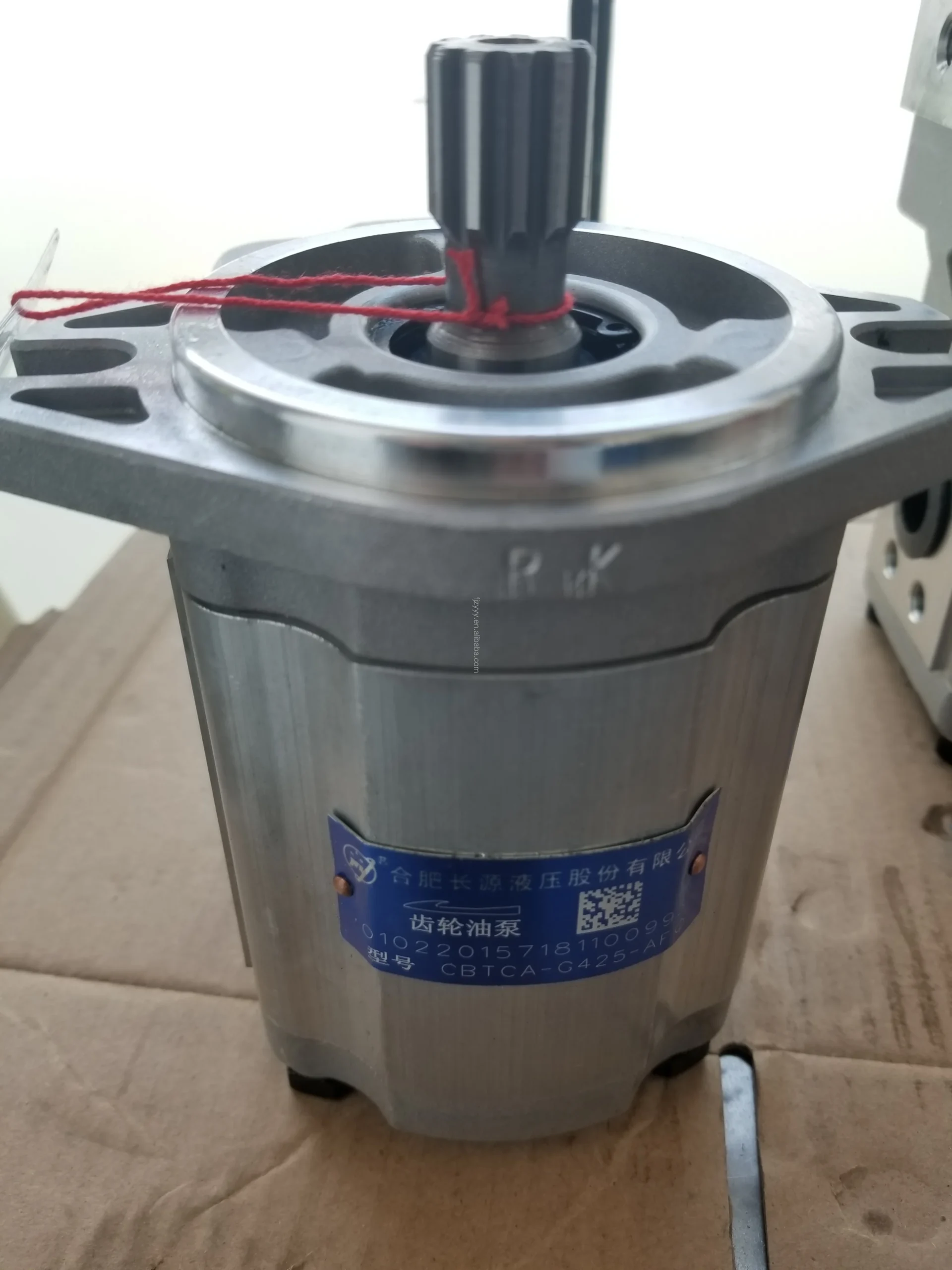

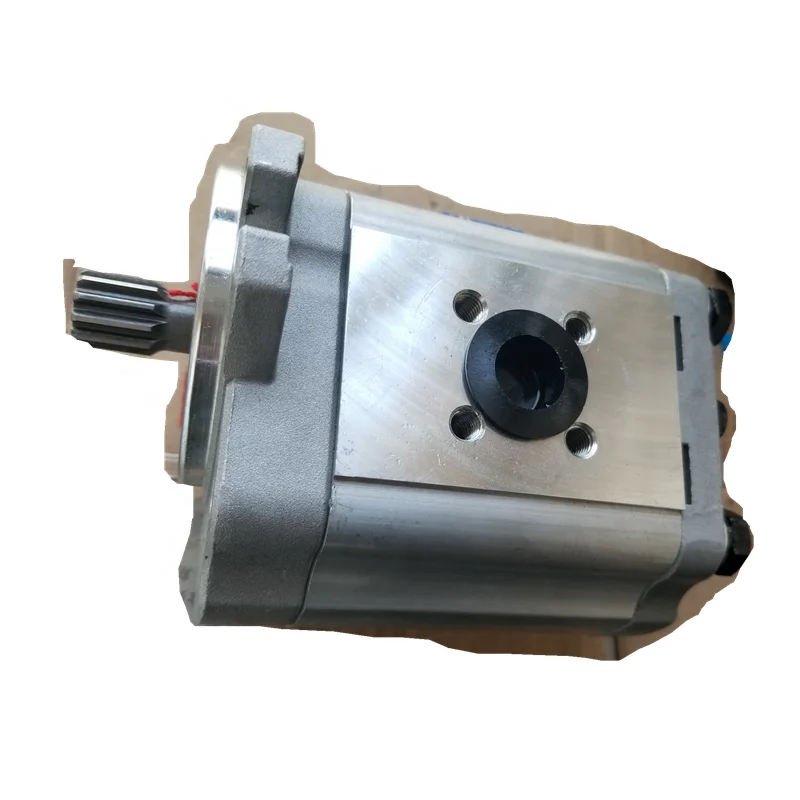

HCHC Hydraulic Gear Pump | CBN-F314, CBW-F314, CBF-F425, CBHYA | High-Pressure Pump
| Model Number | CBW-F314-CLBL |
|---|
Product Description
HCHC Series High-Performance High-Pressure Hydraulic Gear Pumps
Product Overview: The HCHC Series of hydraulic gear pumps is a premier choice in industrial and mobile hydraulics, covering a comprehensive range including CBN, CBB, CBW, CBT, and CBF standards. This featured range highlights core models: CBN-F314L, CBW-F314-CLBL, CBF-F425-ALP, and high-performance composite pumps like CBTDE/FB-D432-TT and CBHYA-G36/F3.5-AT. Built with high-tensile extruded aluminum alloy bodies, these pumps offer superior impact resilience, specifically engineered for the rigorous high-pressure demands (up to 25 MPa) of construction and agricultural machinery.
Key Technical Advantages:
Comprehensive Compatibility: Covering a full displacement spectrum and adhering strictly to ISO and SAE mounting standards, these pumps provide 100% direct interchangeability with major global brands.
Multi-Stage & Composite Technology: The CBHYA and CBTDE series support tandem configurations (e.g., dual output from a single unit), allowing simultaneous drive of steering and lifting circuits, saving space and reducing system costs.
Axial Gap Compensation: Equipped with pressure-balanced floating side plates that adjust clearances based on real-time load, maintaining volumetric efficiency above 93% and minimizing internal leakage.
High Pressure & Reliability: Rated pressures range from 16-20 MPa with peak capabilities up to 25 MPa. Internal self-lubricating heavy-duty bearings are ideal for high-frequency start-stop cycles.
Target Applications: Main pumps for 1-10T forklifts, harvester hydraulic circuits, refuse trucks, industrial hydraulic power units, and specialized mobile machinery.
Detailed Models & Parameters:
Core Series: CBN, CBB, CBW, CBT, CBF, CBHYA Series.
Model Keywords: CBN-F314L, CBW-F314-CLBL, CBF-F425-ALP, CBTDE/FB-D432-TT, CBHYA-G36/F3.5-AT.
Displacements (ml/rev): Covering precise specs: 14ml, 25ml, 32ml, 36ml, and full frame sizes.
Pressure Ratings: Rated at 16-20 MPa (160-200 Bar); Peak pressure up to 25 MPa (3625 PSI).
Technical Codes: F/G (Pressure Class); L/R (CCW/CW Rotation); A/T (Shaft/Mounting configurations).
