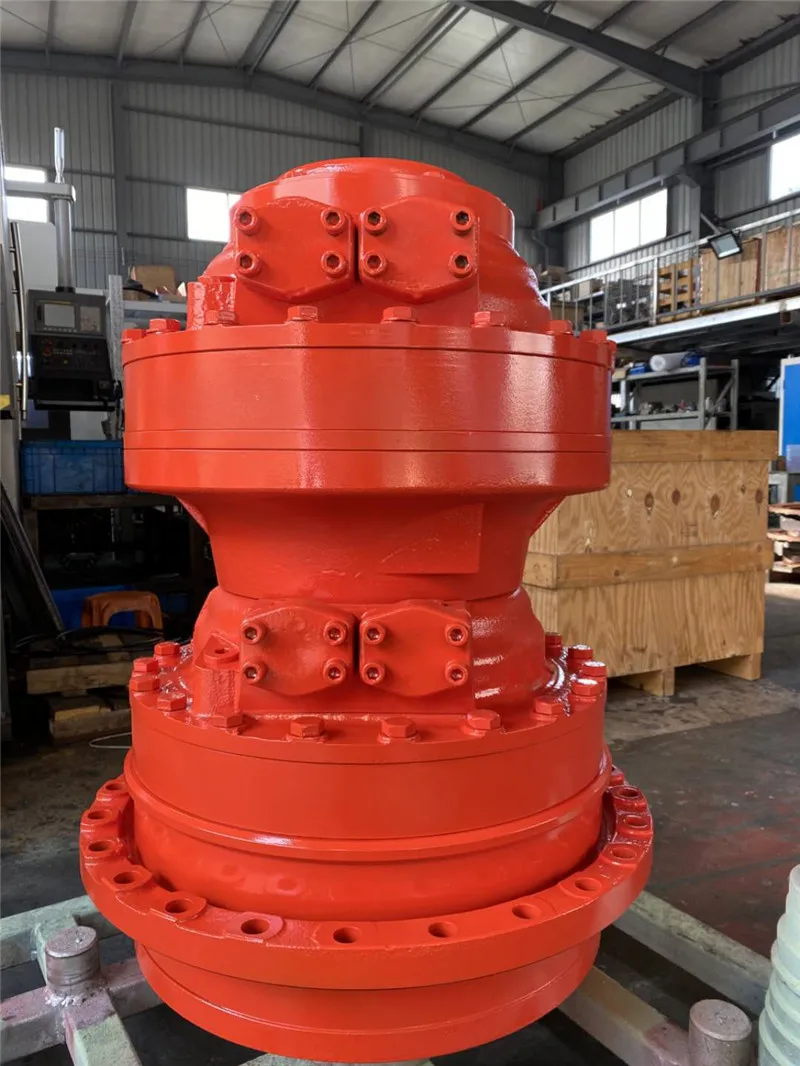

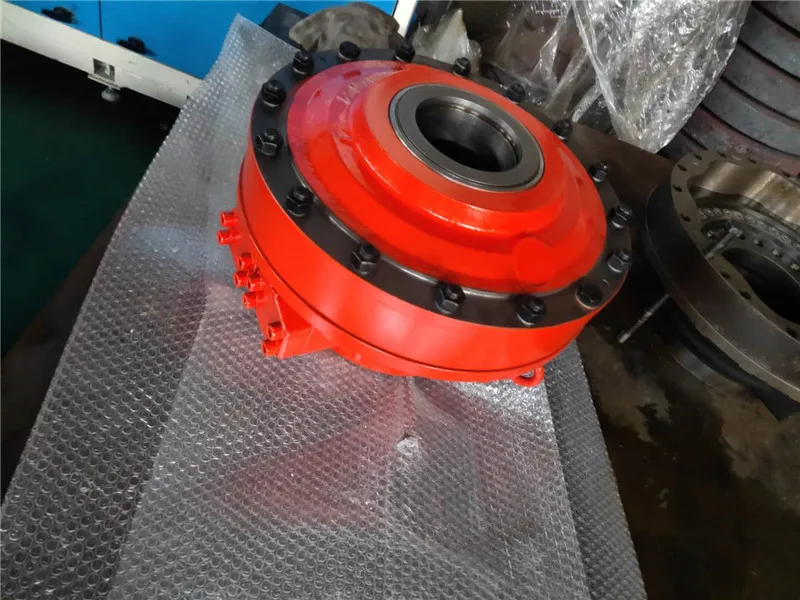

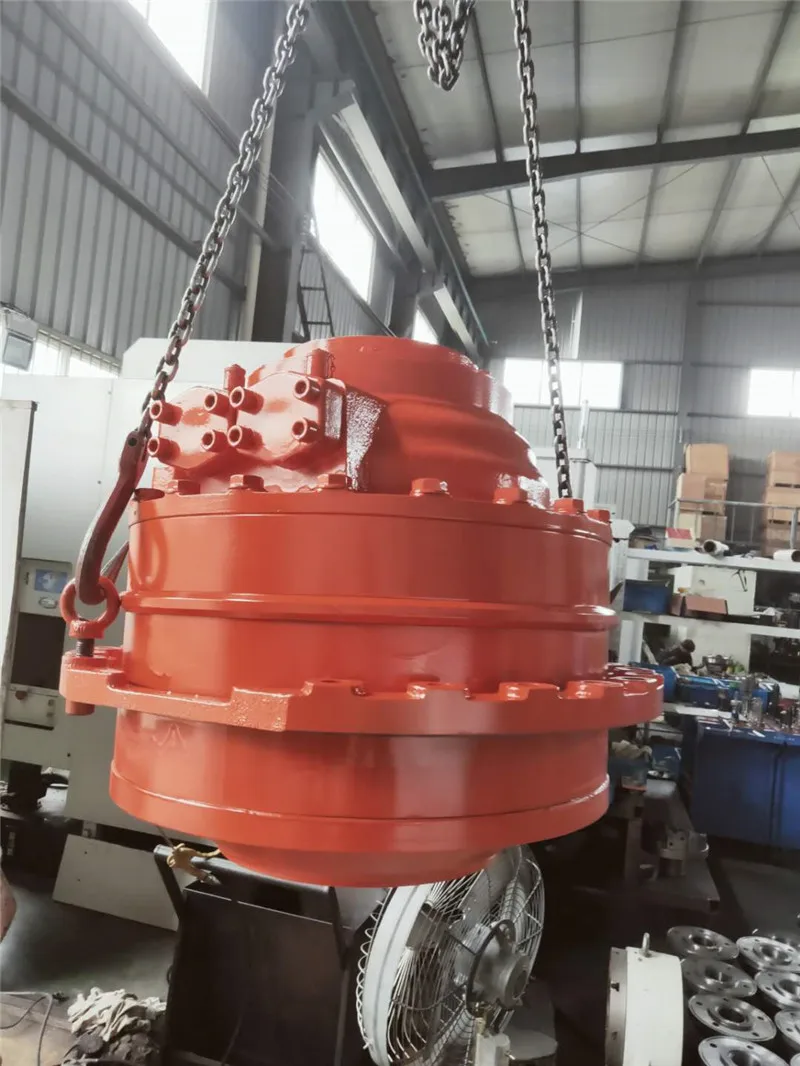

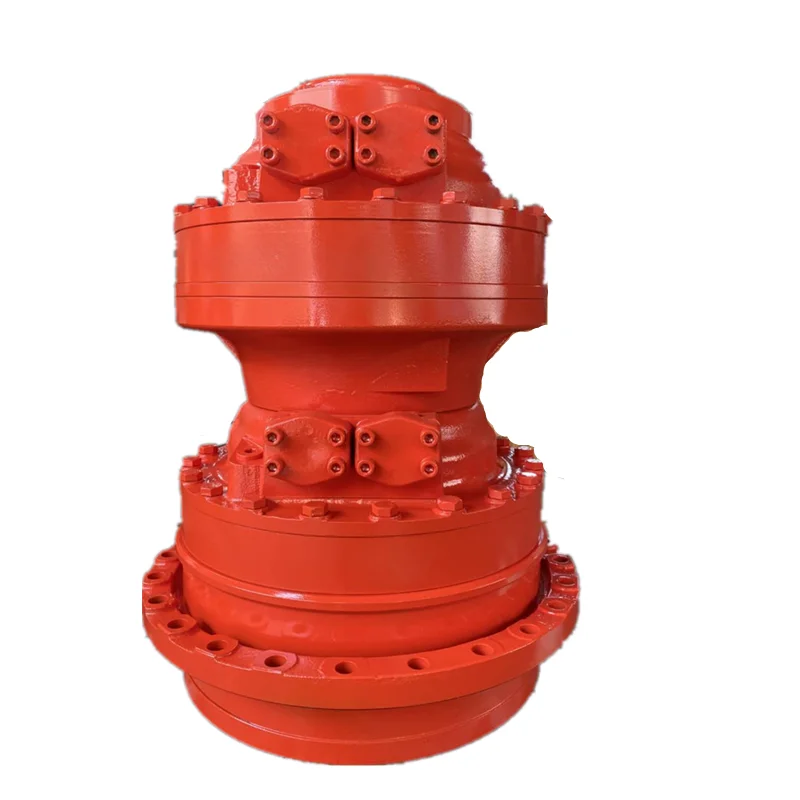

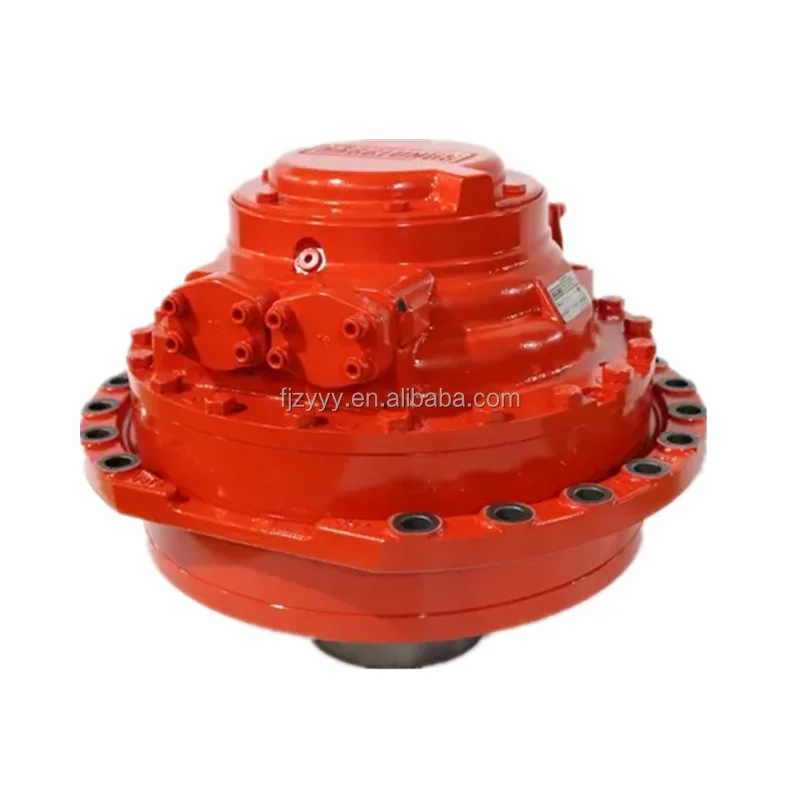

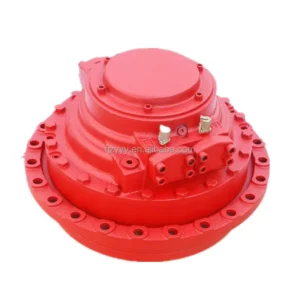

Hägglunds CA Series Compact LSHT Radial Piston Motors

Product Overview: The Hägglunds CA Series represents the gold standard for “Power in Compact Form” within industrial drive systems. As a leader in radial piston LSHT technology, the CA series is specifically engineered to deliver extreme performance in restricted spaces. This category features the core sizes CA50, CA70, and CA100, highlighting precision-engineered models: CA50-50-SA0N0C-0200, CA70-70-SA0N00-0233, and CA100-100. Eliminating the need for gearboxes, these direct-drive motors are the premier choice for recycling shredders, injection molding screw drives, conveyor rollers, and marine deck machinery.

Key Technical Advantages:

• Elite Compactness: Significantly shorter and lighter than the CB series of equivalent torque, optimizing installation in length-constrained layouts.

• Direct Drive Benefits: Eliminates gearbox maintenance and power loss, maximizing system responsiveness and overall reliability.

• Superior Load Control: Extremely low moment of inertia allows for precise speed modulation and frequent reversals. Delivers 100% of nominal torque even during full-load startups.

• Hydrostatic Balancing: Features an internal balanced architecture that minimizes friction between pistons and the cam ring, ensuring an extended service life in dusty or humid environments.

• Technical Spec Decoding:

  • CA50-50 / CA70-70 / CA100-100: Denotes the frame size and corresponding full-displacement configuration.

  • SA0 / CA0: Relates to diverse mounting options, including hollow-shaft splines or specialized flange supports.

  • 0200 / 0233: High-level codes for seal standards, coating levels, and specific technical versioning.

Detailed Models & Parameters:

• Core Series: Hägglunds CA (Compact Radial Piston Motor).

• Featured Models:

  • CA50-50-SA0N0C-0200: Size 50 full displacement, SA standard shaft.

  • CA50-20-CA0V00-0200: Size 50 reduced displacement for higher speed/lower load.

  • CA70-70-SA0N00-0233: Size 70, reinforced technical version.

  • CA100-64 / CA100-100: Size 100, including 64% and 100% displacement options.

• Core Performance Specs:

  • Specific Torque: 50, 70, 100 Nm/bar.

  • Max Working Pressure: 350 Bar (5000 PSI).

  • Displacement Range: From 3,142 cc/rev to 6,283 cc/rev.
