GPC4 Series Gear Pump | GPC4-20, GPC4-32, GPC4-63 | GPC4-32-B6F1-30-R/L High Pressure Pump

GPC4 Series Heavy-Duty High-Pressure Hydraulic Gear Pumps

Product Overview: The GPC4 Series represents a premium line of high-pressure cast iron gear pumps engineered specifically for extreme operating environments. This featured selection covers core displacements including GPC4-20, GPC4-32, and the high-flow GPC4-63 models. As the definitive power source for excavators, bulldozers, and heavy-duty mobile machinery, the GPC4 series utilizes rugged cast iron bodies and advanced axial pressure-compensated side plates. It delivers elite volumetric efficiency even at operating pressures of 25 MPa. We provide full specifications including GPC4-32-B6F1-30-R (Clockwise) and GPC4-32-B6F1-30-L (Counter-clockwise) for perfect OEM alignment.

Key Technical Advantages:

• Heavy-Duty Cast Iron Build: Constructed with high-strength cast iron housings for superior thermal stability and impact resistance, built to withstand frequent instantaneous pressure spikes.

• Superior Volumetric Efficiency: Equipped with automatic axial gap compensation to minimize internal leakage, maintaining efficiencies over 92% at rated speeds to reduce system heat loss.

• Standardized B6F1 Interface: Features international B6F1-30 mounting specifications, ensuring seamless “Plug-and-Play” replacement and rapid installation for major construction machinery brands.

• Dual-Rotation Options: Available in R (Clockwise/CW) and L (Counter-clockwise/CCW) configurations to flexibly match the output rotation of various engines or motors.

• Quiet & Smooth Performance: Precision-machined high-hardness gear sets significantly reduce pressure ripples and mechanical noise, enhancing the overall smoothness of the hydraulic system.

Detailed Models & Parameters:

• Core Series: GPC4 High Pressure Heavy-Duty Series.

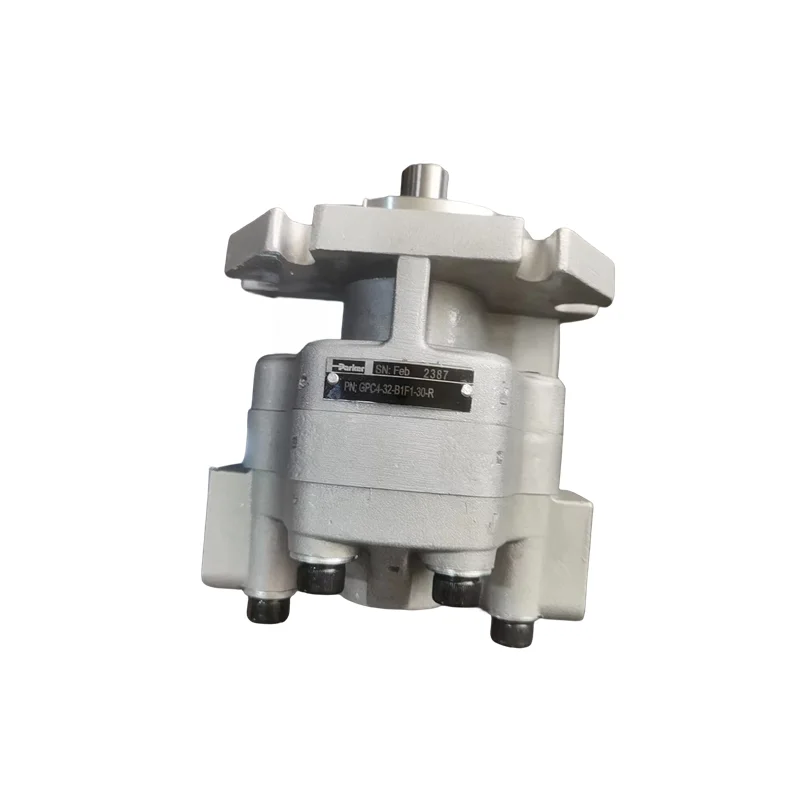

• Model Keywords: GPC4-32, GPC4-20, GPC4-63, GPC4-32-B6F1-30-R, GPC4-32-B6F1-30-L, GPC4-63-B6F1-30-R.

• Displacements: 20cc, 32cc, 63cc (Spanning mid-to-large capacity ranges).

• Pressure Ratings: Rated at 20 MPa – 25 MPa (2900 – 3625 PSI) continuous.

• Rotation: R (Clockwise/CW); L (Counter-clockwise/CCW).

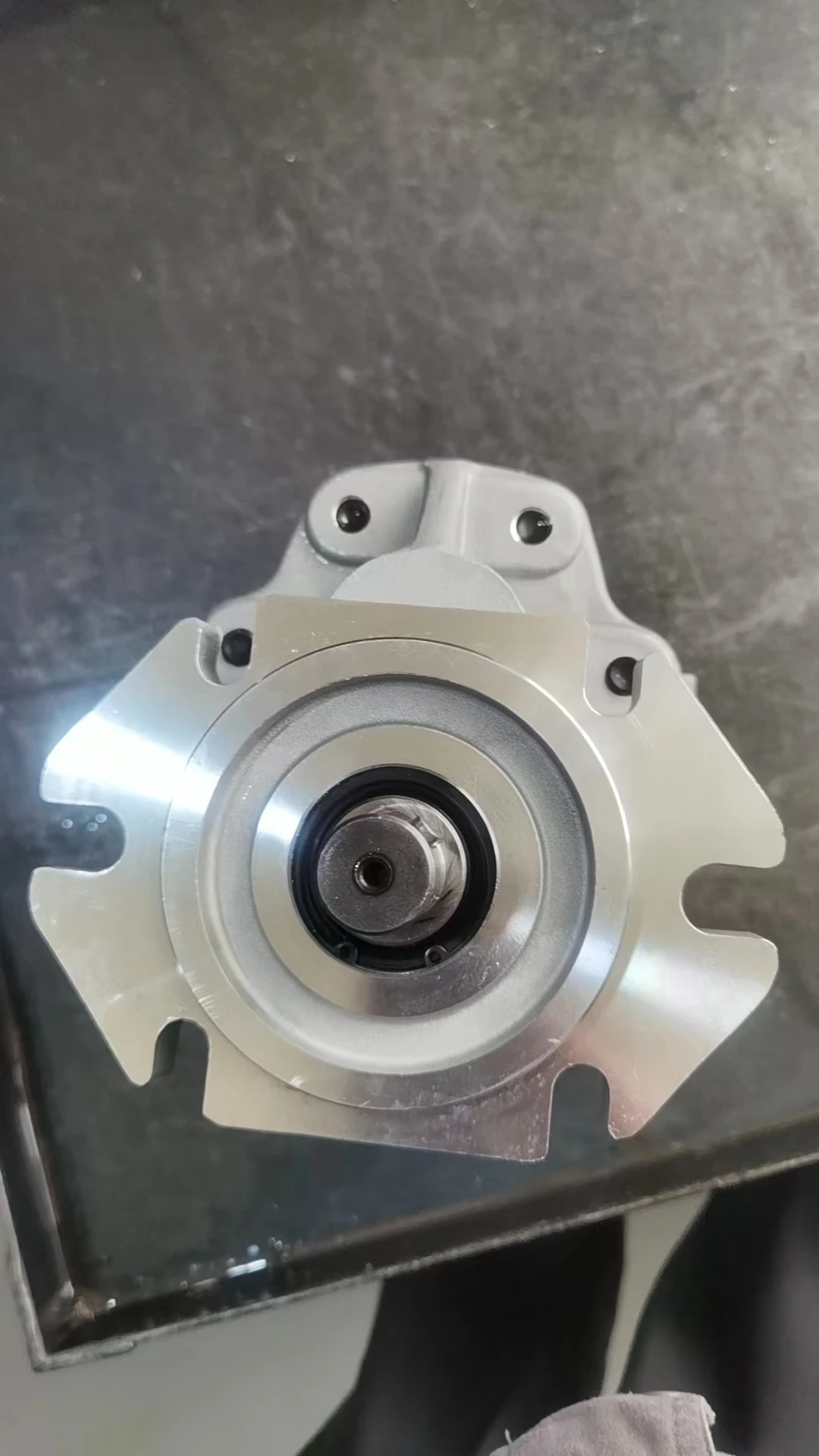

• Mounting Specs: B6F1-30 Standard Flange and Shaft.

• Target Applications: Crawler excavator pilot pumps, heavy loader steering assist, bulldozer hydraulic control systems, and road-building machinery.
