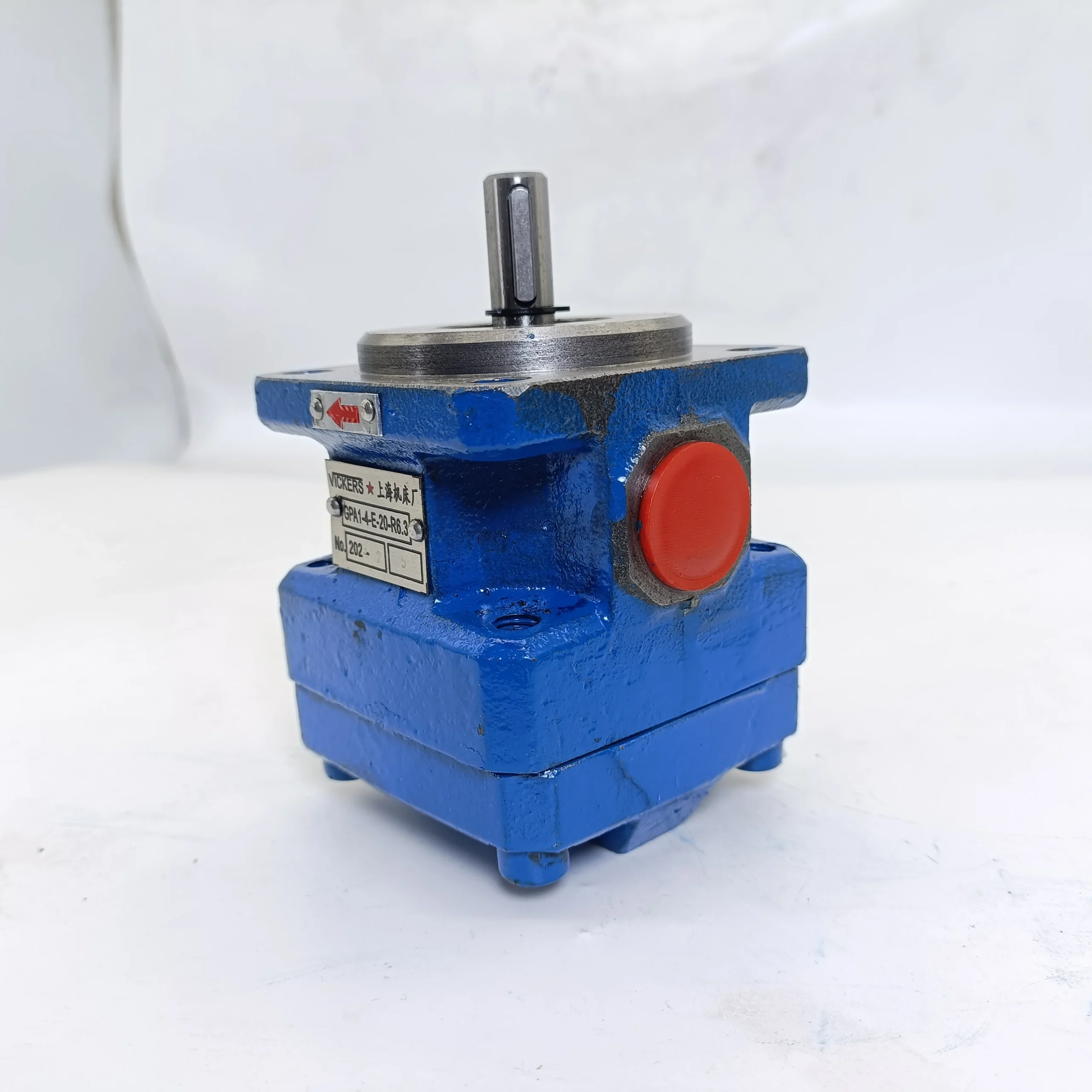

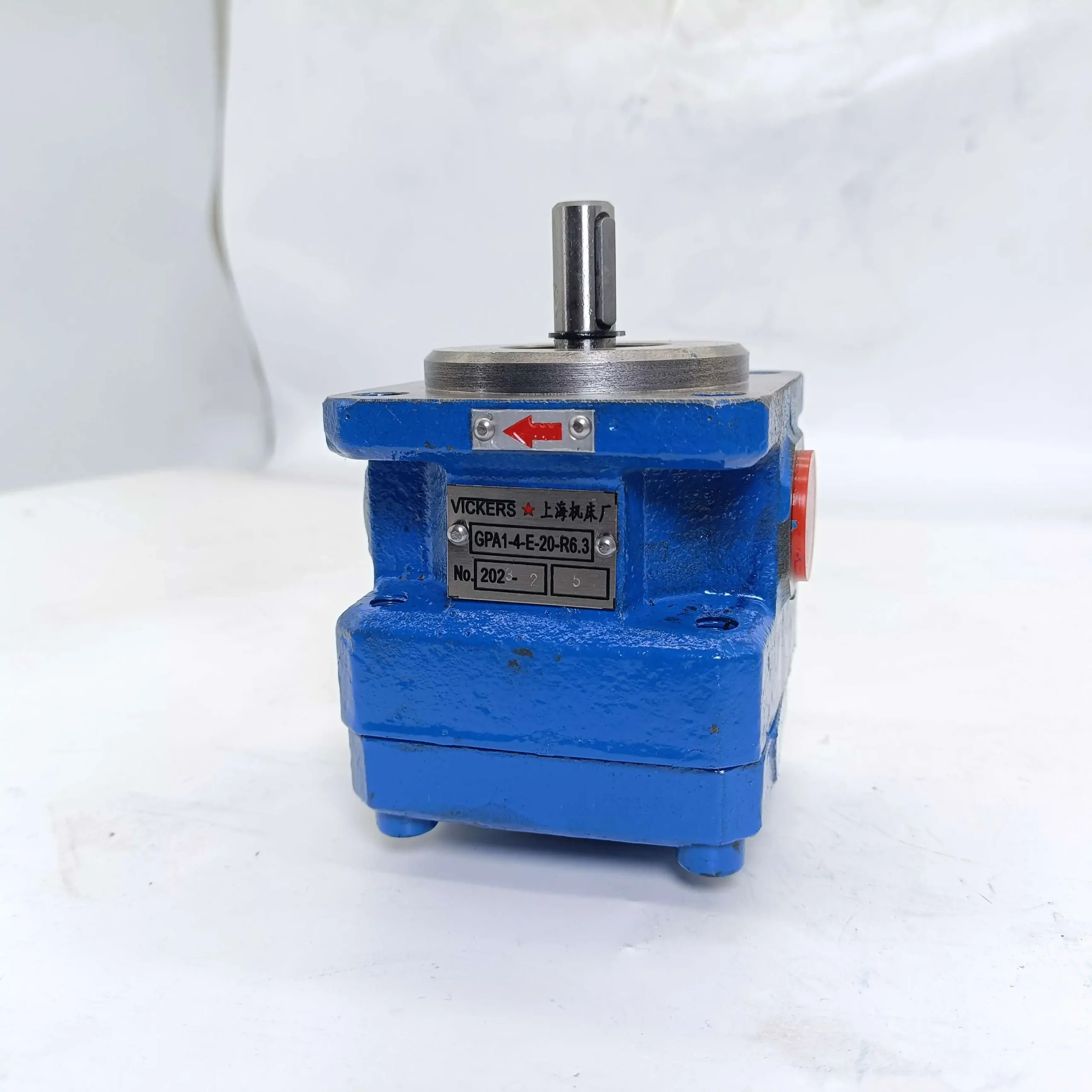

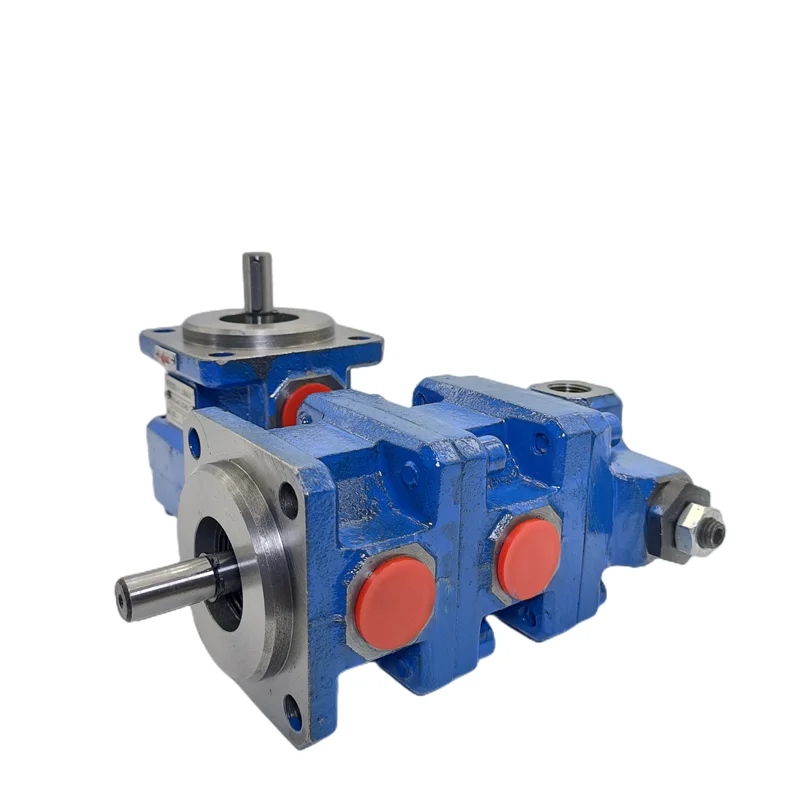

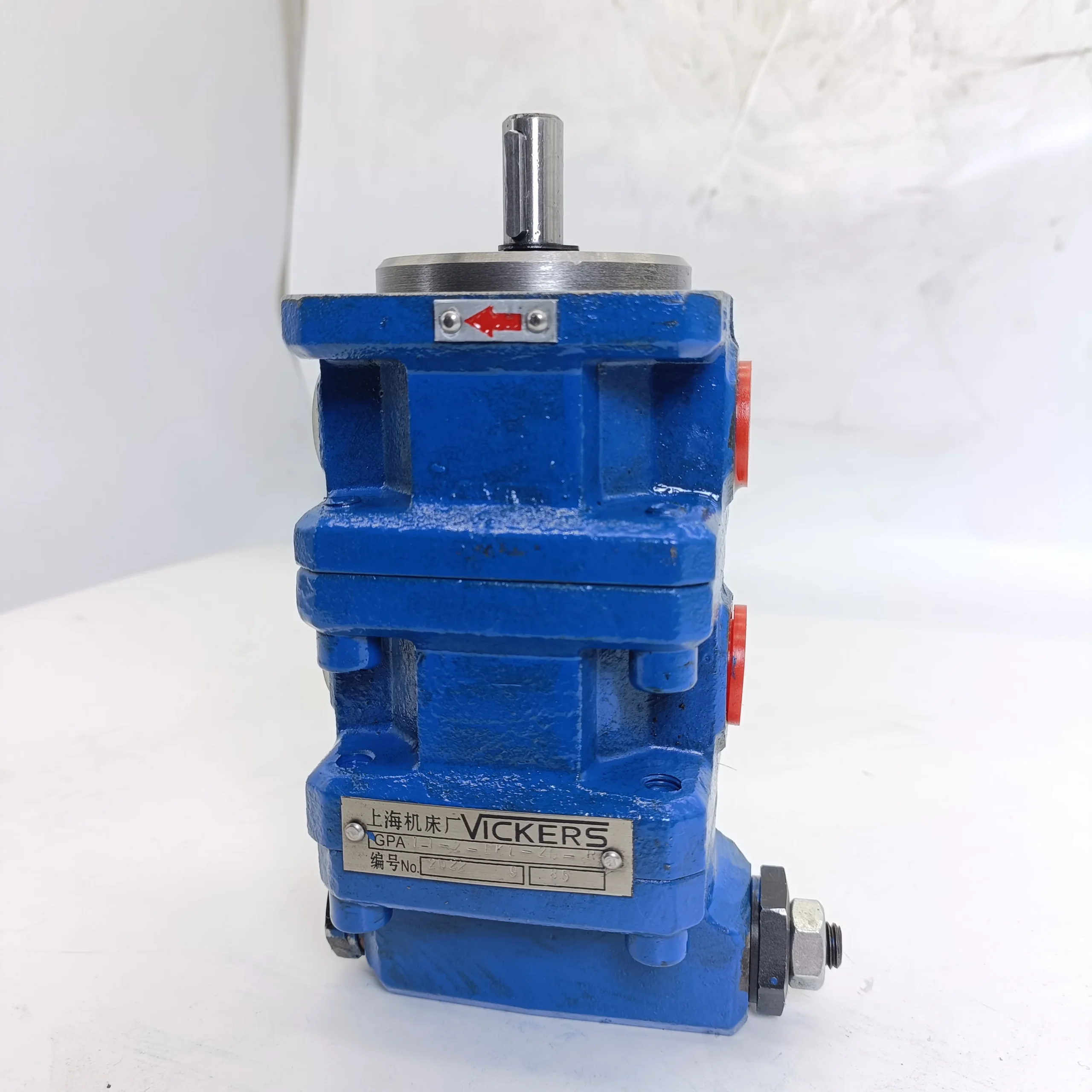

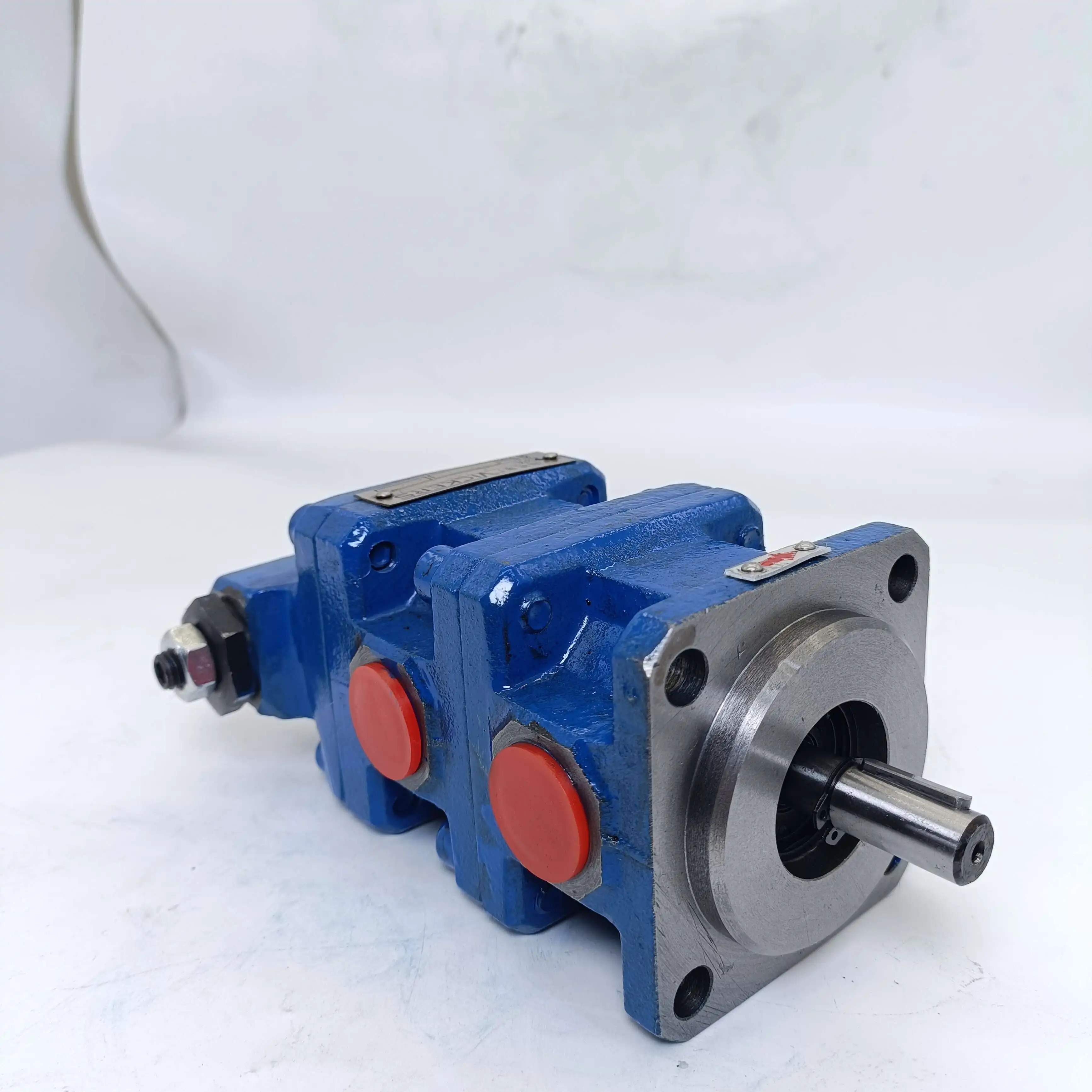

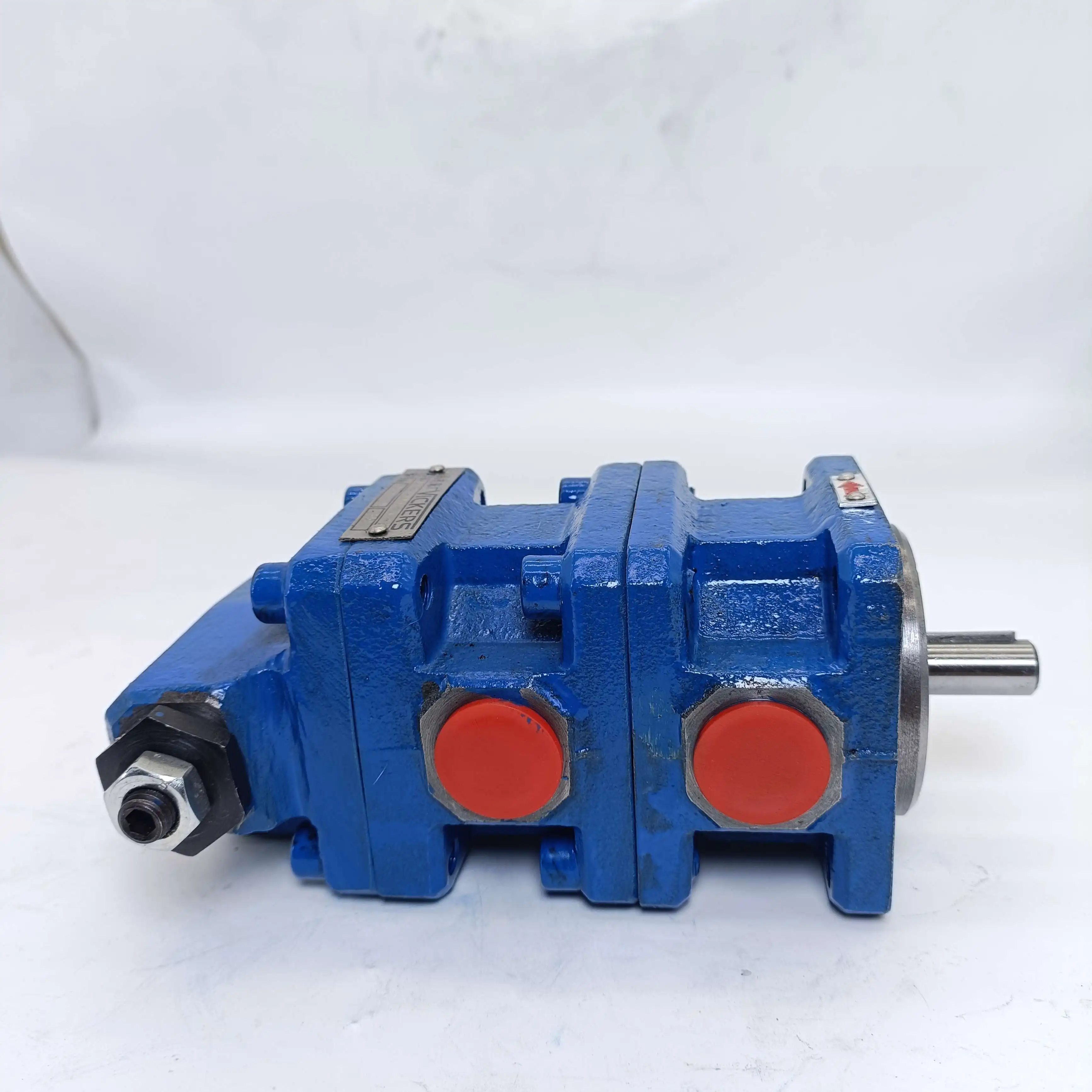

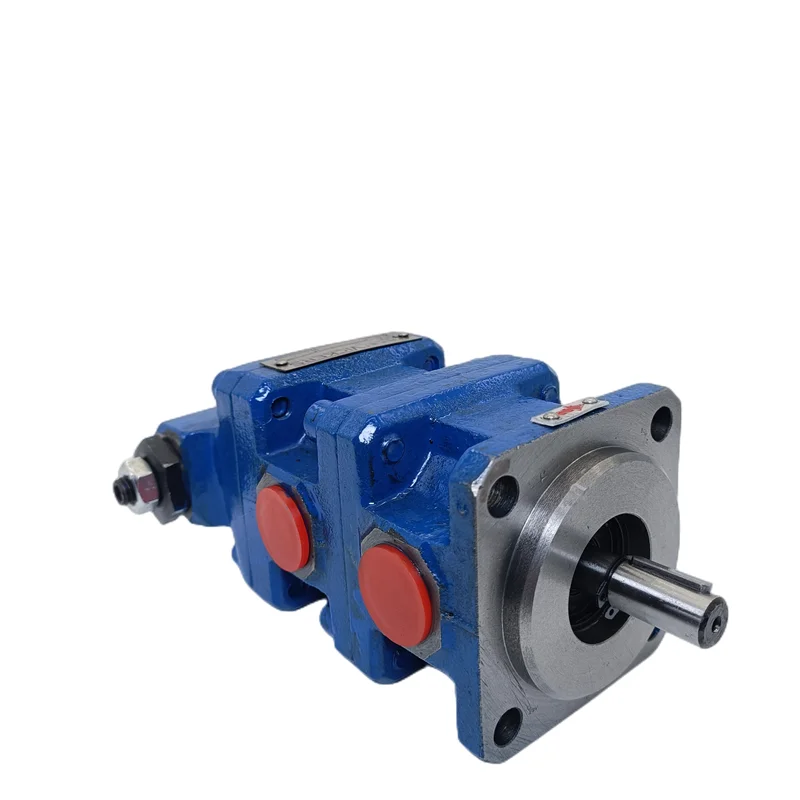

GPA Series Low Noise Internal Gear Pump | GPA1, GPA2, GPA3 | GPA2-16-E-20-R6.3 | Servo Hydraulic Pump
| Model Number | GPA1-1-1 2 2 4 4, GPA2-2-2 4 6 10 |
|---|
Product Description
GPA Series High-Performance Low Noise Internal Gear Pumps
Product Overview: The GPA Series is specifically engineered for modern hydraulic systems demanding stringent noise control and exceptional pressure stability. As a precision internal gear pump, this series spans from the compact GPA1 to the heavy-duty, high-displacement GPA3. This range features the flagship model GPA2-16-E-20-R6.3 and a full displacement spectrum from 1ml/r to 63ml/r. Its unique internal meshing design ensures smooth axial fluid delivery, completely eliminating fluid trapping—making it the definitive power source for energy-saving servo injection molding machines and precision machine tool stations.
Key Technical Advantages:
Ultimate Silent Operation: Specialized straight-line conjugate gear profiles ensure an incredibly smooth meshing process. Operating noise is significantly lower than traditional external gear pumps, typically remaining below 60 dB.
Minimal Pulsation & High Precision: Delivers a nearly ripple-free flow, drastically reducing system vibration and noise while enhancing the positioning accuracy of hydraulic actuators.
Dual Pressure Compensation: Equipped with axial and radial pressure compensation mechanisms, maintaining a volumetric efficiency above 95% across the entire operating range.
Optimized for Servo Drive Systems: Supports high-pressure holding at ultra-low RPMs, serving as a core component for modern energy-saving servo-driven hydraulic circuits.
Target Applications: CNC press brakes, servo injection molding machines, laboratory hydraulic test benches, compact lifting platforms, and precision machine tool lubrication.
Detailed Models & Parameters:
Core Series: GPA Series (GPA1, GPA2, GPA3).
Model Keywords: GPA2-16-E-20-R6.3, GPA1-1, GPA1-2, GPA1-4, GPA2-2, GPA2-4, GPA2-6, GPA2-10, GPA3-25, GPA3-40, GPA3-63.
Displacements (ml/r): Comprehensive matrix: 1, 2, 4, 6, 10, 16, 25, 40, 63 ml/r.
Pressure Ratings: Rated at 16-21 MPa (160-210 Bar); Peak pressure capabilities up to 25 MPa (250 Bar).
Technical Specs: R (Clockwise Rotation); E (Specific Flange Protocol); R6.3 (Technical modification code).
