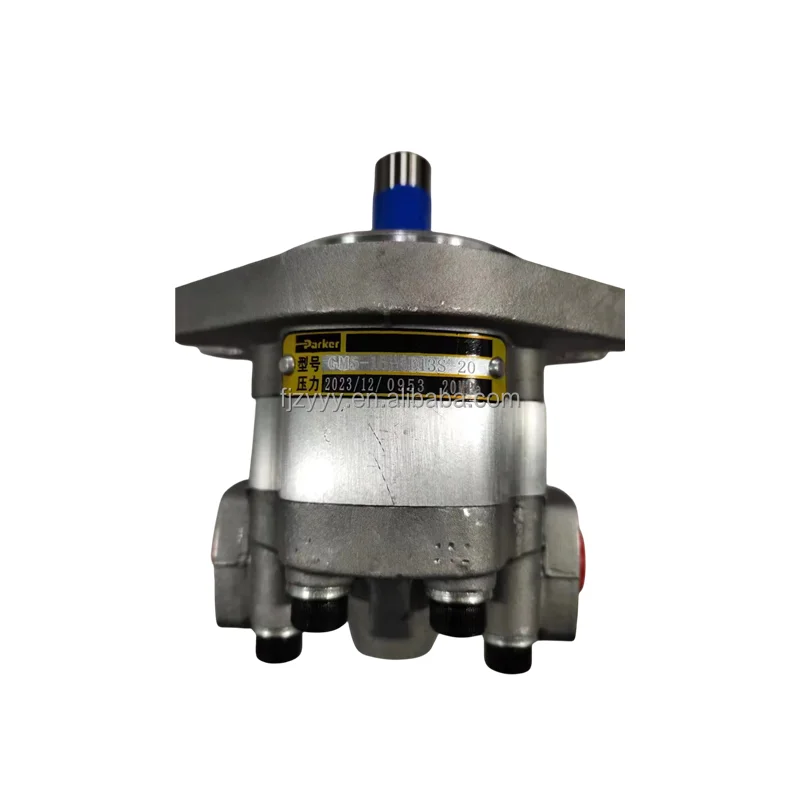

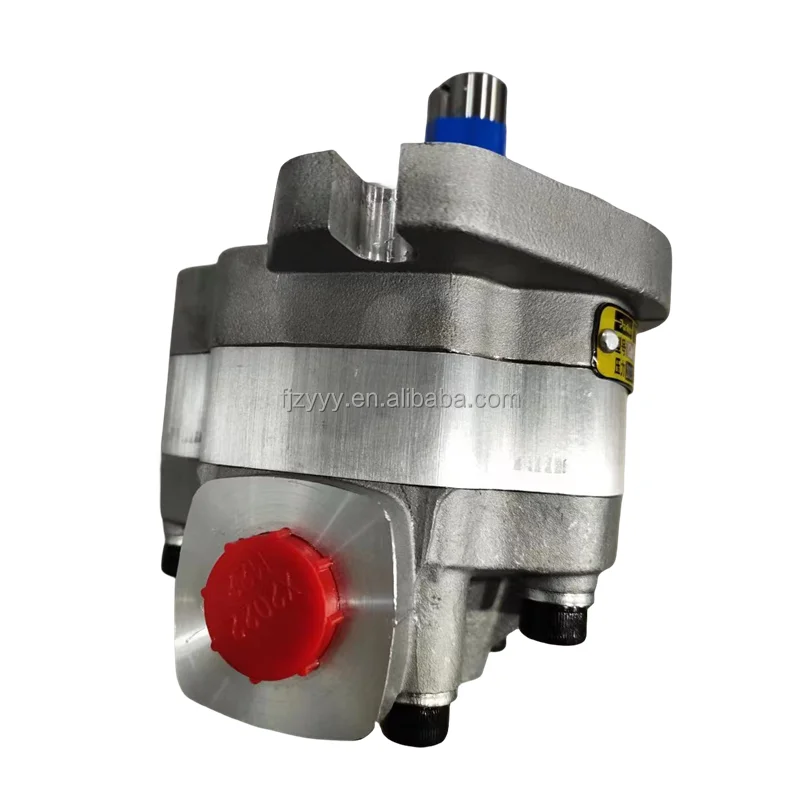

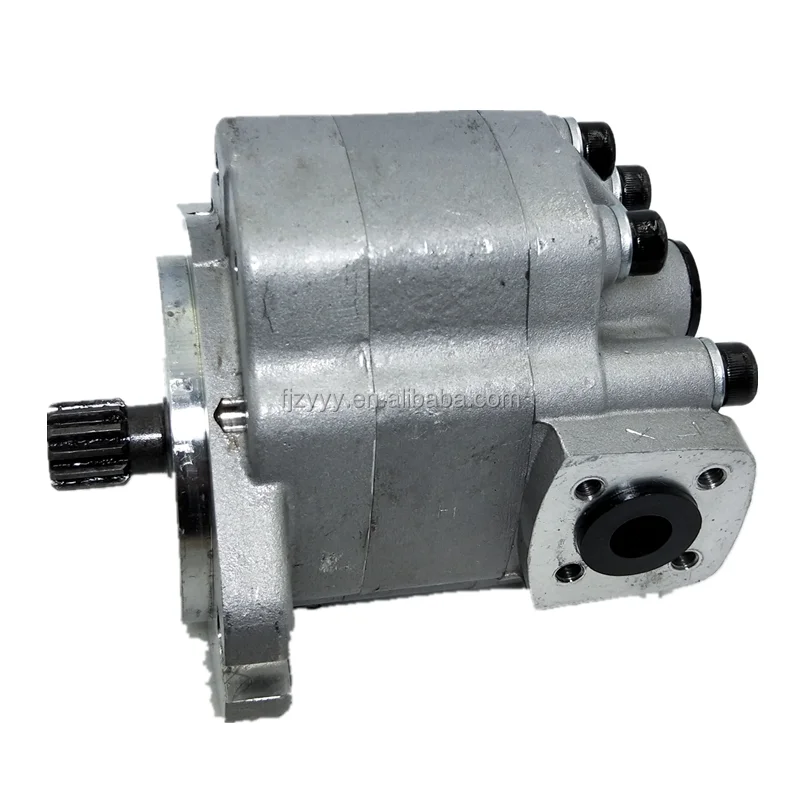

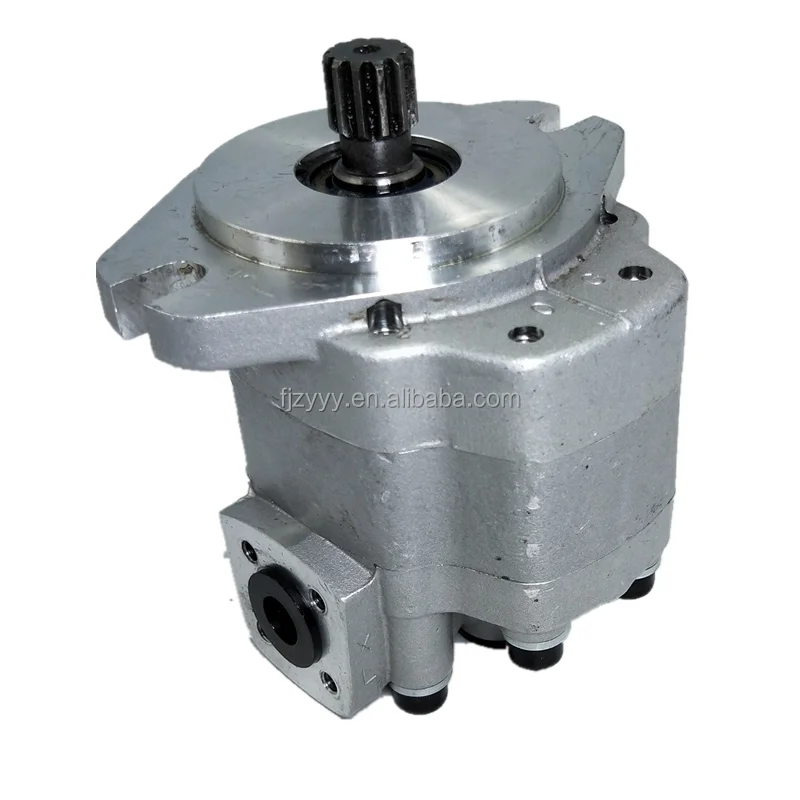

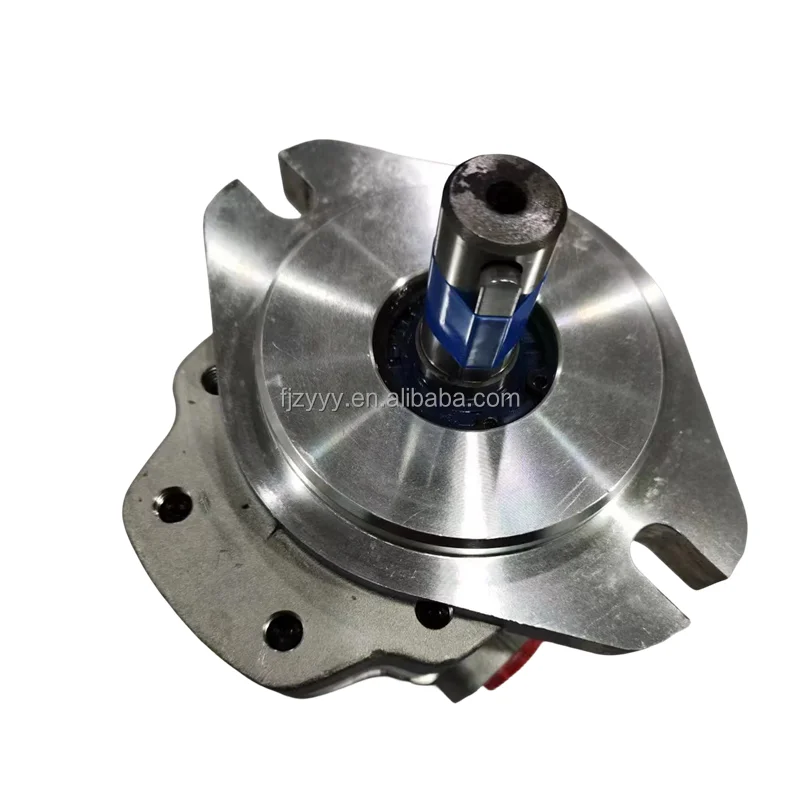

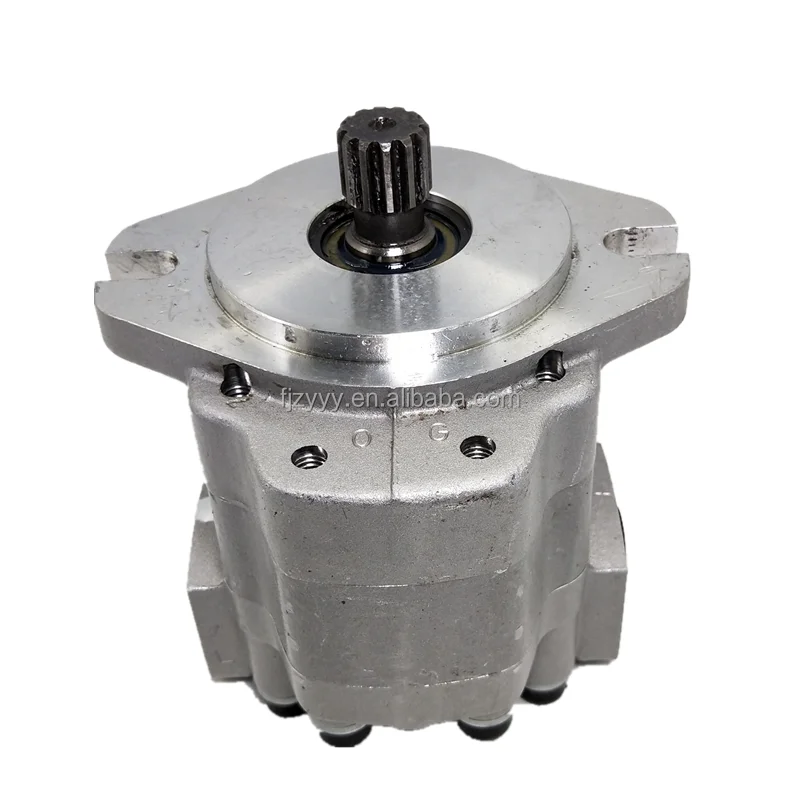

G5 Series Hydraulic Gear Pump | G5-6, G5-10, G5-25, G5-20 | 1E13S, A13R | High Pressure Pump

Model Number

G5 -20-1E13S – 20R

Inquiry

Product Description

G5 Series High-Performance Industrial Hydraulic Gear Pumps

Product Overview: The G5 Series Gear Pump stands as a reliable powerhouse in modern hydraulic transmission, renowned for its robust construction and exceptional stability under high-pressure conditions. This featured selection includes core precision models: G5-6-1E13S-20-R, G5-10-1E13S-20L, G5-25-A13R-23R, and G5-20-1E13S-20R. Built with high-strength aluminum alloy bodies and specially treated steel gears, these pumps are engineered to meet the rigorous demands for high efficiency and extended service life in injection molding machinery, construction equipment, and industrial power units.

Key Technical Advantages:

  • Superior Pressure Resilience: Rated for continuous operating pressures of 20 MPa with peaks reaching 23 MPa (3335 PSI), ensuring stability and reliability during heavy-duty duty cycles.

  • High Volumetric Efficiency: Equipped with automatic axial pressure-compensated side plates to minimize internal leakage, maintaining efficiencies over 93% even under high-temperature operations.

  • Versatile Installation Specs: Available in multiple flange and shaft configurations such as 1E13S (SAE standards) and A13R, supporting both R (Clockwise / CW) and L (Counter-clockwise / CCW) rotations for guaranteed replacement.

  • Ultra-Low Noise Design: Precision-ground gears paired with optimized housing structures drastically reduce mechanical noise and pressure ripples during operation.

  • 100% Plug-and-Play Compatibility: Strictly adheres to international standard dimensions, ensuring identical flange patterns, shaft ends (keyed or splined), and port specifications for seamless installation.

Detailed Models & Parameters:

  • Core Series: G5 Performance Gear Pump Series.

  • Model Keywords: G5-6-1E13S-20-R, G5-10-1E13S-20L, G5-25-A13R-23R, G5-20-1E13S-20R.

  • Displacements: Full industrial range from 6cc up to 25cc/rev.

  • Pressure Ratings: Rated at 20 MPa continuous; Peak up to 23 MPa (3335 PSI).

  • Connection Logic: 1E13S (Standard interfaces); A13R (Specialized flange/shaft specs).

  • Target Applications: Servo injection molding machines, refuse compactors, hydraulic lift tables, and agricultural power steering.
