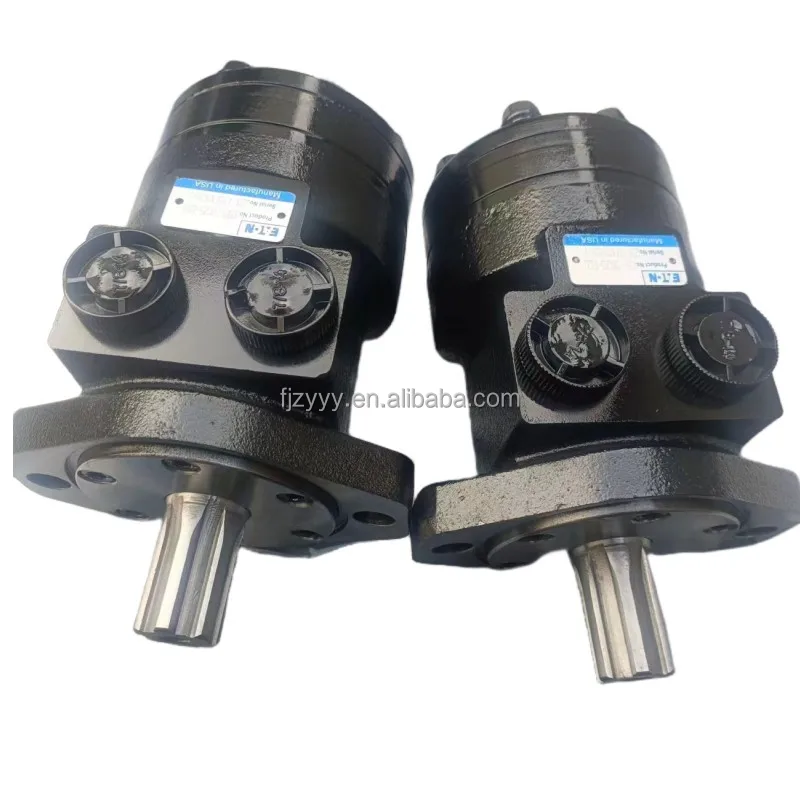

Eaton Char-Lynn 2000 & 10000 Series Heavy-Duty Orbit Motors

Product Overview: This product line features two cornerstones of the Eaton orbital family: the versatile 2000 Series and the powerhouse 10000 Series. We offer key models including 162-1263-004, 162-1293-004, and the ultra-heavy-duty 119-2015-001. Utilizing precision Disc Valve technology, these motors are engineered to maintain elite volumetric efficiency under high-pressure and high-flow conditions. Whether the application requires the compact flexibility of agricultural sprayers and material handling or the extreme torque of heavy-duty winches, mining machinery, and propel drives, this series delivers superior Low Speed High Torque (LSHT) power.

Key Technical Advantages:

• Disc Valve Precision: The independent valve plate automatically balances clearances under pressure, ensuring sustained efficiency throughout the motor’s service life.

• Geroler® Roller Geometry: Internal roller supports drastically reduce startup friction, providing smooth, pulse-free power delivery even at minimal RPM.

• 10000 Series Extreme Power: Specifically, model 119-2015-001 offers oversized radial load capacity, setting the industry standard for giant direct-drive wheel hubs.

• Reinforced Shaft Seals: Designed to handle significant system back-pressure, ensuring zero leakage and extended durability in harsh environments.

Detailed Specifications & Parameters:

• Core Series: Eaton Char-Lynn 2000 Series & 10000 Series.

• Featured Model Matrix: 162-1263-004, 162-1293-004, 119-2015-001.

• Core Performance Specs:

  • 2000 Series Displacement: 80 cc/rev to 490 cc/rev (4.9 – 30.0 cu in/rev).

  • 10000 Series Displacement: Up to 940 cc/rev (57.4 cu in/rev).

  • Rated Pressure: Continuous up to 200-240 Bar (2900-3500 PSI); Intermittent peaks up to 310 Bar.

  • Torque Capability: Spanning a wide range from 400 Nm to 3700 Nm (model dependent).

  • Mounting Standards: 2-Bolt / 4-Bolt SAE flanges with Keyed, Splined, or Tapered shaft options.
