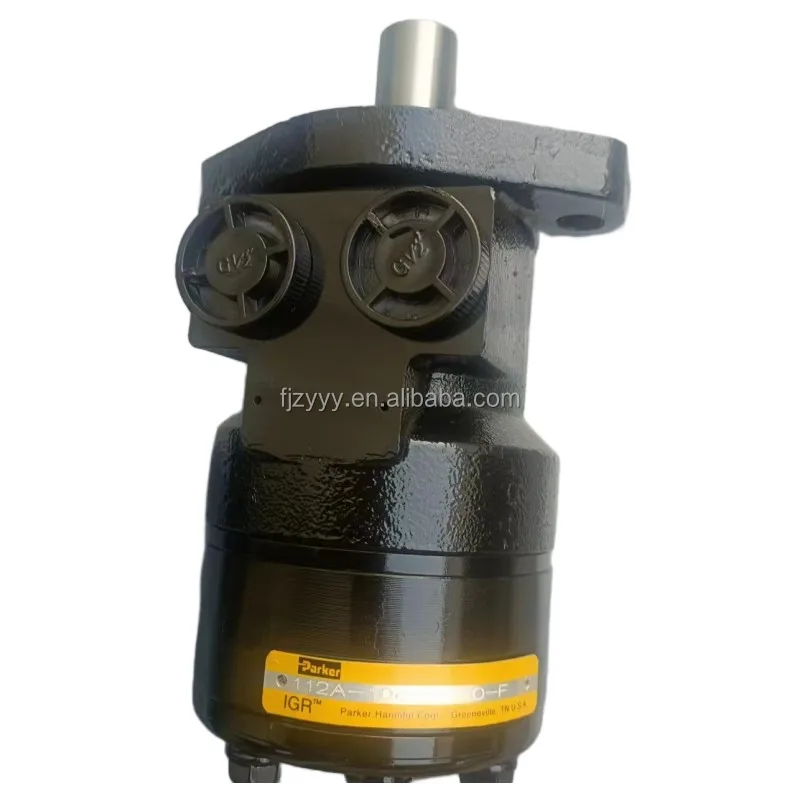

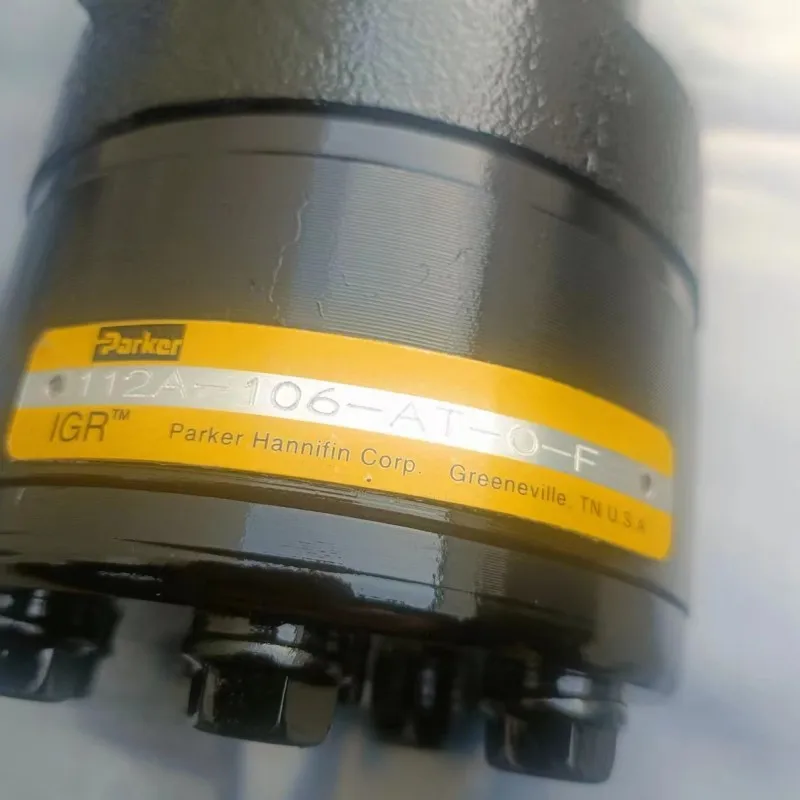

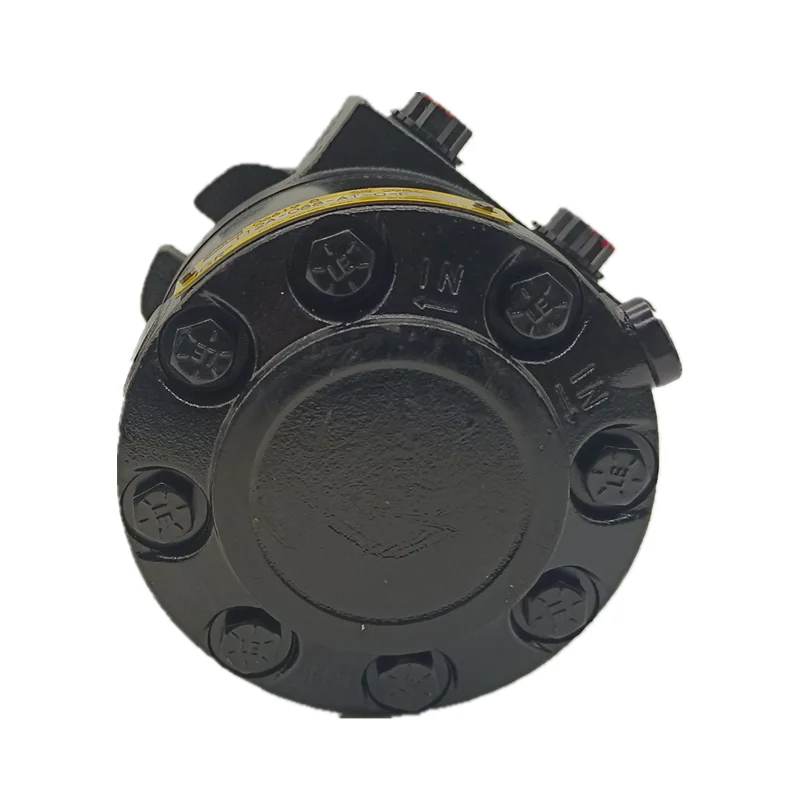

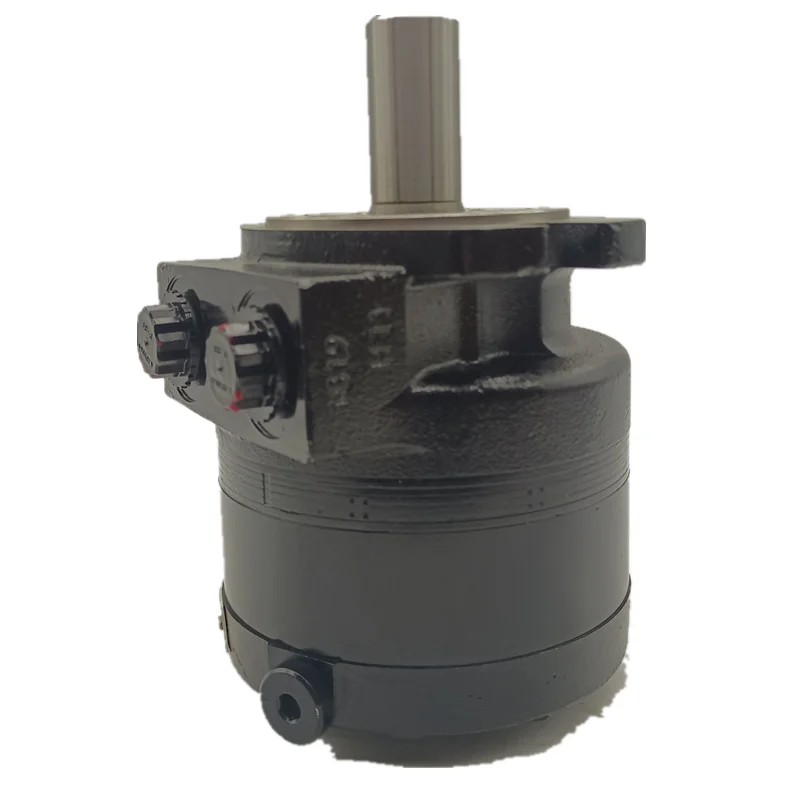

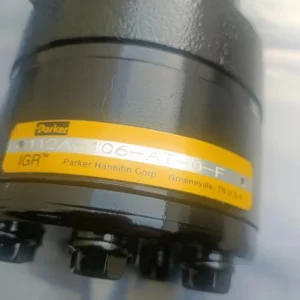

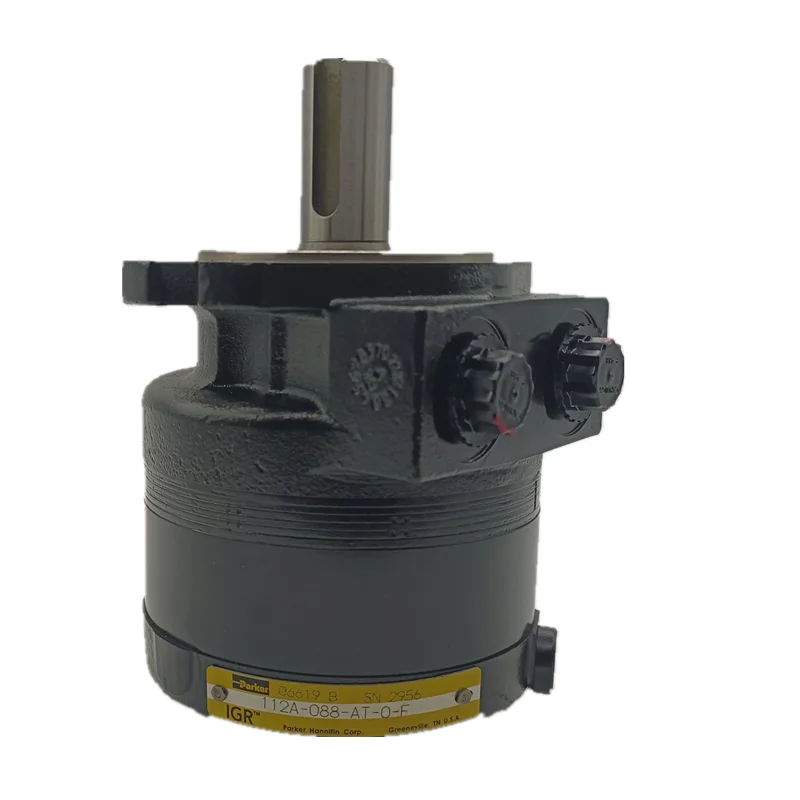

Eaton Char-Lynn Full Series Spool Valve Orbit Motors (110A – 116A)

Product Overview: The Eaton Char-Lynn Spool Valve Series (including 110A, 111A, 112A, 113A, 115A, and 116A) is the global foundation of Low Speed High Torque (LSHT) hydraulic driving technology. This category features the cornerstone models: 112A-071-AT-0F, 112A-036-AM-0-R2, and the full spectrum of series derivatives. Engineered for efficiency and reliability within a compact footprint, these motors utilize precision gerotor/geroler technology to deliver consistent power. Their whisper-quiet operation and high power density make them the premier choice for agricultural auxiliary drives, food processing conveyors, sweeper brush drives, and material handling systems.

Key Technical Advantages:

• Ultimate Compactness: The 110A-116A series features an extremely small envelope, allowing engineers to deploy robust hydraulic power in environments where mounting space is severely restricted.

• Smooth Low-Speed Performance: Optimized timing and distribution ensure the motor maintains a steady, pulse-free rotation even at ultra-low flow rates.

• Rugged Shaft Sealing: Equipped with high-resilience premium seals that handle significant back-pressure in most standard applications, extending service intervals.

• Technical Decoding:

  • 112A-071-AT-0F: Represents specific displacement and flange configurations, widely compatible with global industrial standards.

  • 112A-036-AM-0-R2: Optimized for specific rotation directions or shaft specifications tailored for specialized propel requirements.

Detailed Specifications & Parameters:

• Core Series: Eaton Char-Lynn 110A, 111A, 112A, 113A, 115A, 116A.

• Featured Model Matrix: 112A-071-AT-0F, 112A-036-AM-0-R2, 111A Series, 115A Series.

• Core Performance Specs:

  • Displacement Range: 36 cc/rev to 370 cc/rev (2.2 – 22.6 cu in/rev).

  • Rated Pressure: Continuous up to 125 Bar (1800 PSI); Intermittent peaks up to 165 Bar (2400 PSI).

  • Torque Capability: Spanning from 60 Nm up to 410 Nm (model dependent).

  • Flow Capacity: Supports continuous flow inputs of 55-75 L/min (15-20 GPM).

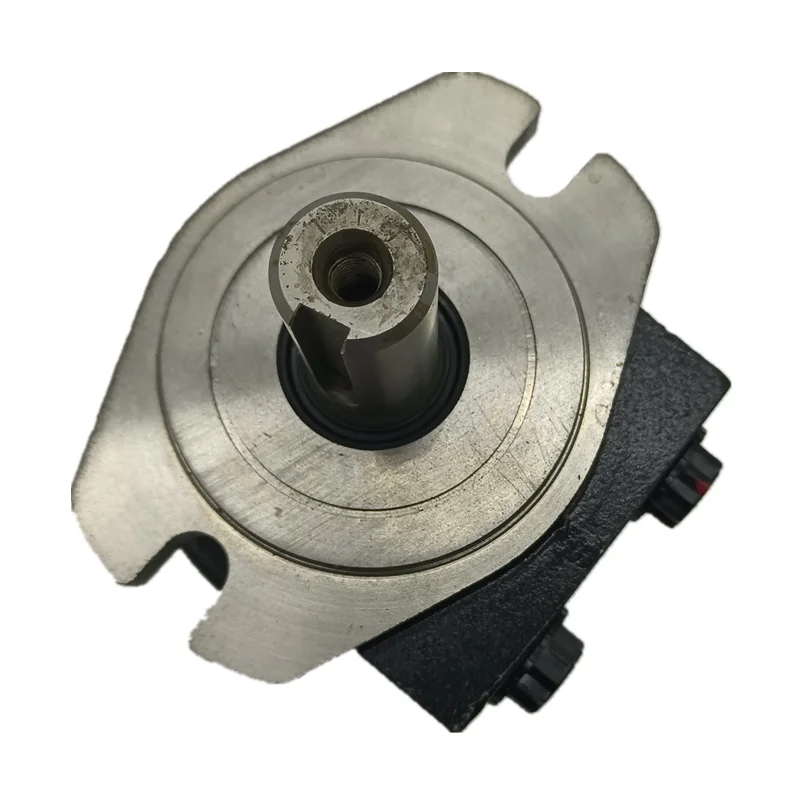

  • Mounting Standards: Standard 2-Bolt SAE A or 4-Bolt flanges with 1″ Keyed or Splined shaft options.
