Eaton Char-Lynn J Series Motor | 110A-054-AM-0 114A-088-GS-0 116A-164-BS-0

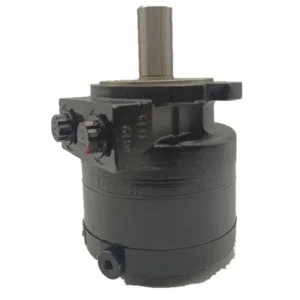

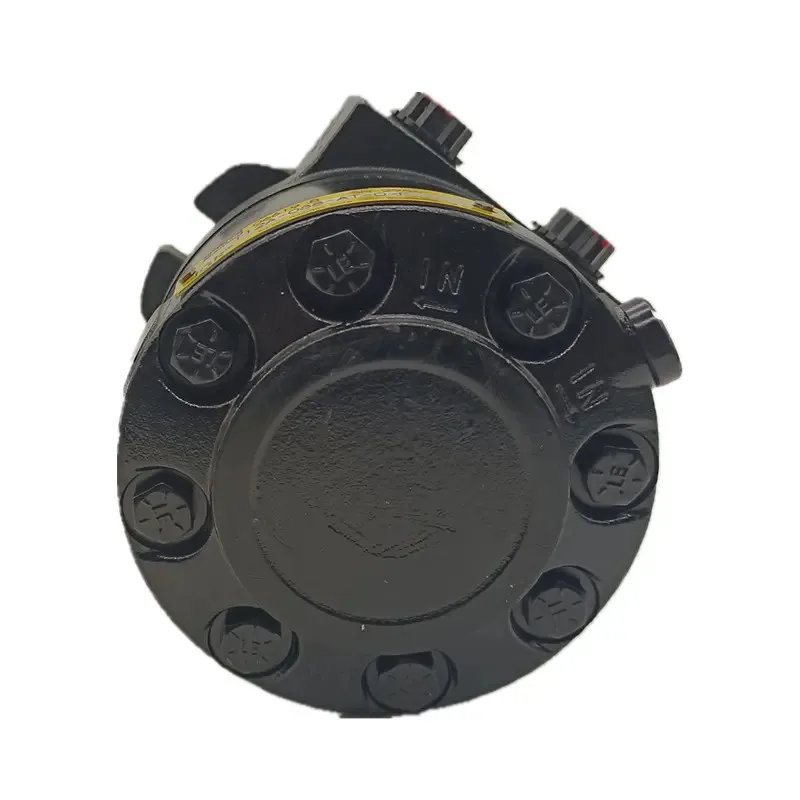

Eaton Char-Lynn J Series (110A/112A/114A/116A) Compact Micro Motors

Product Overview: The Eaton Char-Lynn J Series (spanning 110A-, 112A-, 114A-, and 116A- sequences) is a precision-engineered orbital motor designed for applications with extreme space constraints. As the industry benchmark for micro-hydraulic drives, this page features core models: 110A-054-AM-0, 114A-088-GS-0, 116A-164-BS-0, 116A-088-AS-0, and 110A-036-AS-0. Combining a high-efficiency spool valve design with a compact Gerotor set, the J Series delivers exceptional power stability for light-duty tasks. It is the premier choice for laboratory automation, food processing conveyors, medical devices, machine tool attachments, and small packaging machinery.

Key Technical Advantages:

• Ultra-Compact Footprint: Minimal physical dimensions allow for installation in confined spaces where standard motors fail to fit, optimizing the overall system layout.

• High-Speed Agility: Internal fluid passages are optimized for high-speed operation, ensuring rapid start-stop response and RPM stability even at low flow rates.

• Proven Gerotor Technology: Precision manufacturing of the gear set ensures low startup pressure and consistent torque output.

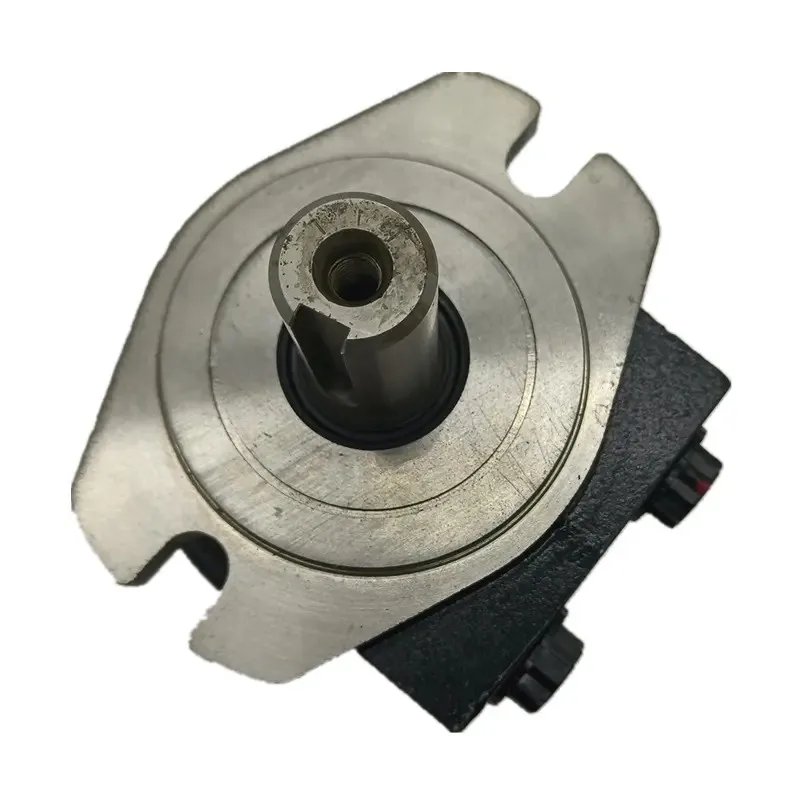

• Versatile Shaft & Flange Options: Available in various configurations including AM (Keyed), GS (Splined), and BS (Short Shaft) to meet diverse industrial interface requirements.

• Technical Decoding:

  • 110A-054-AM-0: Standard frame with a keyed shaft for easy coupling.

  • 114A-088-GS-0: Reinforced gear set paired with a high-strength splined shaft.

  • 116A-164-BS-0: Optimized for extreme axial space limitations with a shortened shaft design.

Detailed Specifications & Parameters:

• Core Series: Eaton Char-Lynn J Series (110A/112A/114A/116A).

• Featured Model Matrix: 110A-054-AM-0, 114A-088-GS-0, 116A-164-BS-0, 116A-088-AS-0, 110A-036-AS-0.

• Core Performance Specs:

  • Displacement Range: 8.2 cc/rev (0.50 cu in/rev) to 50.0 cc/rev (3.0 cu in/rev).

  • Max Operating Pressure: Continuous up to 105 Bar (1500 PSI); intermittent peaks up to 140 Bar.

  • Torque Capability: Continuous torque ranging from 10 Nm to 60 Nm.

  • Max Speed: Up to 2000 RPM depending on displacement.

  • Mounting Standards: Standard 2-Bolt circular flange or 5-hole bottom mount.
