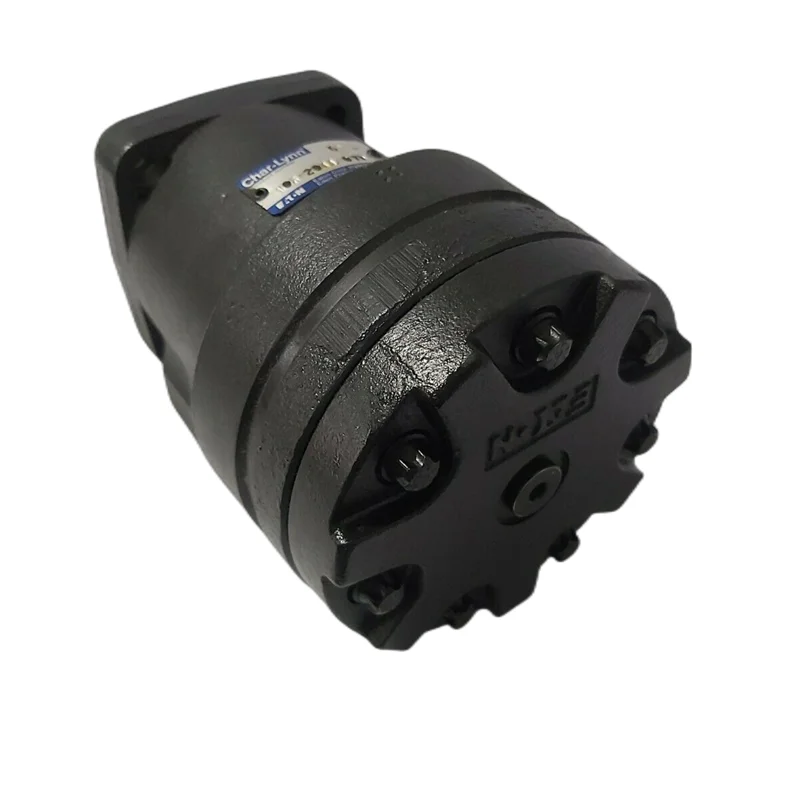

Eaton Char-Lynn H Series Motor | 103-3085-012 103-1006-006 | Low Noise Hydraulic Motor
| Model Number | 103-3085-012, 103-1006-006 |
|---|
Product Description
Eaton Char-Lynn H Series (103- Series) Low Noise Hydraulic Orbit Motors
Product Overview: The Eaton Char-Lynn H Series is the most enduring classic in the world of orbital hydraulic motors. This category highlights the flagship models: 103-3085-012 (optimized for low noise) and the standard 103-1006-006. Utilizing proven Spool Valve technology, the H Series is engineered to provide stable power within a highly compact envelope. Its internal geometry ensures extremely quiet and smooth operation in Low Speed High Torque (LSHT) applications. These motors are the premier choice for conveyor drives, food processing machinery, compact sweepers, harvester reel drives, and textile machinery.
Key Technical Advantages:
Superior Low Noise Performance: Precision-machined internal components minimize operating noise, making it ideal for indoor industrial applications with strict acoustic requirements.
Reliable Spool Valve Design: A simple, robust construction that ensures long-term stable operation with minimal maintenance costs.
Ultimate Compactness: High power density allows for installation in extremely restricted spaces while delivering strong breakout torque.
Technical Decoding:

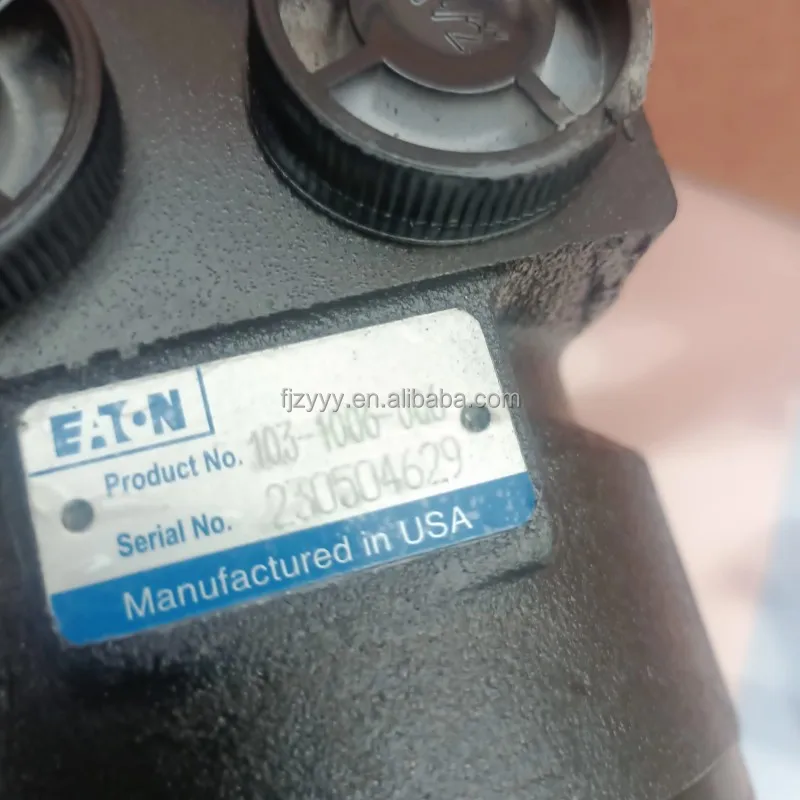

103-1006-006: The industrial standard configuration with high global interchangeability.

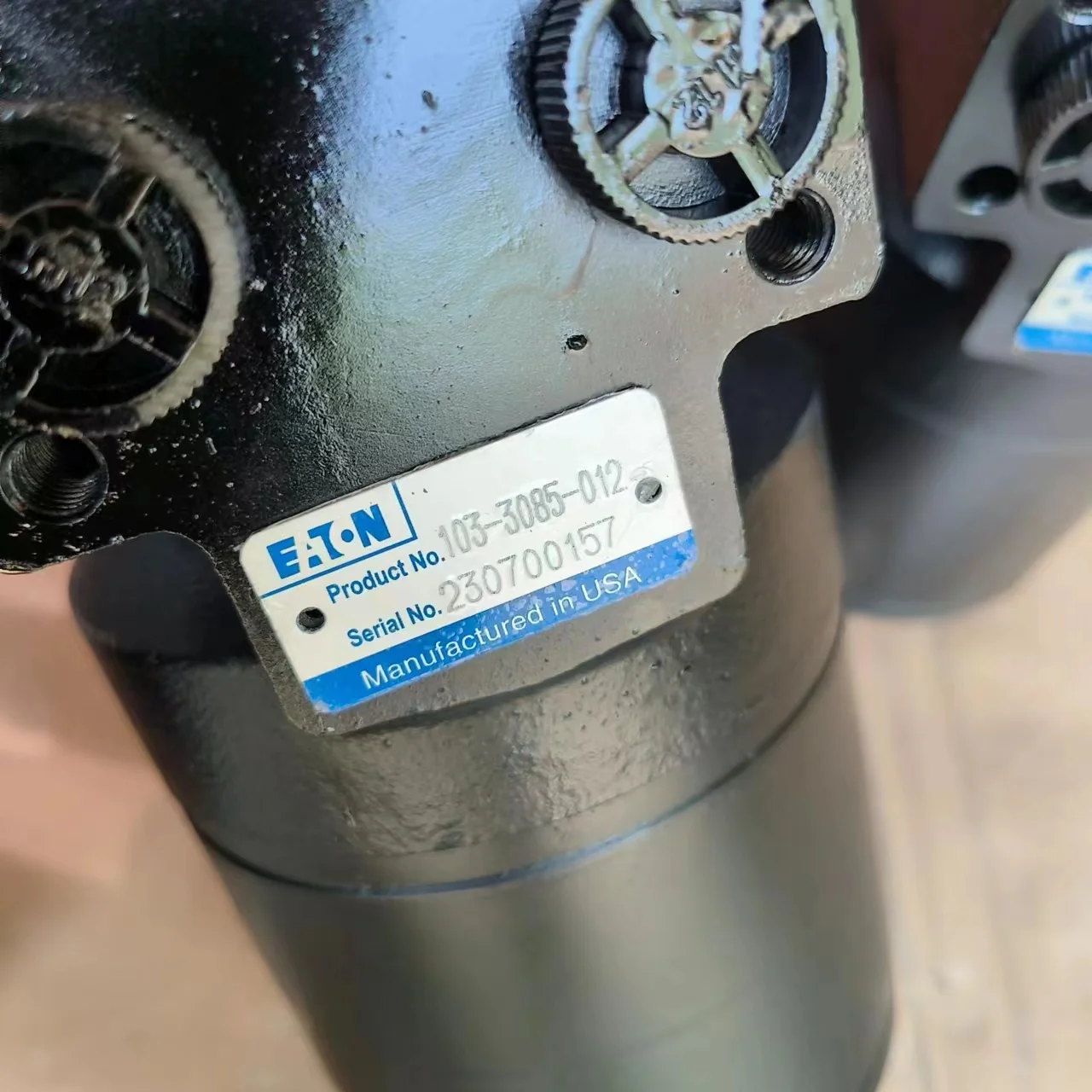

103-3085-012: Specialized specification optimized for specific mounting requirements or noise-sensitive environments.
Detailed Specifications & Parameters:
Core Series: Eaton Char-Lynn H Series (103- Series).
Featured Model Matrix: 103-3085-012, 103-1006-006.
Core Performance Specs:
Displacement Range: 38 cc/rev to 370 cc/rev (2.3 – 22.6 cu in/rev).
Rated Pressure: Continuous up to 125 Bar (1800 PSI); Intermittent peaks up to 165 Bar (2400 PSI).
Torque Capability: Continuous torque ranging from 60 Nm to 410 Nm (model dependent).
Max Flow Rate: Supports continuous flow inputs up to 55-75 L/min (15-20 GPM).

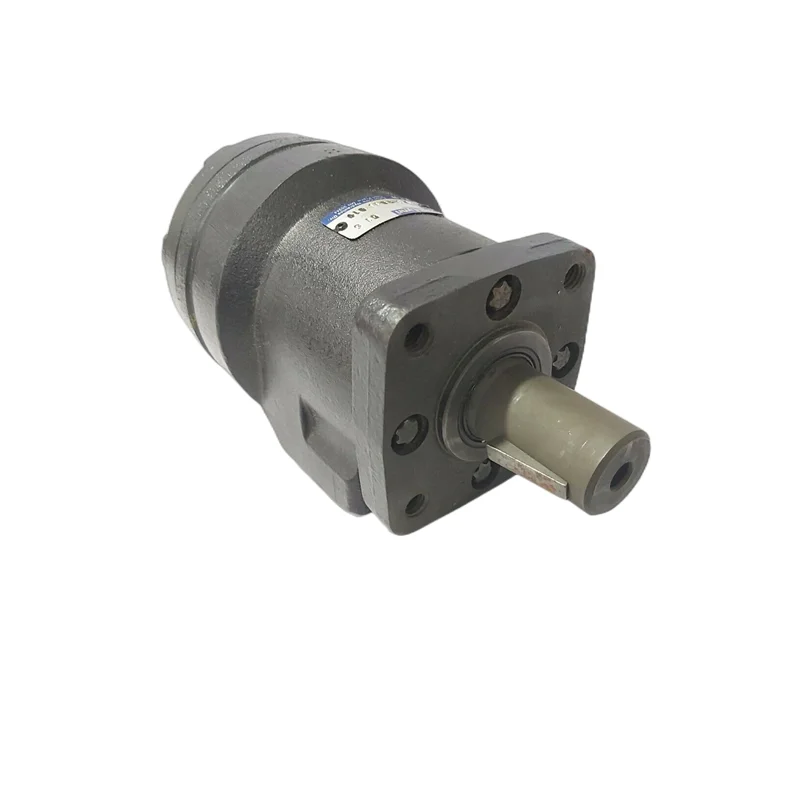

Mounting Standards: Standard 2-Bolt SAE A flange with 1-inch Keyed, Splined, or Tapered shaft options.
