Eaton Char-Lynn 6000 Series Motor | 112-1215-006 112-1108-006 112-1332-006

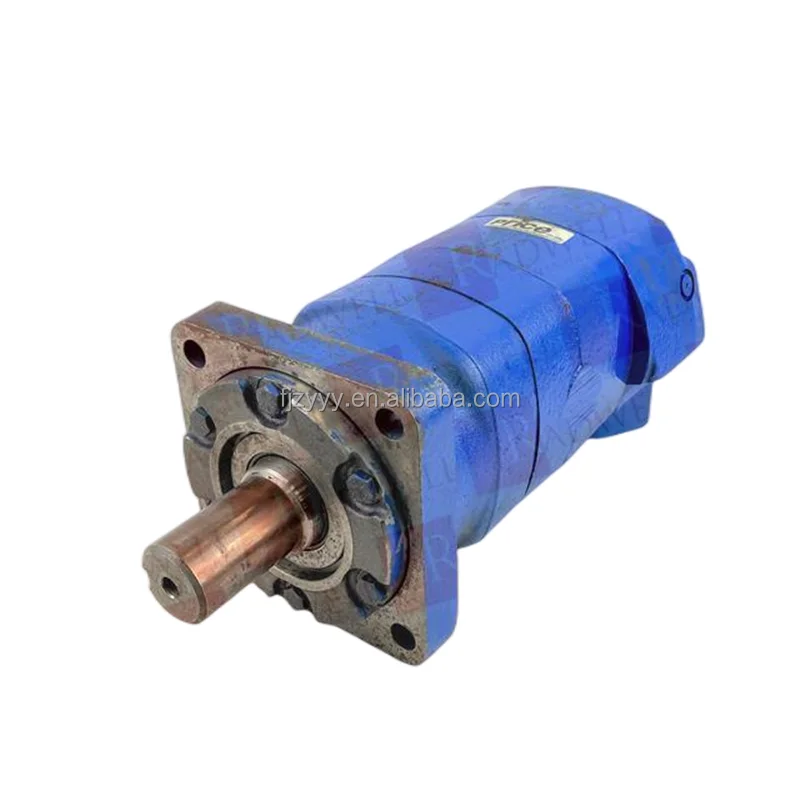

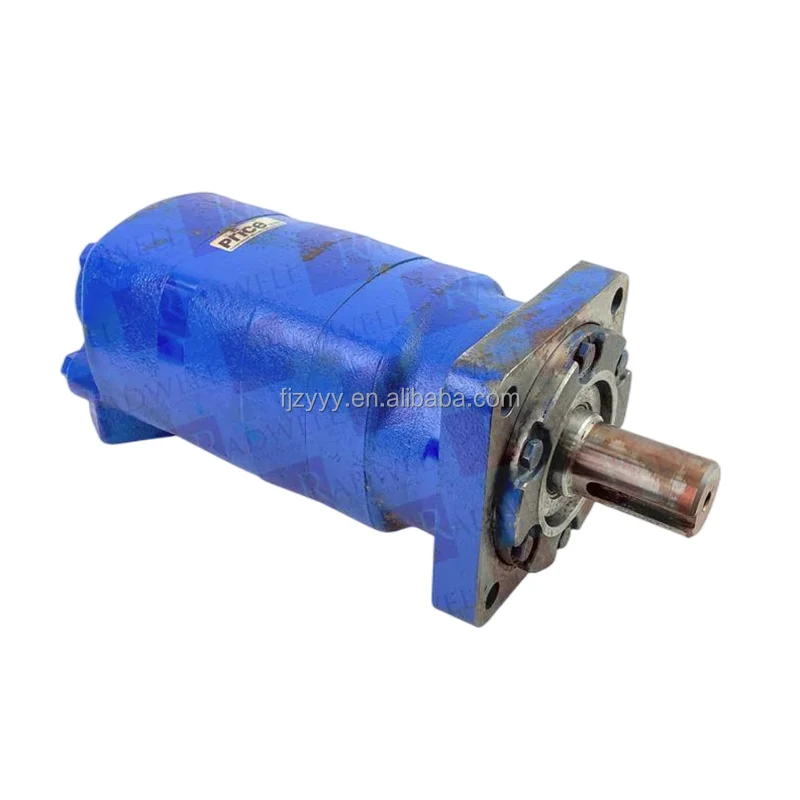

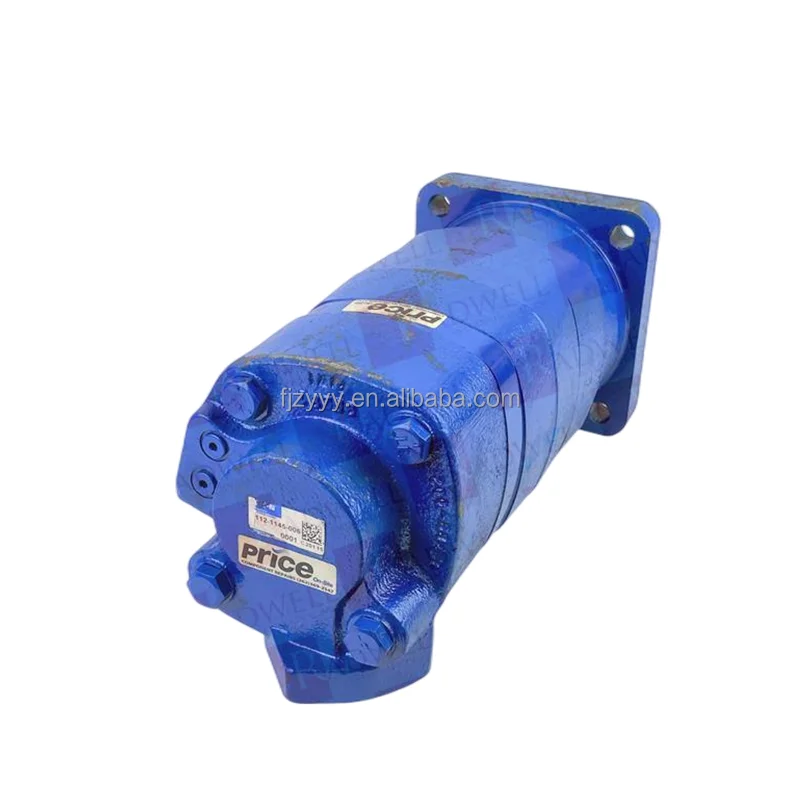

Eaton Char-Lynn 6000 Series (6 Series) Heavy-Duty Orbit Motors

Product Overview: The Eaton Char-Lynn 6000 Series (commonly known as the 6 Series) represents the elite standard for orbital hydraulic driving technology. This category highlights the flagship heavy-duty models: 112-1215-006, 112-1108-006, and 112-1332-006. Utilizing advanced Disc Valve technology, the 6000 Series is engineered to maintain peak volumetric efficiency under continuous high-pressure and extreme flow conditions. With its patented Geroler® roller set internal structure, these motors provide unmatched power stability in Low Speed High Torque (LSHT) applications. They are the premier choice for construction machinery propel drives, heavy-duty wheel drives, marine winches, forestry equipment, and industrial mixing systems.

Key Technical Advantages:

• High-Efficiency Disc Valve Design: The independent valve plate automatically balances wear-induced clearances under pressure, offering superior performance compared to spool valve motors in high-flow environments.

• Geroler® Roller Geometry: Internal roller supports drastically reduce mechanical friction, ensuring smooth, pulse-free power delivery even at minimal RPM.

• Reinforced Bearing System: The housing features oversized tapered roller bearings, allowing the output shaft to handle massive radial and axial loads directly—perfect for direct-drive wheel or heavy chain-driven setups.

• Technical Decoding:

  • 112-1108-006 / 112-1215-006: Features standard 4-Bolt SAE CC mounting with industry-standard interfaces for seamless integration.

  • 112-1332-006: Optimized for specialized high-torque cycles to meet more demanding industrial requirements.

Detailed Specifications & Parameters:

• Core Series: Eaton Char-Lynn 6000 Series (6 Series).

• Featured Model Matrix: 112-1215-006, 112-1108-006, 112-1332-006.

• Core Performance Specs:

  • Displacement Range: 195 cc/rev to 985 cc/rev (12.0 – 60.0 cu in/rev).

  • Rated Pressure: Continuous up to 210 Bar (3000 PSI); Intermittent peaks up to 310 Bar (4500 PSI).

  • Torque Capability: Continuous torque output exceeds 1500 Nm, with peak torque surpassing 2200 Nm.

  • Flow Rate: Supports high-flow inputs up to 150 L/min (40 GPM).

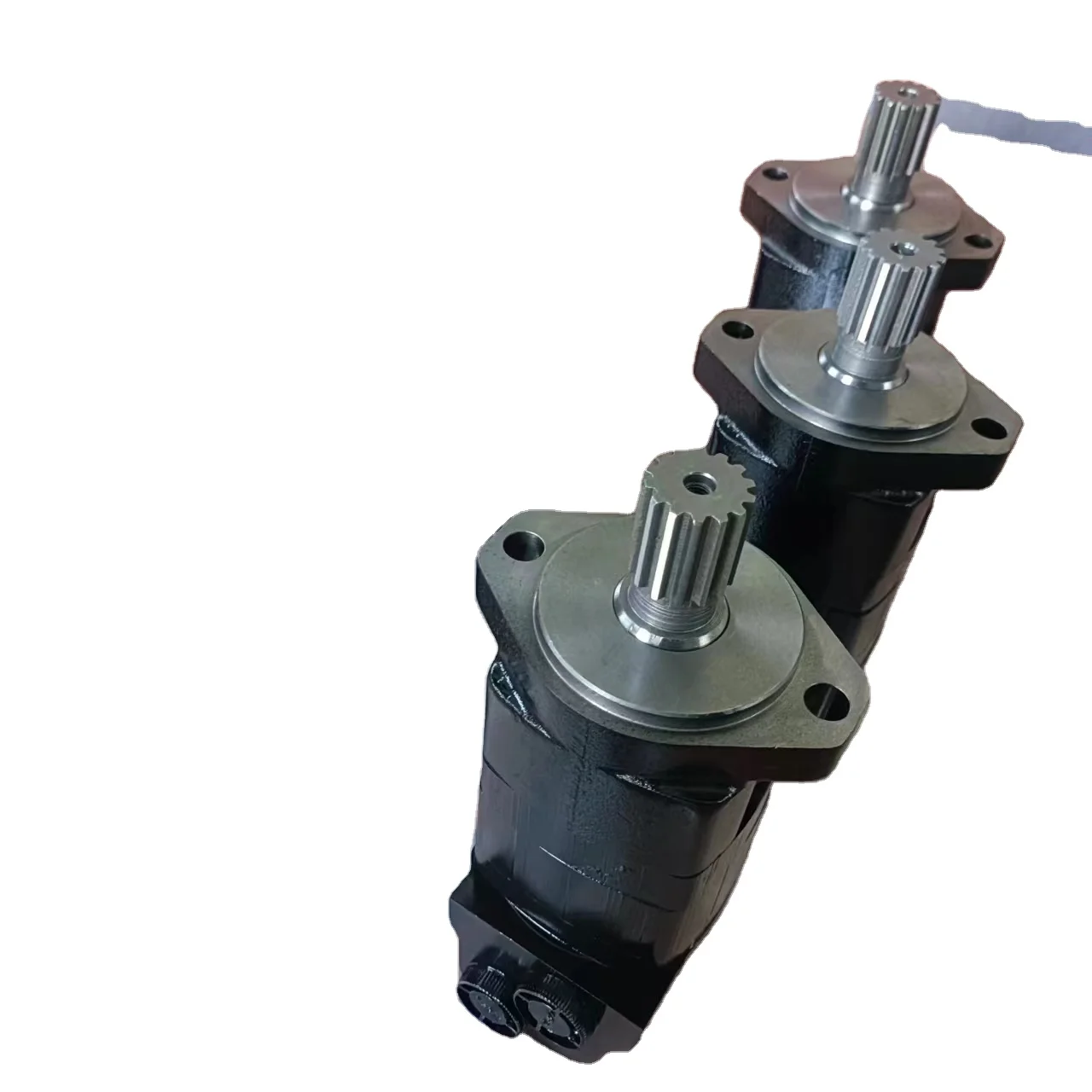

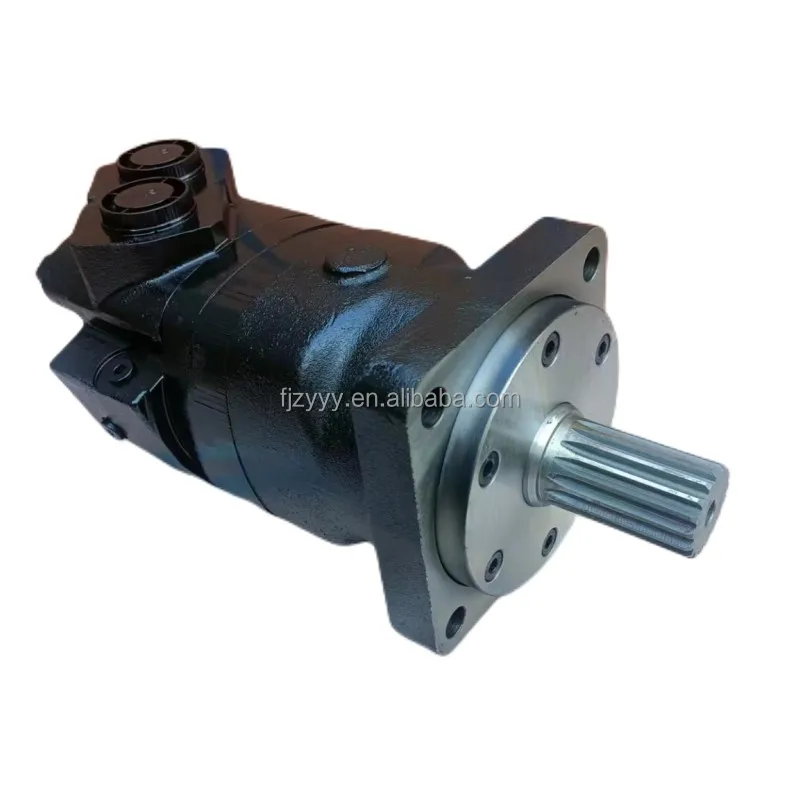

  • Mounting Standards: Standard 4-Bolt SAE CC or Wheel Mount flanges with Keyed, Splined, or large-diameter Tapered shaft options.
