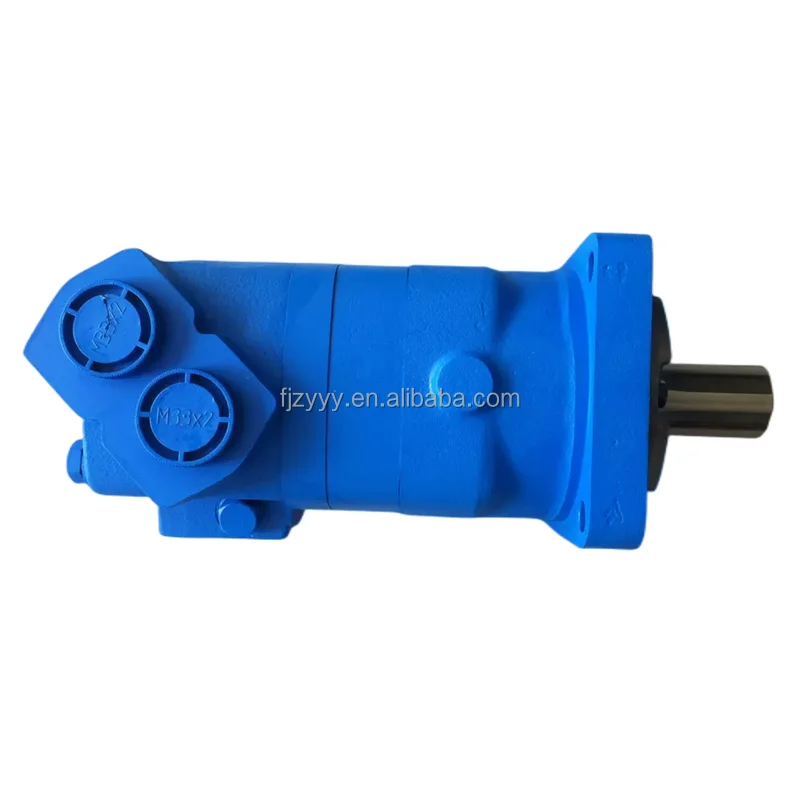

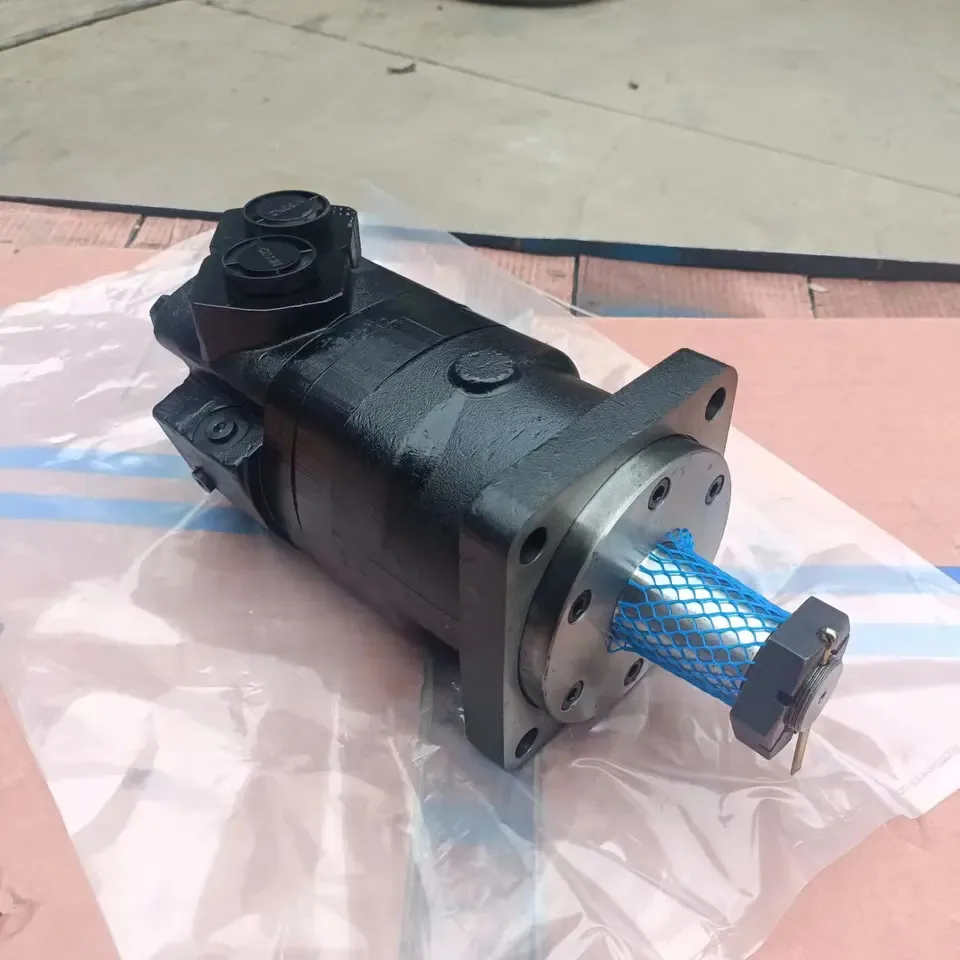

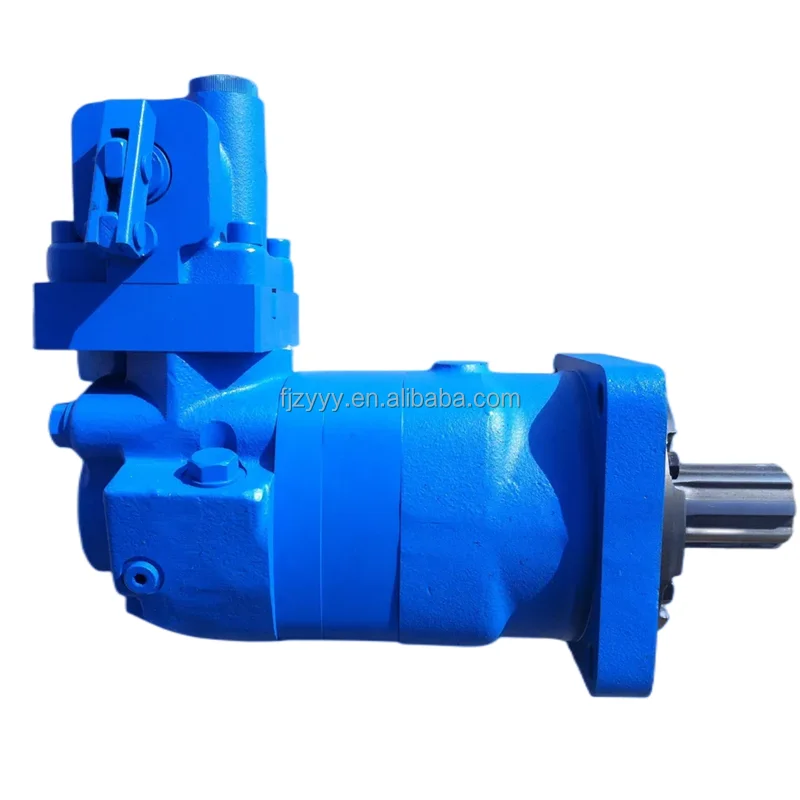

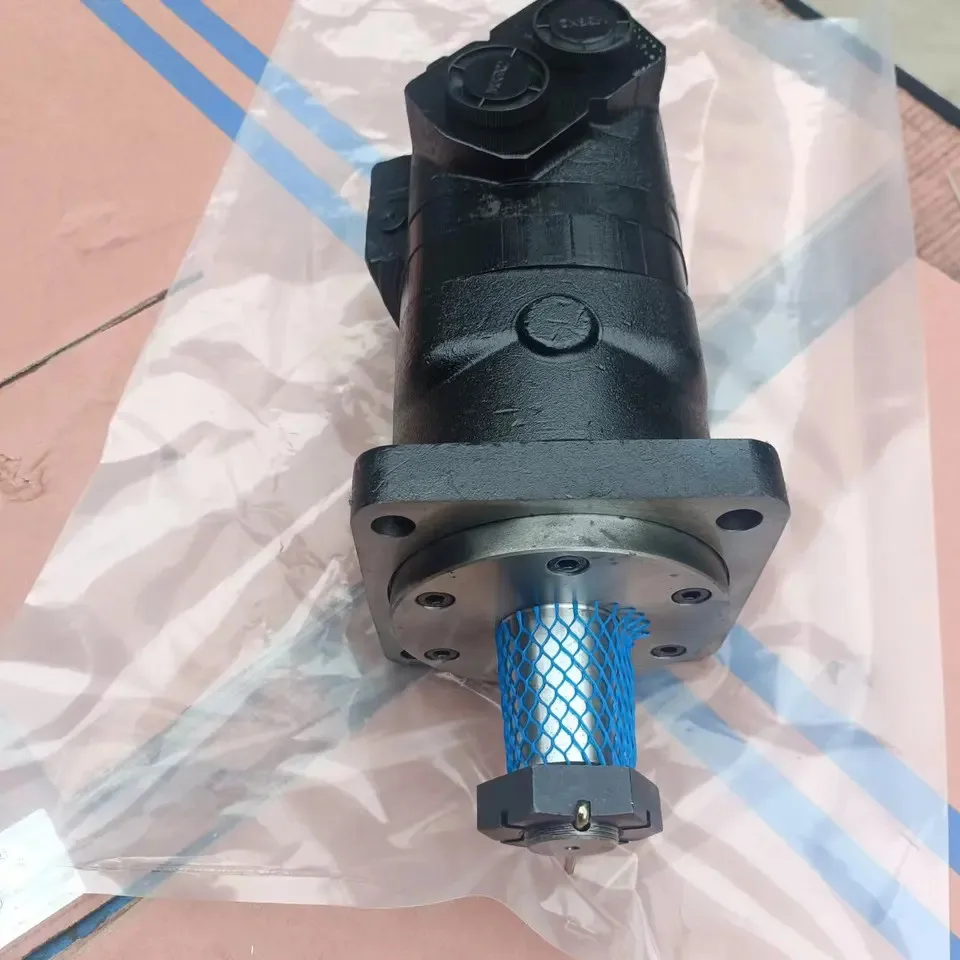

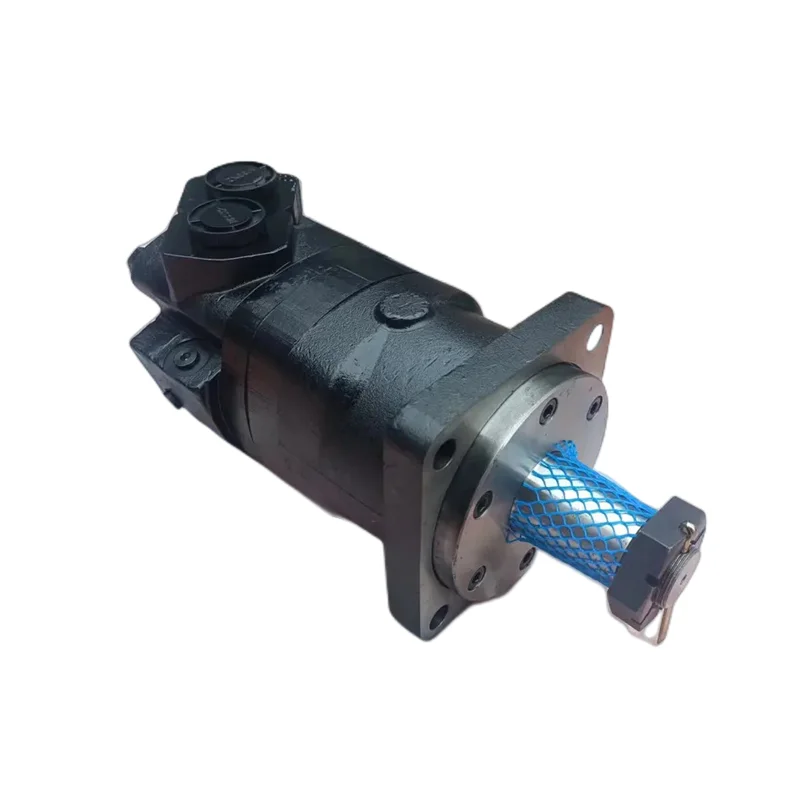

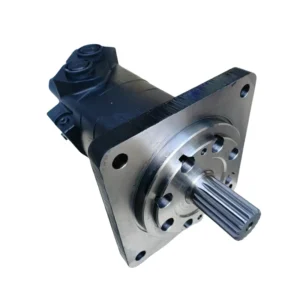

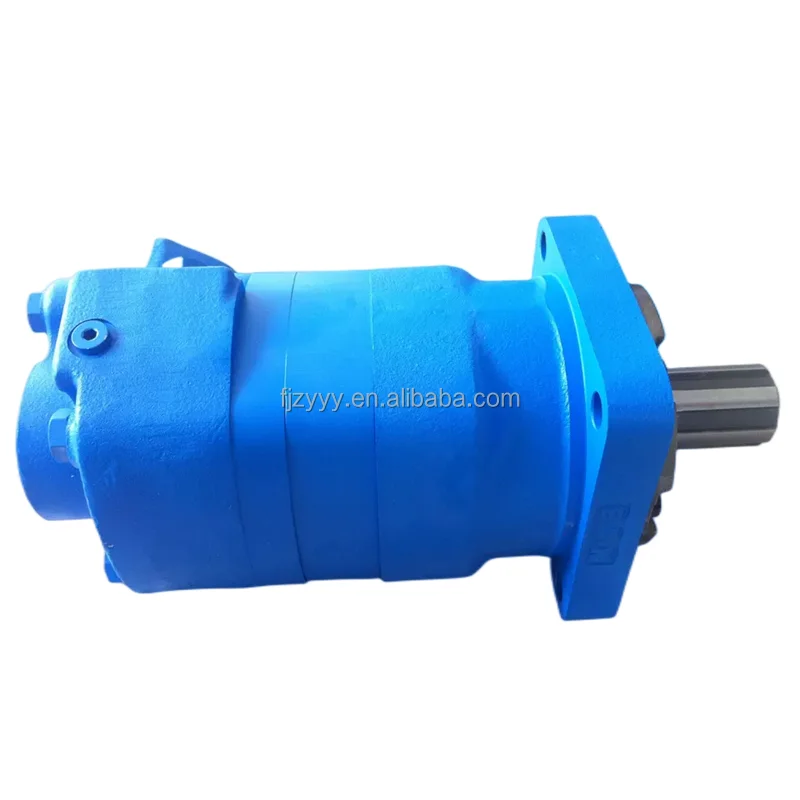

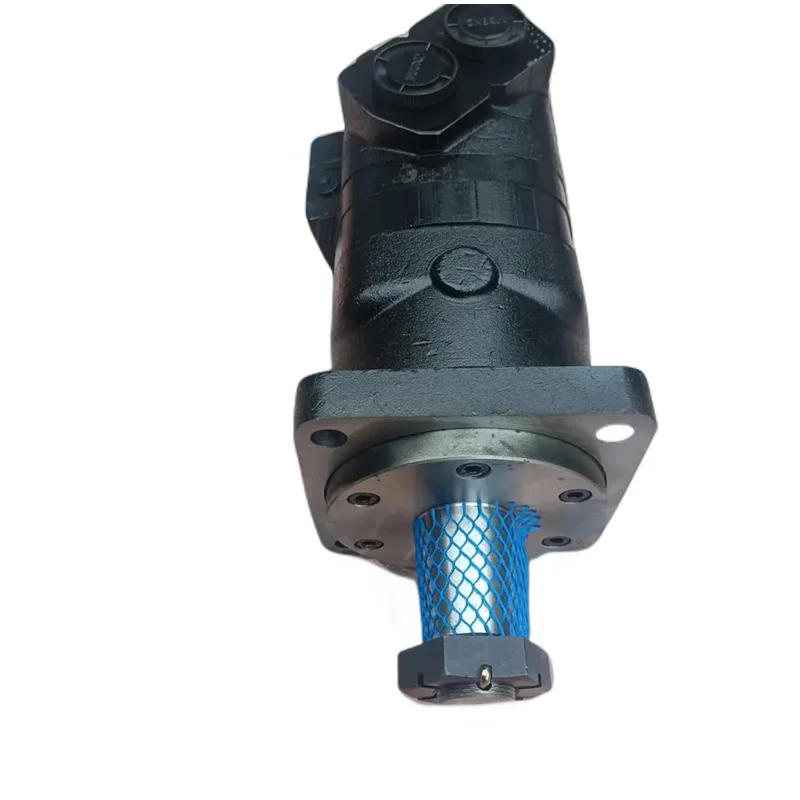

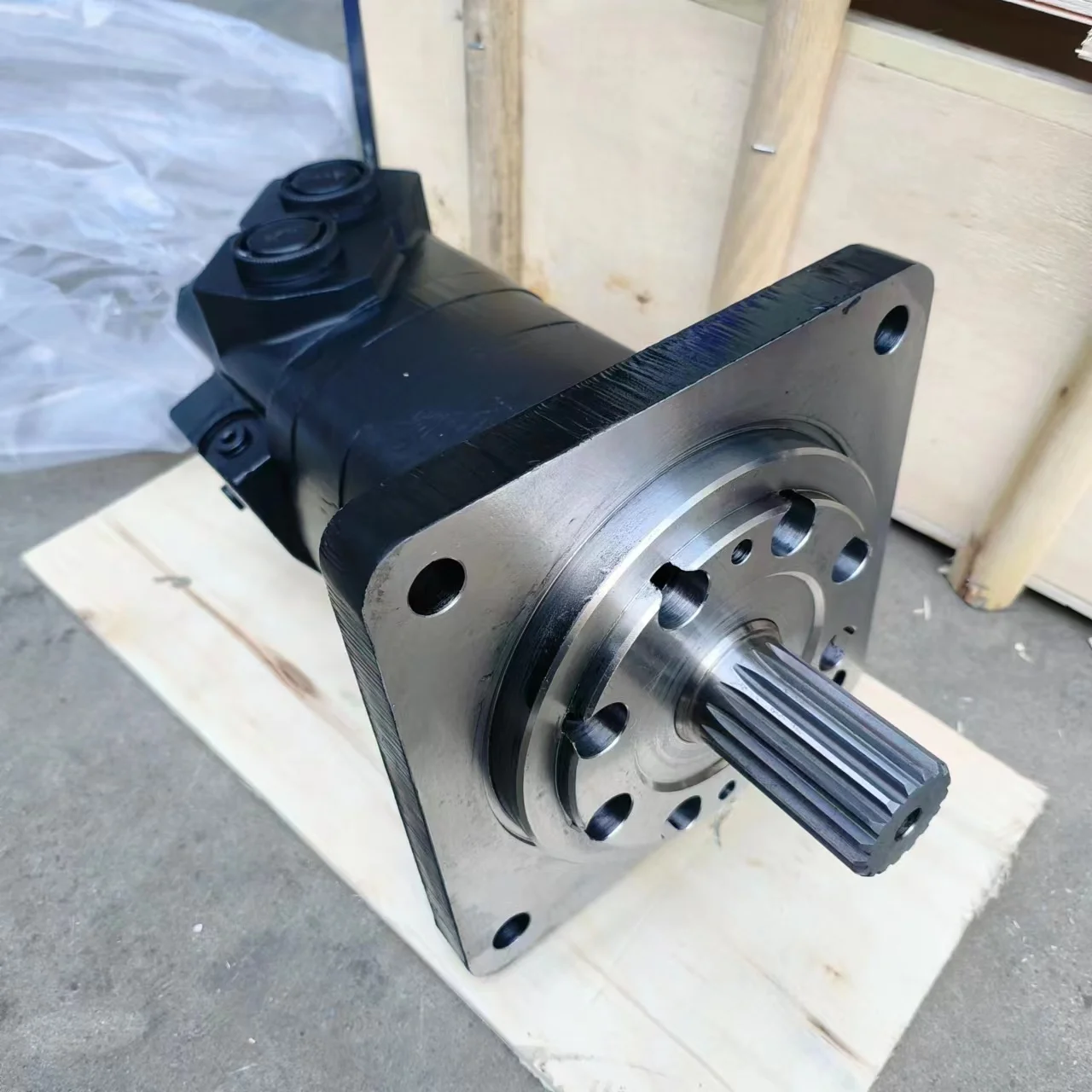

Eaton Char-Lynn 6000 Series Heavy-Duty Orbital Hydraulic Motors

Product Overview: The Eaton Char-Lynn 6000 Series (112- sequence) is among the most powerful orbital motors available on the market today. This category features the industry-leading models: 112-1131-006, 112-1331-006, 112-1108-006, 112-1215-006, 112-1062-006, and 112-1098-006. Engineered with precision Disc Valve technology, the 6000 series is built to handle high-pressure spikes and massive torque outputs. Its superior bearing capacity makes it the premier choice for large agricultural machinery, construction vehicle propel drives, massive winches, marine deck machinery, and industrial shredders.

Key Technical Advantages:

• High-Power Disc Valve Design: The independent valve plate automatically compensates for wear, significantly boosting volumetric efficiency and ensuring stable, massive torque output under high pressure.

• Geroler® Roller Geometry: Incorporates roller contacts in the internal star-and-ring set to minimize startup friction, providing pulse-free operation in Low Speed High Torque (LSHT) conditions.

• Superior Radial Load Resilience: Equipped with oversized tapered roller bearings, the shaft handles tons of side load directly—simplifying machine design by removing the need for external bearing supports.

• High-Pressure Seal Integrity: A sealing system specifically designed for high-pressure cycles ensures leak-free performance during prolonged operation in harsh outdoor and high-load industrial environments.

• Technical Spec Decoding:

  • 112- Series: Identifies the classic Eaton 6000 Series disc valve architecture.

  • 1131 / 1108 / 1062: Relates to displacement specifics (ranging from 195cc up to 985cc), as well as flange and shaft configurations.

Detailed Models & Specifications:

• Core Series: Eaton Char-Lynn 6000 Series (Heavy Duty).

• Featured Model Matrix:

  • 112-1131-006 / 112-1331-006: Standard mid-to-large displacement frames balancing flow and power.

  • 112-1108-006 / 112-1215-006: High-power frames widely utilized in agricultural chassis propel drives.

  • 112-1062-006 / 112-1098-006: Displacement variants optimized for specific industrial torque requirements.

• Core Performance Specs:

  • Max Pressure: Continuous up to 240 Bar (3500 PSI); intermittent peaks up to 310 Bar.

  • Torque Capability: Continuous torque output ranging from 1000 Nm to over 2500 Nm.

  • Mounting Standards: Compliant with SAE C or square flange specifications.
